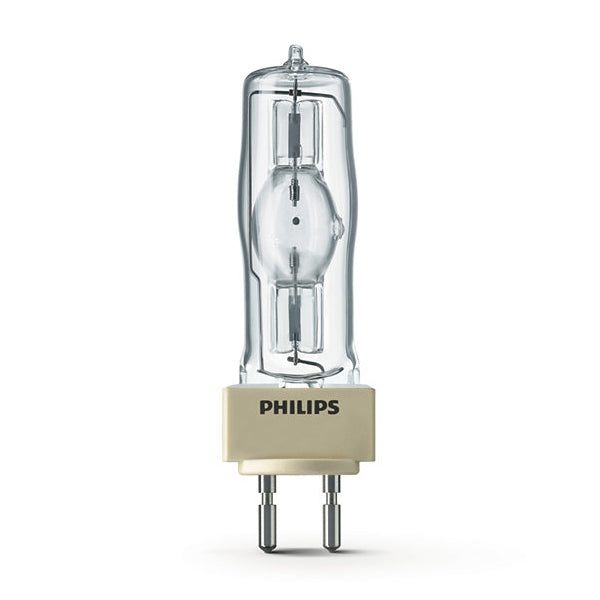

Philips MSD 1200w G22 High Intensity Discharge light bulb

Philips MSD 1200w G22 High Intensity Discharge light bulb

Philips SKU: 245589
$42799 $531.99 USD
10 in stock



Philips MSD 1200: Architectural "MSD lamp"single ended night colors The high luminous efficacy and optimal lamp filling of the single ended Architectural "MSD lamps" create high beam intensity and excellent color rendering. While the compact arc of the lamp allows efficient beam control and high intensity. Ideal to illuminate architecture of all types at night.


General Characteristics
12NC Code 928172005114
SKU 245589
Cap-Base G22
Cap-Base Information 30x53mm
Main Application Studio/Disco
Life to 50% failures 3000 hr
Light Technical Characteristics
Color Rendering Index 80 Ra8
Color Temperature 6000K
Chromaticity Coordinate X 323
Chromaticity Coordinate Y 328
Luminous Flux Lamp EM 82700 (min), 92000 (nom) Lm
Luminous Efficacy Lamp EM 77 Lm/W
Electrical Characteristics
Watts 1200 W
Lamp Wattage Technical 1200 W
Lamp Current 13.8 A
Dimmable No
Luminaire Design Requirements
Pinch Temperature 350 (max) C
Bulb Temperature 600 (max) C
Product Dimensions
Overall LengthC 183 (max) mm
Diameter D 41 (max) mm
Arc Length O 14 mm
Product Data
Product number 245589
EAN/UPC 8727900911350
Material Nr. (12NC) 928172005114
Full product name MSR 1200 1CT
CA Prop 65 Yes
CA Prop 65 Material Mercury

Additional Info


The MSD 1200 bulbs is used in following equipment
- Coemar Fiera 1200
- Coemar Onda
- Coemar Panorama Beam
- Coemar Panorama cyc 2.4
- Coemar Super cyc
- Derksen GL 1200 MSD
- ETC AR 500
- F.A.L. Night colour PAN
- Lampo, Weichhart Sentinel MSD 1200
- Robert Juliat Manon
- SGM Elettronica Giotto Barndoors
- SGM Elettronica Giotto Dome
- Studio Due City Beam
