Philips TUV 20W 4P SE Germicidal Lamp for water and air disinfection

Philips 230615 TUV 20W 4P SE UNP/32UVC Germicidal Lamp for water and air disinfection

Philips 230615 TUV 20W 4P T5 lamps are single- or double-ended UVC (germicidal) lamps used in professional water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.

Application:
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury
- Areas with low maintenance and/or disruptive costs
Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the lifetime of the lamp
- Useful lifetime of 11,000 hours
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size - Warning sign on lamp indicates that the lamp radiates UVC
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Manufacturer	Philips
Ordering Code	815597
Part Number	230615
Abbreviation Name	TUV 20W 4P SE UNP/32
Base	4-Pin
Bulb Type	UVC Germicidal Bulbs
Diameter (in)	0.76

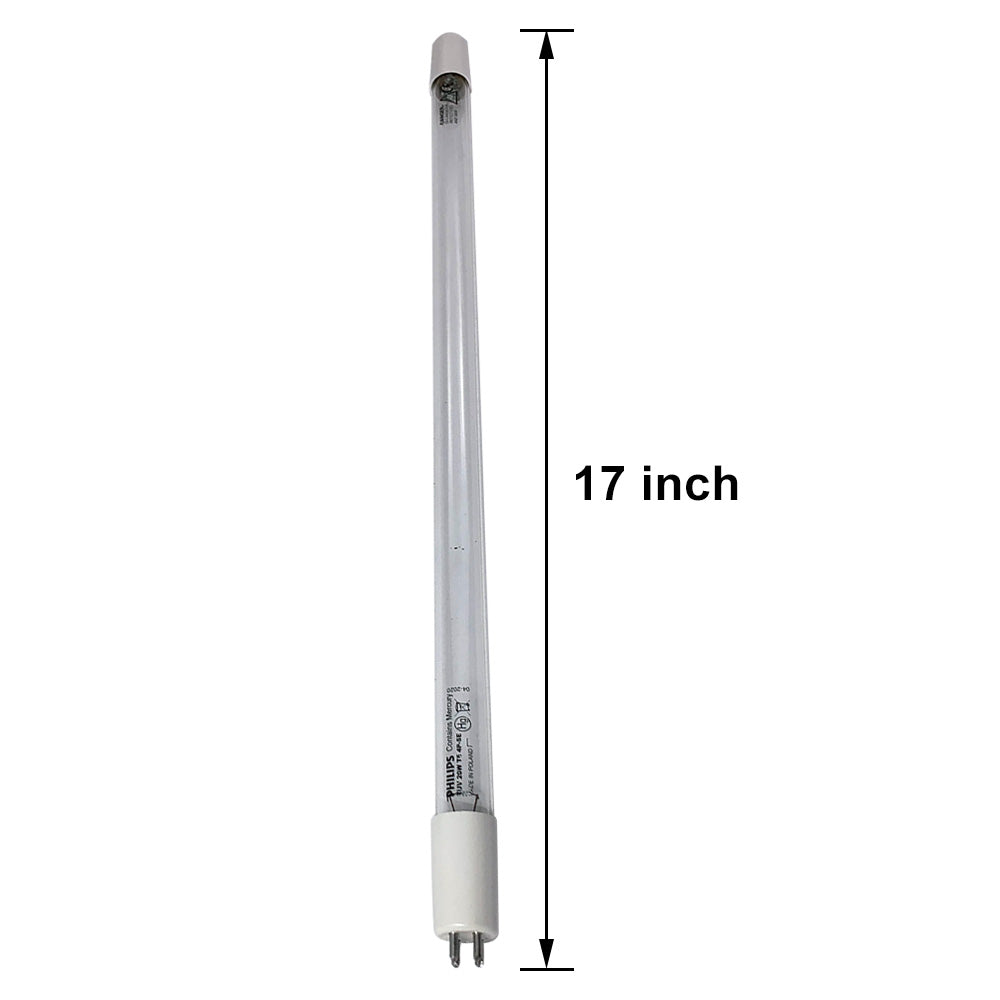

Maximum Overall Length (in)	17
Rated Life (Hours)	11000
Shape	T5
Wattage (W)	20W
Voltage (V)	45V
UV-C Radiation	6.0W
EAN/UPC	8727900815597

Manual:

Ozone emission statement Signify TUV 4W up to 800W
Germicidal Tubular Fluorescent EU Declaration of Conformity
