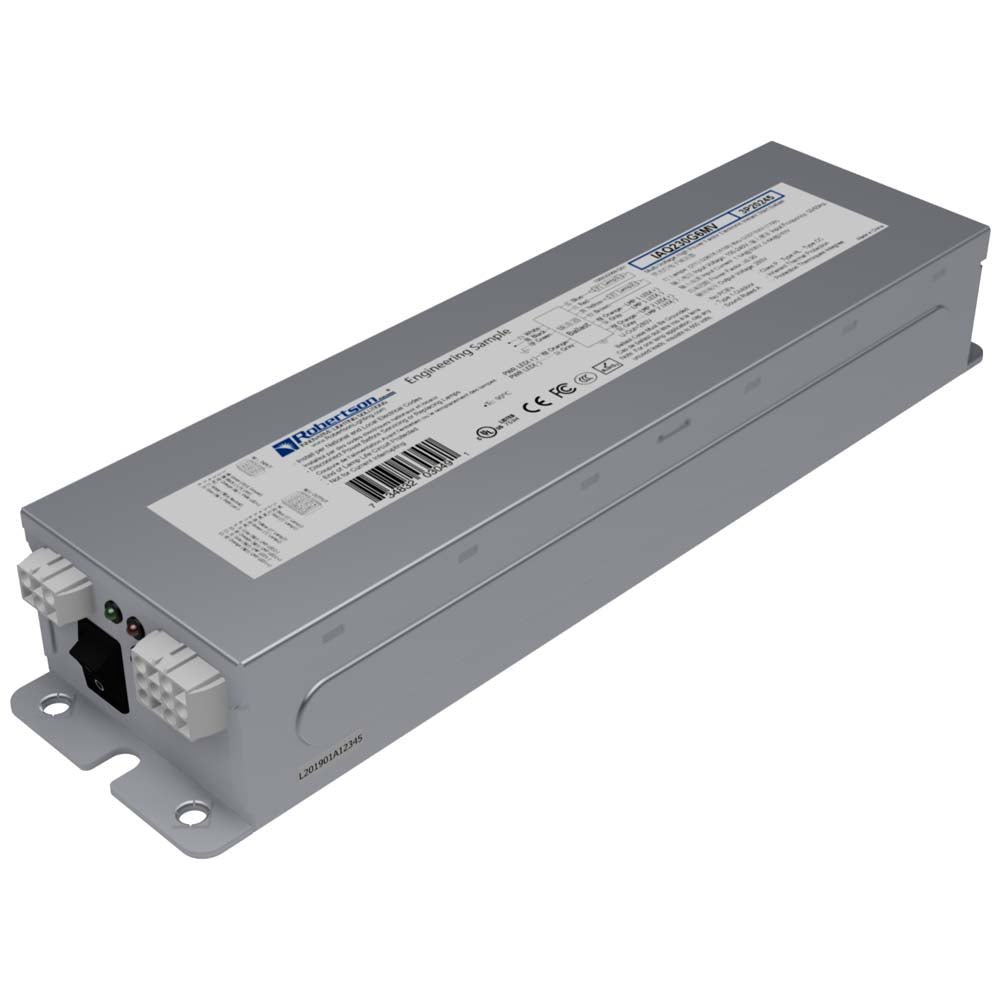

Robertson Electronic Start UV Germicidal Ballast 17-41w Single Pin 100-240v

Robertson SKU: IAQ230G6MV
$13499 $188.99 USD
50 in stock




Description

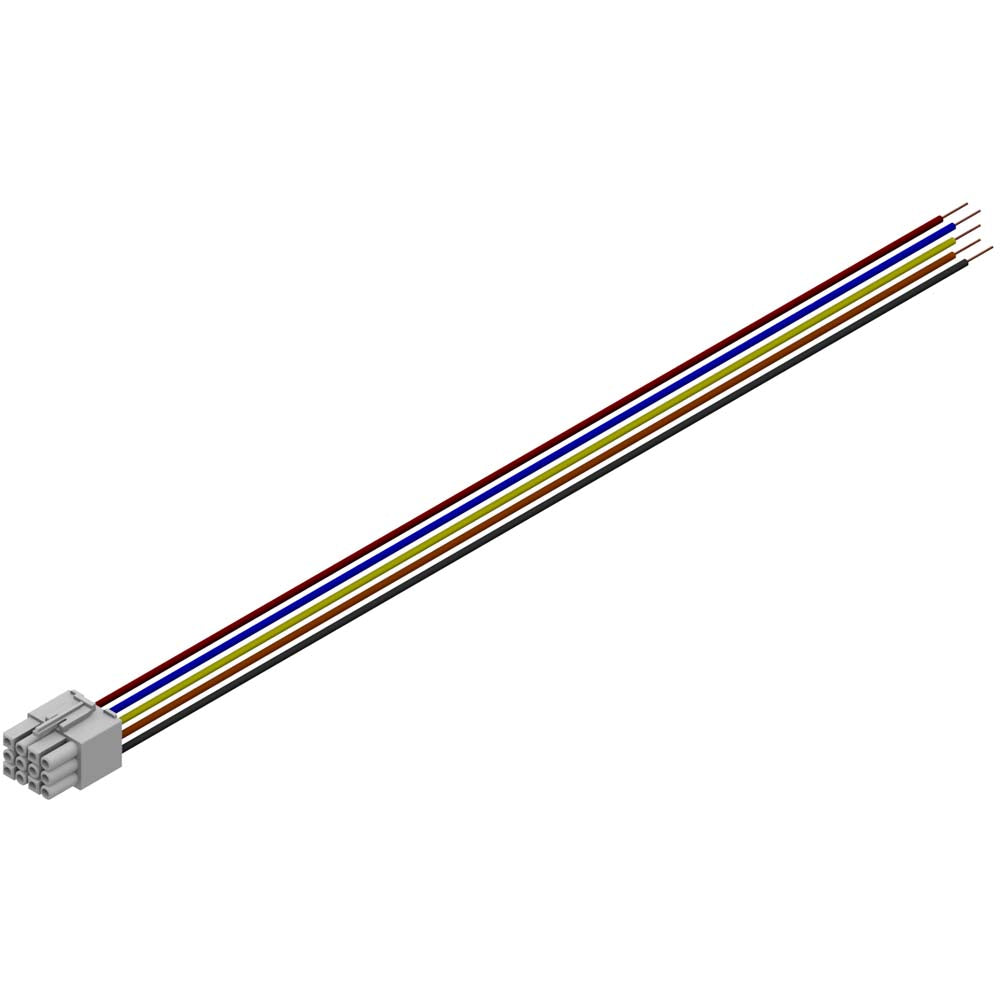

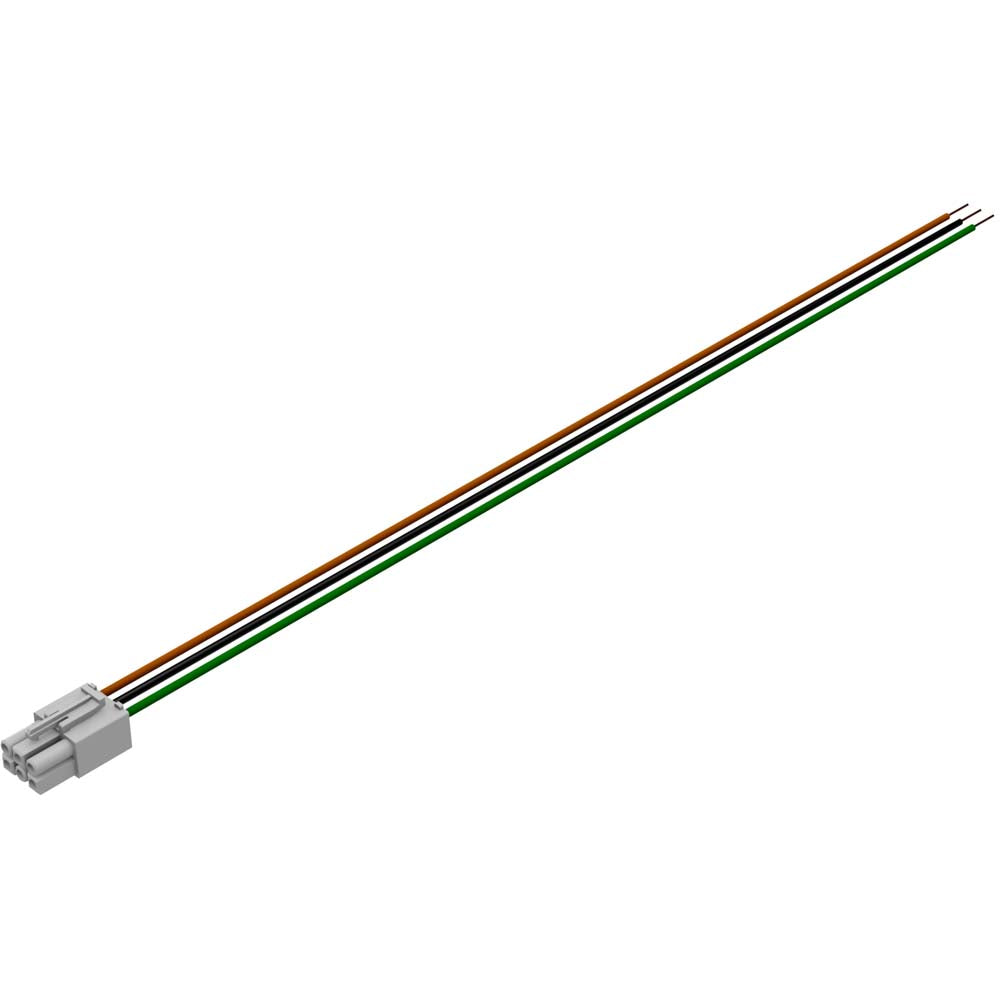

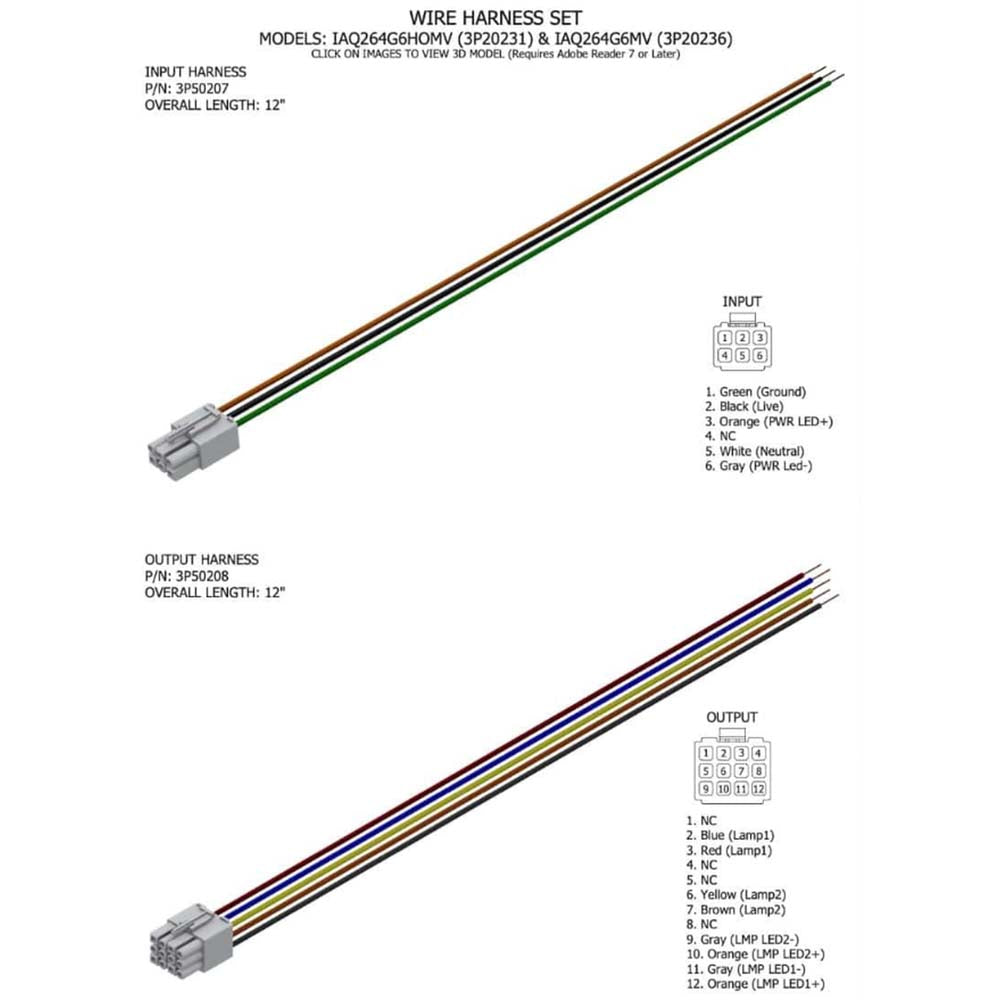

Electronic Instant Start Ballast (for Instant Start Lamps), 425mA nominal lamp current with an Arc voltage between 40V-100V, Input voltage of 100-240Vac, for 2/1 12W-43W Lamp, 50-60Hz, wire harness connectors (included with ballast)

ELECTRICAL:
- Start Time(sec): 1.3
- High Power Factor
- Ballast Shut Down at Open Load
- Internal Fuse
- Output Voltage U <280V
- End of Lamp Life Protection

PHYSICAL:
- Solid Single Leads
- UL1316 18AWG
- Lead Tolerance +1.00-0.50, Strip 0.375 +0.06
- FR-4 PCB Dbl Sided Plated Thru Holes
- ON/OFF Rocker Switch
- Two LED Lamp Indicators
- LED Power Good Indicator

APPLICATION:
- Maximum Case Temperature 194F/90C
- Maximum Ambient Temperature 122F/50C
- Minimum Starting Temperature 0F/-18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft. Max. Lead Length, 18AWG Shielded or in Conduit

Specs

Ballast Type Electronic
Starting Method Instant Start
Input Voltage 100-240Vac 10%
Lamp Connection Parallel
Input Frequency 50/60Hz

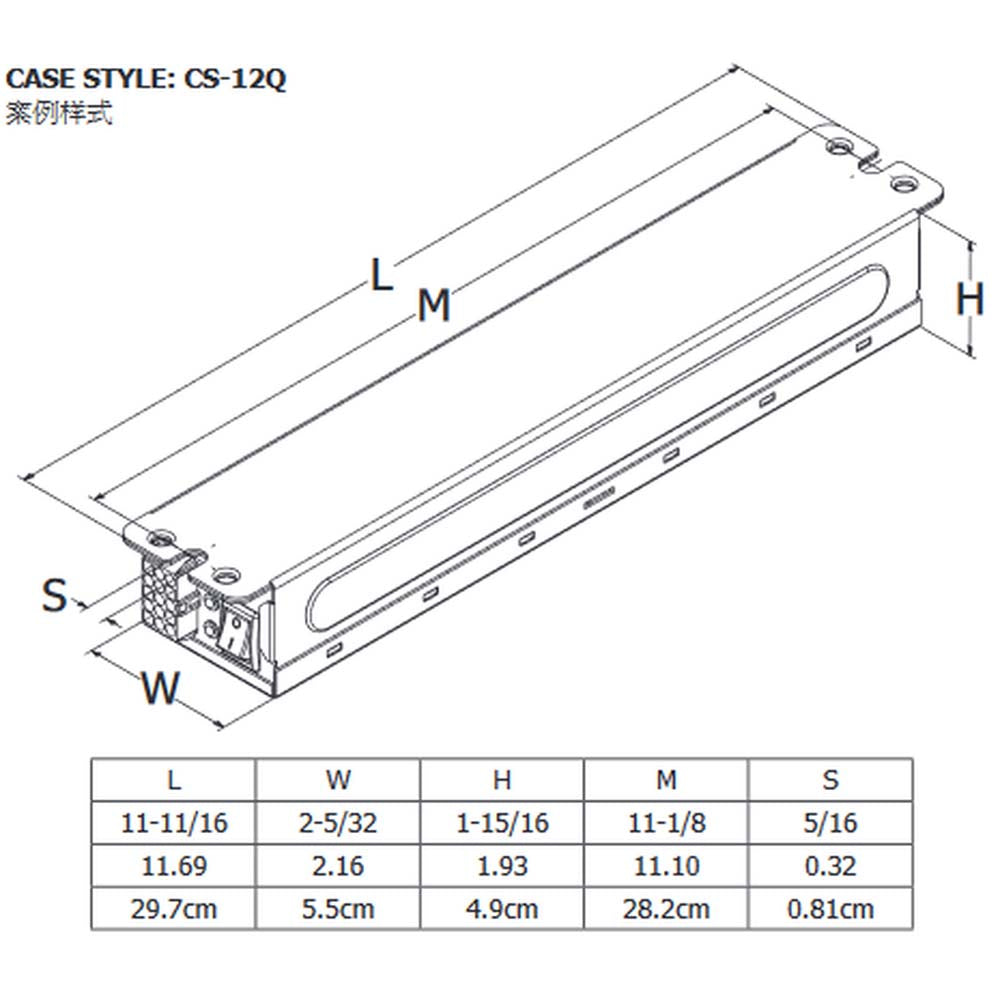

Housing 22ga 5052 H43 Aluminum

Lamp Compatibility

- 10T5VH/C
- G10T5 1/2 L
- G10T5 1/2 VH
- G10T5L
- G10T5L/C
- G10T5VH
- G10T5VH/C
- G14T5
- G18T6L
- G18T6VH
- G24T5L
- G24T5VH
- G24T6L
- G24T6VH
- G30T6L
- G30T6L/U
- G30T6VH
- G30T6VH/U
- G36T5
- G36T5L
- G36T5L/C
- G36T5VH
- G36T5VH/C
- G36T6
- G36T6L
- G36T6L/U
- G36T6VH
- G36T6VH/U
- G37T6L
- G37T6VH
- GLS692T5VH
- GSL692T5L
- GU22-10T5L
- GU22-10T5VH
- GU22-36T5L
- GU22-36T5VH
- GU22-390T5L
- GU22-390T5VH
- GU76-10T5L
- GU76-10T5VH
- GU76-36T5L
- GU76-36T5VH
- GU76-390T5L
- GU76-390T5VH
- LTC40T5

Data Sheet
