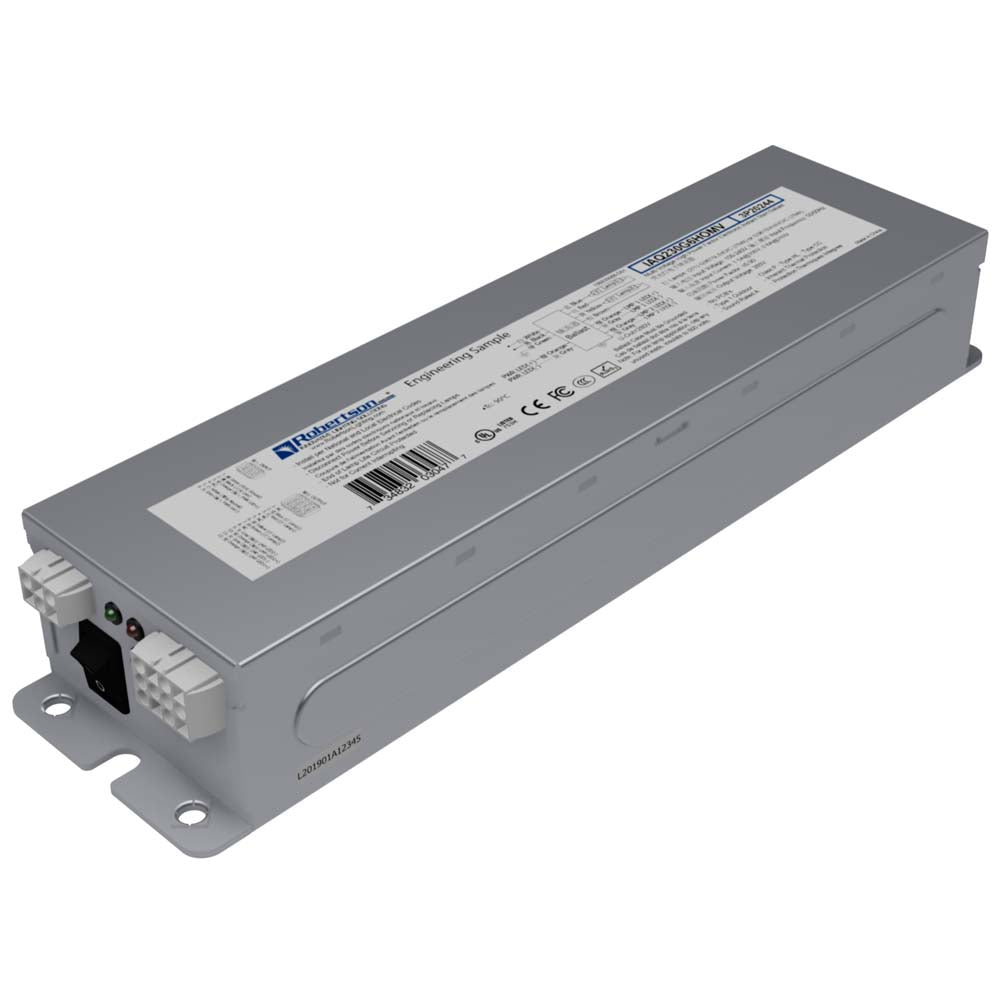

Robertson IAQ230G6HOMV Electronic Instant Start Ballast 100-240V

Description
Electronic Instant Start Ballast (for Instant Start Lamps), 800mA nominal lamp current with an Arc voltage between 40V-100V, Input voltage of 100-240Vac, for 2/1 32W-80W Lamp, 50-60Hz, wire harness connectors (included with ballast).
APPLICATION:- Maximum Case Temperature 194F/90C
- Maximum Ambient Temperature 122F/50C
- Minimum Starting Temperature 0F/-18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft. Max. Lead Length, 18AWG Shielded or in Conduit
SAFETY & CERTIFICATIONS:
- UL 935 (Class P, Type CC, Type1 Outdoor, Type HL)
- cULus, CE, CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3)
- Anti-Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts = 2
- Inrush Current <40 AMPS
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A
Specs
Ballast Type | Electronic |
Starting Method | Instant |
Start Input Voltage | 100-240Vac 10% |
Lamp Connection | Parallel |
Input Frequency | 50/60Hz |
Housing | 22ga 5052 H43 Aluminum |
Lamp Compatibility
- G36T5L/HO/C
- G36T5VH/HO/C
- GHO36T5L
- GHO36T5VH
- GHO436T5L
- GHO846T5L
