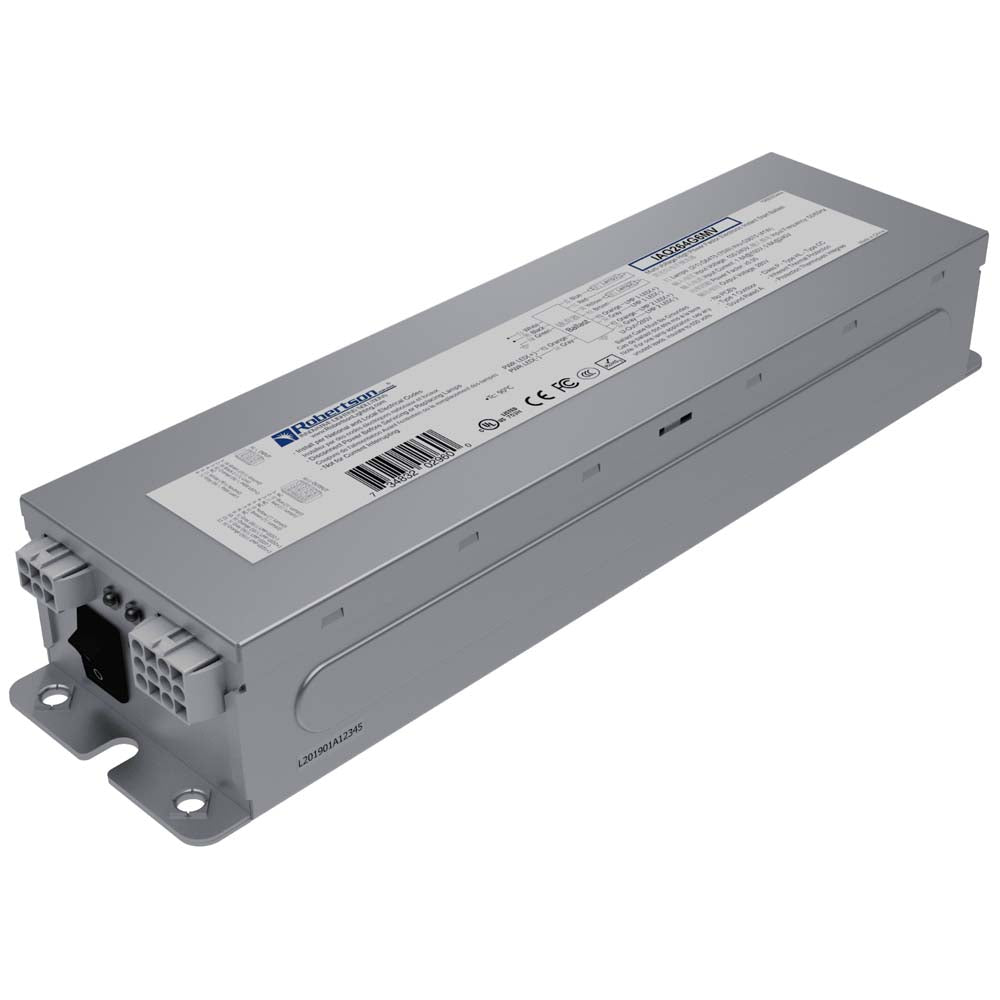

Robertson IAQ264G6MV Electronic Instant Start Ballast 100-240V

Robertson SKU: IAQ264G6MV
$12199 $171.99 USD
50 in stock




Description

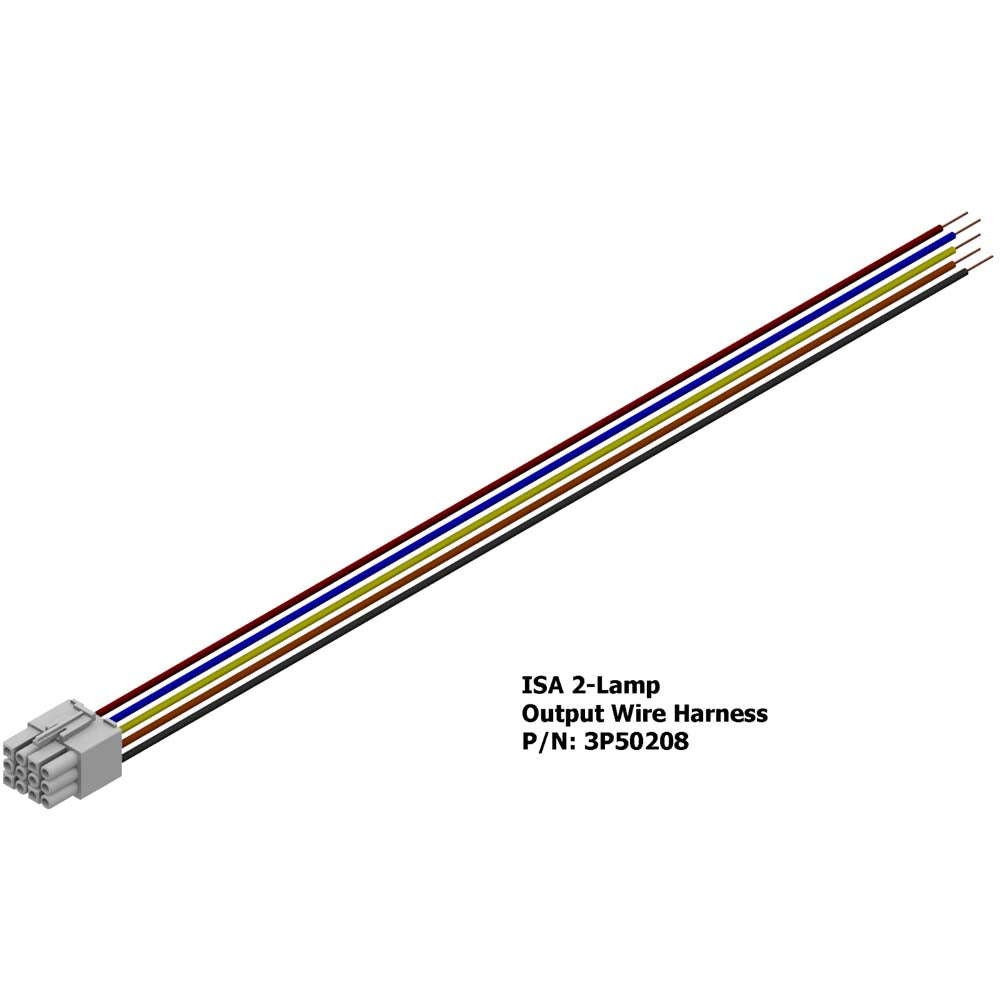

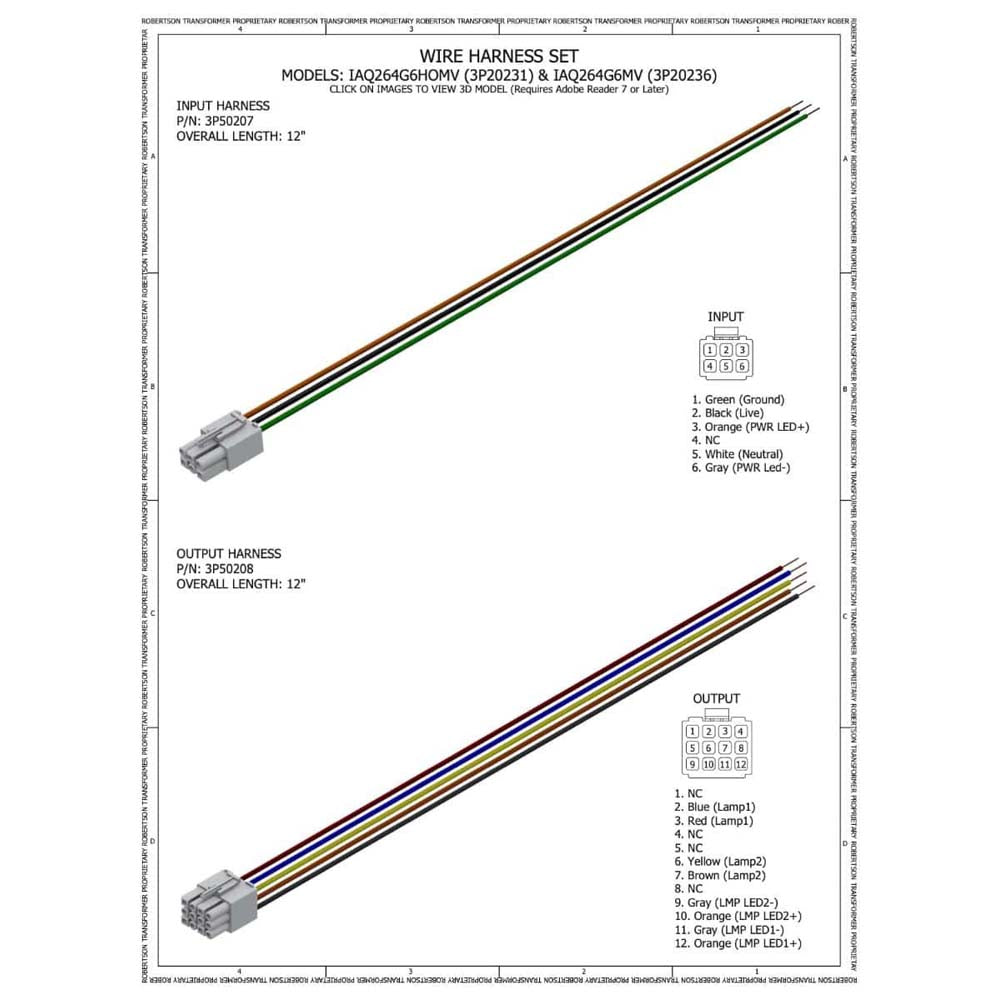

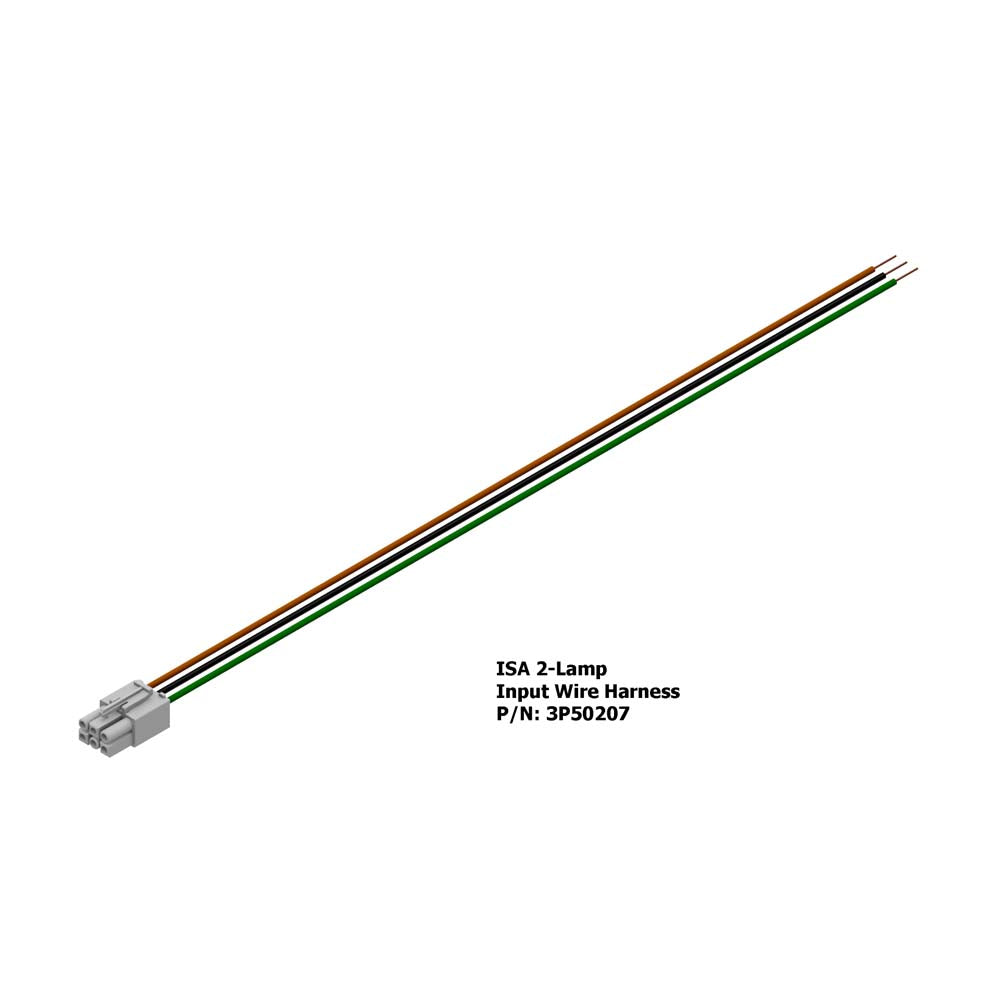

Electronic Instant Start Ballast (for Instant Start Lamps), 425mA nominal lamp current with an Arc voltage between 92V-176V, Input voltage of 100-240Vac, for 2/1 39W-75W Lamps, 50-60Hz, wire harness connectors (included with ballast).

APPLICATION
- Maximum Case Temperature 194F/90C
- Maximum Ambient Temparature 122F/50C
- Maximum Starting Temperature 0F/18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft.Max.Lead Length,18AWG Shielded or in Conduit

SAFETY & CERTIFICATIONS:
- UL 935 (Class P,Type CC,Type1 Outdoor, Type HL)
- cULus,CE,CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65EU&2015/863 Amendment RoHS 3)
- Anti- Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts =2
- Inrust Current <40AMPS
- Meets ANSI Standard C62.41 for transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A

Specs

Ballast Type Electronic
Starting Method Instant
Input Voltage 100-240Vac 10%
Lamp Connection Parallel
Input Frequency 50/60Hz
Housing 22ga 5052 H43 Aluminum

Lamp Compatibility

- G36T5L
- G36T5L/C
- G36T5VH
- G36T5VH/C
- G36T6
- G36T6L
- G36T6L/U
- G36T6VH
- G36T6VH/U
- G37T6L
- G37T6VH
- G48T5L
- G4875VH
- G48T6L
- G48T6L/U
- G4876VH
- G48T6VH/U
- G64T5
- G64T5L
- G64T5L/C
- G64T5VH
- G64T5VH/C
- G67T5L
- G67T5VH
- GU22-36T5L
- GU22-36T5VH
- GU76-36T5L
- GU76-36T5VH
- LTC40T5
- LTC64T5
- TUV 36 SPT5
- TUV 64 SPT5

Data Sheet
