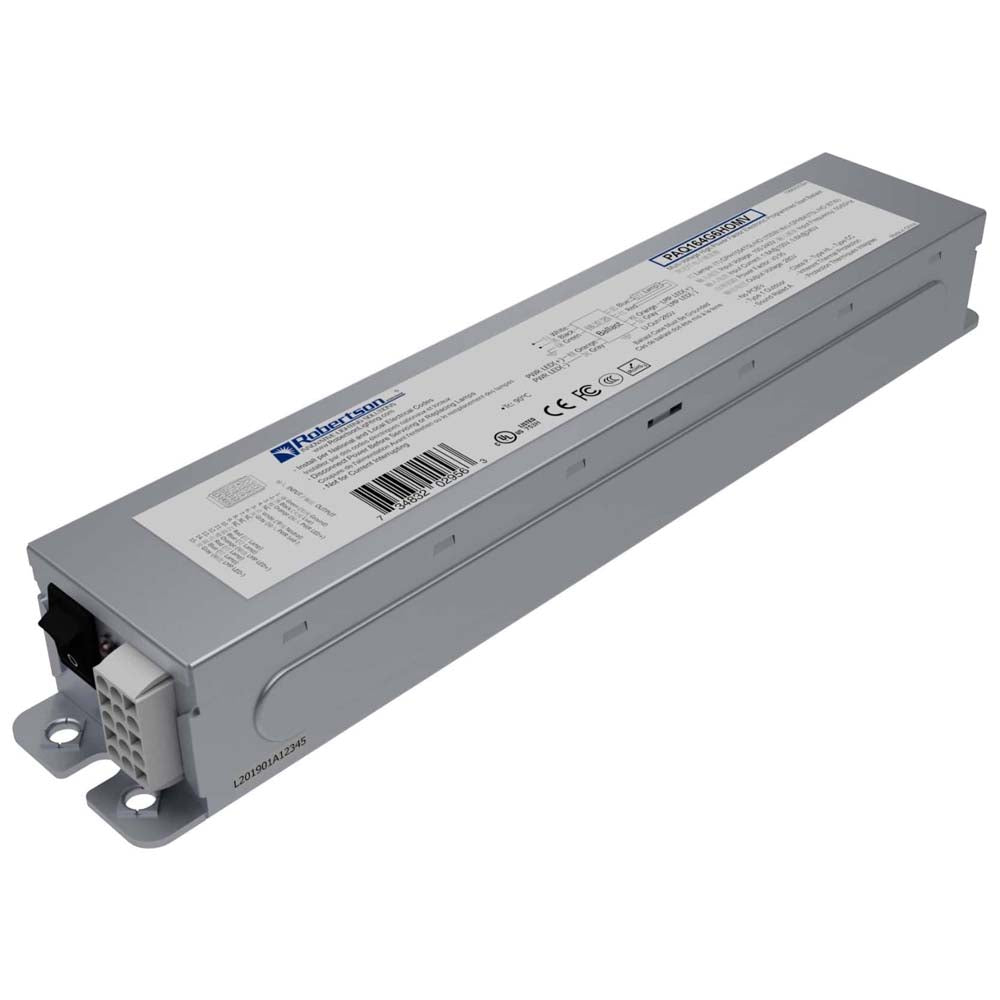

Robertson PAQ164G6HOMV Electronic Program Start Ballast 100-240V

Robertson SKU: PAQ164G6HOMV
$12099 $170.99 USD
50 in stock




Description

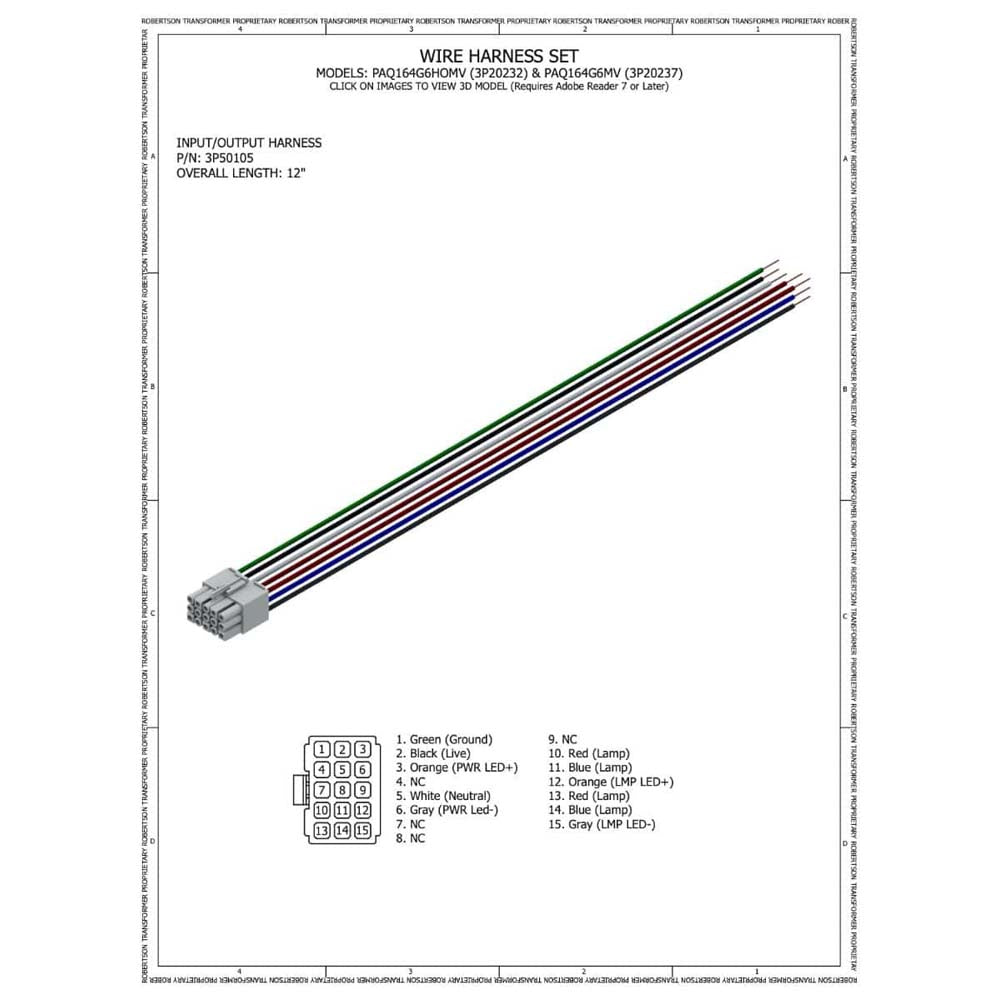

Electronic Program Start Ballast (for Preheat Start Lamps), 800mA nominal lamp current with an Arc voltage between 100V-180V, Input voltage of 100-240Vac, for 1 80W-155W Lamp, 50-60Hz, wire harness connector (included with ballasts).

APPLICATION:
- Maximum Case Temperature 194F/90C
- Maximum Ambient Temperature 122F/50C
- Minimum Starting Temperature 0F/-18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft. Max. Lead Length, 18AWG Shielded or in Conduit.

SAFETY & CERTIFICATIONS:
- UL 935 (Class P, Type CC, Type1 Outdoor, Type HL)
- cULus, CE, CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3)
- Anti-Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts = 2
- Inrush Current <40 AMPS
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A

Specs

Ballast Type Electronic
Starting Method Programmed Start
Input Voltage 100-240Vac 10%
Lamp Connection Parallel
Input Frequency 50/60Hz
Housing 22ga 5052 H43 Aluminum

Lamp Compatibility

- GFT95DL/2G11/SE/OF
- GHO36T5L/4PSE
- GHO36T5VH/4PSE
- GHO64T5L/4
- GHO64T5L/4PSE
- GHO64T5VH/4
- GHO64T5VH/4PSE
- GHO893T5L/4
- GPH841T5HO
- GPH846T5L/HO
- GPH846T5L/HO/4PSE
- GPH846T5VH/HO
- GPH846T5VH/HO/4PSE
- GPH893T5L/HO
- GPH893T5L/HO/4PSE
- GPH893T5VH/HO
- GPH893T5VH/HO/4PSE
- GPH1219T5L/HO/4P
- GXO36T5L
- GXO64T5L
- GXO846T5L
- GXO893T5L
- HNS L 95 W 2G11
- LTC80T5SE
- LTC125T5SE
- PLL95WHO/TUV
- TUV 36T5 HO 4P-SE
- TUV 36 T5/HO
- TUV 64T5 HO 4P-SE
- TUV 64T5 HO 4P SE
- TUV 64 T5/HO
- TUV 75W HO
- TUV 75W HO 1SL/6
- TUV 95W HO
- TUV PL-L 95W/4P HO
- 23403 Osram HNS L 95 W 2G11

Data Sheet
