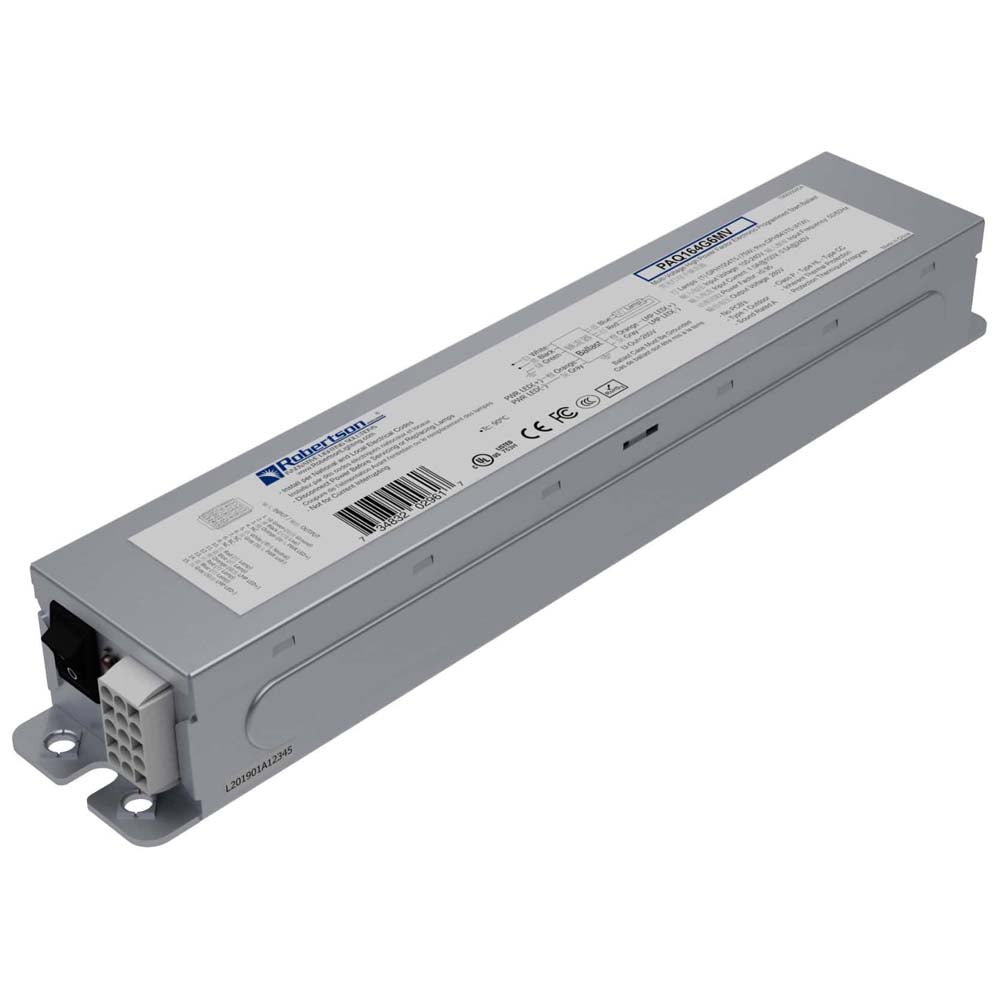

Robertson PAQ164G6MV Electronic Program Start Ballast 100-240V

Robertson SKU: PAQ164G6MV
$12999 $181.99 USD
50 in stock




Description

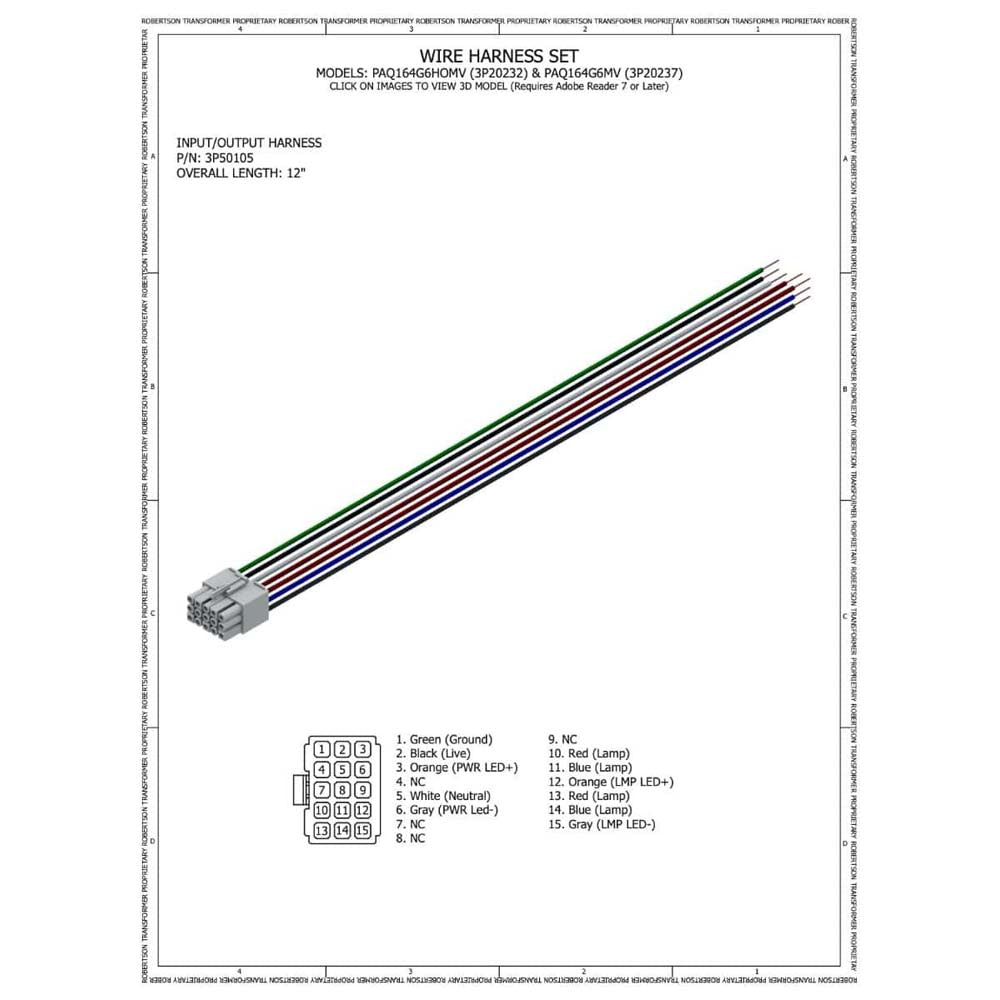

Electronic Program Start Ballast (for Preheat Start Lamps), 425mA nominal lamp current with an Arc voltage between 92V-176V, Input voltage of 100-240Vac, for 1 41W-75W Lamp, 50-60Hz, wire harness connector (included with ballasts).

APPLICATION:
- Maximum Case Temperature 194F/90C
- Maximum Starting Temperature 122F/50C
- Minimum Starting Temperature 0F/-18C
- Lamp Starts > 50,000 Starts
- Remote Mounting 20 ft.Max.Lead Length,18AWG Shielded or in Conduit

SAFETY & CERTIFICATIONS:
- UL 935 (Class P,Type CC,Type1 Outdoor,Type HL)
- cULus,CE, CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3 )
- Anti -Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts = 2
- Inrush Current <40 AMPS
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirments
- Sound Rated A

Specs

Ballast Type Electronic
Starting Method Program Start
Color White
Input Voltage 100-240Vac 10%
Lamp Connection Parallel
Input Frequency 50-60Hz
Housing 22ga 5052 H43 Aluminum

Lamp Compatibility

- G36T5/4P/SE
- G64T5/4P/SE
- G64T5L/4
- GCL36T5L/Cell
- GCL36T5VH/Cell
- GCL793T5L/Cell
- GCL793T5VH/Cell
- GPH793T5L
- GPH793T5L/4
- GPH793T5L/4P
- GPH793T5VH/4
- GPH810T5L/4
- GPH810T5VH/4
- GPH843T5L
- GPH843T5VH
- GPH1148T5VH
- GPH1148T5L
- GPH1554T5L
- GPH1554T5VH
- GPH1630T5L
- GPH1630T5VH
- LTC40T5SE
- LTC64T5SE
- TUV 36 4P-SE T5
- TUV 64 4P-SE T5
