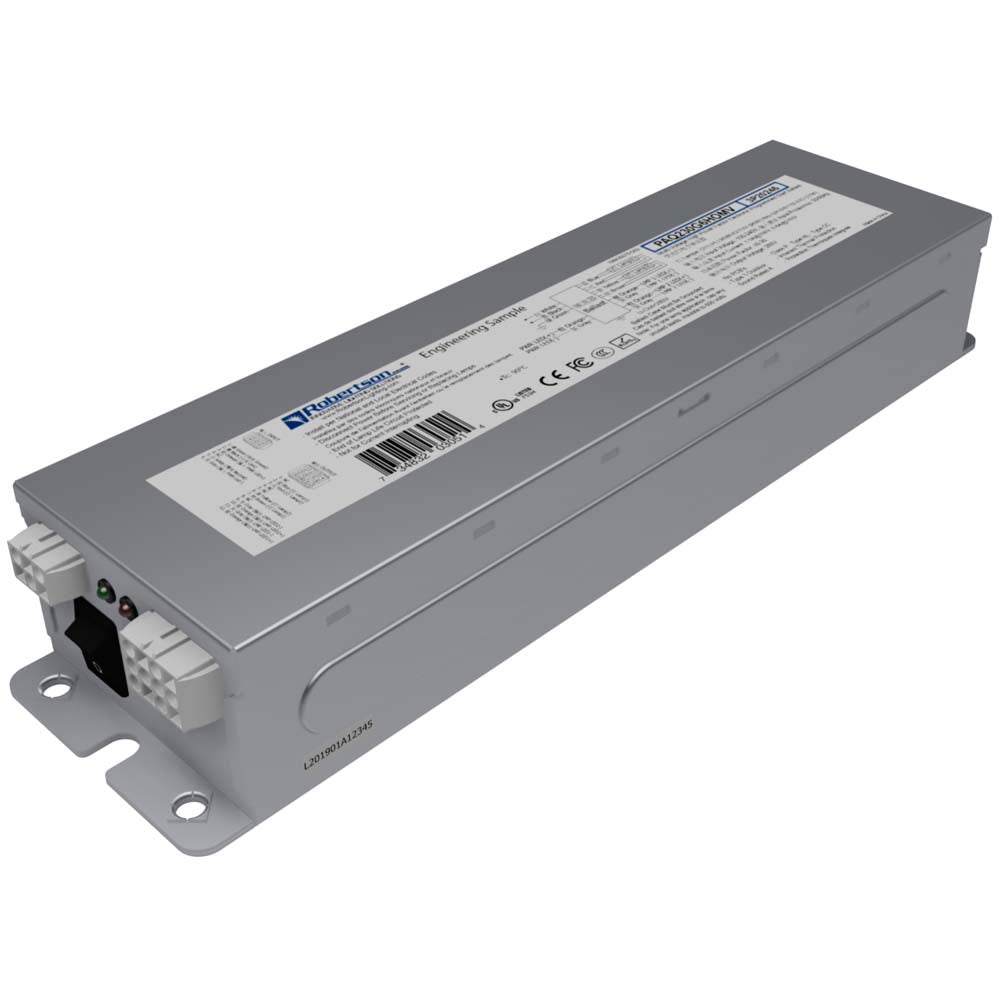

Robertson PAQ230G6HOMV Electronic Programmed Start Ballast 100-240V

Robertson SKU: PAQ230G6HOMV
$14099 $196.99 USD
50 in stock




Description

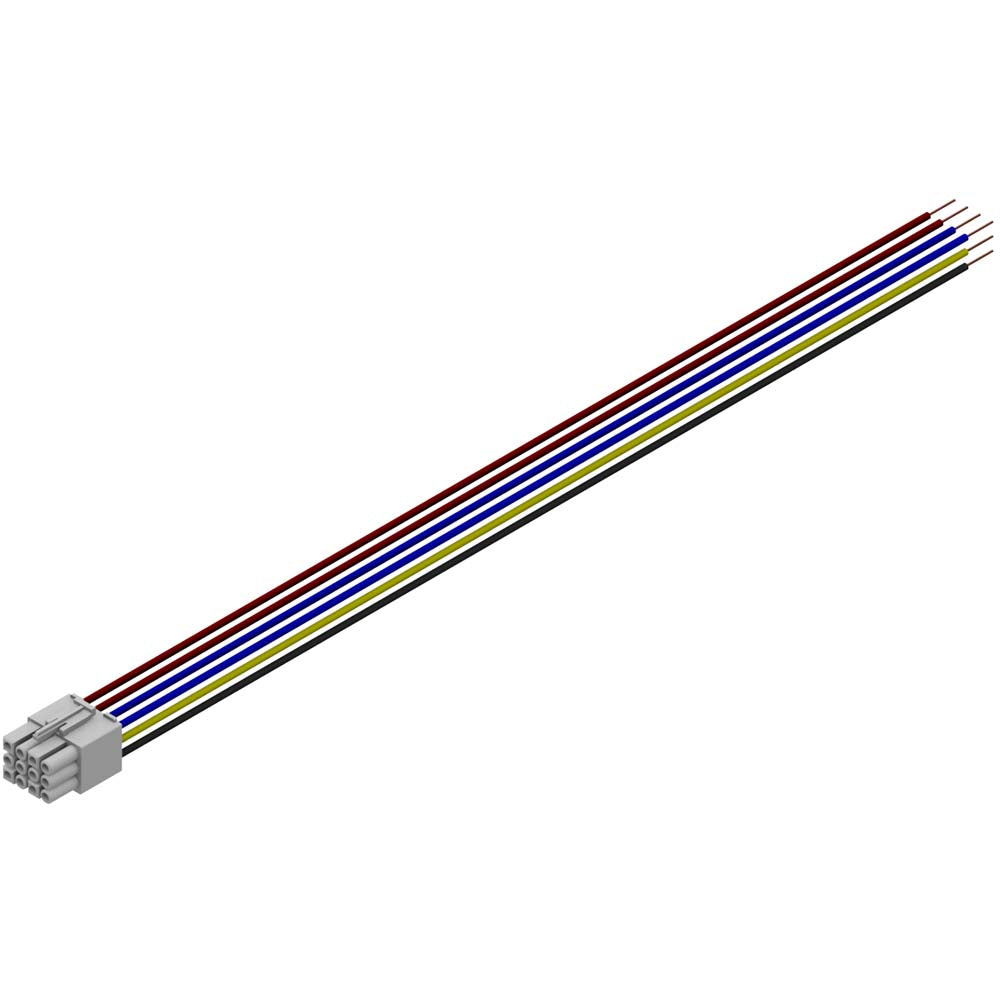

Electronic Program Start Ballast (for Preheat Lamps), 800mA nominal lamp current with an Arc voltage between 40V-100V, Input voltage of 100-240Vac, for 2/1 32W-80W Lamp, 50-60Hz, wire harness connectors (included with ballast).

APPLICATION:
- Maximum Case Temperature 194F/90C
- Maximum Ambient Temperature 122F/50C
- Minimum Starting Temperature 0F/-18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft. Max. Lead Length, 18AWG Shielded or in Conduit

SAFETY & CERTIFICATIONS:
- UL 935 (Class P, Type CC, Type1 Outdoor, Type HL)
- cULus, CE, CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3)
- Anti-Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts = 2
- Inrush Current <40 AMPS
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A

Specs

Ballast Type Electronic
Starting Method Programmed Start
Input Voltage 100-240Vac 10%
Lamp Connection Parallel
Input Frequency 50/60Hz
Housing 22ga 5052 H43 Aluminum

Lamp Compatibility

- G55T8/HO
- G55T8/OF
- GFT60DL/2G11/SE/OF
- GHO36T5L/4
- GHO36T5VH/4
- GHO406T5L4P CELL
- GHO508T5L4P CELL
- GHO432T5L/MDBP
- GHO436T5L/4
- GHO846T5L/4
- GPH212T5L/HO
- GPH212T5VH/HO
- GPH287T5L/HO
- GPH287T5VH/HO
- GPH303T5L/HO
- GPH357T5L/HO
- GPH357T5VH/HO
- GPH406T5L/HO
- GPH436T5L/HO
- GPH436T5L/HO/4PSE
- GPH436T5VH/HO
- GPH508T5L/HO/4P
- GPH608T5HO
- GPH610T5L/HO/4P
- GPH793T5L/HO
- GPH793T5VH/HO
- GXO436T5L
- HNS 55 W G13
- HNS L 60W 2G11
- LTC55T8
- LTC80T5SE
- LTCQ35WHO/2G11
- PLL35WHO/TUV
- PLL60WHO/TUV
- TUV 36T5 HO 4P-SE
- TUV 36 T5/HO
- TUV 55W HO
- TUV PL-L 35W/4P HO
- TUV PL-L 35W/HO
- TUV PL-L 60W/4P HO

Data Sheet
