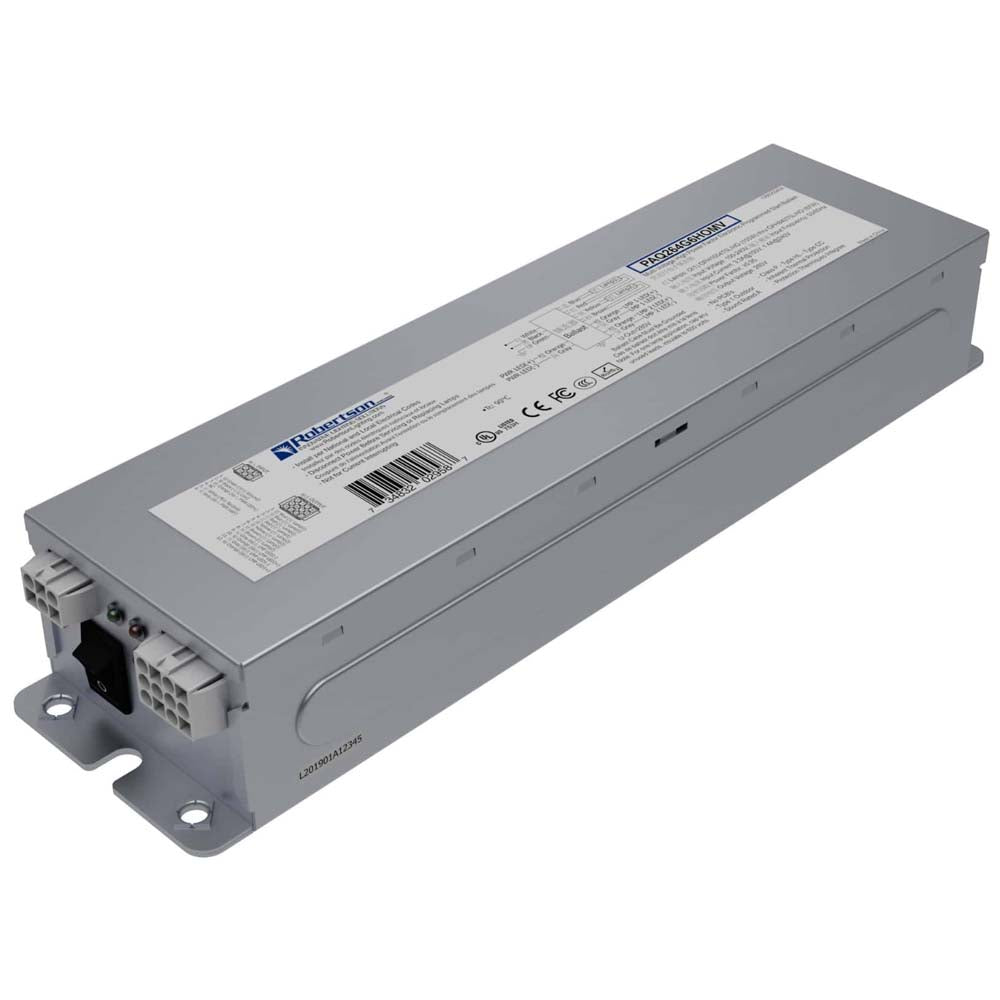

Robertson PAQ264G6HOMV Electronic Program Start Ballast 100-240V

Robertson SKU: PAQ264G6HOMV
$19399 $241.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


Description

Electronic Program Start Ballast (for Preheat Start Lamps), 800mA nominal lamp current with an Arc voltage between 100V-180V, Input voltage of 100-240Vac, for 2/1 80W-155W Lamp, 50-60Hz, wire harness connectors (included with ballast).

APPLICATION:
- Maximum Case Temperature 194F/90C
- Maximum Ambient Temperature 122F/50C
- Minimum Starting Temperature 0F/18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft.Max.Lead Lenght, 18AWG Shielded or in Conduit

SAFETY & CERTIFICATIONS:
- UL 935 (Class P,Type CC,Type1 Outdoor,Type HL)
- cULus,CE,CCC
- Leakage Current to UL 935 Standard
- EN 61347 -1:2001
- EN 61347 -2-1:2001
- EN 61347 -2-3:2000
- RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3)
- Anti-Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts =2
- Inrust Current <40 AMPS
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A

Specs

Ballast Type Electronic
Starting Method Programmed Start
Input Voltage 100-240Vac 10%
Lamp Connection Parallel
Input Frequency 50/60Hz
Housing 22ga 5052 H43 Aluminum

Lamp Compatibility

- GFT95DL/2G11/SE/OF
- GHO36T5L/4PSE
- GHO36T5VH/4PSE
- GHO64T5L/4
- GHO64T5L/4PSE
- GHO64T5VH/4
- GHO64T5VH/4PSE
- GHO893T5L/4
- GPH841T5HO
- GPH846T5L/HO
- GPH846T5L/HO/4PSE
- GPH846T5VH/HO
- GPH846T5VH/HO/4PSE
- GPH893T5L/HO
- GPH893T5L/HO/4PSE
- GPH893T5VH/HO
- GPH893T5VH/HO/4PSE
- GPH1219T5L/HO/4P
- GXO36T5L
- GXO64T5L
- GXO846T5L
- GXO893T5L
- HNS L 95 W 2G11
- LTC80T5SE
- LTC125T5SE
- PLL95WHO/TUV
- TUV 36T5 HO 4P-SE
- TUV 36 T5/HO
- TUV 64T5 HO 4P-SE
- TUV 64T5 HO 4P SE
- TUV 64 T5/HO
- TUV 75W HO
- TUV 75W HO 1SL/6
- TUV 95W HO
- TUV PL-L 95W/4P HO
- 23403 Osram HNS L 95 W 2G11

Data Sheet
