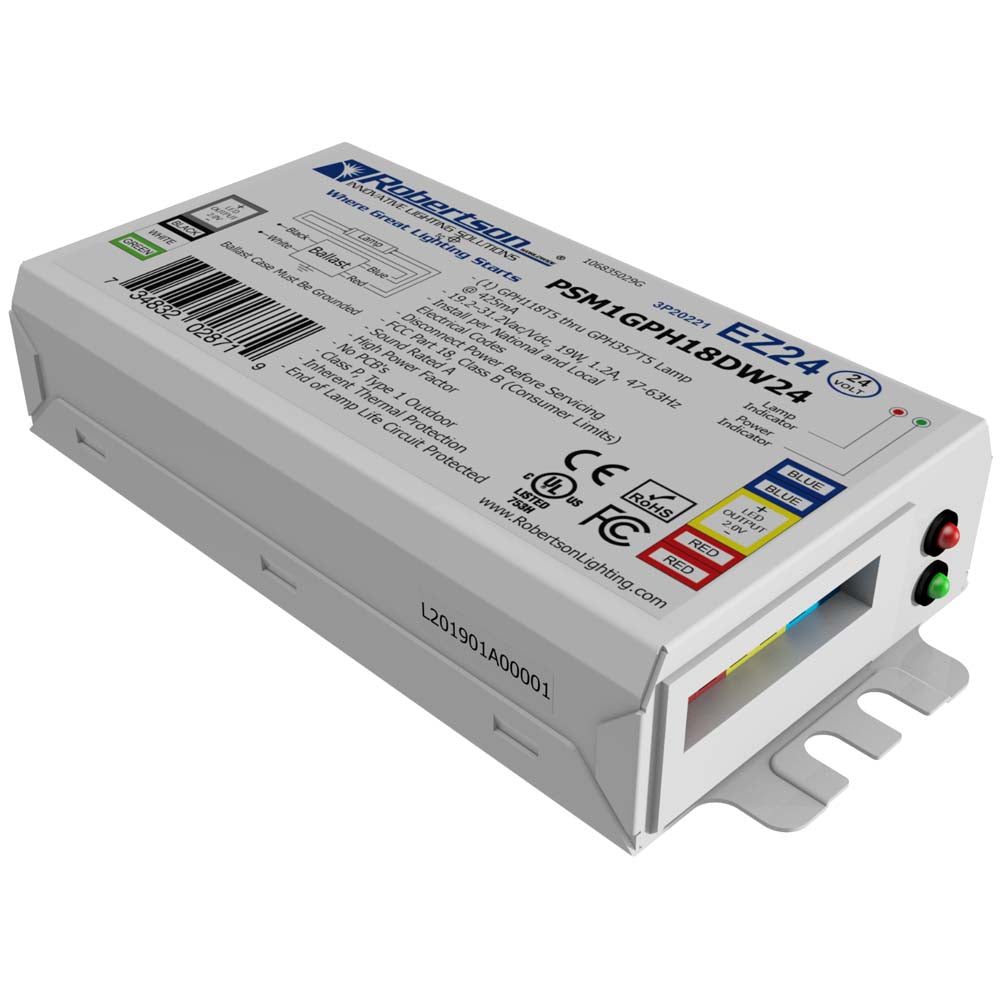

Robertson PSM1GPH18DW24 UV Germicidal Ballast 24v

Robertson SKU: EZ24-PSM1GPH18DW24
$6799 $101.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


Description

EZ24, Electronic Program Start Ballast (for Preheat Start Lamps), 425mA nominal lamp current with an Arc voltage between 16V-41V, Input voltage of 24Vac-24Vdc, for 1 8W-17W Lamp between a 4"-14" lamp length, 50-60Hz, dual entry connectors (no leads).

PERFORMANCE:
- Program Start electronic ballast
- Max Current THD = 15%
- Power factor 0.97
- Poke-in, Dual-entry color-code connectors

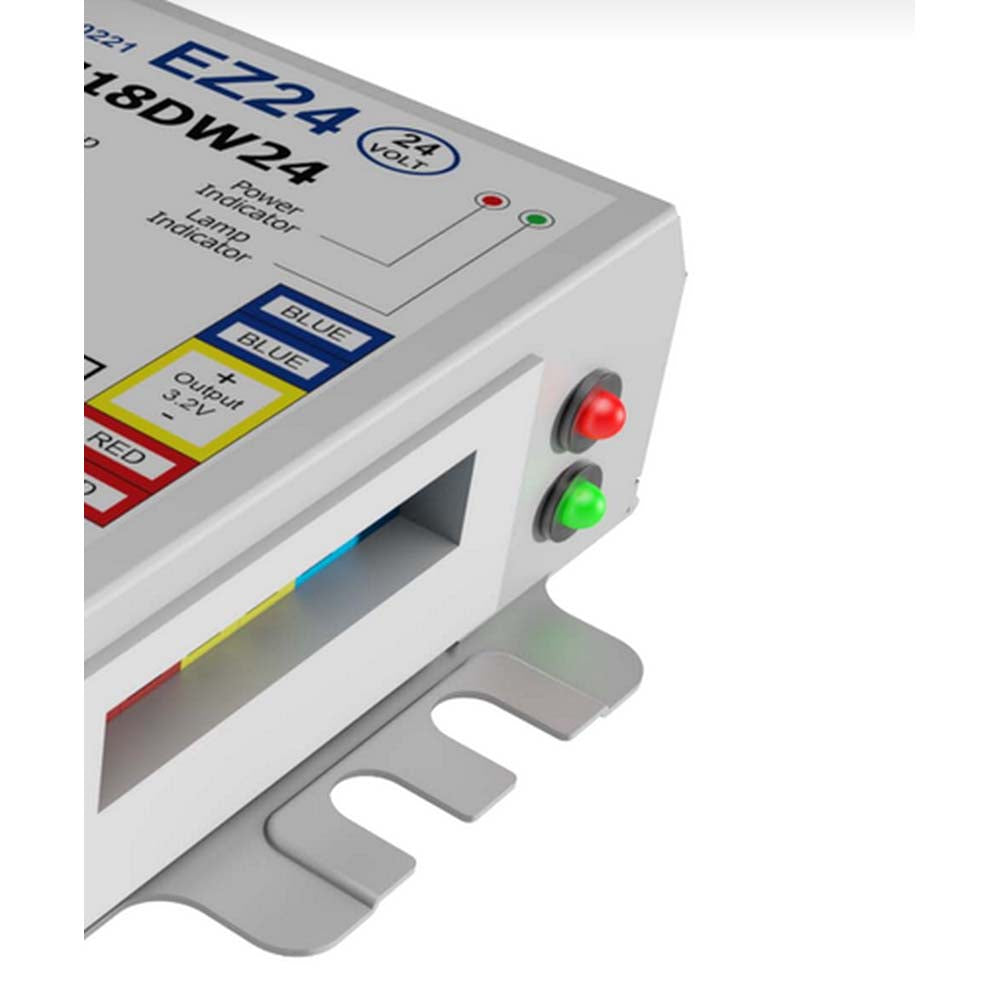

- Integral and connector power & lamp LED
- Internal Surge Protection
- Encased and Potted
- Best in class perfomance for EMC and EMI FCC Part 18 Class B and EN55015
- Meets ANSI Standard C62.41-1991 for transient protection.
- Meets ANSI Standard C82.41-1991 for transient protection.
- Meets ANSI Standard C82.11-2011 for ballast requirements.
- EN6 1000-3-2 2014 Electromagnetic compatibility (EMC) - Part 3-2: Limits for Harmonic current emissions (equipment input current ? 16 A per phase)
- EN61000-3-3:2013 Electromagnatic compability (EMC)-Part 3-3: Limits-Limitation of voltage changes,voltage fluctuations and flicker in public low voltage supply systems,for equipment with rated current ? 16 A phase and not subjected to conditional connection.
- EN61547: 2009,Equipment for general lighting purposes-EMC immunity requirment

APPLICATION:

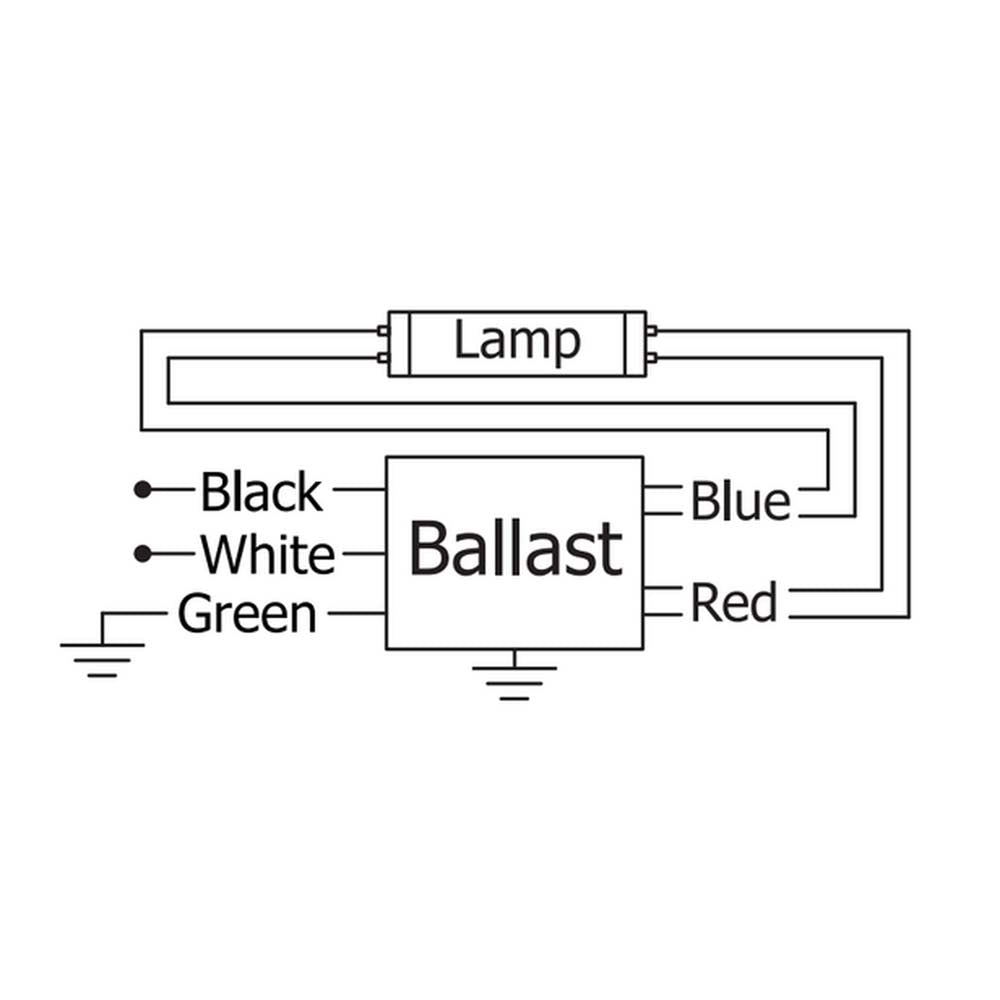

- Flexible wiring
- IP61 Rated
- Maximum case temperature 194F/90C
- Maximum ambient temperature 176F/-80C
- Minimum starting temperature 0F/-18C
- Lamp Starts >50,000 Starts
- Remote Mounting 18 ft.Max.Lead Length,18AWG
- 2.5 second preheat time

SAFETY/STANDARDS:
- UL/935 Listed (Class P,Type 1 Outdoor)
- cUL (CSA/C22.2 Certified)
- CE Marking
- RoHS Complient
- No PCB's
- Steel Enclosure
- Robertson Patented All*Star and IEC 61547-2-3 EOL Protection for:
- Open filaments
- High lamp voltage
- Lamp rectification
- Limited restrike attempts
- Low input voltage

Specs

Ballast Type Electronic
Starting Method Program Start
Unit Color White
Input Voltage 19.2-31.2Vac Vdc
Lamp Connection Series
Input Frequency 47-63Hz

Lamp Compatibility

- G11T5/OF
- G16T5/OF
- G16T5L/4PSE
- GPH118T5
- GPH118T5VH
- GPH167T5
- GPH167T5VH
- GPH212T5L
- GPH212T5L/4
- GPH212T5VH
- GPH212T5VH/4
- GPH287T5L
- GPH287T5L/4
- GPH287T5VH
- GPH287T5VH/4
- GPH303T5L
- GPH303T5VH
- GPH330T5L/4
- GPH330T5VH/4
- GPH357T5L
- GPH357T5L/4
- GPH357T5VH
- GPH357T5VH/4
- GPH383T5
- HNS 11W G5
- HNS 16W 4P SE
- HNS 16W G5
- LTC11T5
- LTC11T5SE
- TUV 11W FAM
- TUV 16W FAM
- TUV 16W 4P-SE
- 23354 Osram HNS 11W G5
- 55030 Osram HNS 16W 4P SE
