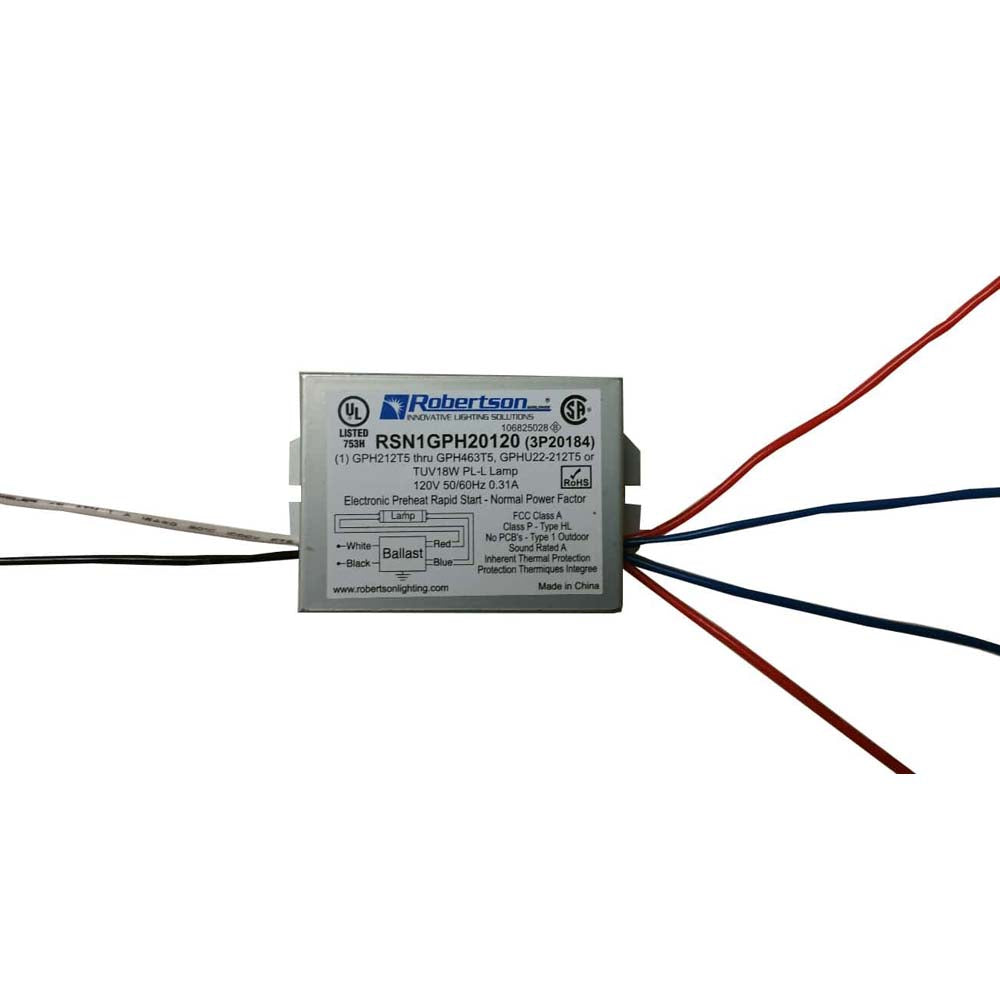

Robertson RSN1GPH20120 Electronic Preheat-Rapid Start Ballast 120V
SKU: RSN1GPH20120
$1999 $39.99
USD
Description
Electronic Preheat-Rapid Start Ballast (for Preheat Start Lamps), 425mA nominal lamp current with an Arc voltage between 24V-47V, Input voltage of 120Vac, for 1 10W-20W Lamp, 50-60Hz.
PERFORMANCE:- Max Current THD = 150%
- Current Crest Factor = 1.7
- Normal Power Factor = 0.50
- Normal Ballast Factor
- Encased & Potted
- Sound Rated A
- Meets FCC Part 18 (Class B) for EMI
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
APPLICATION:
- Maximum Case Temperature: 167F/75C
- Maximum Ambient Temperature: 104F/40C
- Minimum Starting Temperature: -22F/-30C
- Lamp Starts: > 15,000 Starts
- Remote Mounting: 18 ft. Max. Lead Length, 18AWG
SAFETY/STANDARDS:
- UL/935 Listed (Class P, Type 1 Outdoor)
- CSA/C22.2 Certified
- No PCBs, Type HL
- Inherent Thermal Protection
- RoHS Compliant
Specs
Ballast Type | Electronic |
Starting Method | Preheat Rapid |
Unit Color | White |
Input Voltage | 120VAC 10% |
Lamp Connection | Series |
Input Frequency | 50-60Hz |
Lamp Compatibility List
- G11T5/OF
- G16T5/OF
- G16T5L/4PSE
- G20T5L/4PSE
- GCL436T5L/Cell
- GCL436T5VH/Cell
- GPH212T5L
- GPH212T5L/4
- GPH212T5VH
- GPH212T5VH/4
- GPH229T5
- GPH262T5
- GPH287T5L
- GPH287T5L/4
- GPH287T5VH
- GPH287T5VH/4
- GPH303T5L
- GPH303T5VH
- GPH305T5
- GPH330T5L/4
- GPH330T5VH/4
- GPH357T5L
- GPH357T5L/4
- GPH357T5VH
- GPH357T5VH/4
- GPH383T5
- GPH406T5L/4
- GPL18K
- HNS 11W G5
- PLL18W/TUV
- TUV 11W FAM
- TUV 16W FAM
- TUV 16W 4P-SE
- TUV 18W
- TUV PL-L 18W
- 23354 Osram HNS 11W G5
- G16T5/OF
- G16T5L/4PSE
- G20T5L/4PSE
- GCL436T5L/Cell
- GCL436T5VH/Cell
- GPH212T5L
- GPH212T5L/4
- GPH212T5VH
- GPH212T5VH/4
- GPH229T5
- GPH262T5
- GPH287T5L
- GPH287T5L/4
- GPH287T5VH
- GPH287T5VH/4
- GPH303T5L
- GPH303T5VH
- GPH305T5
- GPH330T5L/4
- GPH330T5VH/4
- GPH357T5L
- GPH357T5L/4
- GPH357T5VH
- GPH357T5VH/4
- GPH383T5
- GPH406T5L/4
- GPL18K
- HNS 11W G5
- PLL18W/TUV
- TUV 11W FAM
- TUV 16W FAM
- TUV 16W 4P-SE
- TUV 18W
- TUV PL-L 18W
- 23354 Osram HNS 11W G5
Installation Guide
