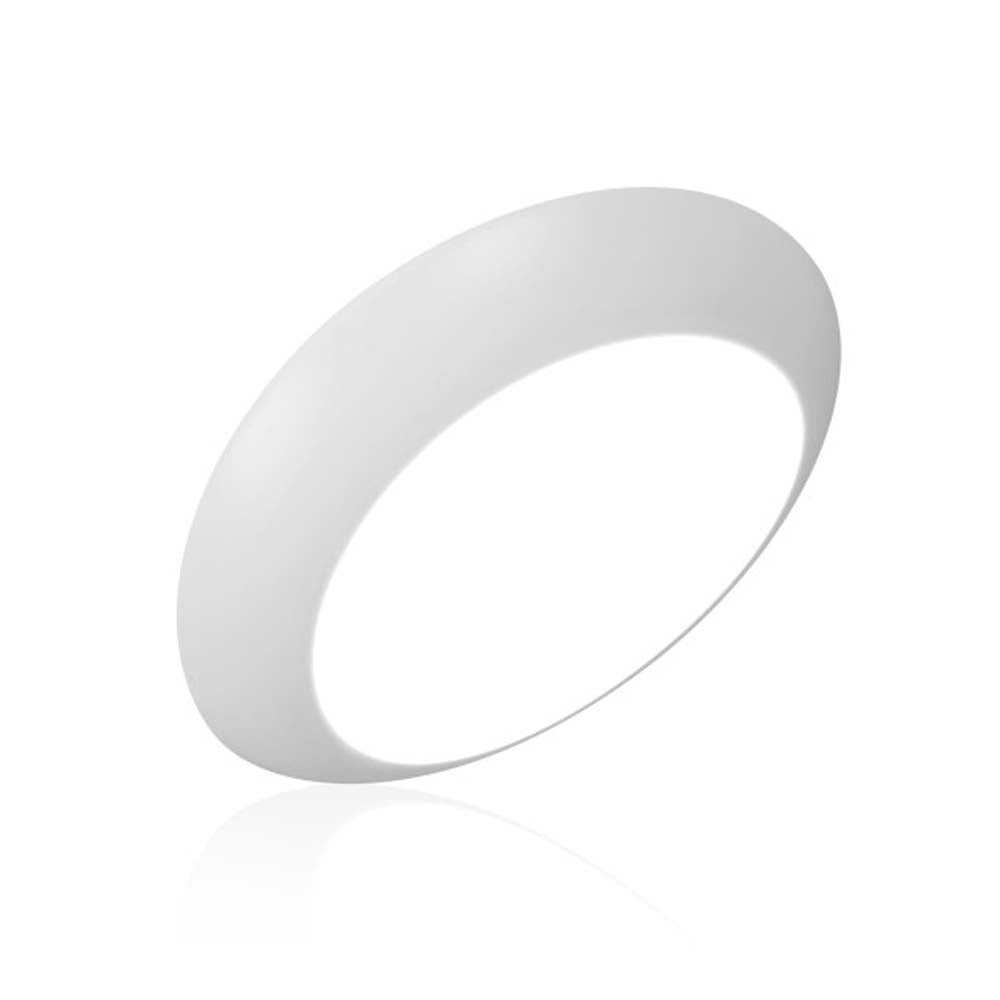

RSD 4-inch Selectable LED Round Surface Mount Downlight - White Finish

NICOR RSDS4 series 4-inch Selectable CCT Surface Mount Disk Light provides a thin installation solution designed to fit the tightest of spaces. The removable twist lock diffuser makes installation easier than ever. The RSDS4 mounts directly to any 4-in pancake, 4-in non-metallic, or 4/O junction box with a flush to the ceiling fit for a clean, professional look. This fixture produces a high-quality light with a CRI rating of 93 and an R9 value of 60. The RSDS4 has a selectable CCT, giving you the ability to change between 5 different color temperature options (2700K, 3000K, 3500K, 4000K and 5000K) with a simple slide of a switch. Available in Black, Nickel, Oil-Rubbed Bronze and White finishes.

Features:
- Includes one RSD4 LED downlight in White
- 5 Option Selectable Color Temperature: 2700K, 3000K, 3500K, 4000K, and 5000K
- Installs into any 4-in pancake, 4-in non-metallic, or 4/O junction box
- Dimmable down to 5 percent using standard TRIAC or ELV dimmers
- Produces over 613 Lumens at 11-Watts
- Wet-Location Rated
- Energy Star rated, Title 24, JA8, and RoHS Compliant
- Protected by NICOR 5-year limited warranty

Bulb Type	LED Downlights
Size (in.)	4
Product Color	White
Finish	Matte
Light Source	LED
Wattage	10.89 (2700K) 10.90 (3000K) 10.53 (3500K) 10.89 (4000K) 10.66 (5000K)
Wattage Equivalent	60
Voltage	120VAC
Lumen Output	613 (2700K) 655 (3000K) 643 (3500K) 676 (4000K) 633 (5000K)
Lumens Per Watt	56.3 (2700K) 60.1 (3000K) 61.1 (3500K) 62.1 (4000K) 59.3 (5000K)
Color Temperature	5CCT Selectable
CRI	93
Dimmable	Yes
Dimming Type	TRIAC, ELV
Operating Temperature	-4 F to 104 F (-20 C to 40 C)
Listings/Certifications	ETL Intertek Listed, Energy Star, Wet-Location, Title 24, JA8 Compliant, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), RoHS Compliant
Other Certifications	LM-79, LM-80 testing performed in accordance with IESNA standards
UPC	767706194272
Warranty	5 Year Limited

Manual:

RSD41120SWH Data Sheet
RSD41120SWH Installation Manual
