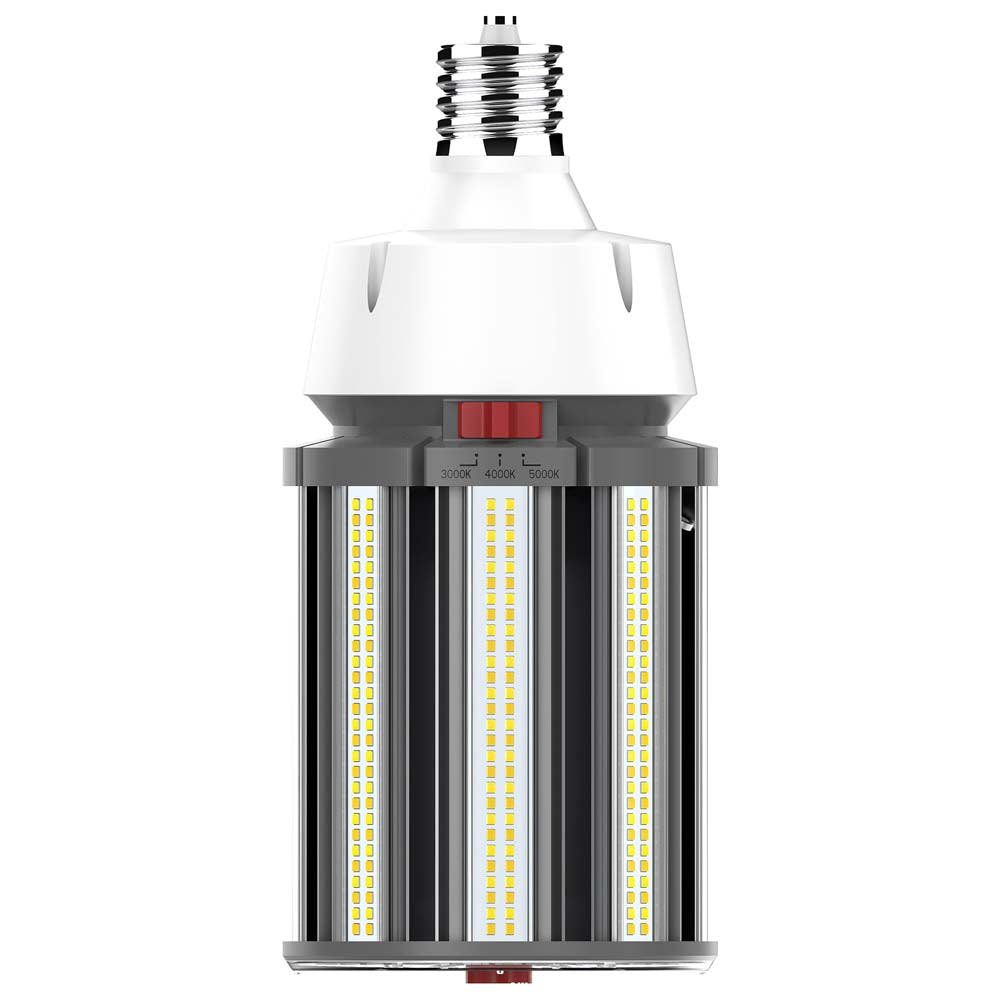

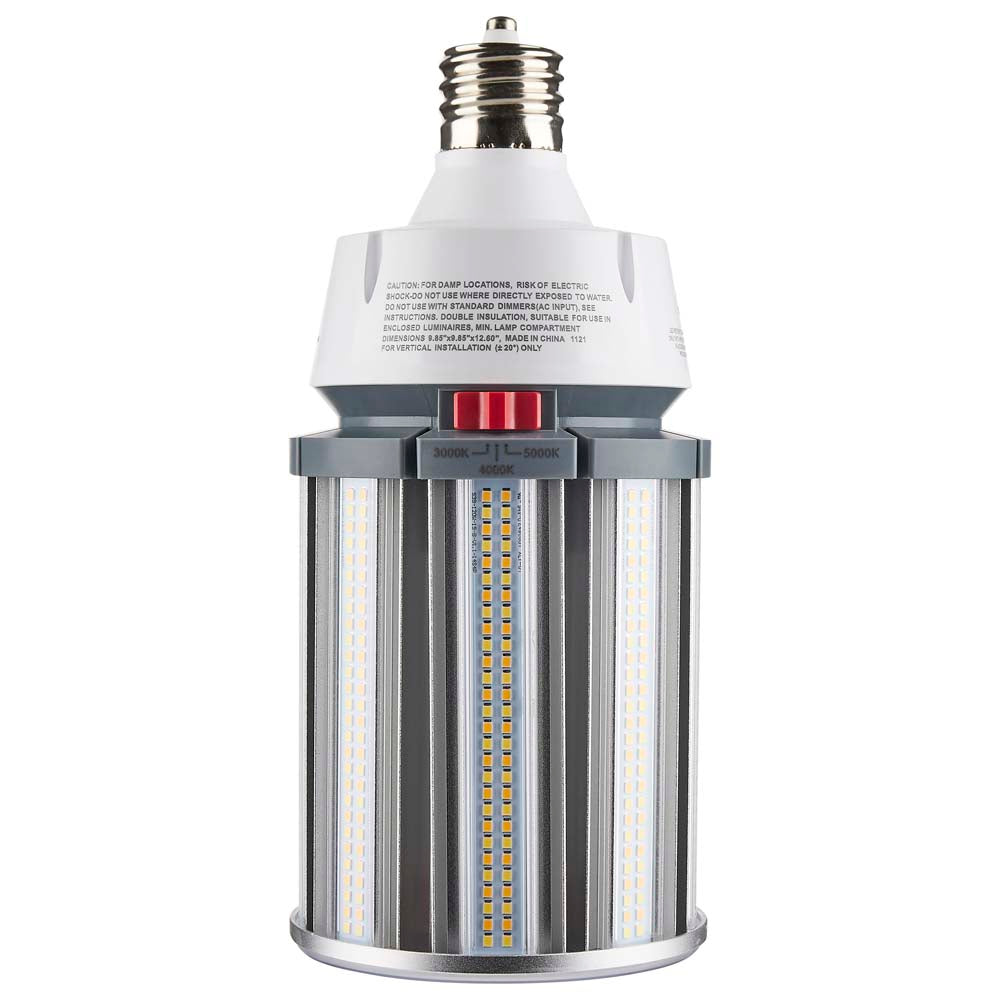

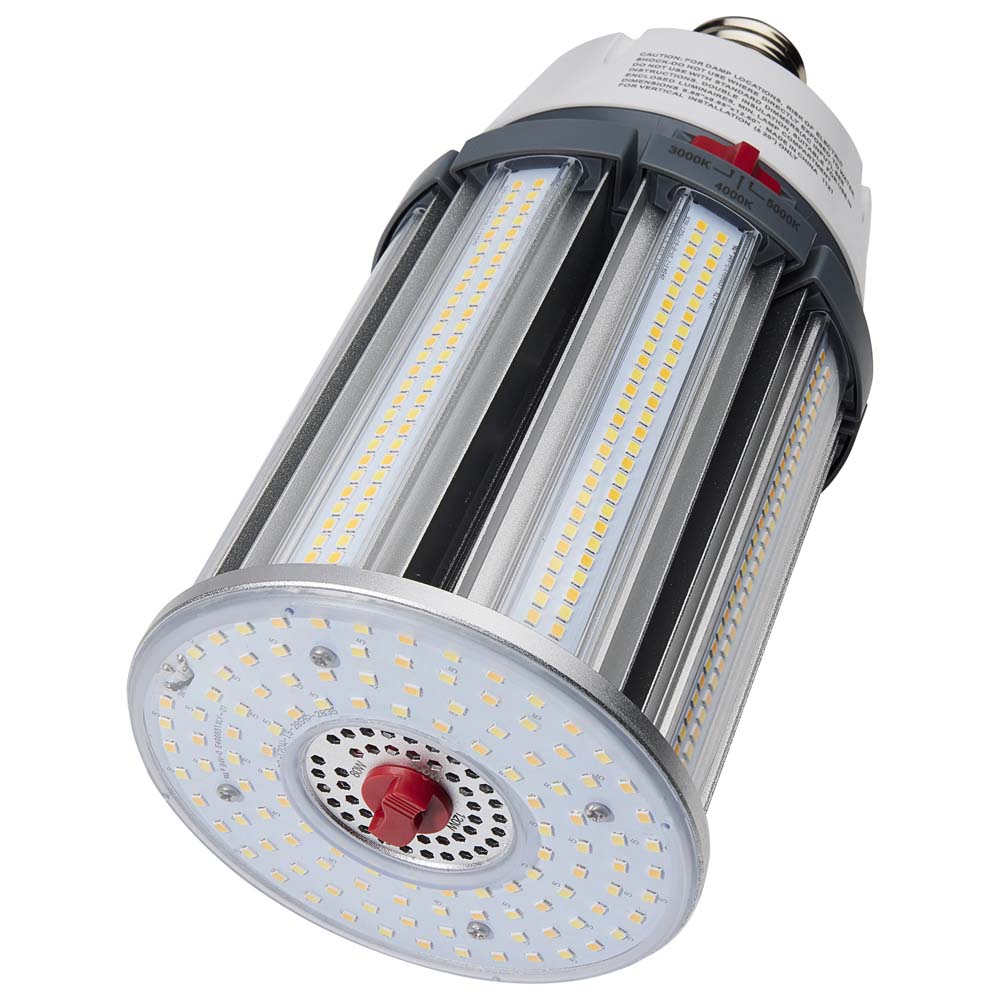

Satco 120/100/80w Selectable LED HID Replacement Extended Mogul Base 100-277V

Satco wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light output. This versatile lamp is dimmable and designed to deliver clean LED light with a 300 degree beam spread.

Features:
- CCT and wattage selectable via a manual switch on the lamp
- Advanced passive heat sink design for maximum thermal management
- ColorQuick selectable color technology

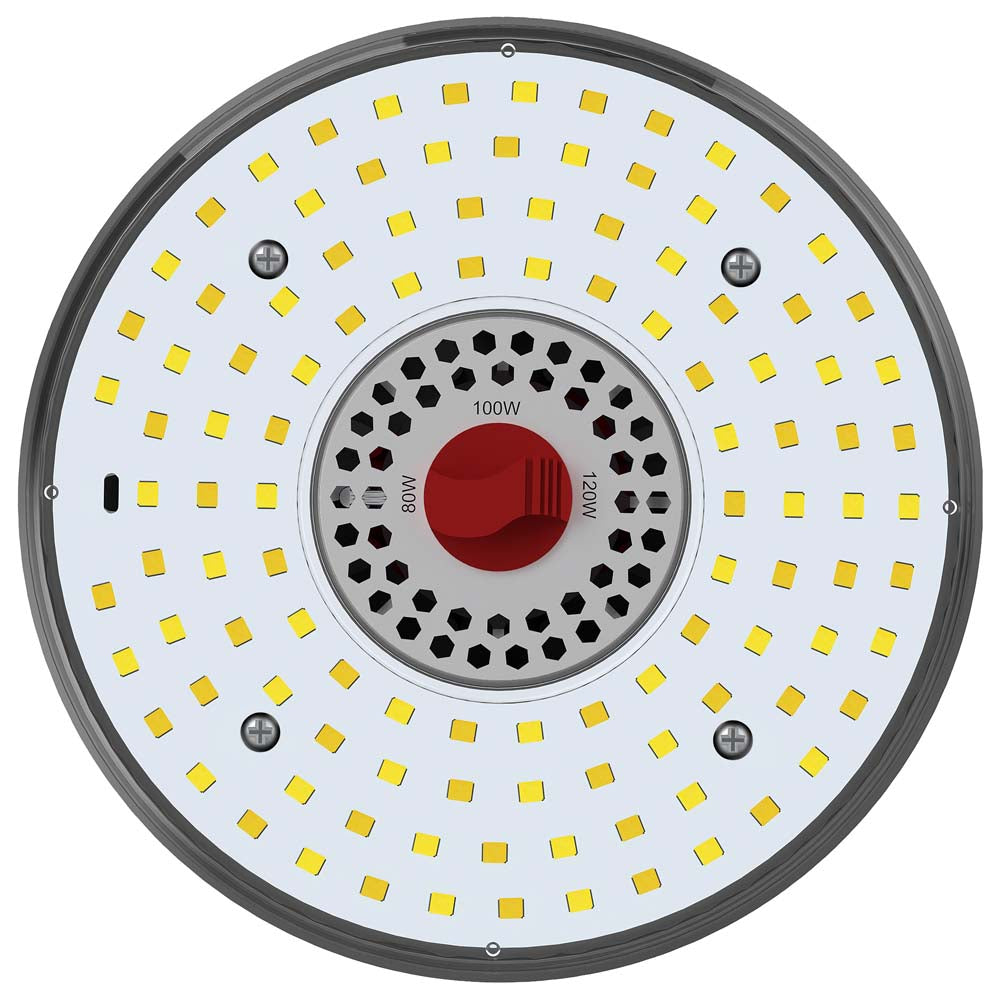

- PowerQuick wattage selectable
- Suitable for use in enclosed fixtures
- Not for use with conventional dimmer switches

General
Watts	120W
HID Equivalent	600W
Volts	100V-277V
Shape	Corncob
Base	Extended Mogul
ANSI Base	EX39
Finish	White
CCT (Kelvin)	3000K/4000K/5000K
Temperature	Warm to Cool White
CRI	80
Lumens	11200L/14000L/16800L
Beam Spread	360
Dimmable	Yes-Dimmable
Hours Rated	50000
Technology	Corncob LED
Electrical
Ballasting Requirements	Ballast Bypass
Operating Frequency	50-60 Hz
Power Factor	>0.9
Operating Temperature	-30C (-22F) to a maximum of +45C (+113F)

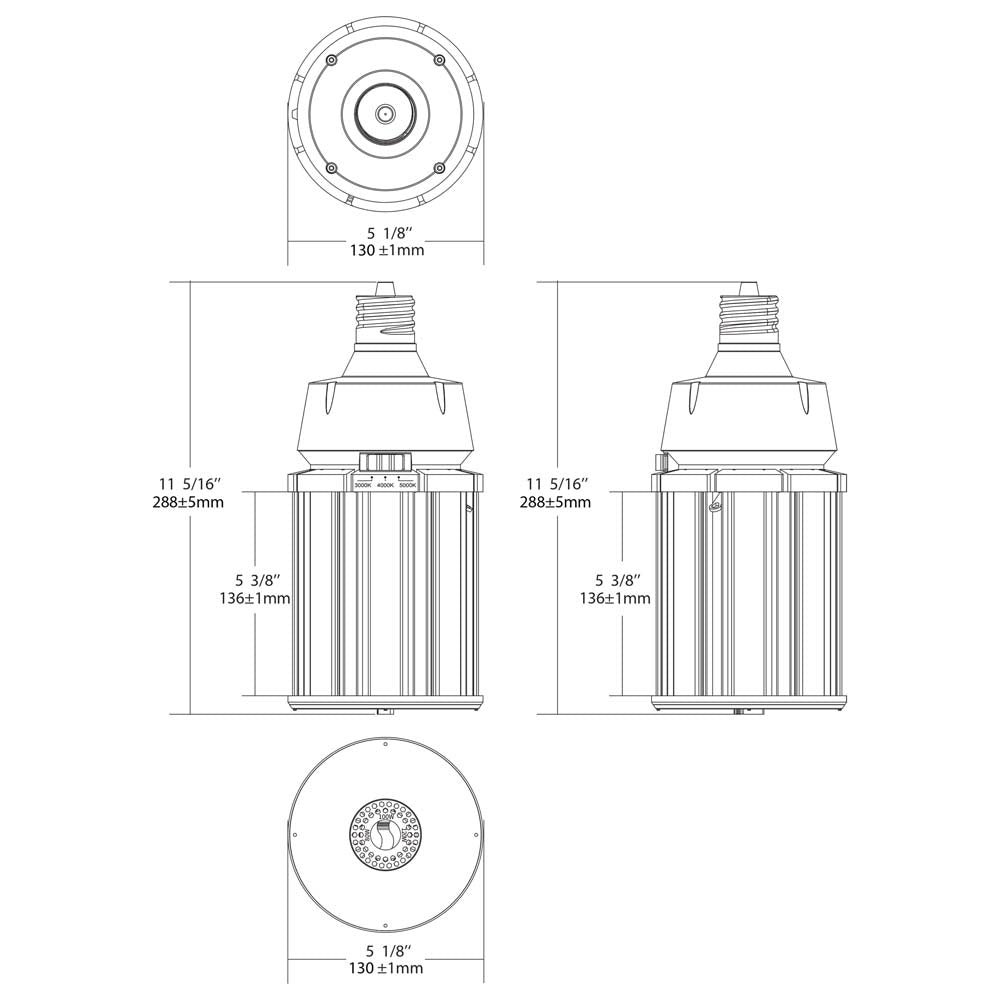

Physical
MOL	11.33
MOD	5.11
Weight (lb.)	3.48
Material	Plastic
Housing Color	Dark Gray
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited
Compliance
Safety Listing	cULus listed; cULus classified
Location Rating	Damp
Energy Star	No
CA T20 / T24 Rationale	Exempt - >2600 Lumens
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S23145 Data Sheet
