Satco 18/16/12w Selectable LED HID Replacement Medium Base 100-277V

18/16/12 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology.

Features:

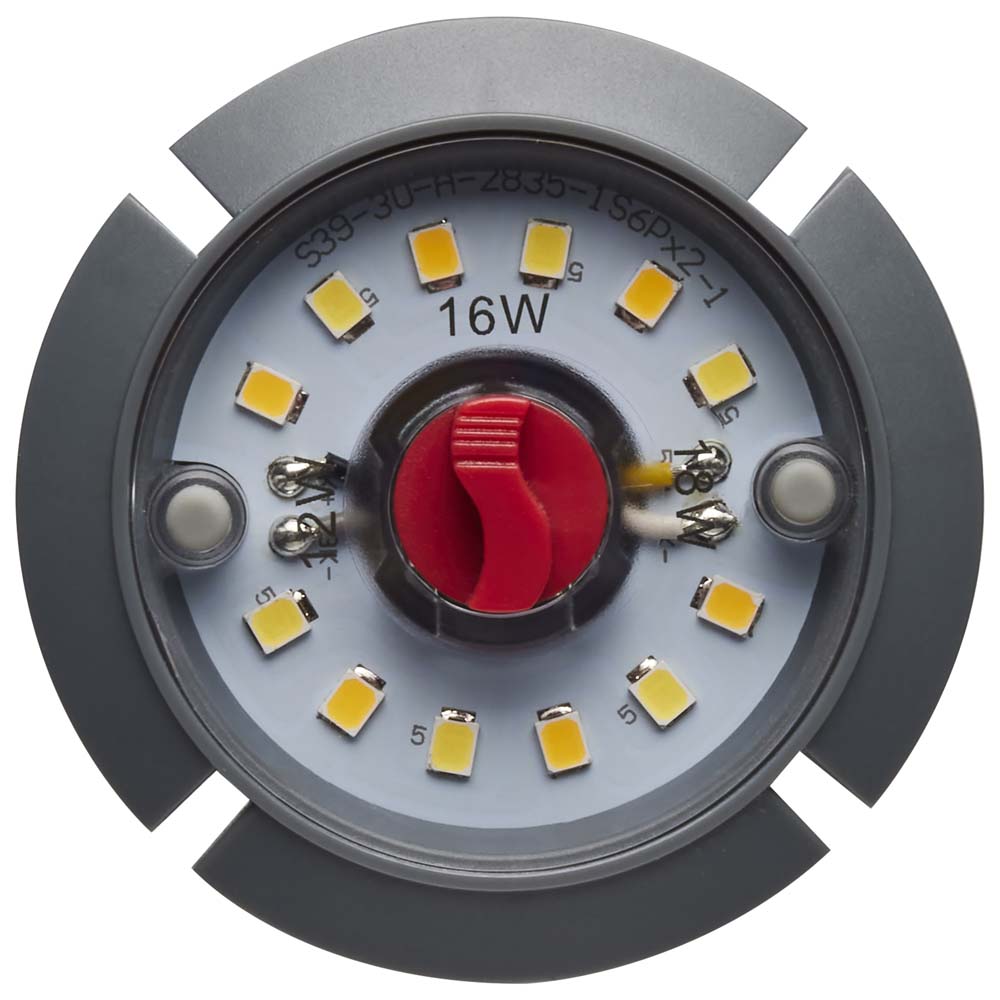

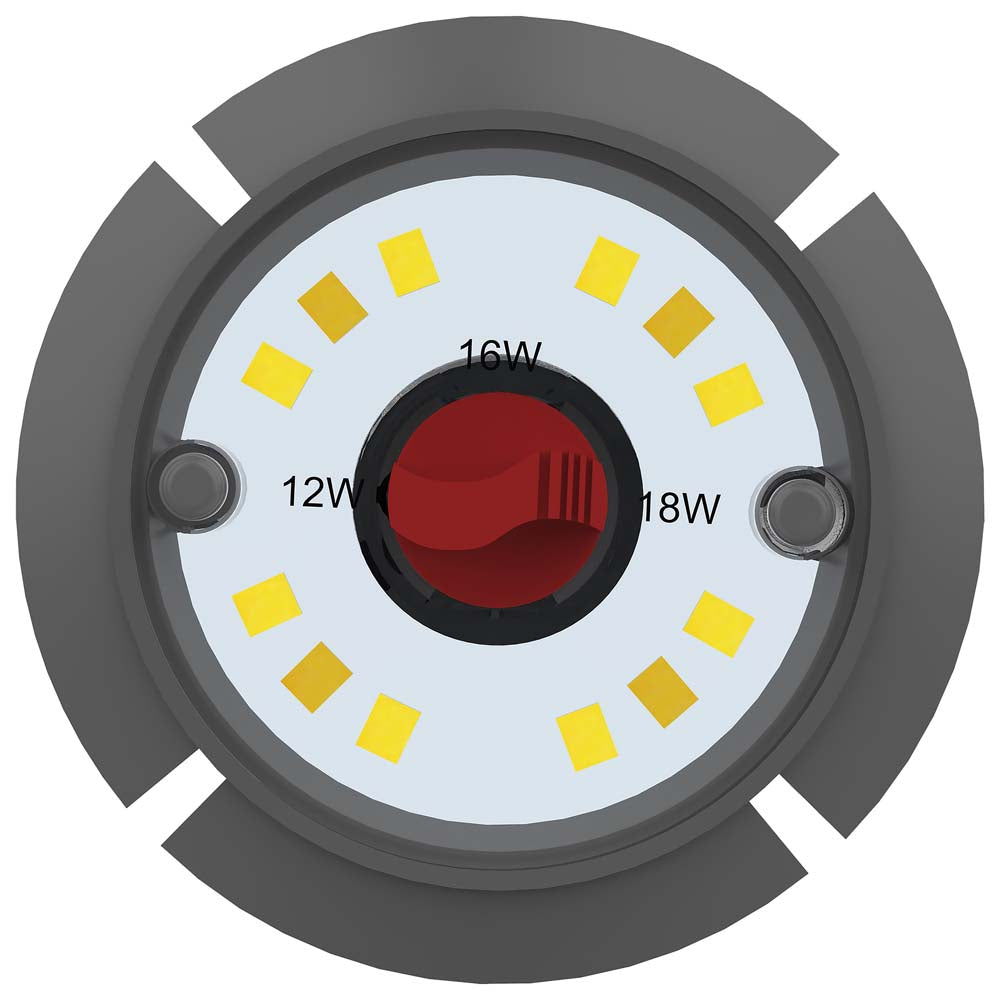

- CCT and wattage selectable via a manual switch on the lamp
- Advanced passive heat sink design for maximum thermal management
- ColorQuick selectable color technology
- PowerQuick wattage selectable
- Suitable for use in enclosed fixtures
- Not for use with conventional dimmer switches

General
Watts	18W
HID Equivalent	75W
Volts	100V-277V
Shape	Corncob
Base	Medium Bi Pin
ANSI Base	E26
Finish	White
CCT (Kelvin)	3000K/4000K/5000K
Temperature	Warm to Cool White
CRI	80
Lumens	1680L/2240L/2520L
Beam Spread	360
Dimmable	Yes-Dimmable
Hours Rated	50000
Technology	Corncob LED
Electrical
Ballasting Requirements	Ballast Bypass
Operating Frequency	50-60 Hz
Power Factor	>0.9
Operating Temperature	-30C (-22F) to a maximum of +45C (+113F)
Physical
MOL	6.29
MOD	2.32
Weight (lb.)	0.55
Material	Plastic
Housing Color	Dark Gray
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited
Compliance
Safety Listing	cULus listed; cULus classified
Location Rating	Damp
Energy Star	No
CA T20 / T24 Rationale	Exempt - >2600 Lumens
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S23146 Data Sheet
