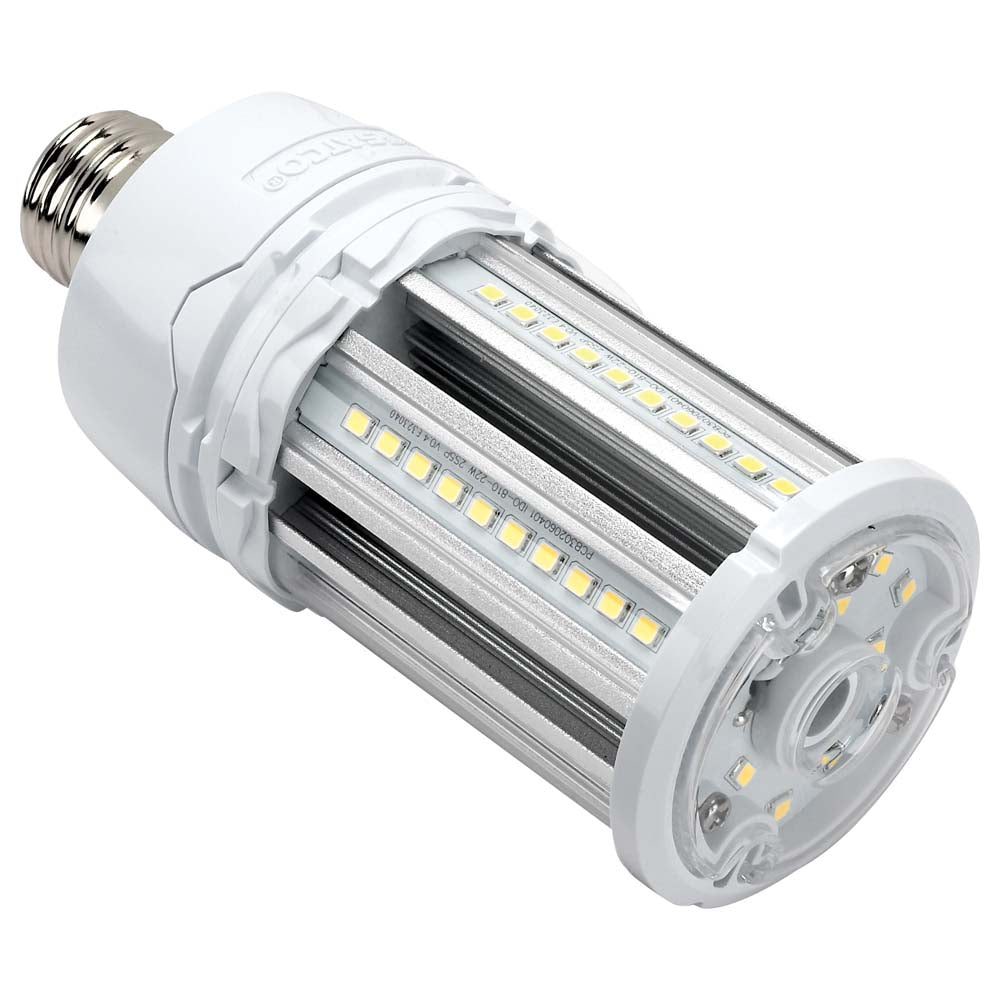

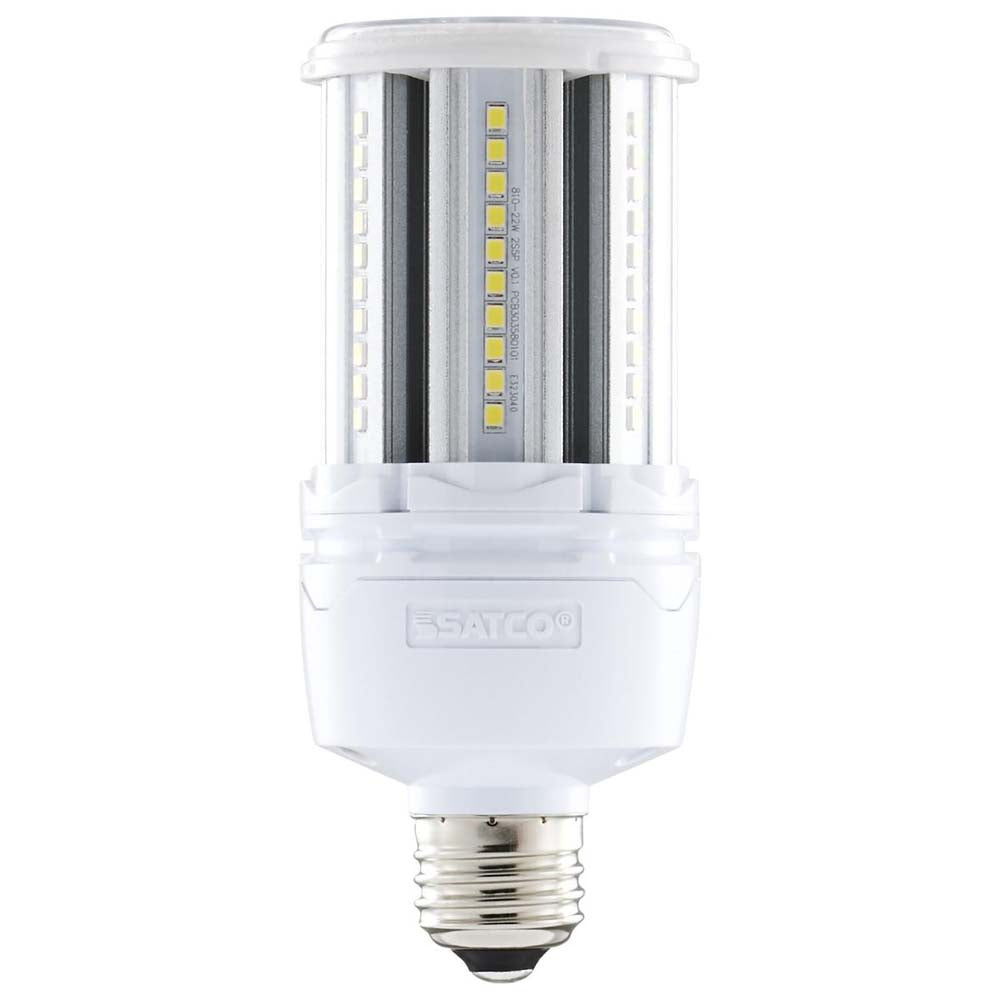

Satco 22w LED HID Replacement 80 CRI 5000K Medium base Economy Hi-Pro 100V-277V

Satco SKU: S49391
$3699 $51.99 USD
7628 in stock




Description

Satco 22w LED HID Replacement 80 CRI 5000K Medium base Economy Hi-Pro 100V-277V

Features:
- High Lumen Omni-directional LED for Industrial / Commercial applications
- Replaces HID, CFL, and Incandescent
- Ballast by-pass - Direct wire only 100V - 277V
- UL approved for totally enclosed fixtures
- Damp location - IP64 rated
- For outdoor & indoor use
- Base up, base down or horizontal operation
- Emits no UV light / Contains no mercury (Hg)
- 5 year limited warranty
- cULus listed

Additional Technical Specifications
- Power Factor: 0.9
- Operating Frequency 50-60Hz
- Working Voltage AC90-305V

- Shatter resistant materials, acceptable for use in food prep areas
- Minimum Compartment Size

Specs

General
Watts 22W
Specifications
HID Equivalen 100W
Volts 100V-277V
Shape Corncob
Base E26 Medium
CCT (Kelvin) 5000K
Temperature Natural Light
CRI 80
Lumens 3036L
Beam Spread 300
Dimmable Non-Dimmable
Hours Rated 35000
Lamp Type LED HID
Technology LED
Min Compartment Size Length: 6 in. Width: 6 in. Height: 8.5 in.
Ballasting Requirements Ballast Bypass
Electrical
Operating Frequency 50/60 Hz
Power Factor >0.9
Burning Position Base Up, Base Down, or Horizontal
Surge Protection Built-in surge protection - 2KV
Operating Temperature -30C (-22F) to a maximum of +65C (+149F)
Physical
MOL 5.71
MOD 2.39
Lens Finish Clear
Lens Material Polycarbonate (PC)
Housing Color White
Photocell No
Weight (lb.) 0.77
Additional Information
Rated For Enclosed Fixture Yes
Warranty 3 Year Limited
Safety Listing cULus Classified, cULus Listed
Location Rating Damp
Energy Star No
RoHS Compliant Yes
FCC Compliant Yes
