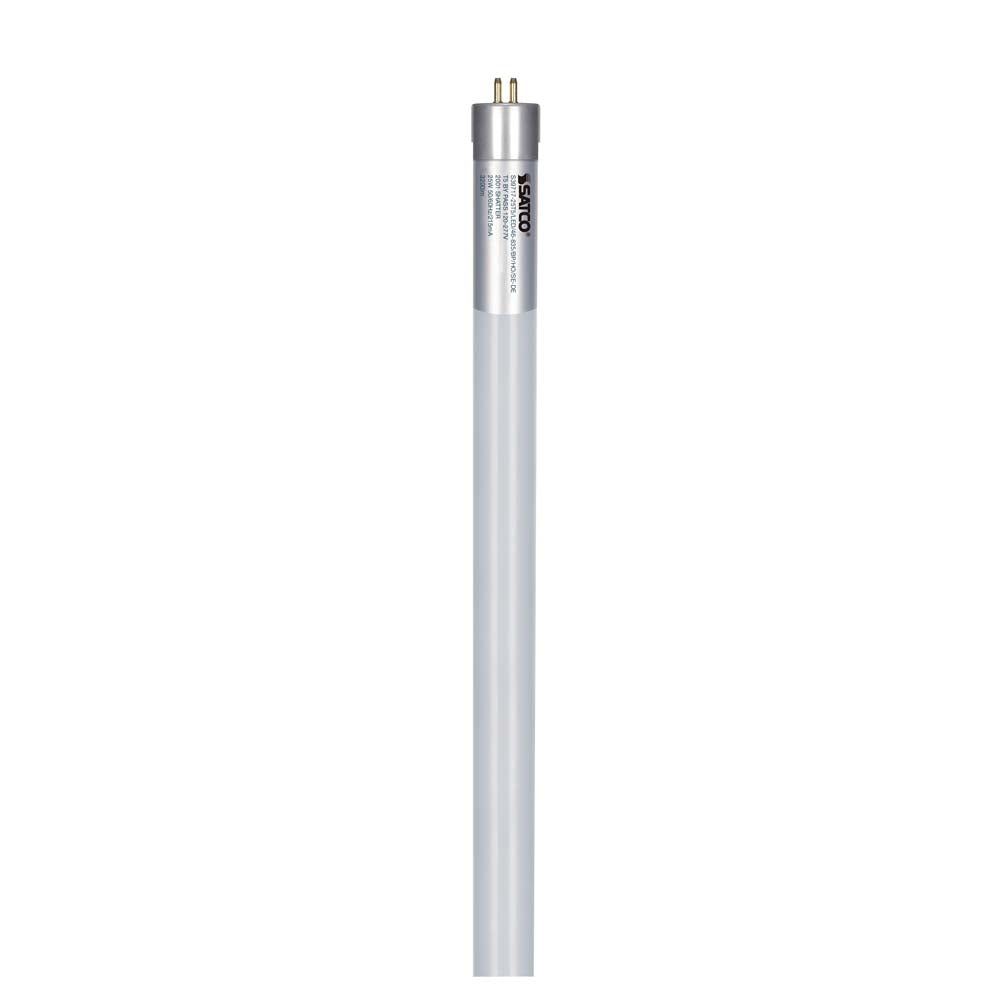

Satco 25w 48in T5 LED Tube 3500K 3200LM 120-277V Ballast Bypass

SKU: S39717

$1595 ~~$33.99~~ USD

Description

Satco 25-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast or external driver required for this lamp that delivers 50,000 hours of neutral white light.

Features:
- Single or double ended wiring
- All glass tube
- PET-shatterproof coated
- NSF certified
- Damp location rating
- 50/60 hertz electric power frequency
- 50/60 hertz electric power frequency

Specs

General
Watts	25W
Fluorescent Equivalent	54W
Nominal Length	48
Volts	120V-277V
Shape	T5
Base	Miniature Bi Pin
ANSI Base	G5
Finish	Frosted
CCT (Kelvin)	3500K
Temperature	Neutral White
CRI	83
Lumens	3200
Beam Spread	240
Dimmable	Non-Dimmable
Hours Rated	50000
Technology	Fluorescent LED
Electrical
Ballasting Requirements	Ballast Bypass
Operating Frequency	50-60 Hz
Power Factor	0.9
Operating Temperature	-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL	48
MOD	0.83
Weight (lb.)	0.4
Lens Material	Glass
Additional Information
Warranty	5 Years Limited
Compliance
Safety Listing	cULus Classified
Location Rating	Damp
Energy Star	No
CA T20 / T24 Rationale	Exempt - Base Not Regulated
California Status	Lawful for sale in California
Nevada Status	Lawful for sale in Nevada
RoHS Compliant	Yes
FCC Compliant	Yes
DLC Approved	Yes

Additional Info

Manual:

S39717 Data Sheet

‎
