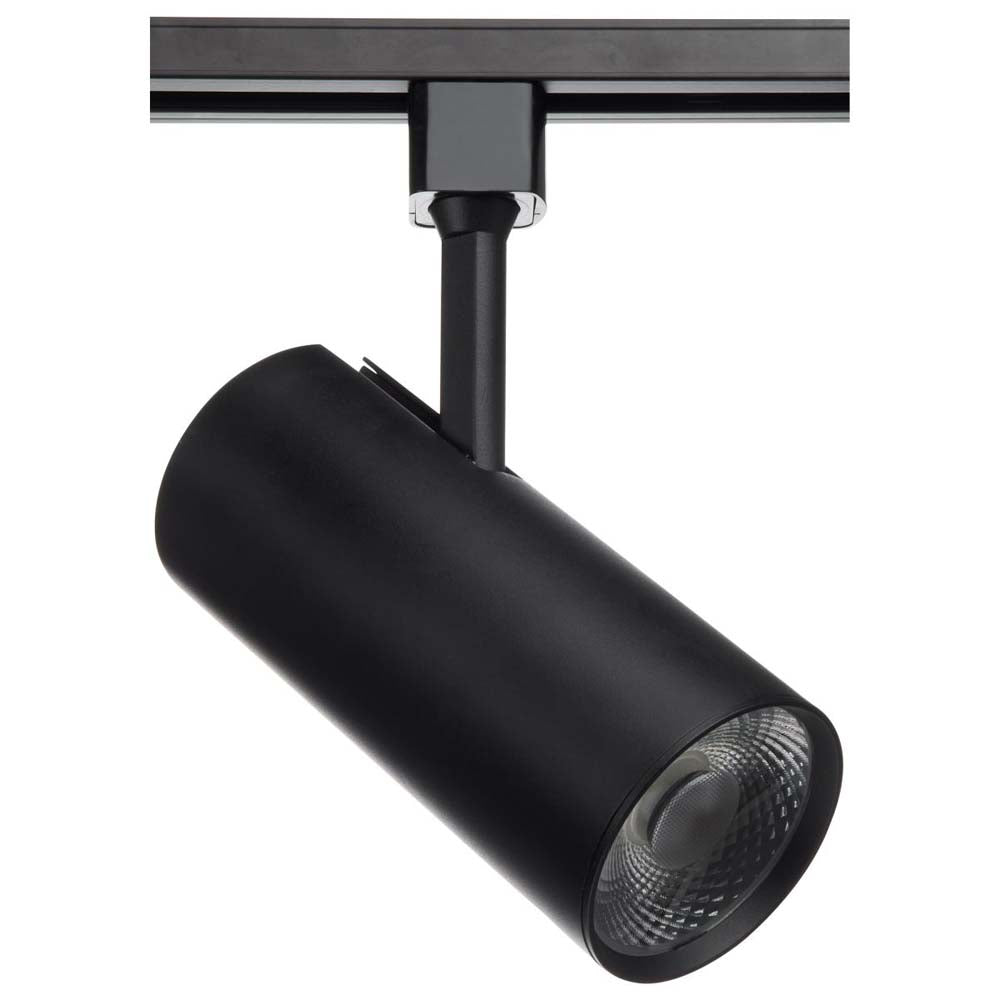

Satco 30w LED Commercial Track Head Black Cylinder 36 Degree Beam Angle 120v

The new SATCO NUVO shotgun-style Pro Series LED track heads offer a distinct look while providing superior illumination for high-demand applications. Built to withstand the demanding everyday operation that comes with use in commercial settings while maintaining a consistent look and feel, these cylindrical style track lights distribute exceptional, high lumen, LED light for larger spaces which may be problematic for lesser fixtures. Delivering elevated CRI and R9 values for up to 50,000 hours, these track heads are perfect for commercial, retail, and hospitality applications.

Features:
- Sleek design, Rugged Construction
- Black textured aluminum finish
- 30W, 36 deg. Beam angle
- High CRI and R9 Values
- Superior LED performance
- Precise Beam Control
- Smooth Dimming Control
- California Status: Lawful for sale in California

General
Type	Track Head
Wattage	30w
Finish	Black
Beam Angle	36
CCT (Kelvin)	3000k
Temperature	Warm White
Base	Integrated LED
ANSI Base	Integrated LED
Indoor or Outdoor Fixture	Indoor
Specifications

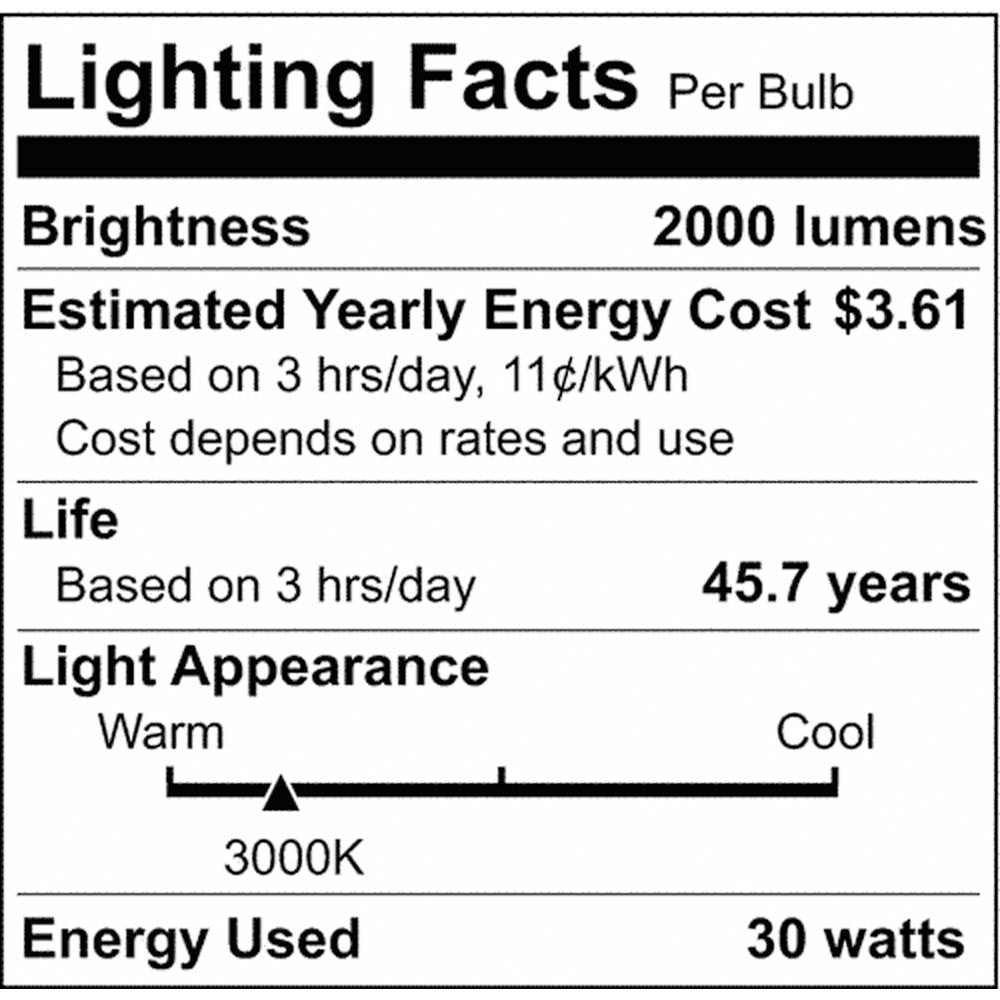

CRI	93
Lumen Output	2000
Rated Hours	50,000 hrs
Voltage	120v
Dimmable	Yes-Dimmable
Dimming Note	Dimming range from 100 to less than or equal to 20 percent depending on dimmer control
Weight (lb.)	0.87
Dimensions
Height (in.)	3.13
Width (in.)	3.13
Length (in.)	7.13
Extension (in.)	9.5
Compliance
Safety Listing	cETLus
Location Rating	Dry
Energy Star	Pending
CA T20 / T24 Rationale	T20 Exempt - Fixtures Not Regulated
California Status	Lawful for sale in California
Title 20 / 24 Status	Lawful for sale
California Prop 65	Lead
FCC Compliant	Yes
Warranty	5 Year Limited

Manual:

TH624 Data Sheet
