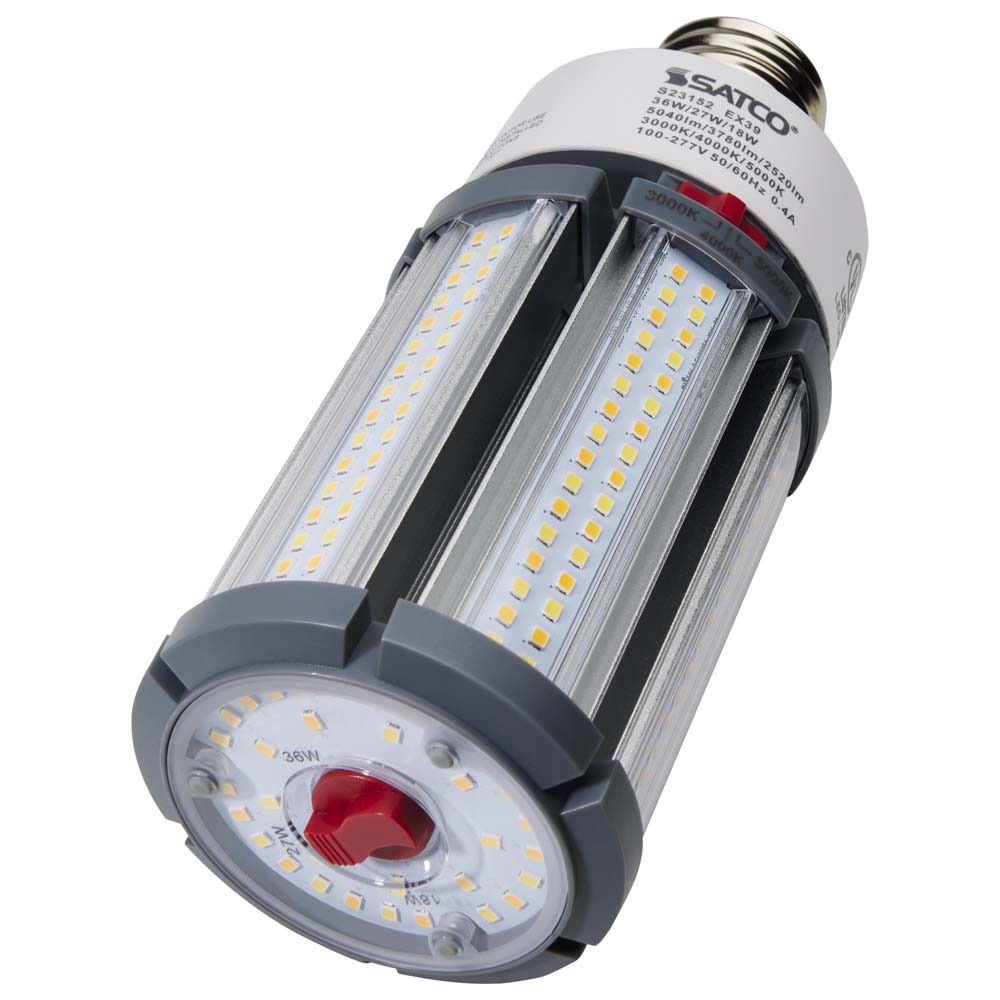

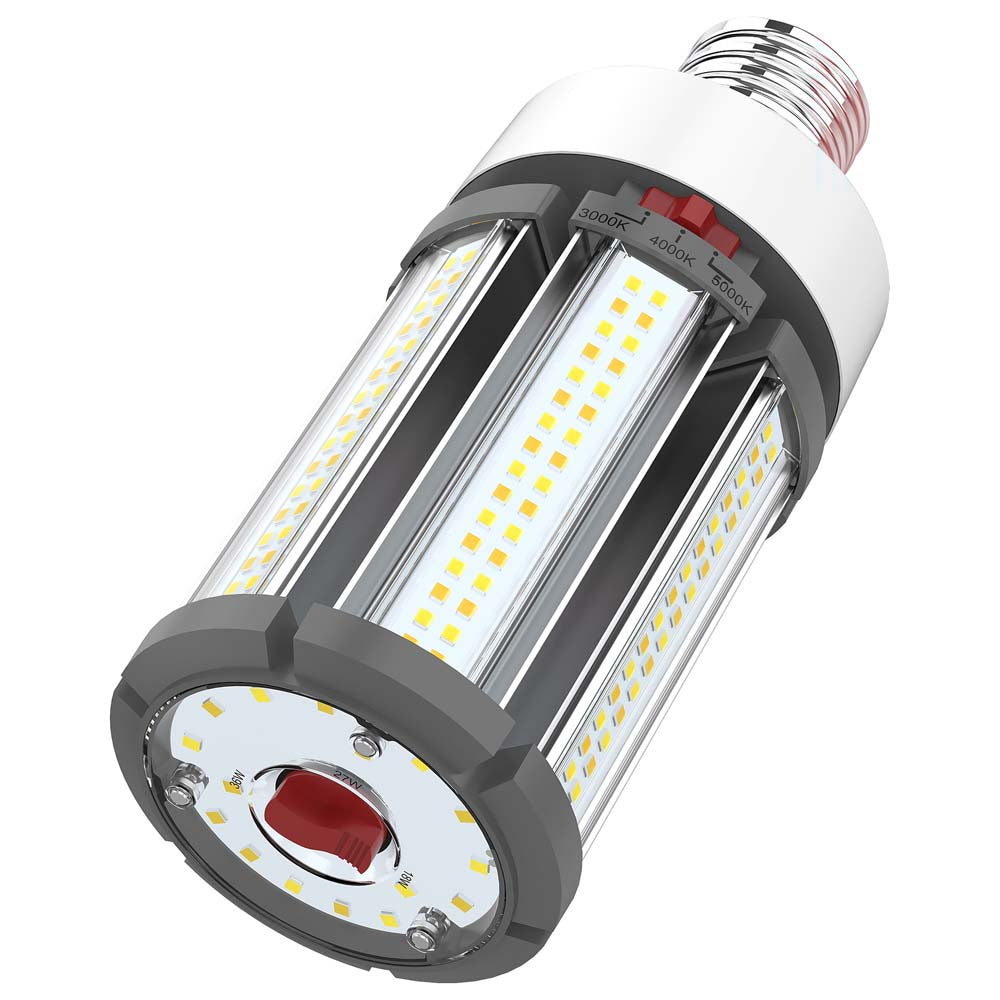

Satco LED HID Replacement 36/27/18 Wattage & CCT Selectable Mogul Base 100-277V

The newestgeneration of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp menas more versatility and custom-tailed light to many more venues. Designed to deliver clean, efficient LED lighting at 360 degrees from higher fixtures. This lamp is perfect for gymnasiums, factory floors, health clubs, warehouses and any venue where high ceilings require high-lumen, safe, superior light output.

Features:

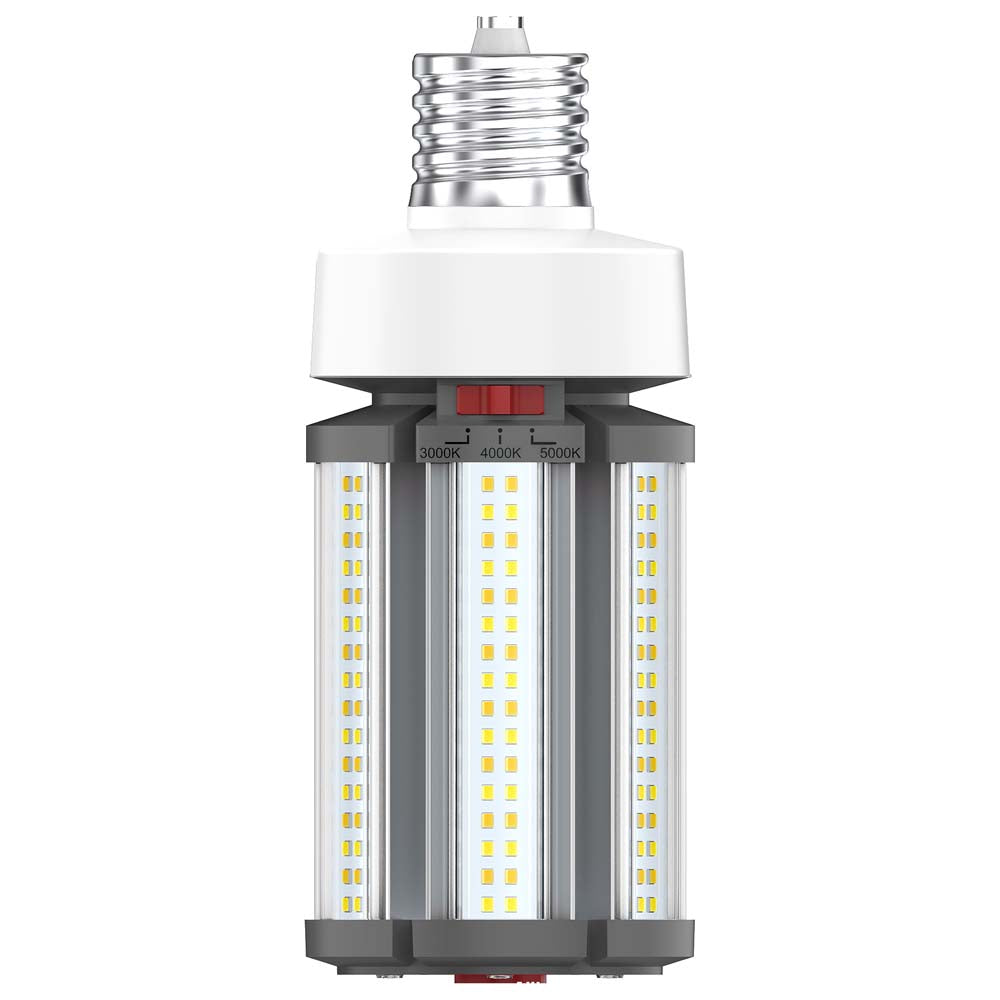

- CCT Selectable-3000K, 4000K, 5000K

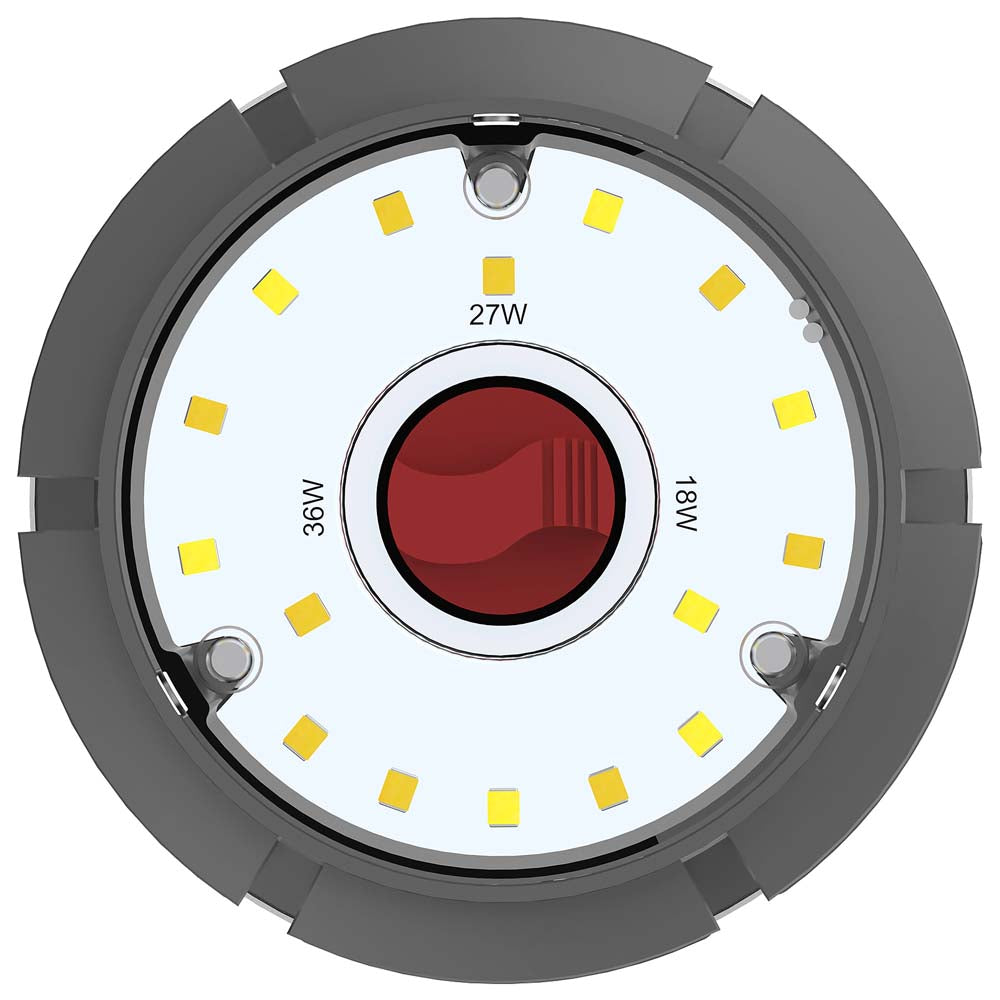

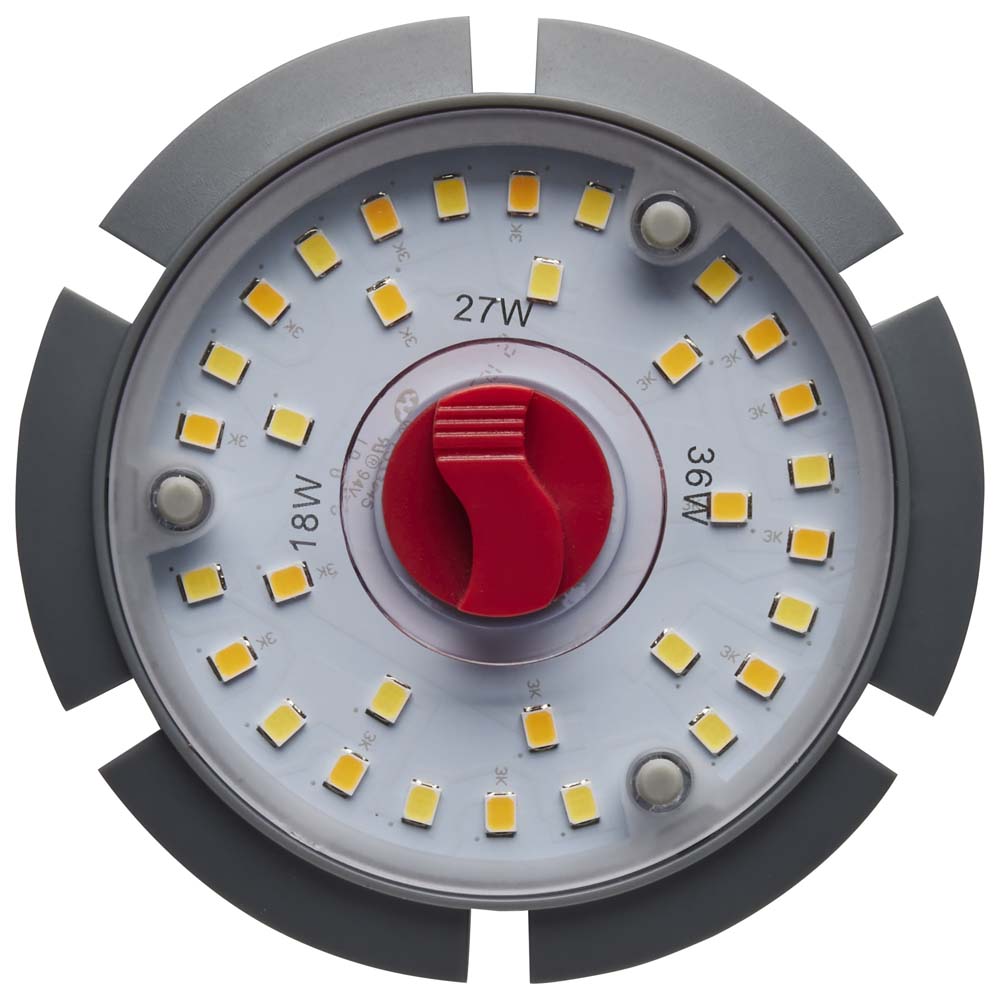

- Wattage Selectable
- Enclosed Fixture Rated
- Advanced Thermal Management
- Damp Locaion Rated
- 4KV Built in Surge Protection
- Rated for 50,000 hours of use
- DLC Listed

General
Watts	36/27/18
HID Equivalent	150W/125W/75W
Volts	100V-277V
Shape	Corncob
Base	Extended Mogul
ANSI Base	EX39
Finish	White
CCT (Kelvin)	3000K/4000K/5000K
Temperature	Warm to Cool White
CRI	80
Lumens	5040L/3780L/2520L
Beam Spread	360
Dimmable	Yes-Dimmable
Hours Rated	50000
Technology	Corncob LED
Electrical
Ballasting Requirements	Ballast Bypass
Operating Frequency	50-60 Hz
Power Factor	>0.9
Operating Temperature	-30C (-22F) to a maximum of +45C (+113F)

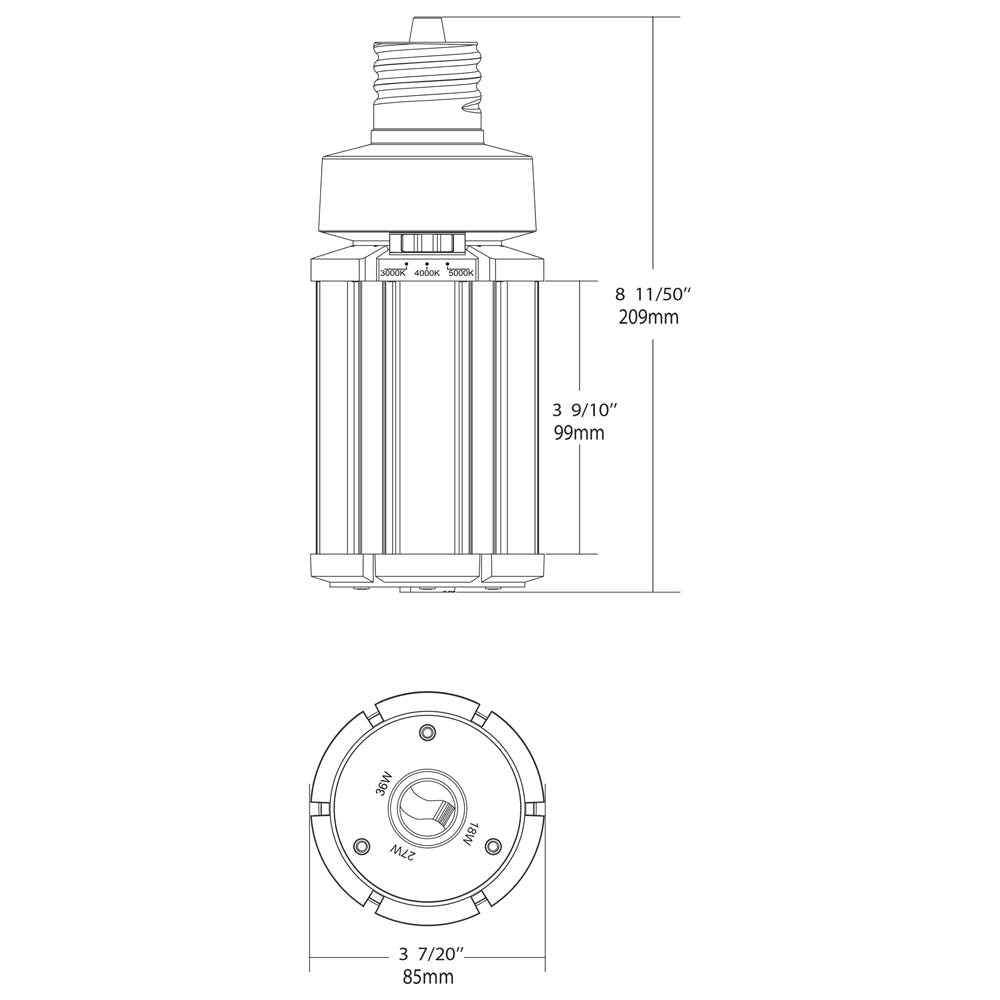

Physical
MOL	8.5
MOD	3.35
Weight (lb.)	1.47
Material	Plastic
Housing Color	Dark Gray
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited
Compliance
Safety Listing	cULus - Classified; cULus - Certified; cULus - Listed
Location Rating	Damp
Energy Star	No
CA T20 / T24 Rationale	Exempt - Base Not Regulated
RoHS Compliant	Yes
FCC Compliant	Yes
DLC Approved	Yes

Manual:

S23152 Data Sheet
