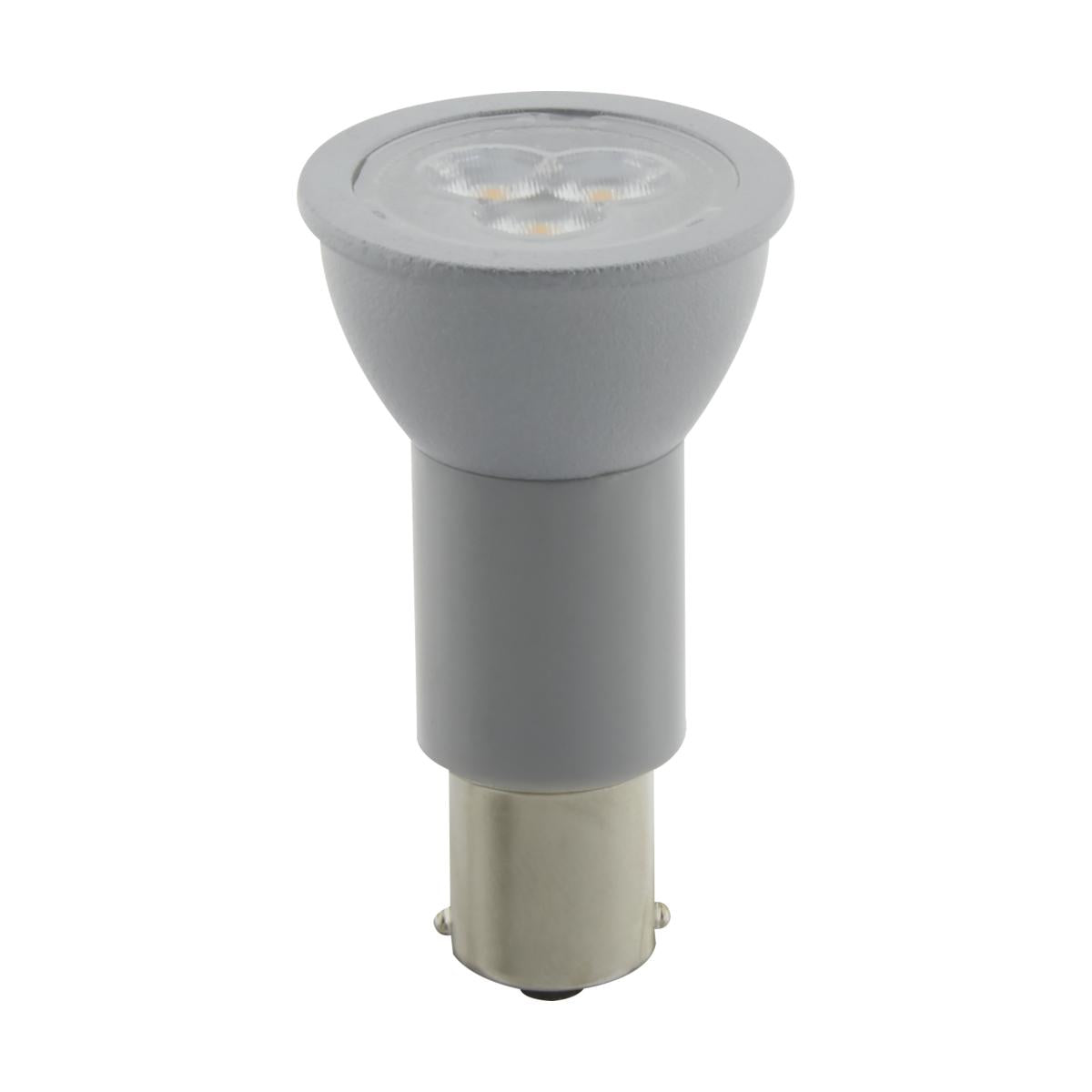

Satco 3w R12 LED 1383 Elevator Bulb 3000K Bayonet Single Contact Base 12 Volt

Satco LED elevator and display lamps are your best choice to reduce heat build-up from older halogen technologies while at the same time reducing both energy and maintenance costs. These direct replacements are designed with improved thermal management and employ the most current LED technologies.

Features:
- Watts: 3, HID Equivalent: 20
- Volts: 12, Shape: R12
- Base: Bayonet Single Contact (BA15s), Finish: Silver
- CCT (Kelvin): 3000, Temperature: Warm White
- Lumens: 220, CRI: 80
- Beam Spread: 31 deg., Dimmable: Non-Dimmable
- Hours Rated: 15,000 hrs
- Lamp Type: MR11
- Housing Color: Silver
- Warranty: 3 Year Limited
- Lawful for sale in California

General
Watts	3
HID Equivalent	20
Volts	12
Shape	R12
Base	Bayonet Single Contact (BA15s)
Finish	Silver
CCT (Kelvin)	3000
Temperature	Warm White
CRI	80
Lumens	220
Beam Spread	31
Dimmable	Non-Dimmable
Hours Rated	15,000 hrs
Lamp Type	MR11
Technology	LED
Electrical
Operating Frequency`	60 Hz
Operating Temperature	-25C (-13F) to a maximum of 45C ( 113F)
Physical
MOL	2.5
MOD	1.38
Housing Color	Silver
Additional Information
Warranty	3 Year Limited
Compliance
Location Rating	Damp`
Energy Star	No
California Status	Lawful for sale in California
RoHS Compliant	Yes

Manual:

S29004 Data Sheet
