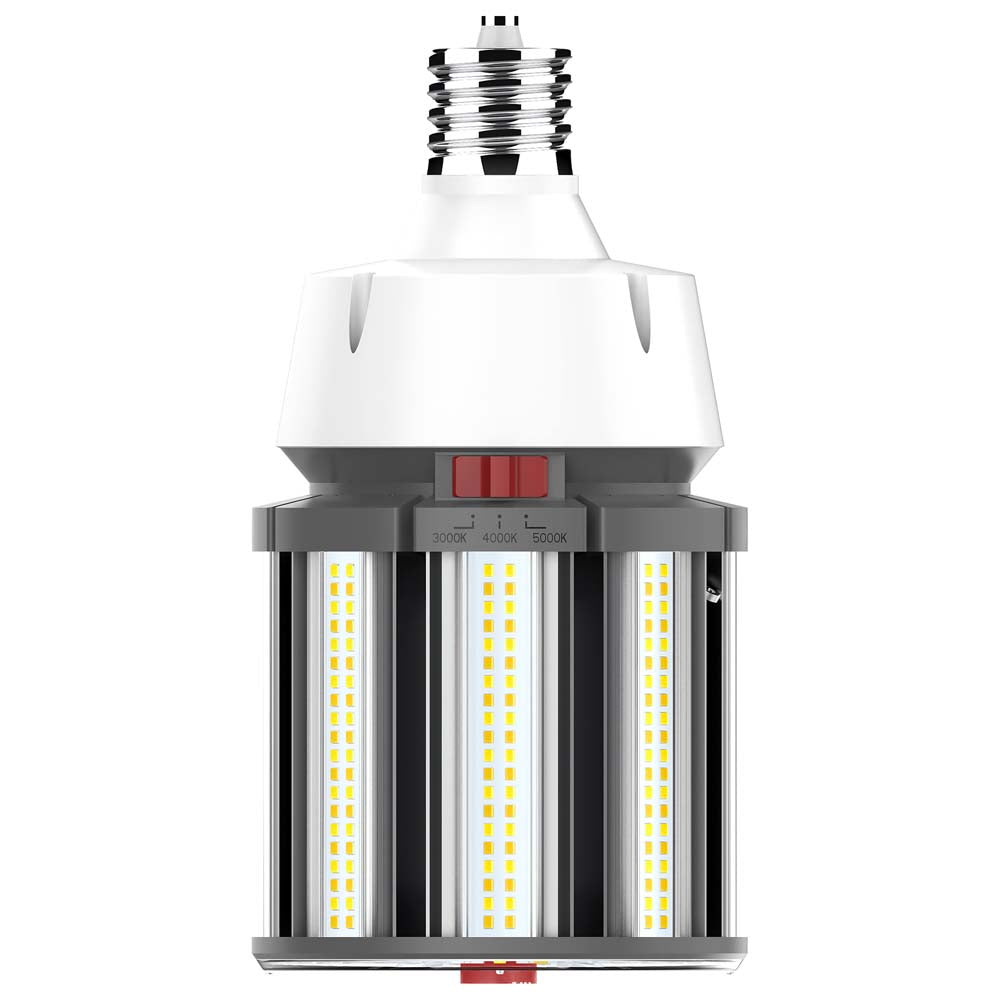

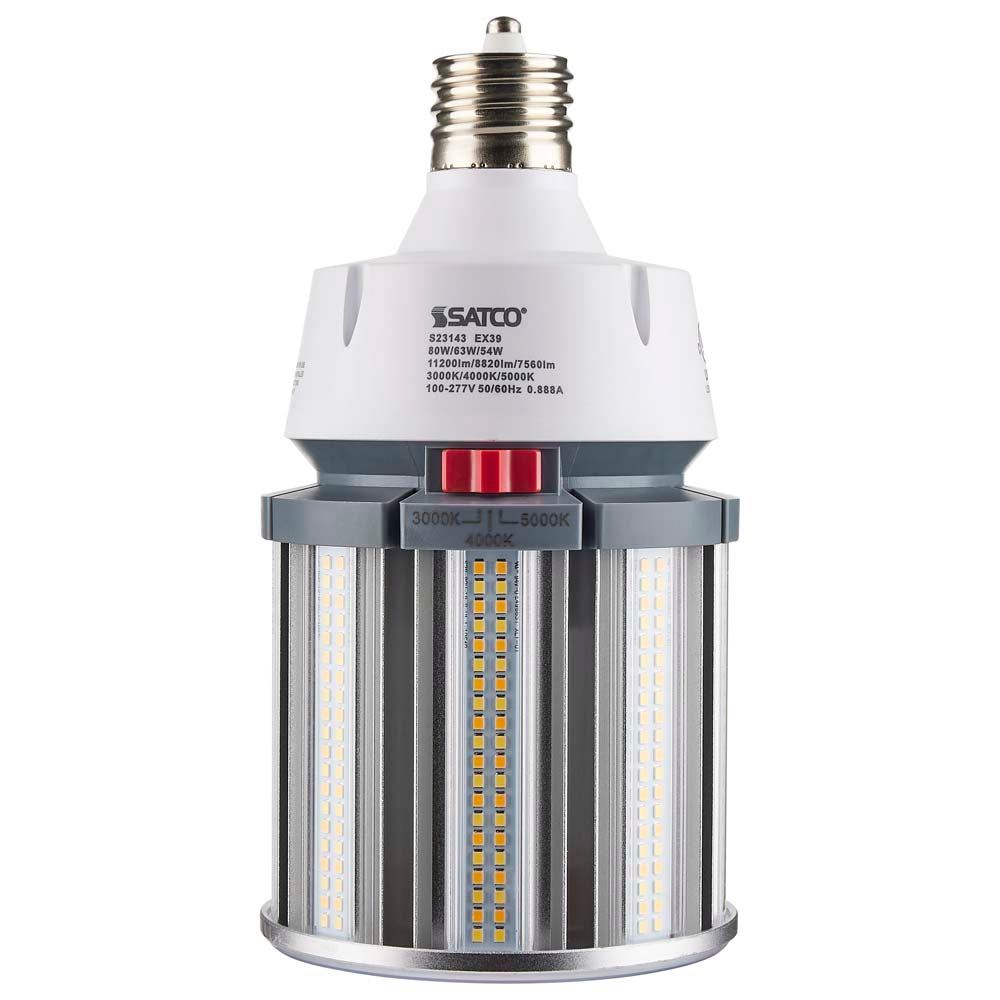

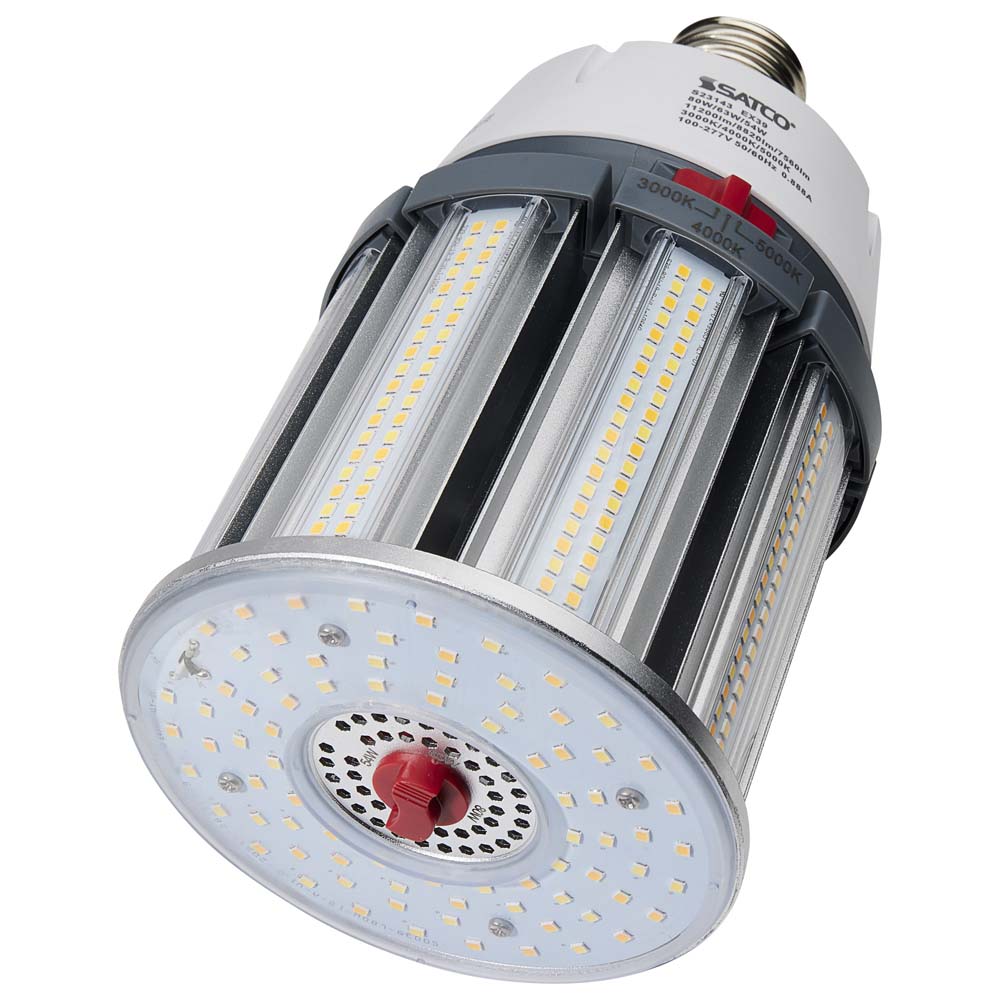

Satco LED HID Replacement 80/63/54 Wattage & CCT Selectable Mogul Base 100-277V

Satco SKU: S23143
$11795 $197.99 USD
379 in stock


The newestgeneration of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications.
The CCT Wattage selectable capability built into each lamp menas more versatility and custom-tailed light to many more venues. Designed to deliver clean, efficient LED lighting at 360 degrees from higher fixtures. This lamp is perfect for gymnasiums, factory floors, health clubs, warehouses and any venue where high ceilings require high-lumen, safe, superior light output.

- CCT Selectable-3000K, 4000K, 5000K

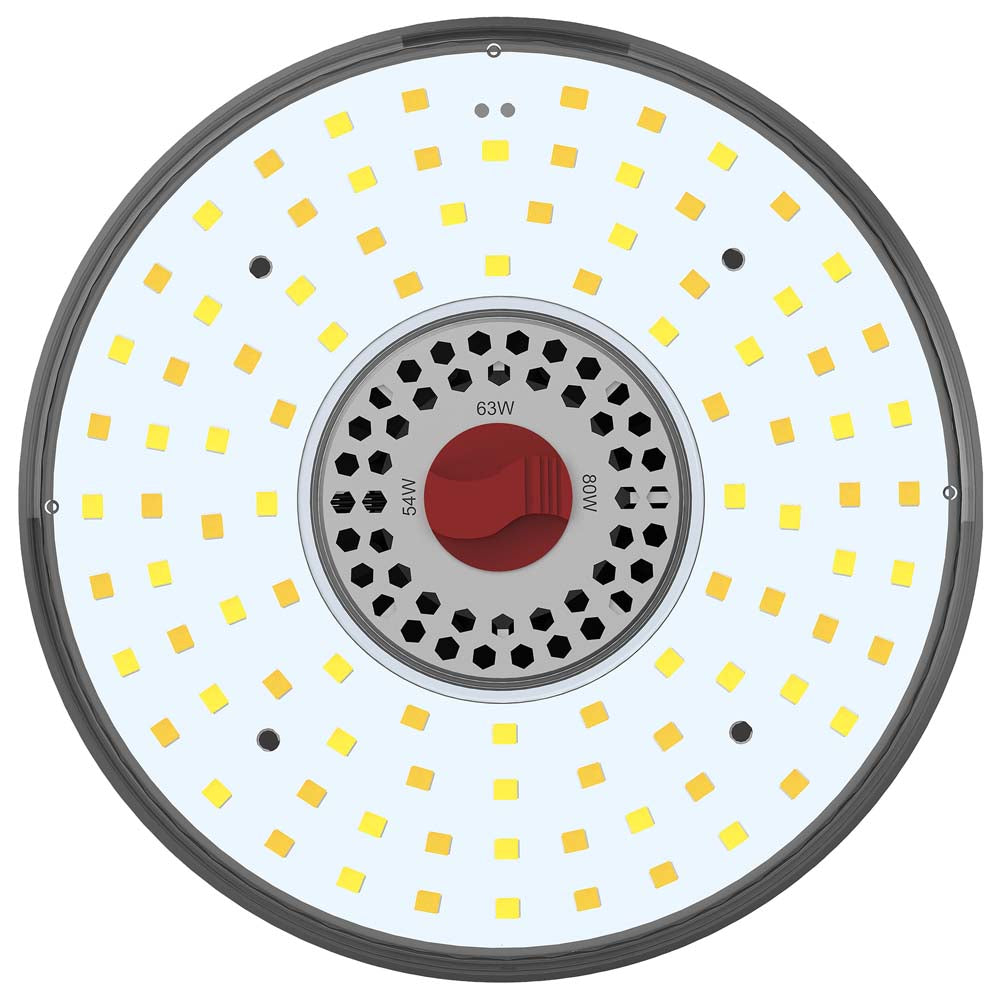

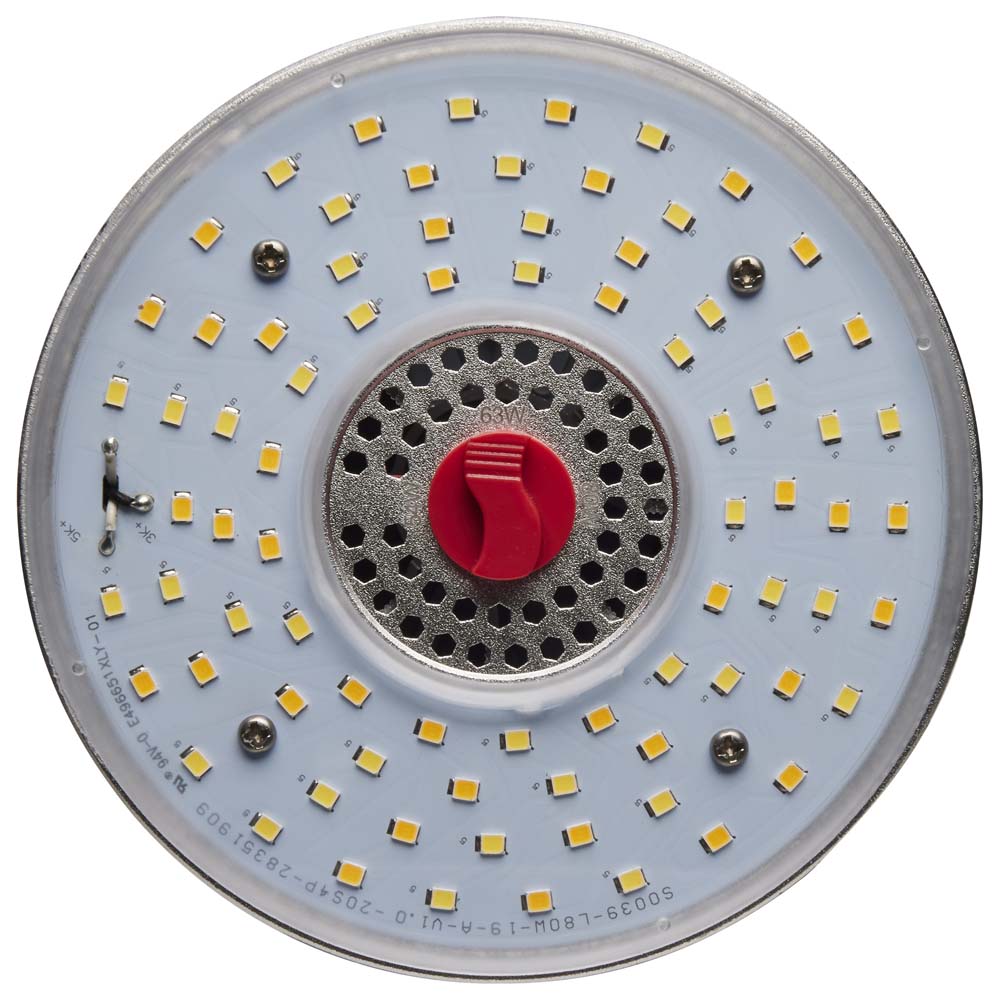

- Wattage Selectable
- Enclosed Fixture Rated
- Advanced Thermal Management
- Damp Locaion Rated
- 4KV Built in Surge Protection
- Rated for 50,000 hours of use


Watts 80/63/54
HID Equivalent 320W
Volts 100V-277V
Shape Corncob
Base Extended Mogul
ANSI Base EX39
Finish White
CCT (Kelvin) 3000K/4000K/5000K
Temperature Warm to Cool White
CRI 80
Lumens 7560L/8820L/11200L
Beam Spread 360
Dimmable Yes-Dimmable
Hours Rated 50000
Technology Corncob LED
Ballasting Requirements Ballast Bypass
Operating Frequency 50-60 Hz
Power Factor >0.9
Operating Temperature -30C (-22F) to a maximum of +45C (+113F)
MOL 9.96
MOD 5.11
Weight (lb.) 2.68
Material Plastic
Housing Color Dark Gray
Additional Information
Rated For Enclosed Fixture Yes
Warranty 5 Year Limited
Safety Listing cULus listed; cULus classified
Location Rating Damp
Energy Star No
CA T20 / T24 Rationale Exempt - >2600 Lumens
RoHS Compliant Yes
FCC Compliant Yes
