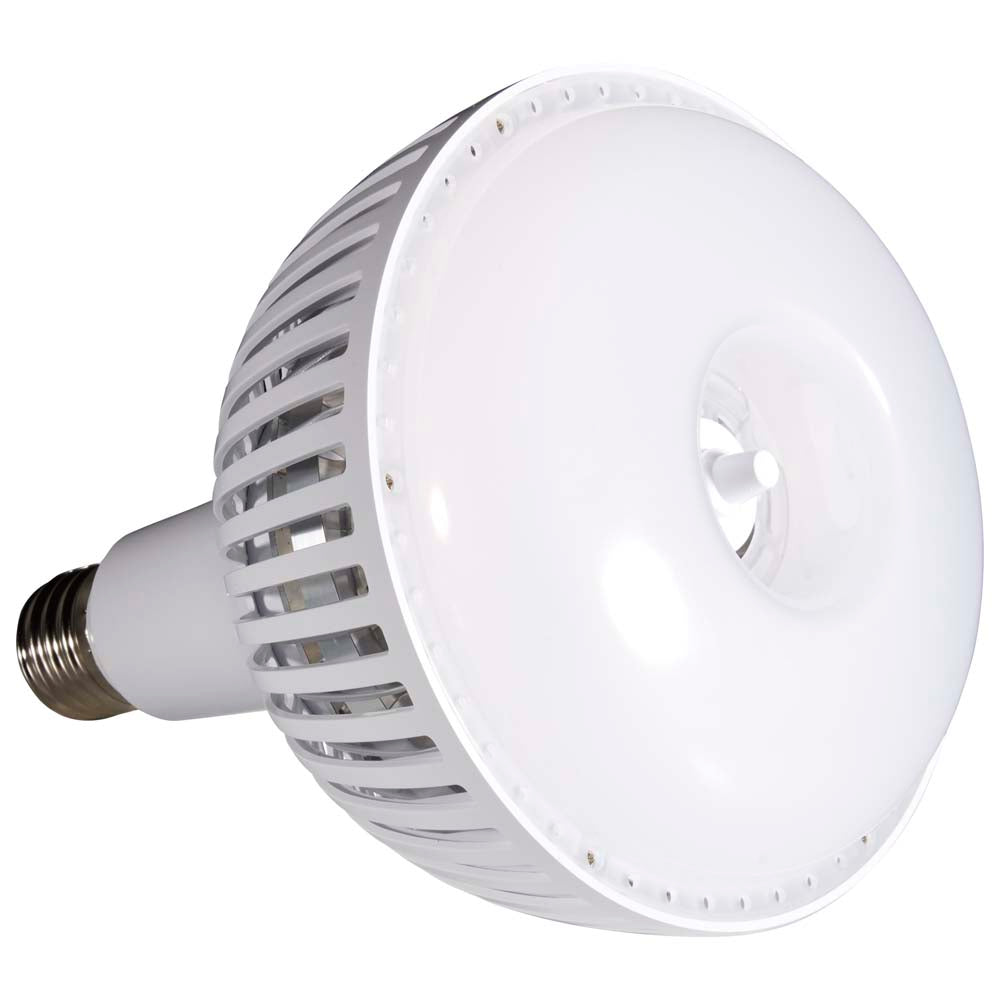

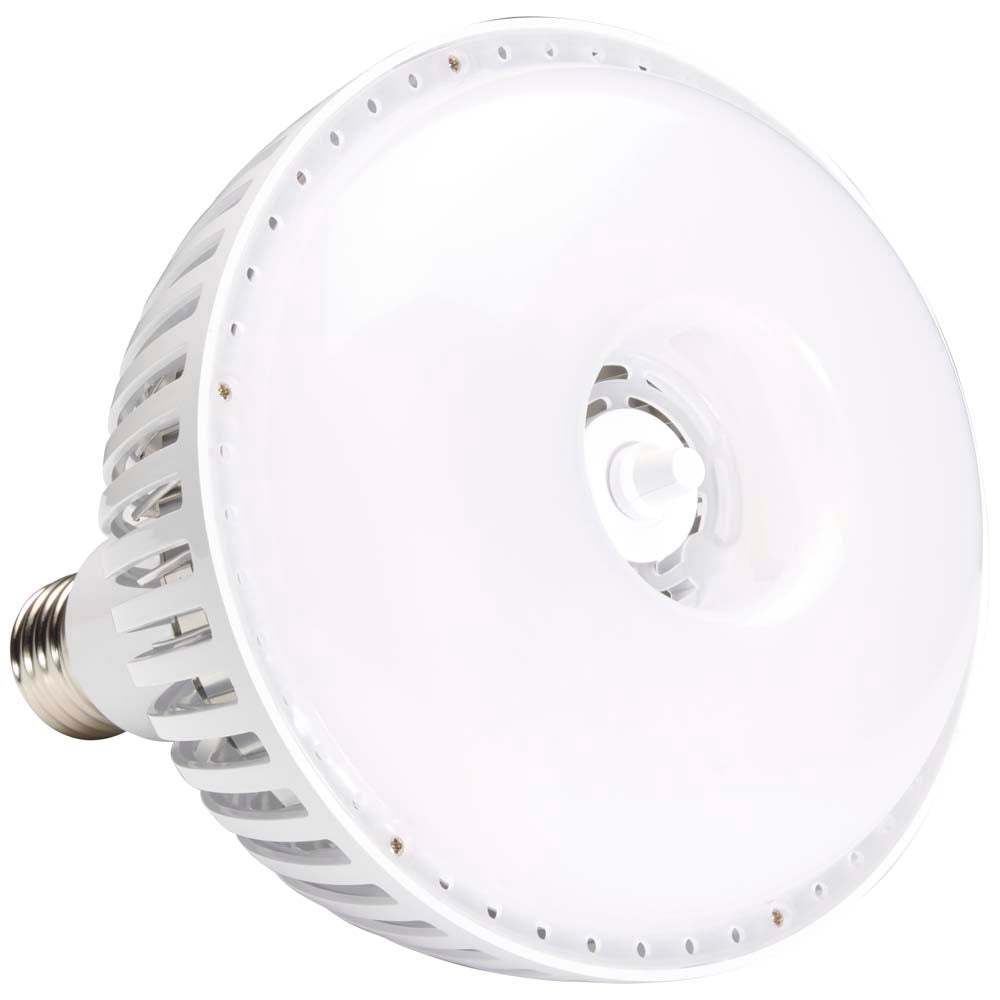

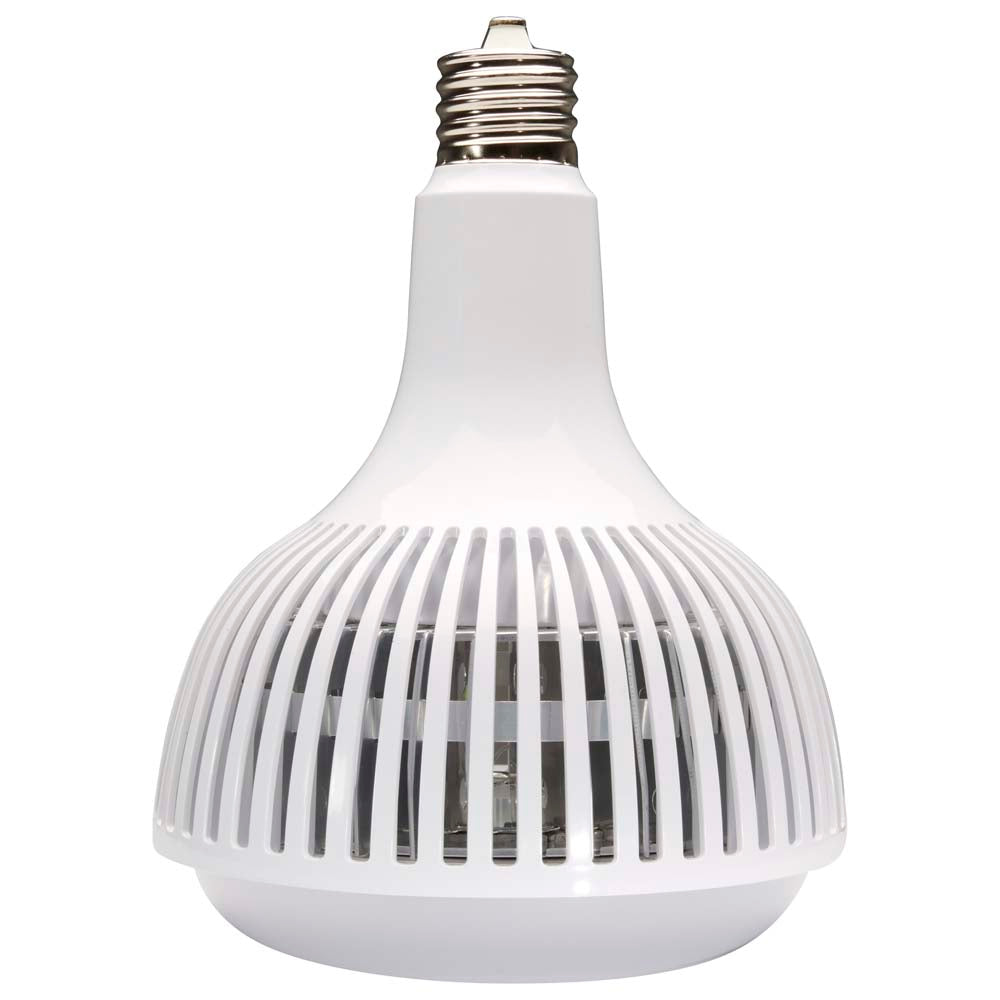

Satco 80w LED HID Replacement 4000K Mogul extended Base 120-277V Dimmable

Satco SKU: S23112
$6695 $114.99 USD
289 in stock


Satco update of our popular high bay/low bay LED lamps means improved performance on every level including, built-in dimming. The shape lends itself to virtually every fixture, and the heat dissipation feature means a cooler running, longer lasting lamp. Commercial venues everywhere have been relying on this lamp for years. Everywhere superior light output is critical and reducing maintenance is important, areas such as, warehouses, gymnasiums, health clubs, factories and arenas, these lamps are the perfect choice.

- Replaces 250-watt HID Technology
- Long neck options fits most fixtures.
- Advanced passive heat dissipation
- Wide, 115 degree beam spread
- Light weight
- Damp Location Rated
- Dimmable with built-in dimmer only
- 6kV built-in surge protection
- Rated for use in enclosed fixtures


Watts 80W
HID Equivalent 250W
Volts 120V-277V
Base Mogul Extended
ANSI Base EX39
Finish Translucent White
CCT (Kelvin) 4000k
Temperature Cool White
CRI 80
Lumens 10000L
Beam Spread 115
Dimmable Yes-Dimmable
Hours Rated 35000
Technology Hi-Bay LED
Operating Frequency 50-60 Hz
Power Factor 0.98/0.92
Operating Temperature -40C (-40F) to a maximum of +60C (+140F)
MOL 10.12
MOD 7.48
Weight (lb.) 1.76
Additional Information
Rated For Enclosed Fixture Yes
Warranty 3 Year Limited
Safety Listing cULus - Classified; cULus - Certified
Location Rating Damp
Energy Star No
FCC Compliant Yes
