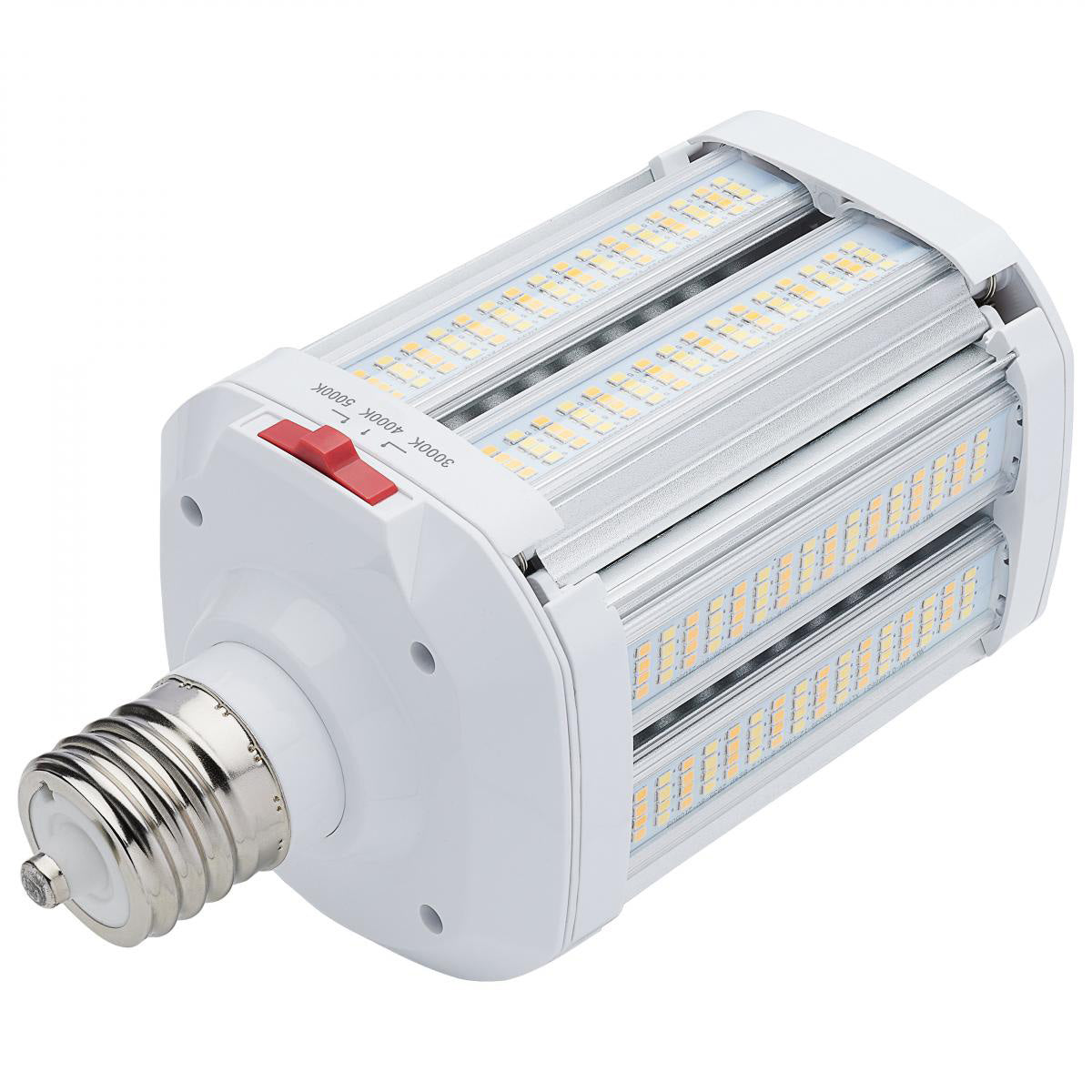

Satco LED Hi-lumen Shoe Box 60/70/80w and Select CCT 3K/4K/5K Mogul Extended 100-277V

Satco Hi-Pro shoebox lamps have just gotten much smarter! The lamps are suitable for new lamps and metal halide replacements. The shoebox lamp offers higher efficiency and improved heat dissipation. This unique design of its expandable sides helps to make for an easy installation. When opened in position, the lamp delivers a 180-degree beam angle that focuses light distribution to where it is needed most.

Features:

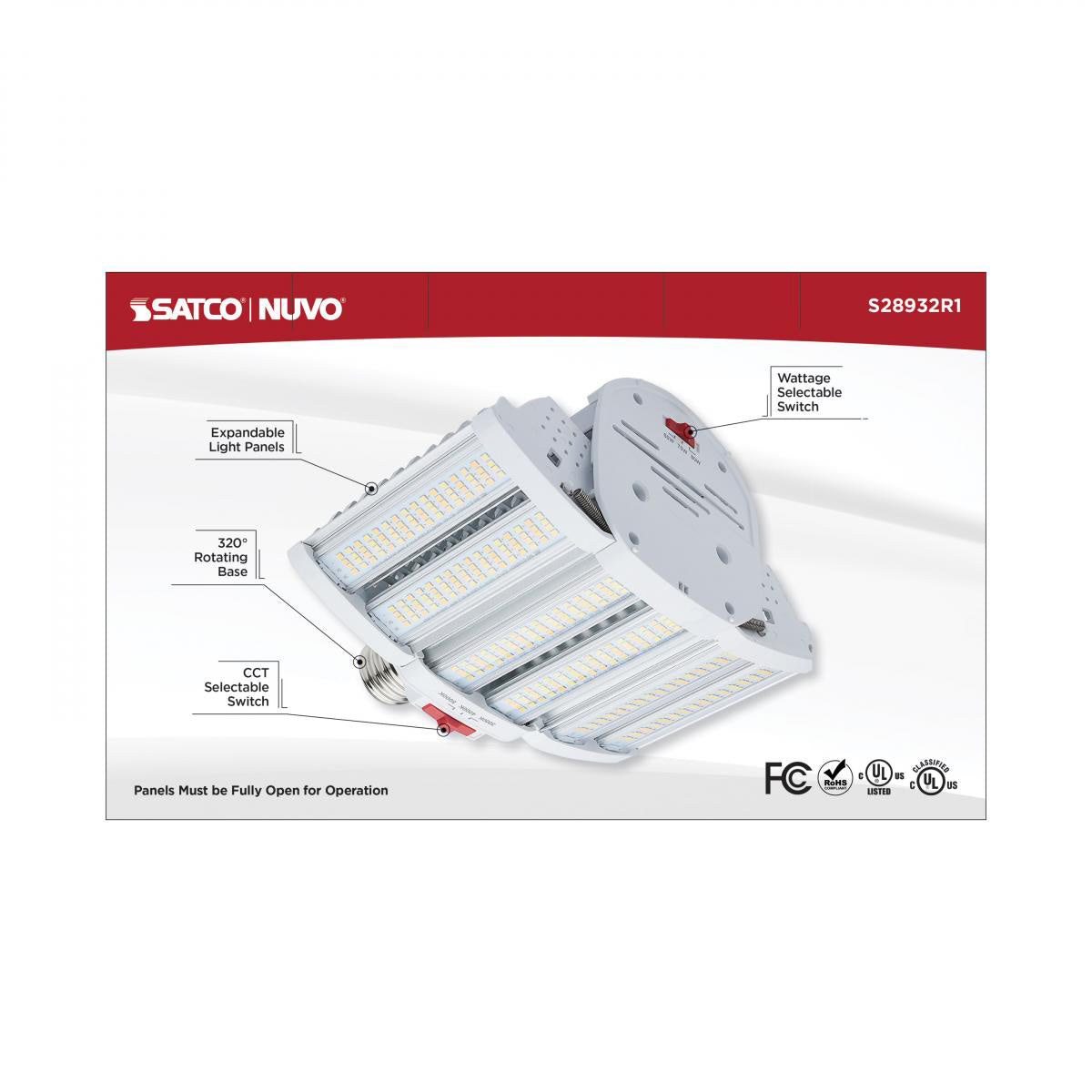

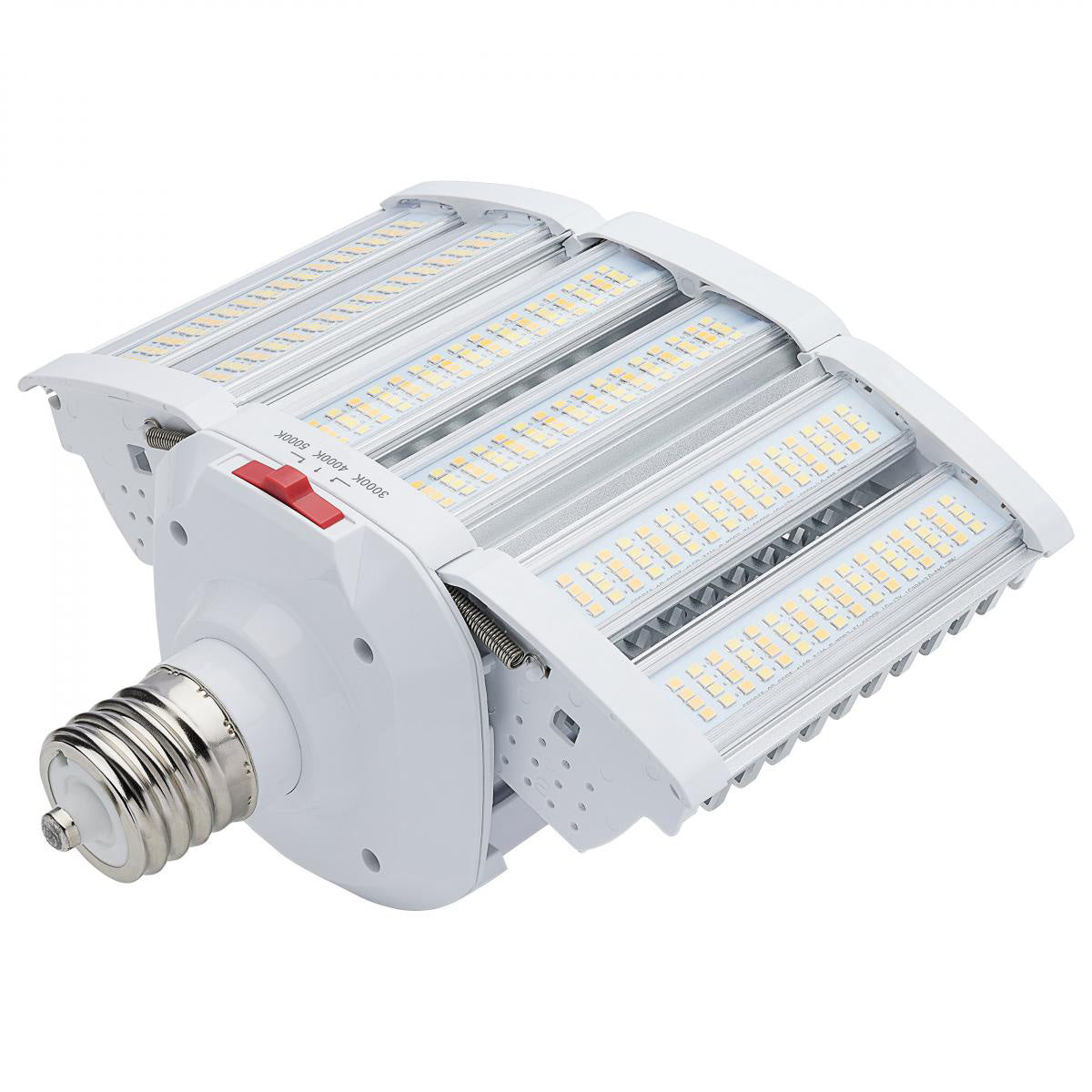

- LED Expandable Light Panner with 320deg Rotating Mogul Extended (EX39) base
- Ideal Shoebox Replacement with advanced heat dissipation

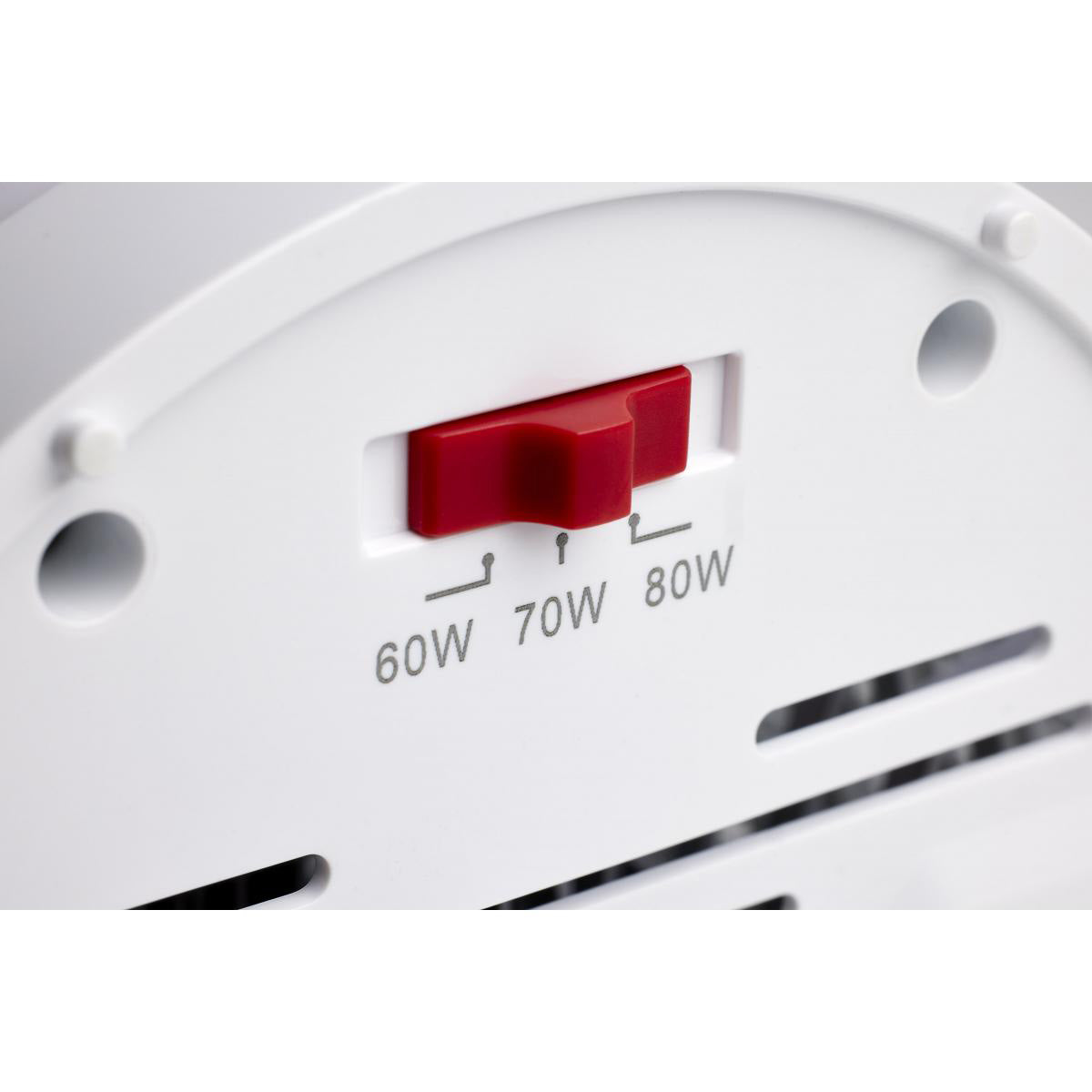

- Selectable Wattage: 60W/9000Lm, 70W/10150Lm, 80W/11200Lm; Efficiency: 150/145/140 lumens per Watt

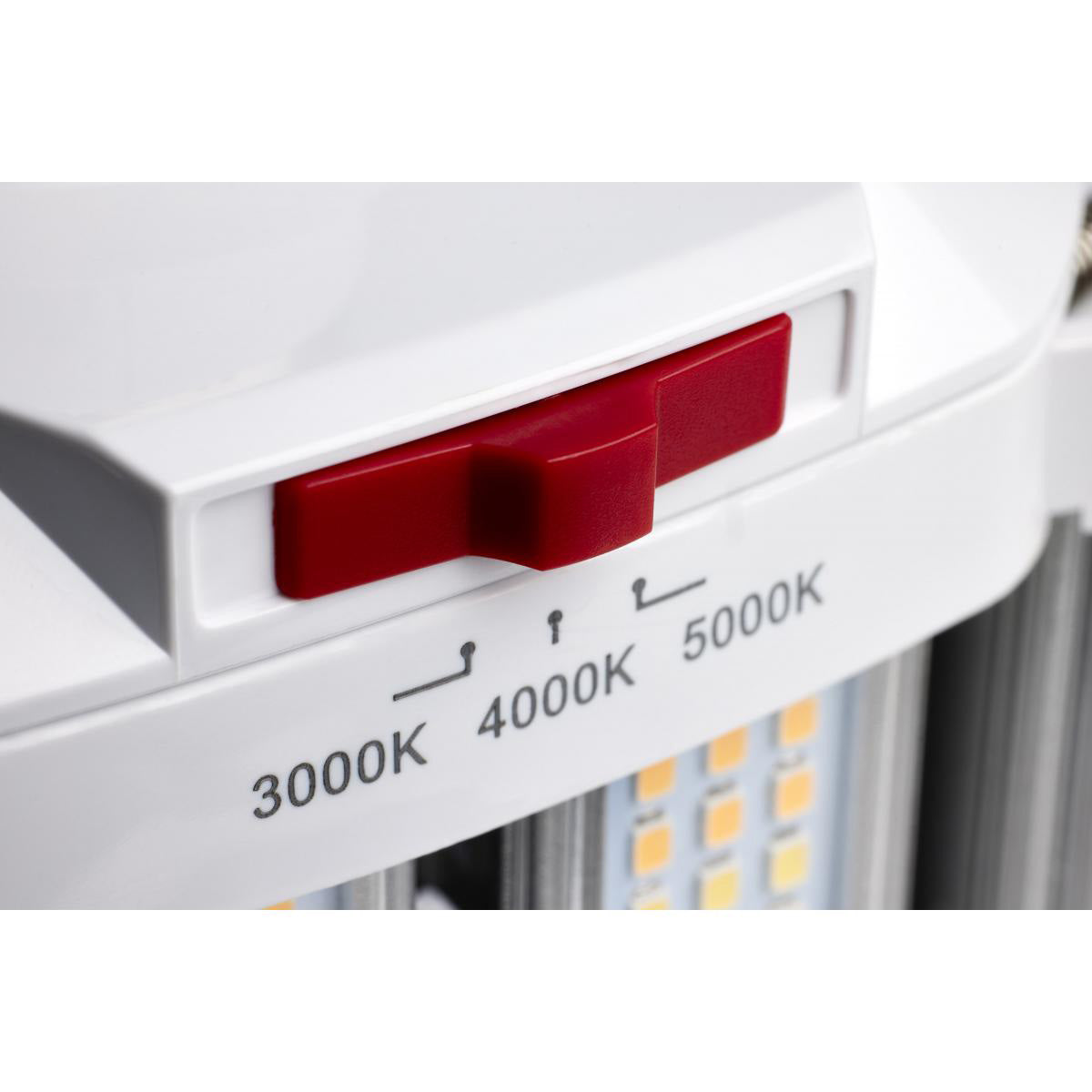

- Selectable Color Temperature: 3000/4000/5000K
- Voltage: 120-277V
- Beam angle: 180deg
- HID Equivalent: 200W, 250W, 320W
- Ballast Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

General
Brand	Satco
Watts	60W/70W/80W
HID Equivalent	200W/250W/320W
Incand. Equivalent	400W
Volts	100V-277V
Shape	Integrated LED
Base	Mogul Extended
ANSI Base	EX39
Finish	White
CCT (Kelvin)	3000K/4000K/5000K
Temperature	Soft White to Natural Light
CRI	+80
Lumens	9000L/10150L/11200L
Beam Spread	180
Dimmable	Yes-Dimmable
Hours Rated	50000
Technology	Expandable Hi-Pro Shoebox LED
Electrical
Volts	120V-277V
Operating Frequency	50/60 Hz
Power Factor	0.9
Ballasting Requirements	Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Operating Temperature	-30C (-22F) to +45C (+113F)
Dimming Type	Step Dimming - Only dimmable through wattage selection switch on lamp
Operating Position	Universal
Surge Protection	Built-in surge protection - 4KV
Physical
MOL	8.86
MOD	8.9
Weight (lb.)	2.43
Additional Information
Rated For Enclosed Fixture	Yes
Min Compartment Size	Length: 11 in. Width: 11 in. Height: 9.2 in.
Installation Notes	Not for use in vapor tight fixtures.
Warranty	5 Years Limited
Compliance
Safety Listing	cULus - Certified; cULus - Classified; cULus - Liste
Location Rating	Damp
DLC Approved	Yes
RoHS Compliant	Yes
FCC Compliant	Yes
Each UPC	045923298837
