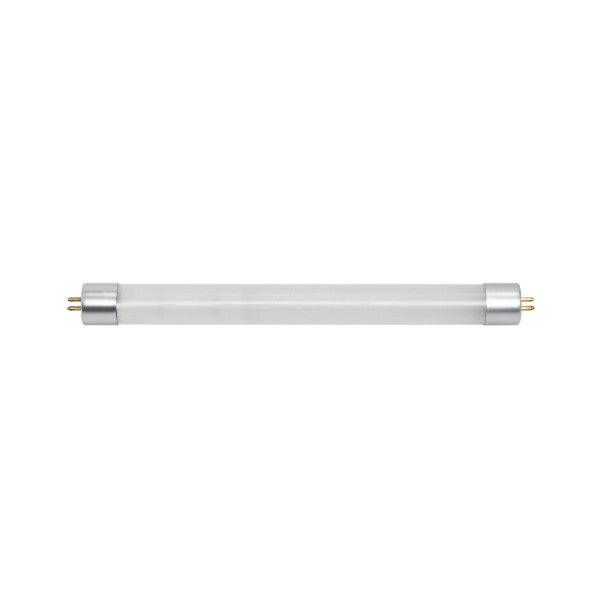

Satco 3w T5 LED Tube 9 inch 270lm 6500k Daylight - Ballast Bypass

Satco 3w T5 LED Tube 9 inch 270lm 6500k Daylight - Ballast Bypass

Features:
- Wattage: 3w
- Base: G5 2 Pin
- Shape: T5
- Lumens: 270lm
- Rated Life: 50,000 hours
- Color: 6500k
- Color Temp: Daylight
- Ballast Bypass
- No ballast or external driver required
- Tube length: 9 inch
- Direct wire 120-277V line voltage
- Double ended wiring
- NSF Approved
- PET Shatterproof coated
- 5 year Limited warranty

UPC	045923119033
Voltage	120-277
Watts	3
Operating Frequency	50/60Hz
Fluorescent Equivalent	6W
Power Factor	0.9
Lamp Shape	T5
Base	Miniature Bi-Pin
ANSI Base	G5
Lamp Code	3W/LED/T5/865/BP
Dimmable/Non-Dimmable	Non-Dimmable
Finish	Frosted
MOL In Inches	9
MOD In Inches	0-5/8''
Initial Lumens	270
Average Rated Hours	50000
Color Temperature	6500k
Color	Daylight
CRI	80
Beam Spread Deg	240
Operating Temperature	-25C (13F) to a maximum of 45C (113F)
CA Title 20	Lawful for sale in California
Material	Glass
RoHS Compliant	Yes
UL or ETL Listed	Yes
UL Classification	cULus Classified - Damp Location Rated
Warranty	5 Year Limited

Manual:

S11903 Data Sheet
S11903 Wiring Instruction
