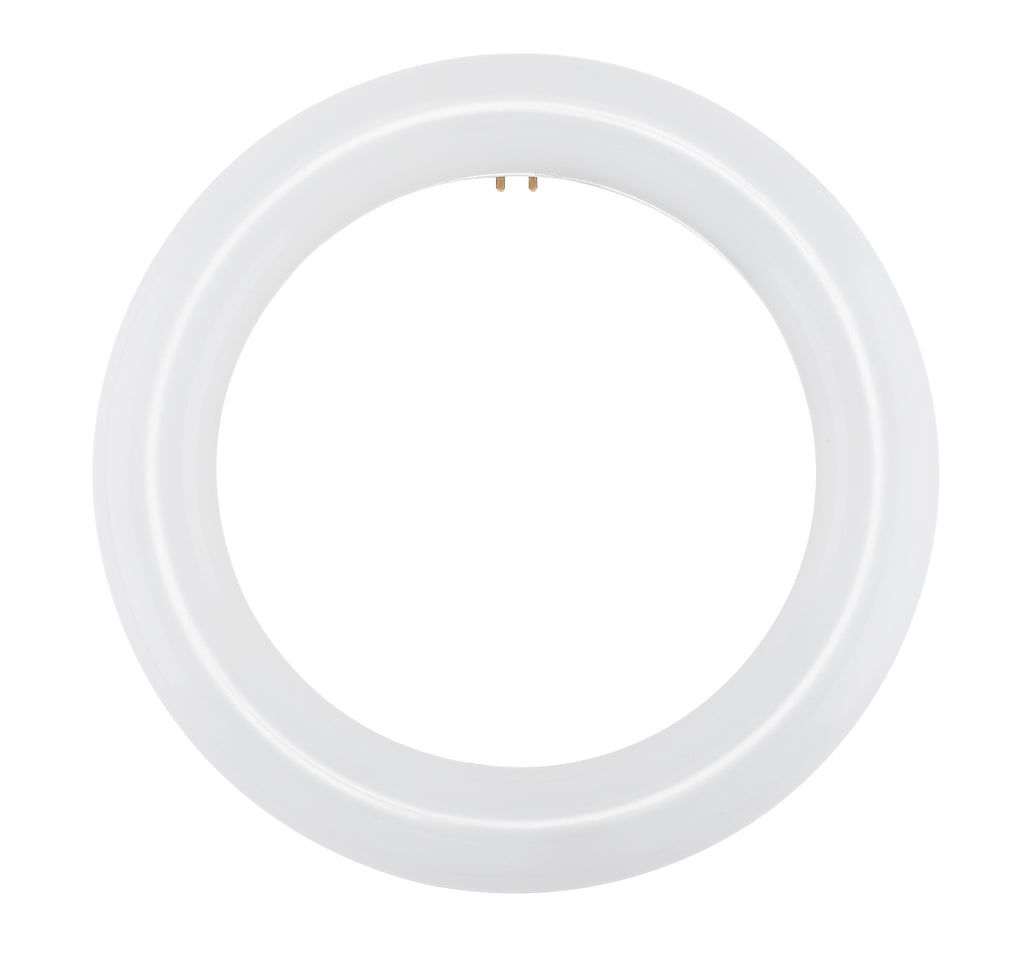

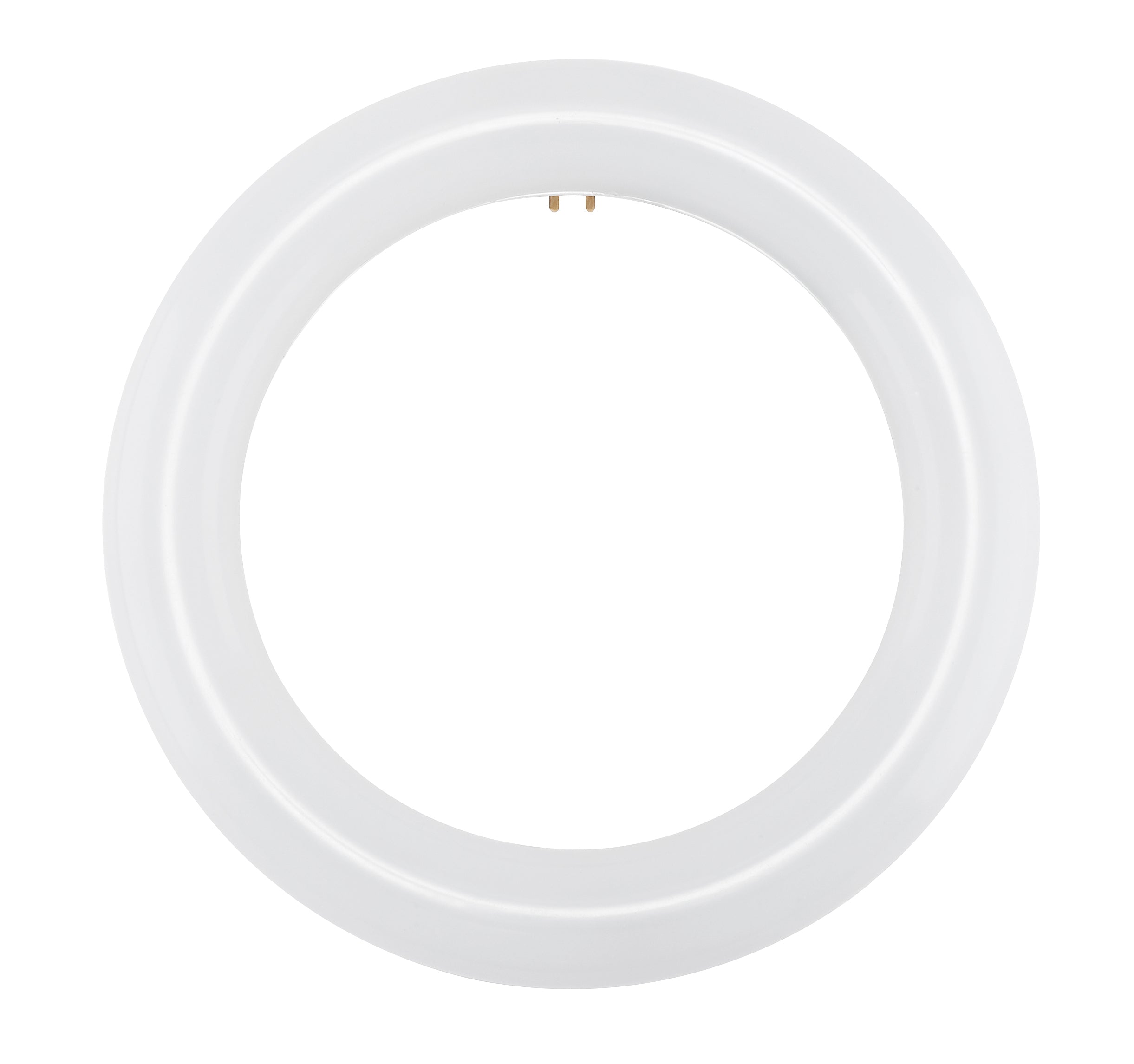

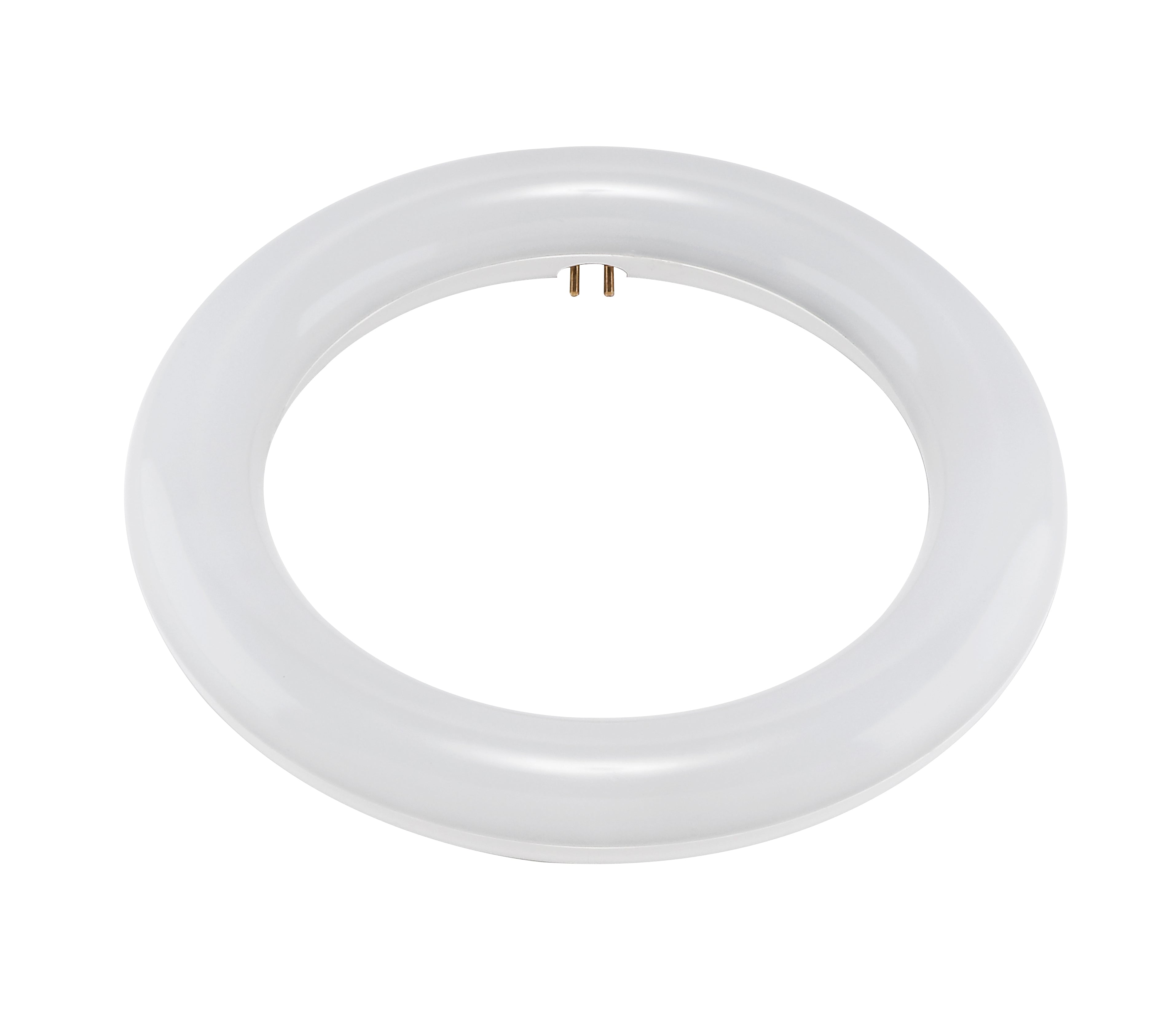

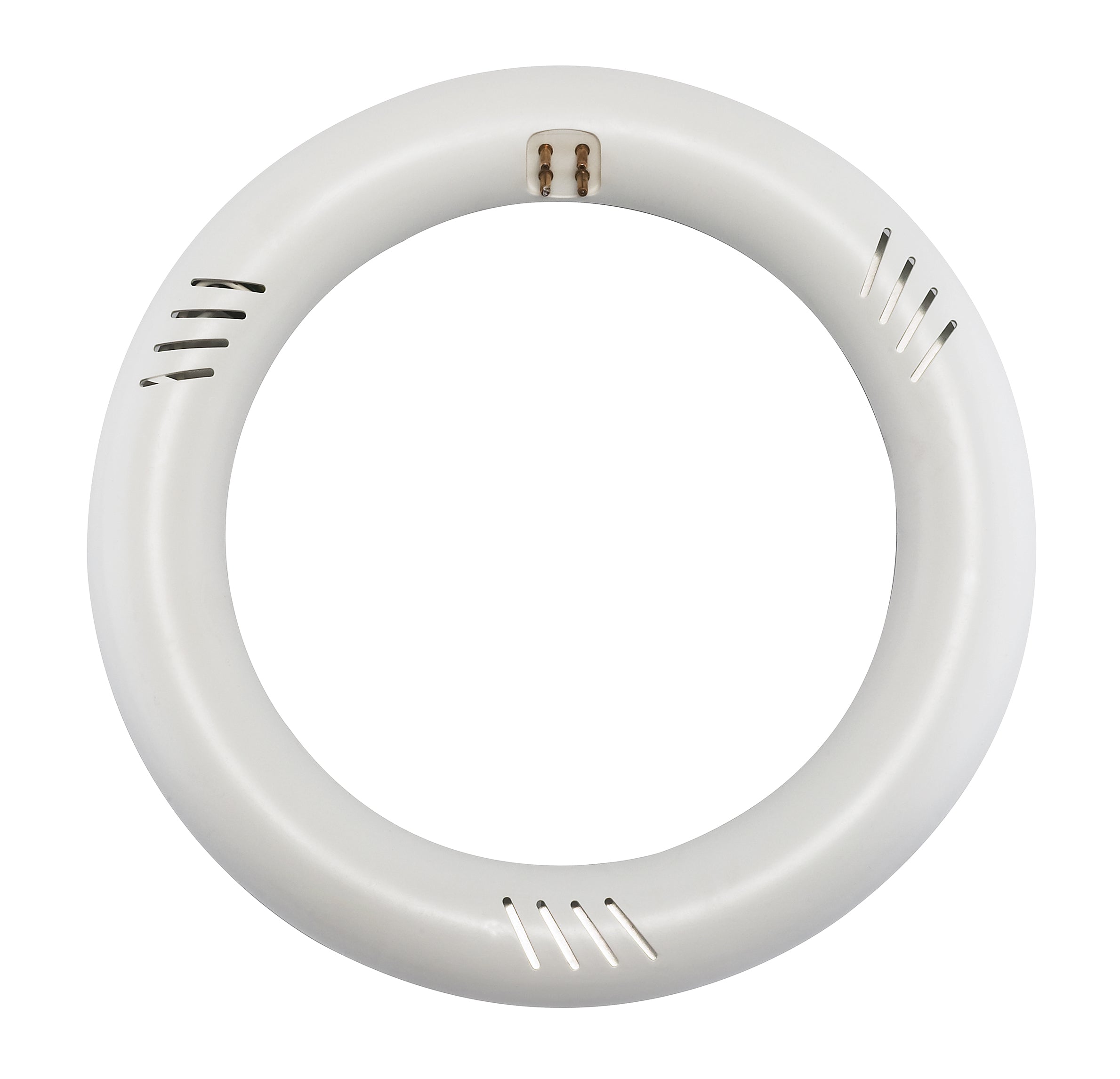

Satco 11w FC8T9 LED Circline 8in 1100lm 3000k Warm White - Ballast Bypass

Satco S16500 - 11w FC8T9 LED Circline 8 inch 1100lm 3000k Warm White - Ballast Bypass

Features:
- Wattage: 11w
- Base: G10q
- Shape: T9
- Lumens: 1100lm
- Rated Life: 50,000 hours
- Color: 3000k
- Color Temp: Warm White
- Ballast Bypass - No ballast or external driver required
- Direct wire 120-277V line voltage
- NSF Approved
- Replaces 22W and 32W fluorescent Circlines

UPC	045923165009
Voltage	120-277
Watts	11
Operating Frequency	50/60Hz
Fluorescent Equivalent	22W
Power Factor	0.9
Lamp Shape	T9
Base	4-Pin
ANSI Base	G10q
Lamp Code	FC8T9/LED/CIR/830/BP
Dimmable/Non-Dimmable	Non-Dimmable
Finish	White
MOL In Inches	8''
MOD In Inches	8.00''
Initial Lumens	1100
Average Rated Hours	50000
Color Temperature	3000k
Color	Warm White
CRI	80
Beam Spread Deg	135
Operating Temperature	-25C (-13F) to a maximum of +45C (+113F)
THD	<25%
Pack	43800
Package Type	Box
Material	Plastic
RoHS Compliant	Yes
UL or ETL Listed	Yes
UL Classification	cETLus - Damp Location Rated
Warranty	5 Year Limited

Manual:

Satco S16500 Data Sheet
Satco S16500 Installation Manual
