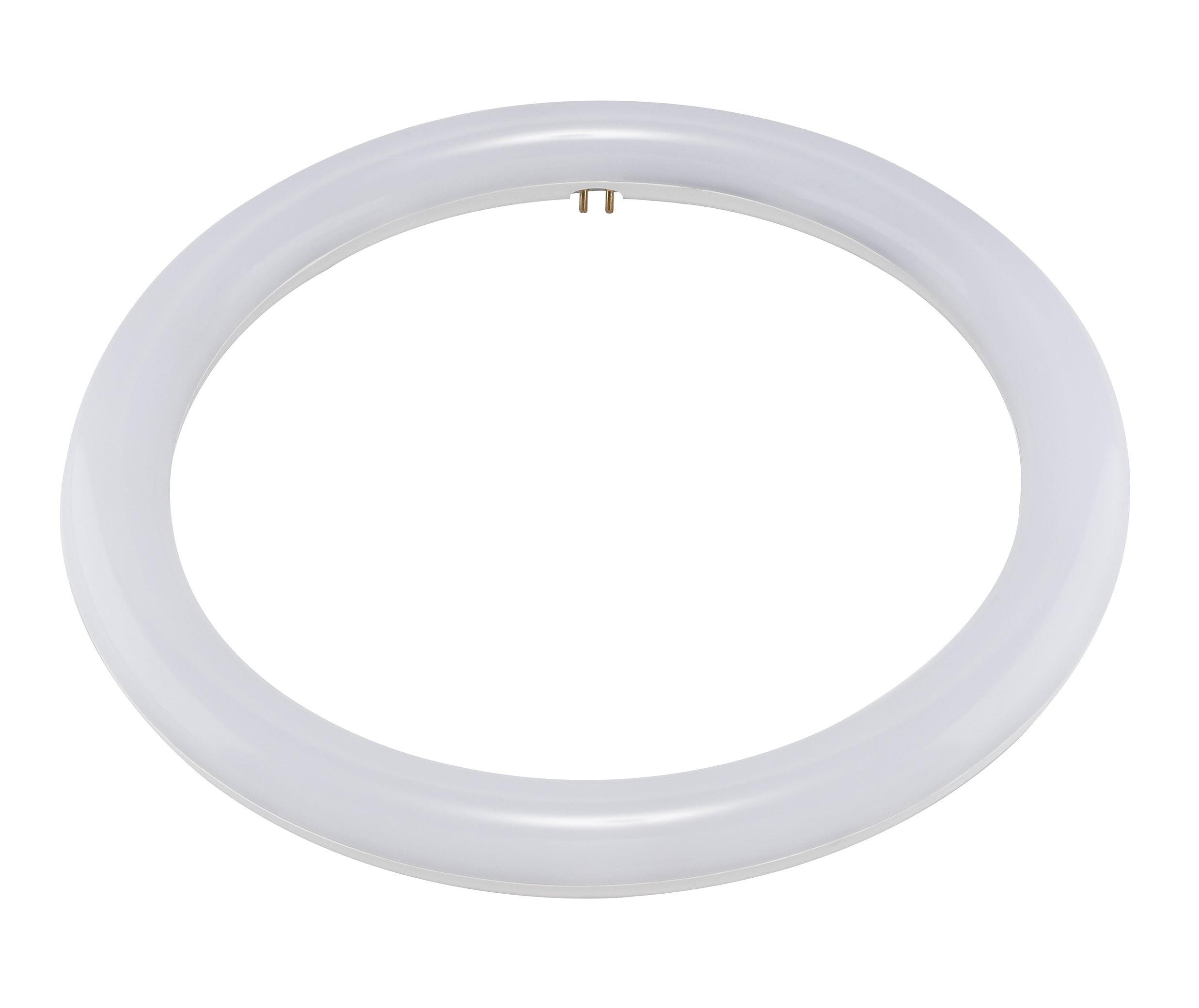

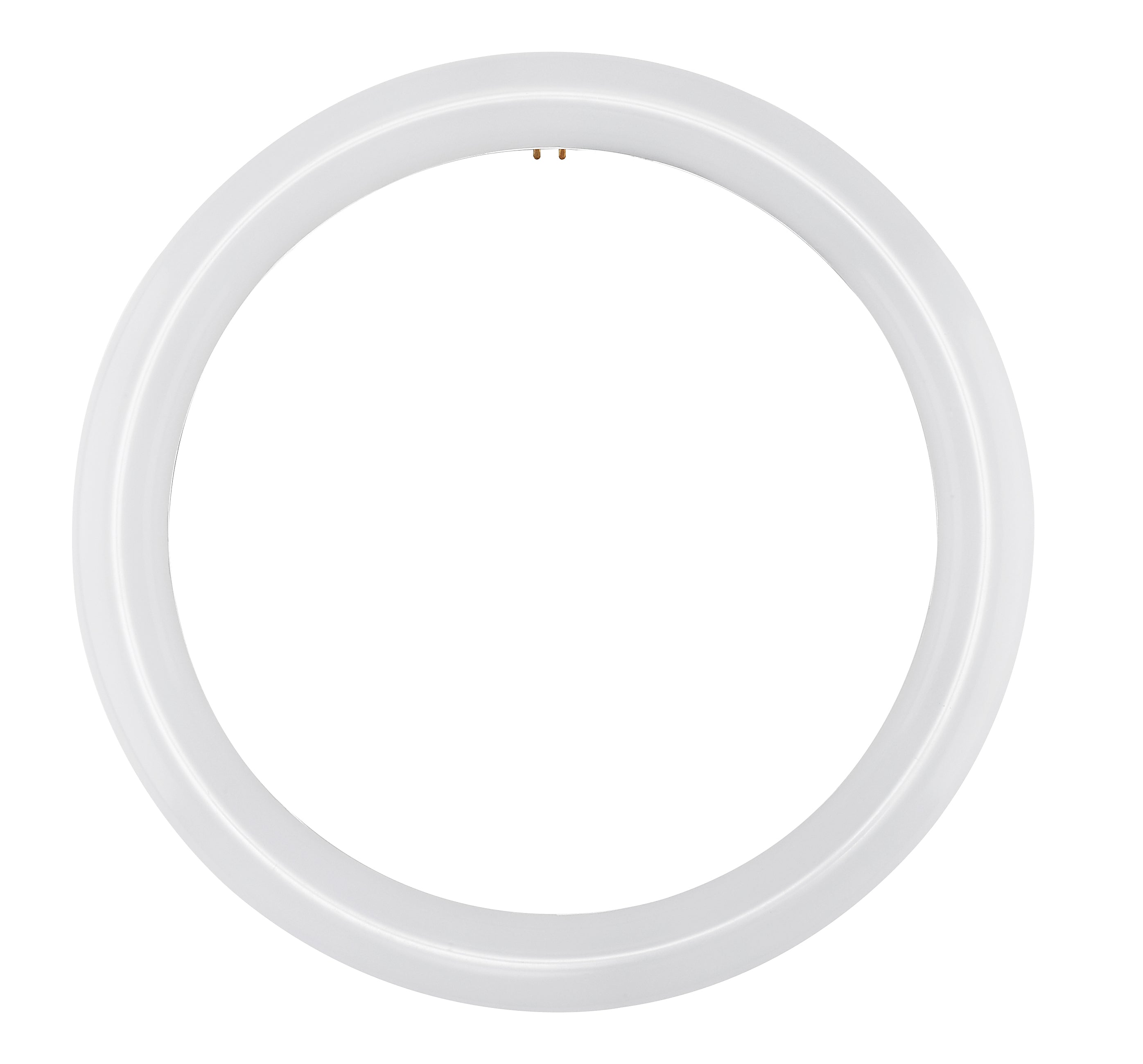

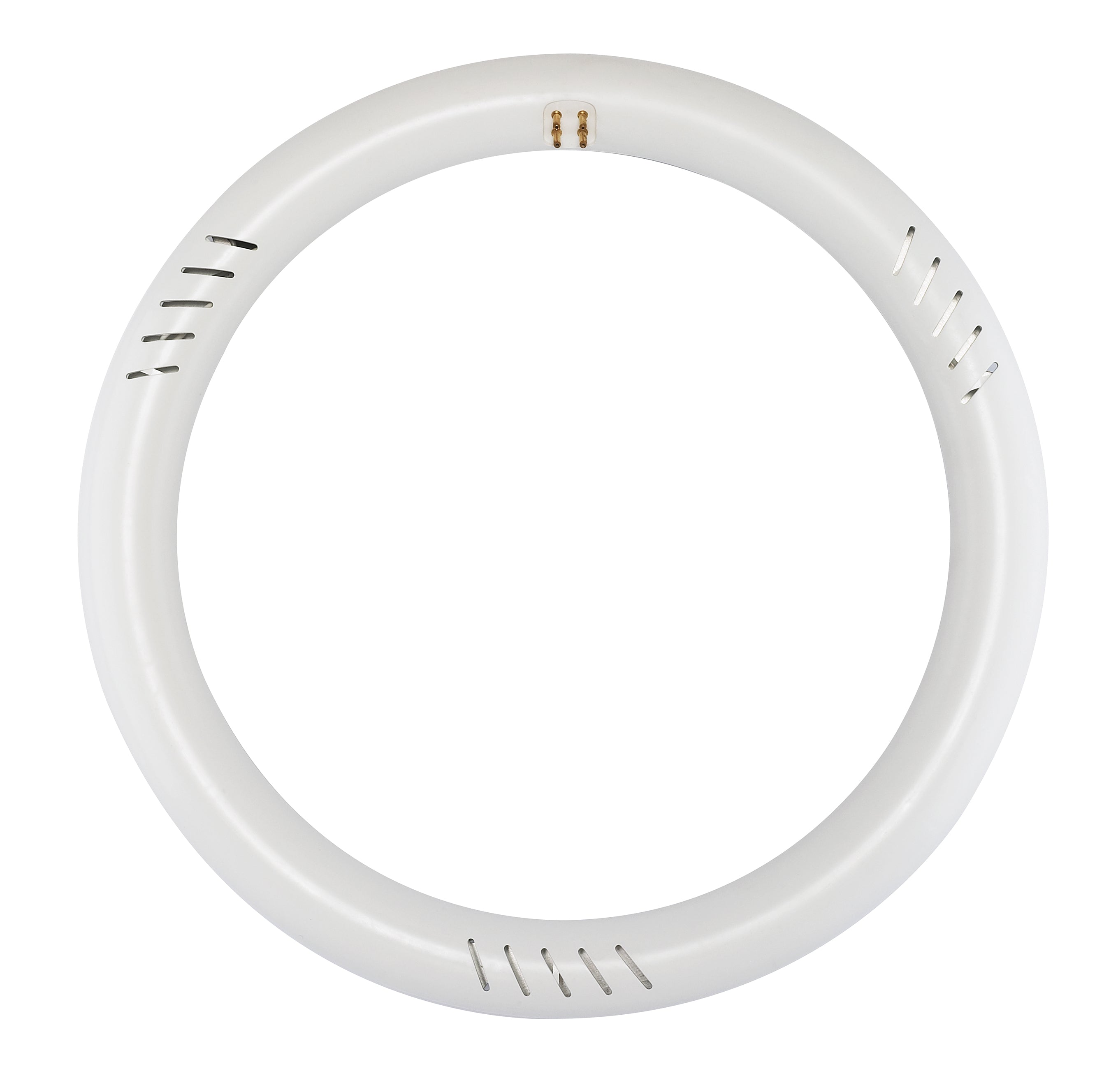

Satco 16w FC12T9 LED Circline 12in 1600lm 3000k Warm White - Ballast Bypass

Satco S16503 - 16w FC12T9 LED Circline 12 inch 1600lm 3000k Warm White - Ballast Bypass

Features:
- Wattage: 16w
- Base: G10q
- Shape: T9
- Lumens: 1600lm
- Rated Life: 50,000 hours
- Color: 3000k
- Color Temp: Warm White
- Ballast Bypass - No ballast or external driver required
- Direct wire 120-277V line voltage
- NSF Approved
- Replaces 22W and 32W fluorescent Circlines

UPC	045923165030
Voltage	120-277
Watts	16
Operating Frequency	50/60Hz
Fluorescent Equivalent	32W
Power Factor	0.9
Lamp Shape	T9
Base	4-Pin
ANSI Base	G10q
Lamp Code	FC12T9/LED/CIR/830/BP
Dimmable/Non-Dimmable	Non-Dimmable
Finish	White
MOL In Inches	12''
MOD In Inches	11.00''
Initial Lumens	1600
Average Rated Hours	50000
Color Temperature	3000k
Color	Warm White
CRI	80
Beam Spread Deg	135
Operating Temperature	-25C (-13F) to a maximum of +45C (+113F)
THD	<25%
Pack	43800
Package Type	Box
Material	Plastic
RoHS Compliant	Yes
UL or ETL Listed	Yes
UL Classification	cETLus - Damp Location Rated
Warranty	5 Year Limited

Manual:

Satco Circline LED
S16503 Spec Sheet
