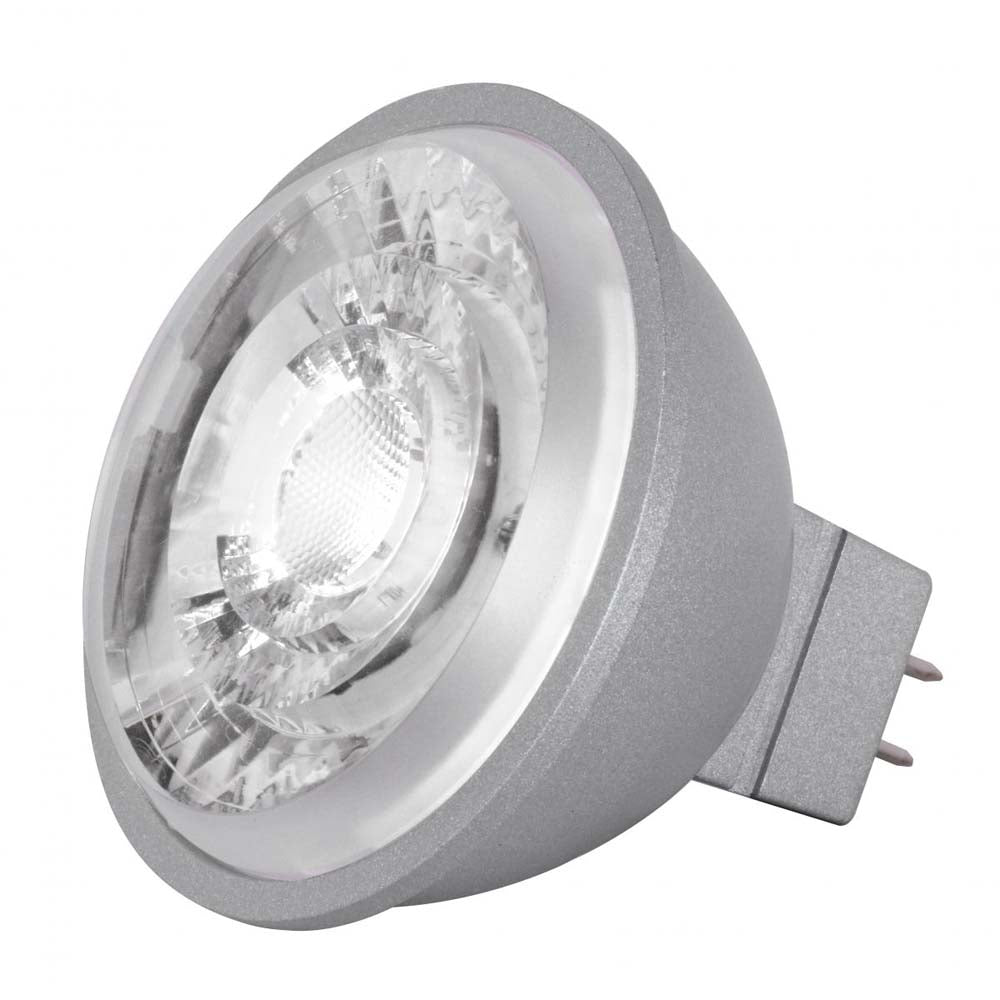

Satco 8w LED MR16 Expanded Line 3000K Narrow Flood 15 GU5.3 Base 12v - 75w-equiv

Satco 8 Watt MR16 12 Volt Bi-Pin GU5.3 Miniature Round-Pins Base 490 Lumens 3000K Warm White 25000 Hours Silver Back 15 Degree Beam Angle High CRI LED RoHS Compliant Reflector Light Bulb - Dimming - Enclosed Lamp Rated - MR LED - Incandescent Equivalent: 75 Watt - Dimmable: Yes Dimmable - Safety Listing: cULus - Damp Location Rated

Features:
- Direct Replacement For Halogen
- Approved For Totally Enclosed
- Damp Location
- Watts: 8
- Incandescent Equivalent: 75, Volts: 12
- Shape: MR16, Base: Bi Pin GU5.3
- Finish: Clear
- CCT (Kelvin): 3000, Color Temp: Warm White
- CRI: 90, Lumens: 490
- Rated Life: 25,000 hrs, Beam Spread: 15 deg., Dimmable
- Warranty: 5 Year Limited

GENERAL
Watts	8
Incandescent Equivalent	75
Volts	12
Shape	MR16
Base	Bi Pin GU5.3
Finish	Clear
CCT (Kelvin)	3000
Temperature	Warm White
CRI	90
Lumens	490
Beam Spread	15
Dimmable	Yes - Dimmable
Rated Life	25,000 hrs
Technology	LED
ELECTRICAL
Operating Frequency	-25C (-13F) to a maximum of +45C (+113F)
Candlepower	3700
Power Factor	0.9
PHYSICAL
MOL	1.88
MOD	2
Lensed	Lensed Lamp
Housing Color	Grey
ADDITIONAL INFORMATION
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited
COMPLIANCE
Safety Listing	cULus
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale in California
Nevada Status	Lawful for sale in Nevada
RoHS Compliant	Yes

Manual:

Satco LED MR16
S8636 Data Sheet
