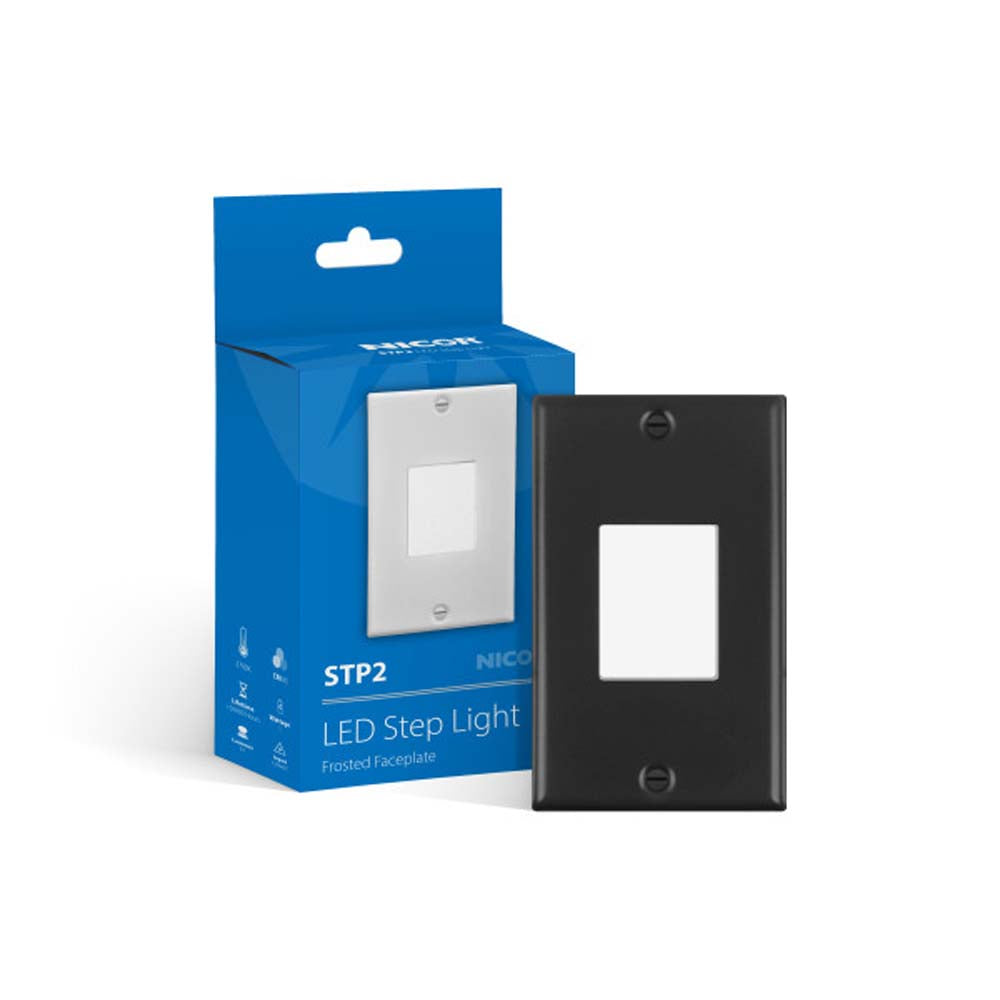

STP2 Frosted Black LED Step Light

NICOR new STP2 incorporates all the features of our popular STP series, in a new slimmer body. Now available in Louvered and Frosted options, the STP2 is a great complement for your residential and commercial projects. Featuring a 2700K Color Temperature, the warm, natural glow not only provides safety, but it is also the perfect accent for any space. The STP2 is Wet-Location Rated, making it ideal for outdoor decks, porches, and pathways. Available in Black, Oil-Rubbed Bronze and White finishes, it can accentuate any design indoors to light up hallways, stairways, and entryways. The STP2 easily mounts into most metal, non-metallic and non-metallic remodel single gang junction boxes for easy installation. It has a 50,000 hour lifespan and is protected by NICOR 5-Year limited warranty.

Features:
- Includes one LED Step Light and one Open Face Black Faceplate
- Can be installed Horizontally or Vertically
- 2700K (Warm White) Color Temperature
- Produces 57 Lumens at 1-Watt
- 120V Line Voltage
- Mounts directly in most single gang junction boxes
- Wet-Location rated for outdoor use
- Dimmable with TRIAC/ELV Dimming

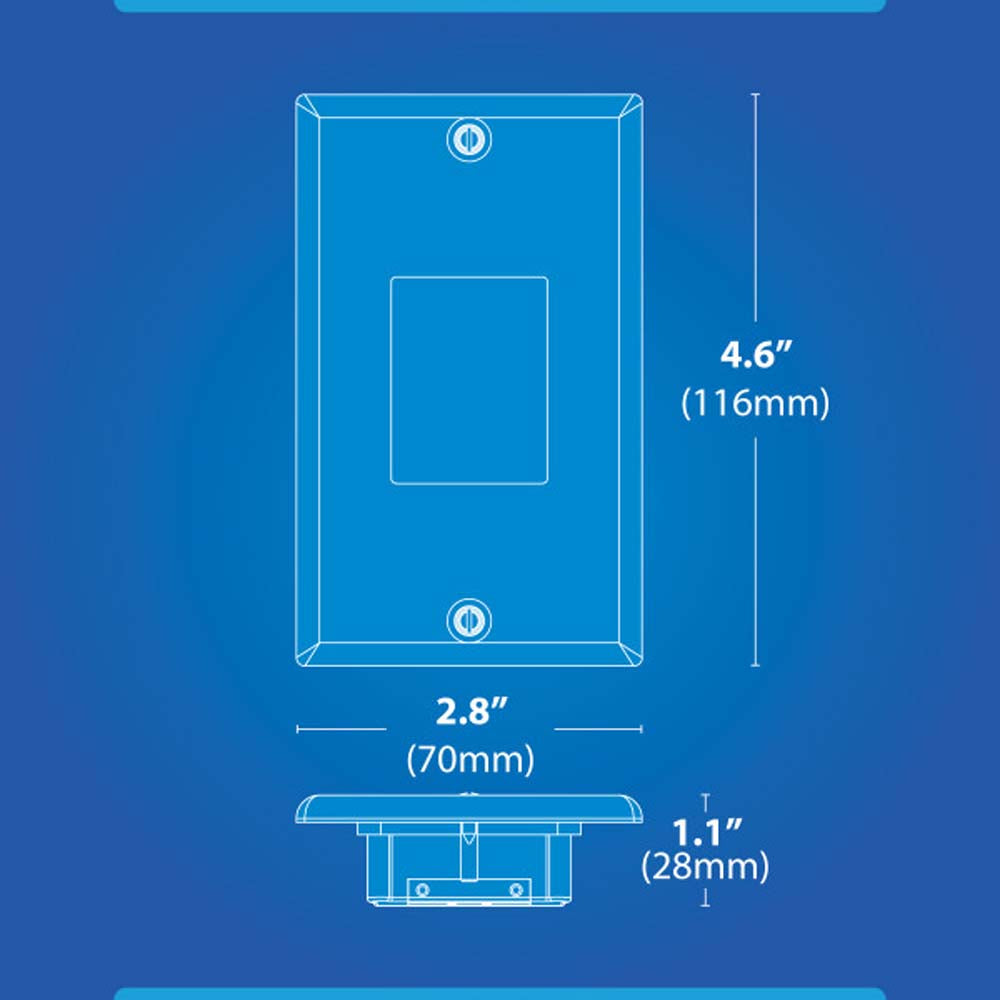

Size (in.)	4.5 x 2.75
Shape	Rectangle
Product Color	Black
Finish	Powder coat
Light Source	LED
Wattage	1
Wattage Equivalent	10
Voltage	120VAC
Lumen Output	57
Lumens Per Watt	57
Color Temperature (CCT)	2700K
CRI	80
R9 Value
Dimmable	Yes
Dimming Type	TRIAC ELV
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	cETLus, Wet-Location, ROHS Compliant
Warranty (Years)	5 Year Limited

Manual:

STP2F120BK Data Sheet
STP2F120BK Installation Manual
