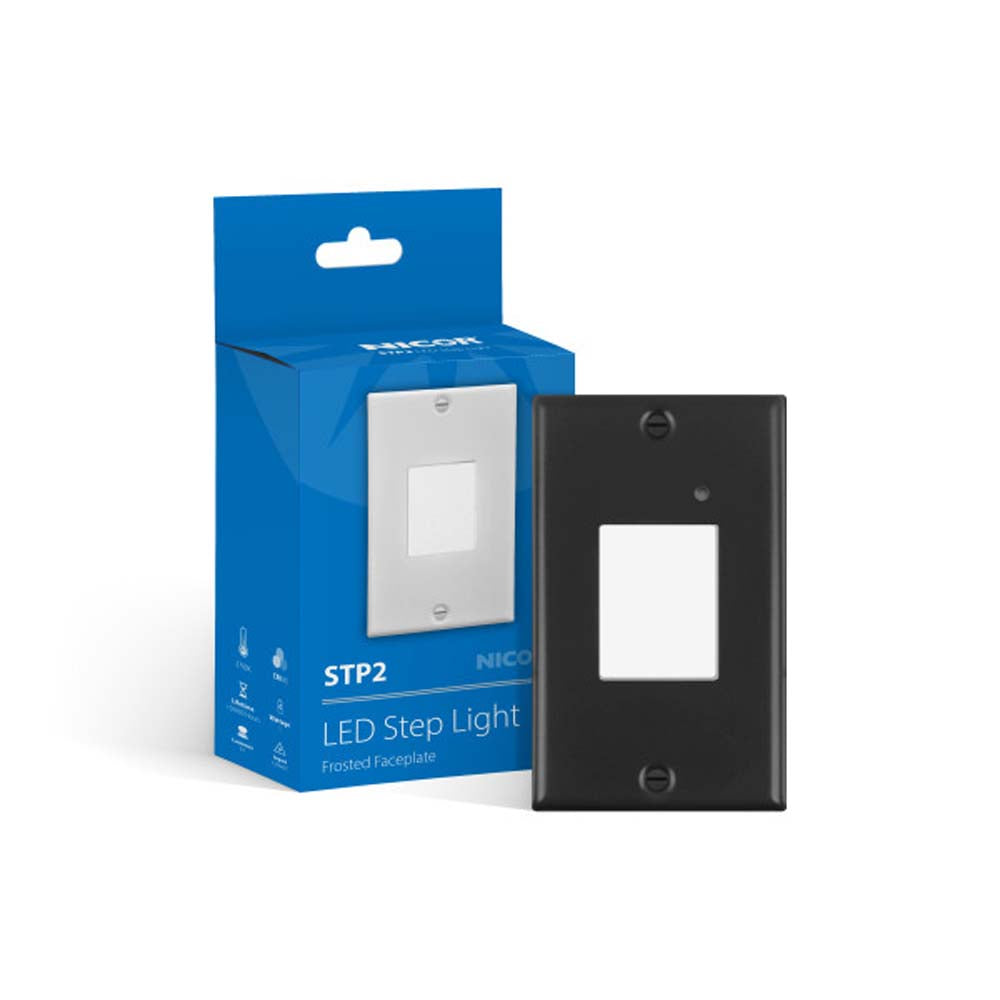

STP2 Frosted Black LED Step Light with Photocell

NICOR new STP2 incorporates all the features of our popular STP series, in a new slimmer body. Now available in Louvered and Frosted options, the STP2 is a great complement for your residential and commercial projects. Featuring a 2700K Color Temperature, the warm, natural glow not only provides safety, but it is also the perfect accent for any space. The STP2 is Wet-Location Rated, making it ideal for outdoor decks, porches, and pathways. Available in Black, Oil-Rubbed Bronze and White finishes, it can accentuate any design indoors to light up hallways, stairways, and entryways. The STP2 easily mounts into most metal, non-metallic and non-metallic remodel single gang junction boxes for easy installation. It has a 50,000 hour lifespan and is protected by NICOR 5-Year limited warranty.

Features:
- Includes one LED Step Light and one Open Face Black Faceplate
- Pre-installed Photocell (Dusk to Dawn sensor) turns the step light on when it gets dark
- Can be installed Horizontally or Vertically
- 2700K (Warm White) Color Temperature
- Produces 57 Lumens at 1.5-Watts
- 120V Line Voltage
- Mounts directly in most single gang junction boxes
- Wet-Location rated for outdoor use
- Dimmable with TRIAC/ELV Dimming
- 50,000 Hour Lifespan

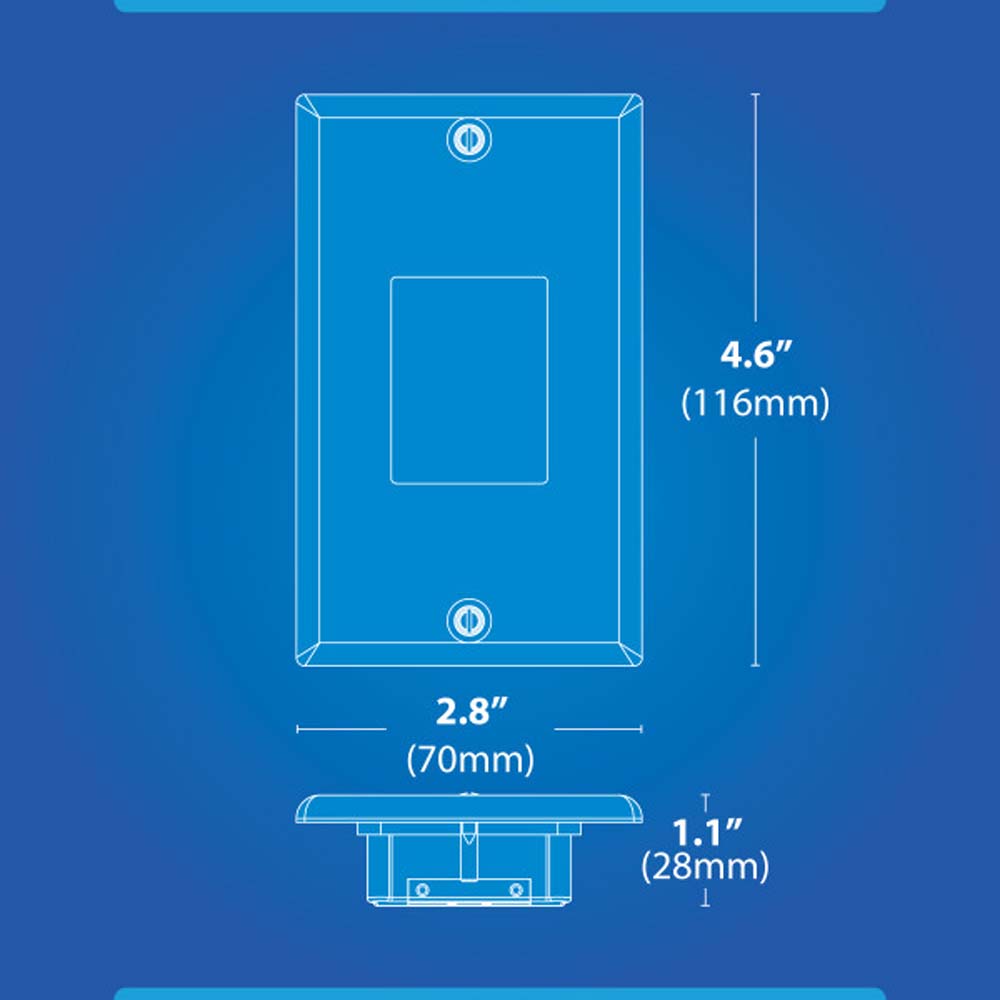

Size (in.)	4.5 x 2.75
Shape	Rectangle
Product Color	Black
Finish	Powder coat
Light Source	LED
Wattage	1.5
Wattage Equivalent	10
Voltage	120VAC
Lumen Output	57
Lumens Per Watt	38
Color Temperature (CCT)	2700K
CRI	80
R9 Value
Dimmable	Yes
Dimming Type	TRIAC ELV
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	cETLus, Wet-Location, ROHS Compliant
Warranty (Years)	5 Year Limited

Manual:

STP2F120BKPC Data Sheet
STP2F120BKPC Installation Manual
