STP2 Horizontal Louvered Black LED Step Light with Photocell

NICOR new STP2 incorporates all the features of our popular STP series, in a new slimmer body. Now available in Louvered and Frosted options, the STP2 is a great complement for your residential and commercial projects. Featuring a 2700K Color Temperature, the warm, natural glow not only provides safety, but it is also the perfect accent for any space. The built-in Photocell (Dusk-to-Dawn Sensor) automatically turns the Step Light ON when it gets dark, and OFF when light is present. The STP2 is Wet-Location Rated, making it ideal for outdoor decks, porches, and pathways. Available in Black, Oil-Rubbed Bronze and White finishes, it can accentuate any design indoors to light up hallways, stairways, and entryways. The STP2 easily mounts into most metal, non-metallic and non-metallic remodel single gang junction boxes for easy installation. It has a 50,000 hour lifespan and is protected by NICOR 5-Year limited warranty.

Features:

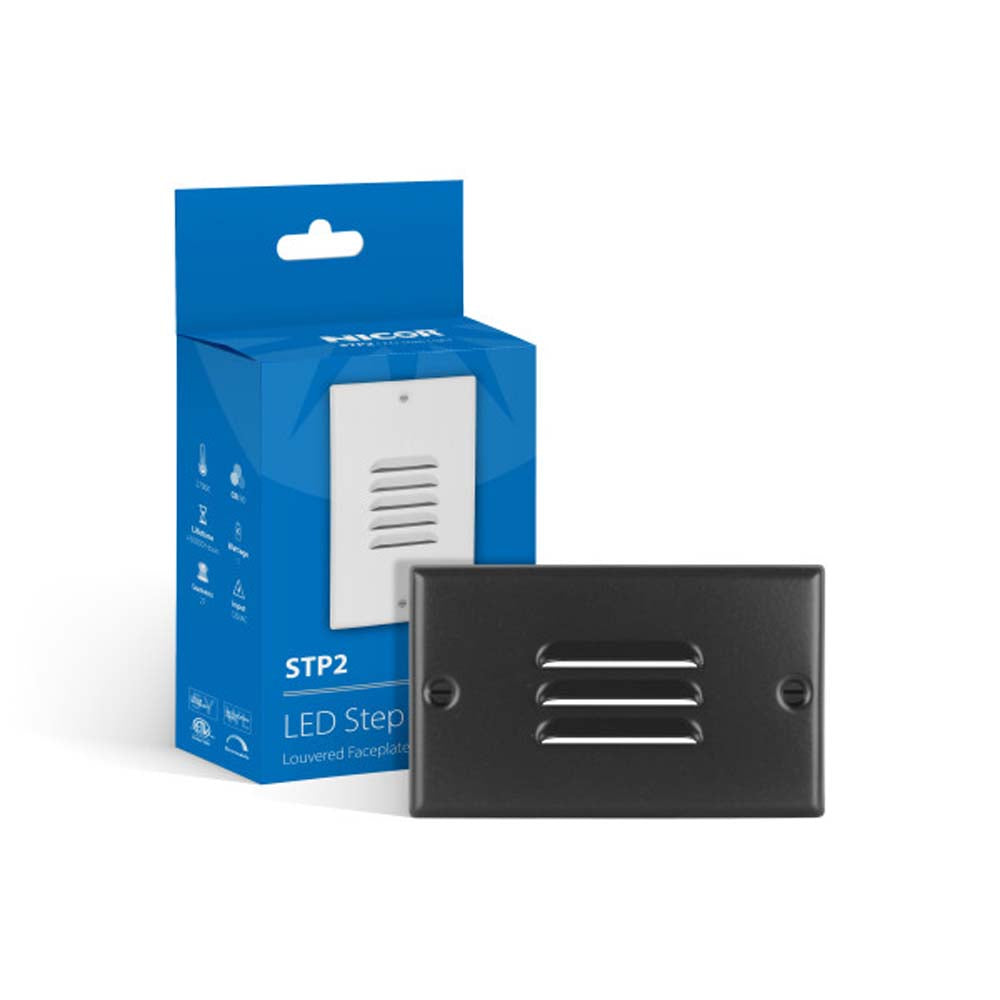

- Includes one LED Step Light with Photocell and one Black Horizontal Louvered Faceplate
- Pre-installed Photocell (Dusk to Dawn sensor) turns the step light on when it gets dark
- Can be installed Horizontally or Vertically
- 2700K (Warm White) Color Temperature
- Produces 27 Lumens at 1.5-Watts
- 120V Line Voltage
- Mounts directly in most single gang junction boxes
- Wet-Location rated for outdoor use
- Dimmable with TRIAC/ELV Dimming
- 50,000 Hour Lifespan

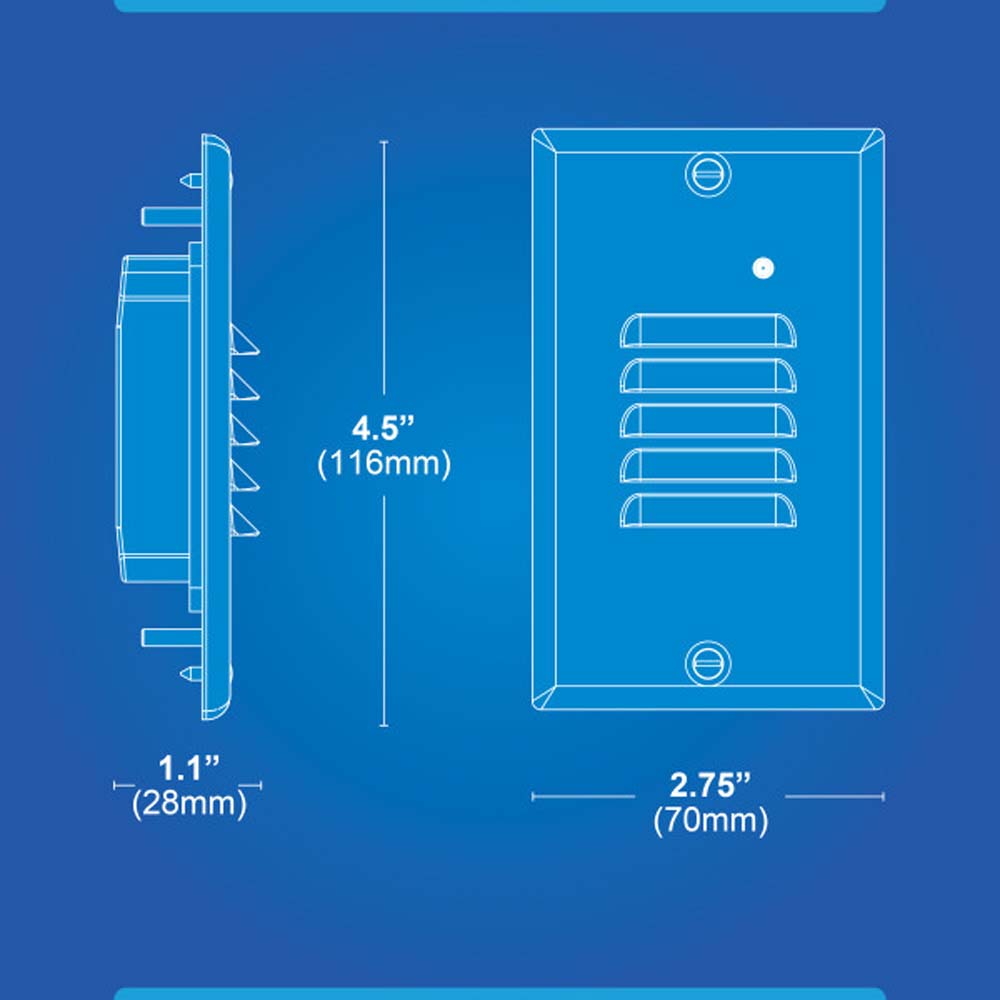

Size (in.)	4.5 x 2.75
Shape	Rectangle
Product Color	Black
Finish	Powder coat
Light Source	LED
Wattage	1.5
Wattage Equivalent	5
Voltage	120VAC
Lumen Output	27
Lumens Per Watt	18
Color Temperature (CCT)	2700K
CRI	80
R9 Value
Dimmable	Yes
Dimming Type	TRIAC ELV
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	cETLus, Wet-Location, ROHS Compliant
Warranty (Years)	5 Year Limited

Manual:

STP2L120HBKPC Data Sheet
STP2L120HBKPC Installation Manual
