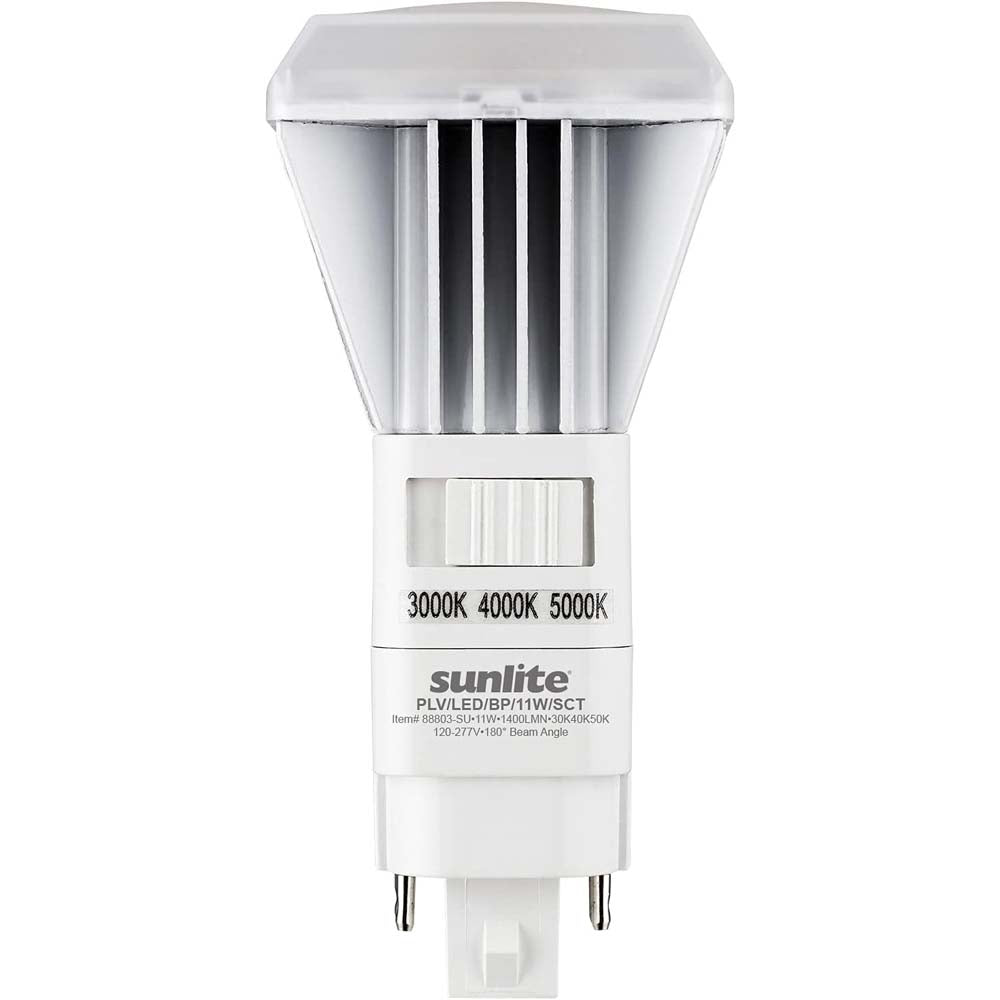

Sunlite 11w LED CCT PLV Recessed G24d Base CCT Tunable Bulb - Ballast Bypass

Upgrade your fluorescent bulbs with energy efficient LED Sunlite light bulbs. They are instant on at full brightness with no buzzing or flickering. With a life span of up to 50,000 hours you will be required to replace difficult to reach bulbs less often. You will save maintenance costs and save energy at the same time. Features a G24d base. Has multiple color temperature options to choose from 3000K Warm White, 4000K Cool White and 5000K Super White, you can now change color temperatures with just the slide of a switch. Can be used for both commercial and residential locations, these led bulbs are ROHS Certified unlike CFL bulbs they contain no harmful chemicals and do not require special handling or disposal. These LED light bulbs require ballast removal. You must bypass the ballast in all fixtures before installing these bulbs. Simple instructions are available online or consult an electrician for more information

FEATURES:
- UPGRADE TO LED - Replace your inefficient fluorescent bulbs with energy saving LED bulbs from Sunlite. They are instant on at full brightness with no buzzing or flickering. Can be used in enclosed fixtures and has a High Color Rendering Index rating of 80
- BALLAST BYPASS REQUIRED - These LED bulbs do not require a ballast. You must bypass the ballast in all fixtures before installing these bulbs. Simple instructions are included inside the packaging. It can also be found online or consult an electrician for more information

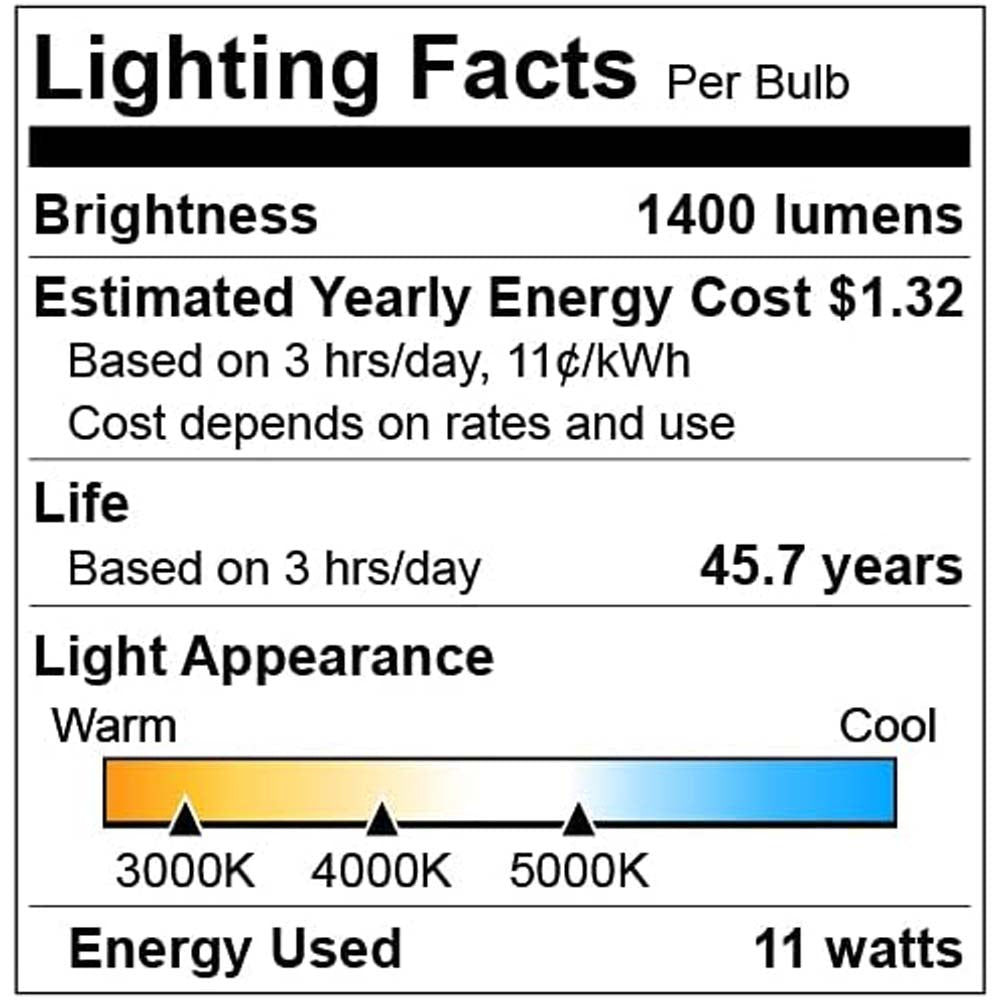

- ENERGY EFFICIENT - With a life span of up to 50,000 hours each bulb puts out a bright 1400 lumens of light while only using 26 watts of electricity. Annual energy costs are a low $1.32 (Based on 3 hours/day at $0.11/kWh)
- UL LISTED AND ROHS COMPLIANT - These Sunlite bulbs are UL Listed and have been tested to meet their rigorous safety standards. They are also ROHS Certified unlike fluorescent Bulbs, they contain no harmful chemicals and do not require special handling or disposal

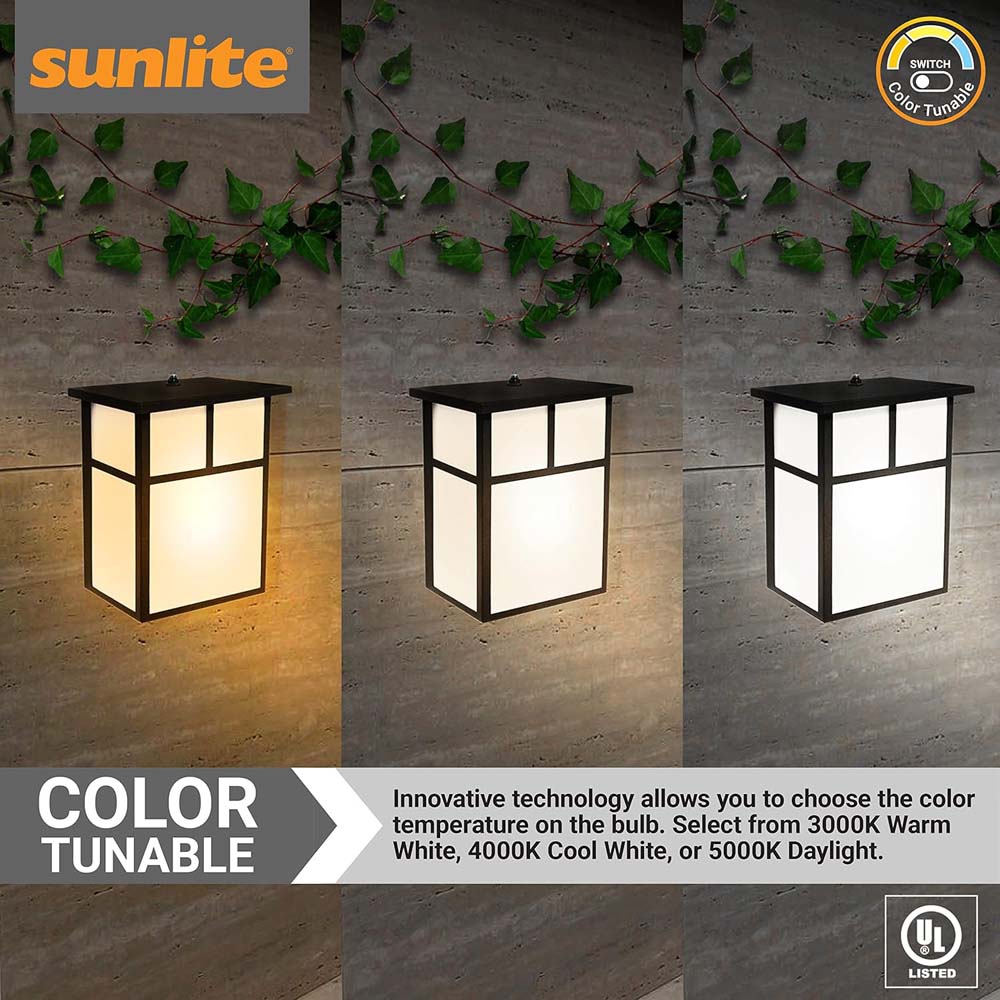

- SELECTABLE COLOR OPTIONS - With multiple color temperature options you can choose between 3000K Warm White, 4000K Cool White and 5000K Super White. Changing ambience for any application is now easy with just the slide of a switch

General Characteristics
Base	G24d
Shape	PLV
Finish	White
Rated Life	50,000 hrs
Average Life Span Years	45
Dimmable	Non-Dimmable
Electrical Characteristics
Watts	11
Equivalent Wattage	26 equiv
Volts	120-277
Power Factor	0.9
Temperature	-20-45?
Light Characteristics
Lumens	1400
CRI	80
Color Temperature Kelvin	30K/40K/50K
Color	CCT Tunable
Beam Angle	180 deg
Flicker	Yes

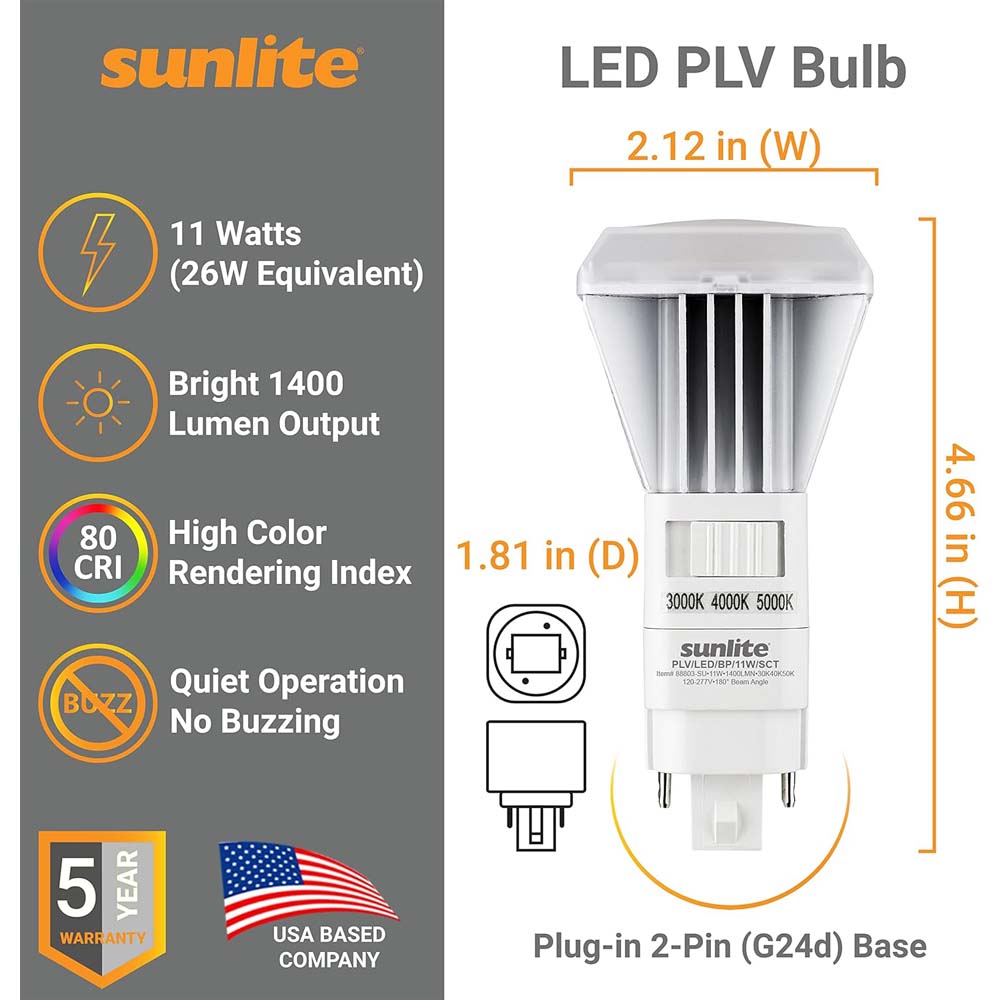

Product Dimensions
MOL	4.66
MOD	2.12
Weight	0.25
Product Data
Safety Rating	UL Listed - Damp Location
UPC	653703888033
Abbreviation	PLV/LED/BP/11W/SCT
Warranty	3 Years Limited

Manual:

88803-SU Data Sheet
