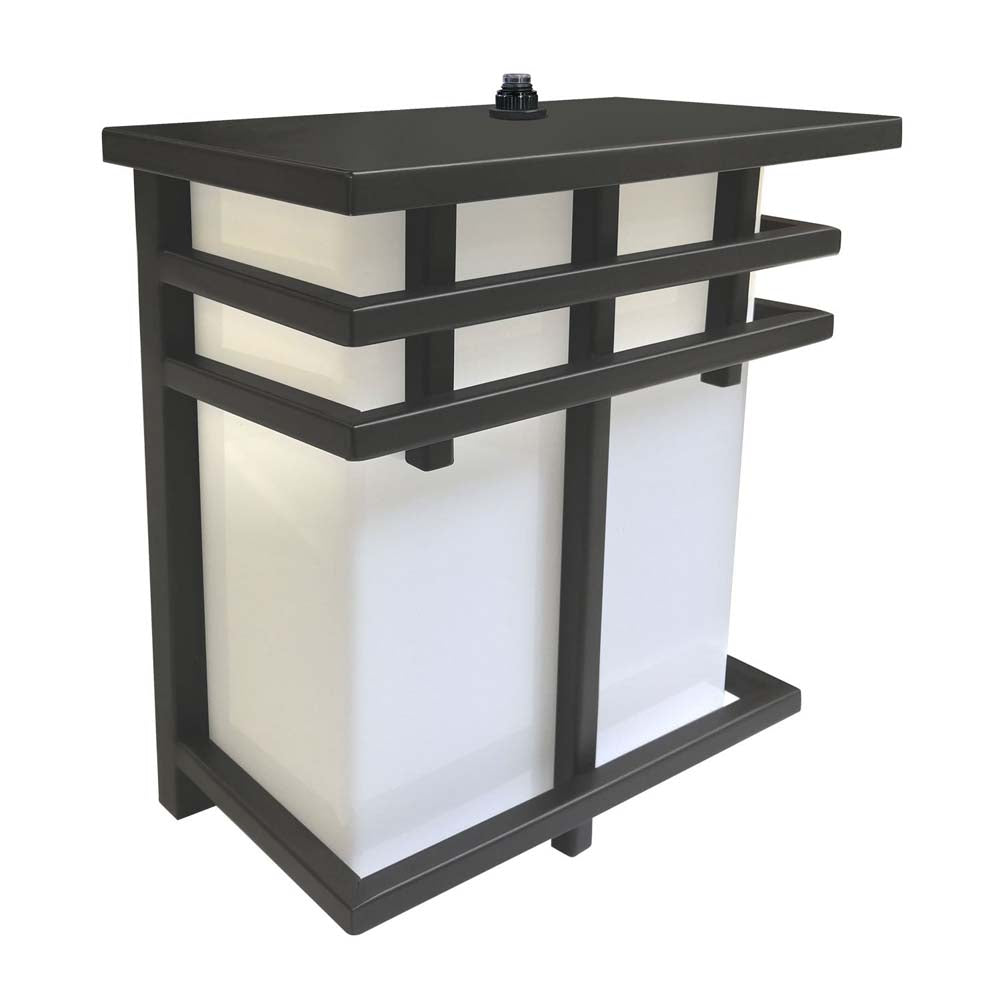

Sunlite 12w CCT Tunable LED Mission Style Outdoor Fixture Black Finish

Sunlite classic touch to any home or business with this Sunlite Tunable LED Wall Fixture. The Mission-Style design black metal frame holds an opaque white polycarbonate lens. This tunable fixture features innovative technology that allows you to choose the color temperature at the time of installation. Select 3000K Warm White, 4000K Cool White, or 5000K Super White depending on your preference using a switch located on the back. Built-in photocell for automatic dusk-to-dawn operation. With energy efficient LEDs this a no maintenance lighting solution for residential or commercial use. Long 50,000 hour lifespan for years of maintenance-free service. Output is a bright 800 lumens (75 watt equivalent) while only using 12 watts of electricity. Estimated annual energy costs are $1.45 based on 3hrs/day at $0.11/KwH. Fixture measures 8.50 in wide, 9.36 in high, and 5.00 in deep. ETL Listed for wet location installation. IP42 Rated.

Features:
- MISSION STYLE - Add a classic touch to any home or business with this Sunlite Tunable LED Wall Fixture. The Mission-Style design black metal frame holds an opaque white polycarbonate lens. Output is a bright 800 lumens (75 watt equivalent) while only using 12 watts of electricity.
- COLOR TUNABLE - This tunable fixture features innovative technology that allows you to choose the color temperature at the time of installation. Select 3000K Warm White, 4000K Cool White, or 5000K Super White depending on your preference using a switch located on the back.
- BUILT-IN PHOTOCELL - Built-in photocell for automatic dusk-to-dawn operation. Includes cap to cover the sensor for manual wall switch operation.
- LONG LIFE SPAN - Long 50,000 hour lifespan for years of maintenance-free service. Estimated annual energy costs are $1.45 based on 3hrs/day at $0.11/KwH.
- ETL LISTED - Tested to meet ETL's strict safety and design standards for wet location installation. IP42 Rated. Fixture measures 8.50 in wide, 9.36 in high, and 5.00 in deep.

GENERAL CHARACTERISTICS
Fixture Life Hours	50,000 hrs
Material	Aluminum & Steel
Lens Finish	White
Finish	Black
Life (based on 3hr/day)	45.7
Safety Rating	ETL Listed - Wet Location
ELECTRICAL CHARACTERISTICS
Watts	12
Volts	120
Power Factor	0.9
Operating Temperature	45?
LIGHT CHARACTERISTICS
Brightness	800 Lumens
Color Accuracy (CRI)	80
Light Appearance	CCT Tunable
Color Temperature	30K/40K/50K
Beam Angle	120
FIXTURE CHARACTERISTICS
Shape	Rectangular
Number of Lights	1 - Light
Mounting	Wall
Use Location	Outdoor
PRODUCT DIMENSIONS
Item Dimensions (in)	(W) 8.5 (H) 9.36 (D) 5
PRODUCT DATA
Item Number	88686-SU
UPC	653703886862
Brand	Sunlite
Description	LFX/WS/SCT/RT/12W/TG/BK/PC

Manual:

88686-SU Data Sheet
88686-SU Installation Manual
