Sunlite 14-in 17w LED Light Engine CCT Lumens Selectable Dimmable - 80w equiv

Sunlite 88476 Color Temperature Selectable LED Light Engine 4-Inch 17 Watts (80W=) 1050 Lumens 27K/30K/40K/50K CCT Dimmable 25000 Hour Life Span Energy Star UL Listed 90 CRI

FEATURES:
- UPGRADE TO LED - Keep your existing decorative fixtures and upgrade to energy efficient LED technology. Simple wiring for easy installation. These LED modules can be mounted with center threaded screw type fixtures or directly to flat fixture bases with mounting screws. Commercial grade with a heavy-duty metal base. Can also be used to replace fluorescent Circline bulbs. (Ballast bypass required)
- COLOR TUNABLE - These dimmable panels feature innovative technology that allows you to choose from five different color temperatures. Select warm whites (2700K or 3000K) cool white (4000K) or daylight (5000K) depending on your preference using a switch located on the front. Up to 1050 bright lumen output equivalent to a 80 watt light while only using 17 watts of electricity.
- DIMMABLE - These LED retrofit panels can be dimmed when installed with a 0-10V LED compatible dimmer. Tested compatible dimmers include Lutron: DV-600P DVELV-300 SELV-300. Leviton: IPL-06

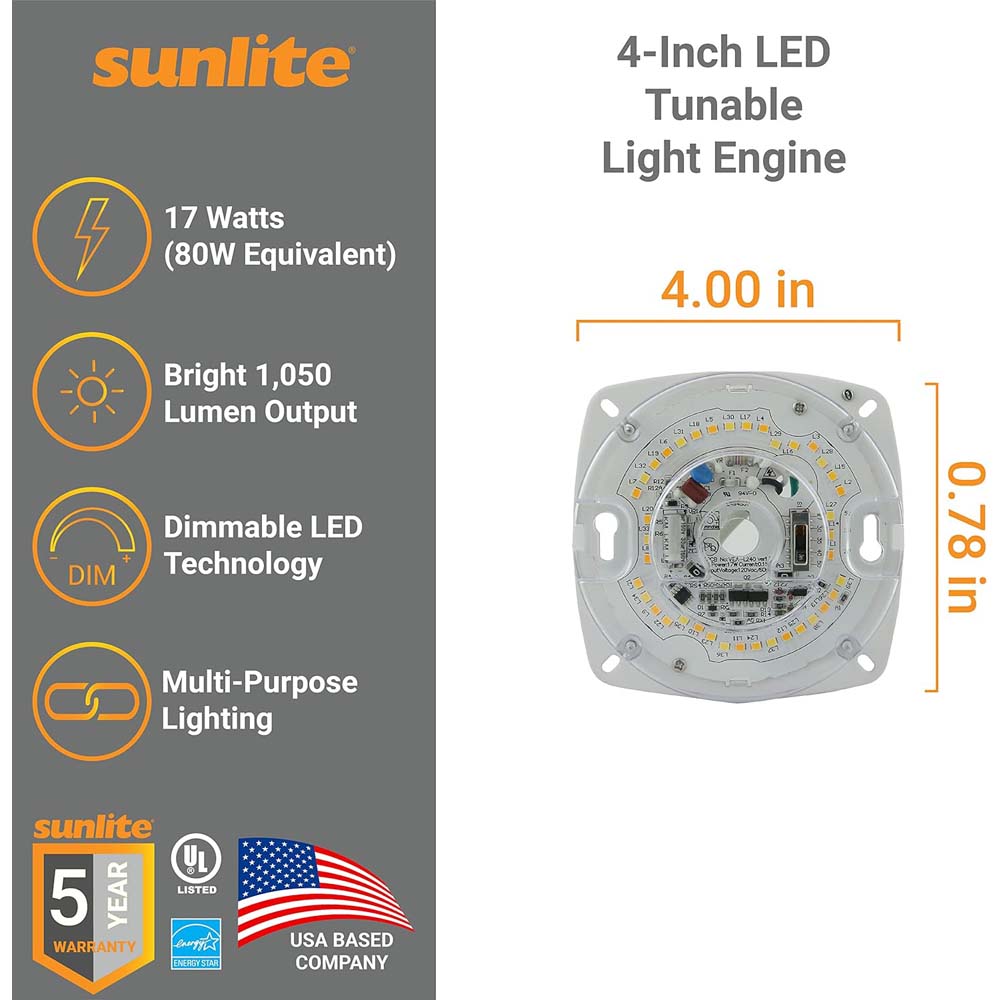

- ETL LISTED - ETL Listed for damp location use. High color rendering index of 90 (CRI). Measures 4.4 in Diameter X 0.78 in High.

General Characteristics
Bulb Shape	Square
Average rated hours	25000
Base	Integrated LED
Finish	Clear
Average life span years	22
Dimmable	Yes - Dimmable
Fixture technology	LED
Electrical Characteristics
Watts	17
Volts	120
Temperature	0 deg. F to 104 deg. F
Light Characteristics
Lumens brightness	850/900/1050
Color Rendering Index CRI	90
Emitted color	CCT Selectable
Color temperature kelvin	27K/30K/35K/40K/50K
Beam angle	180
Flicker	30 percent
Product Dimensions
Mol	4.4
Diameter inches	0.78
Item dimension	(W) 4.4 (H) 0.78 (D) 4.4
Package dimension	(W) 5.3 (H) 1 (D) 4.8
Package weight	0.65
Product Data
Pack size	1
Safety rating mark	UL Classified
Safety rated for usa	Yes
Safety rated for canada	Yes
Energy star	Yes
Mercury Free	Yes
Abbreviation Name	MODULE/LED/4/17W/5SCT
Item upc	653703884769
Warranty years	5 Year Limited

Manual:

88476-SU Data Sheet
