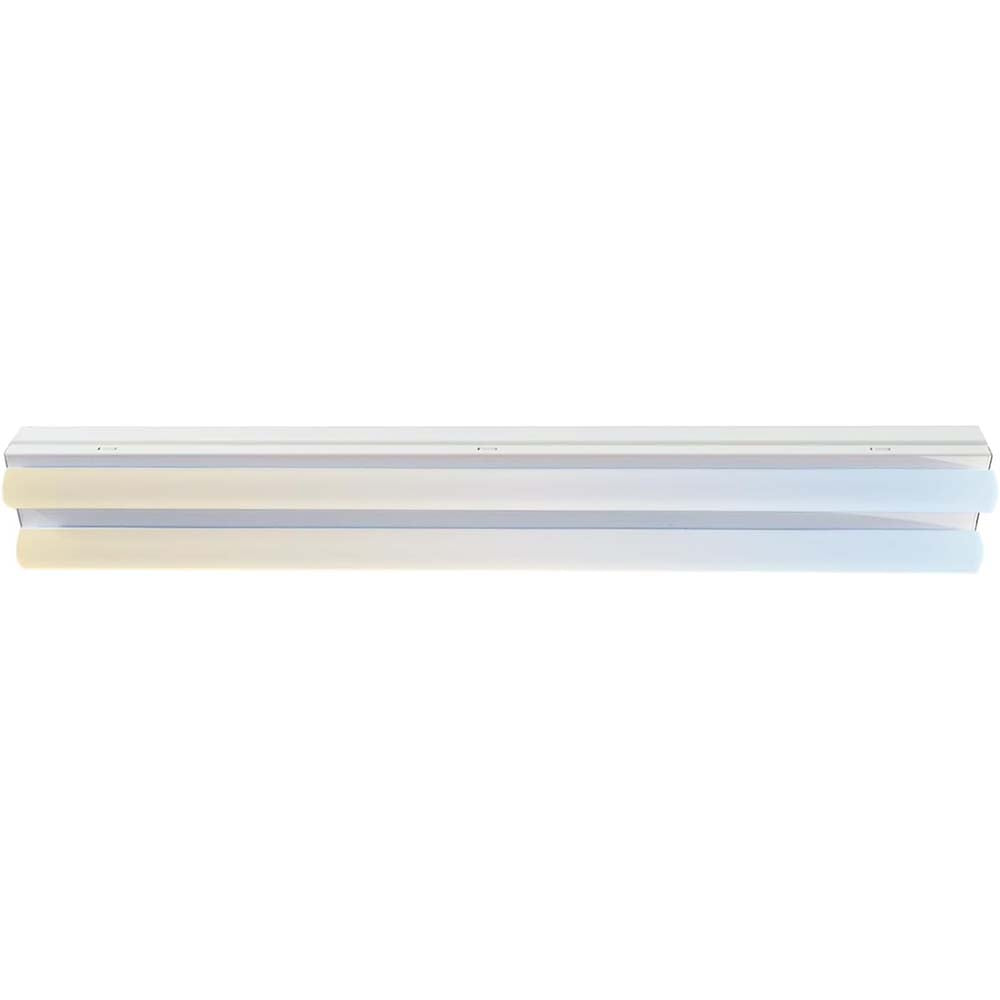

Sunlite 2-in 20w LED Linear Strip Light Fixture CCT Selectable Dimmable 120-277

Sunlite LED 2-Foot Linear Strip Light Fixtures are an energy-efficient and maintenance-free lighting solution. These hardwired fixtures have built-in LEDs so there are no bulbs to replace. When connected to an LED-compatible dimmer you can adjust the light output to suit your needs. These multi-volt 120-277V fixtures are ideal for various commercial industrial and residential applicationssteel body with an acrylic lens designed for indoor use. With a 50000-hour life span these fixtures will provide years of maintenance-free service. Each fixture uses only 20 Watts of electricity and has an adjustable color temperature. They are ETL Listed for damp location use and DLC Listed for efficiency and design. The lens is made of shatterproof acrylic and unlike fluorescent tube fixtures they contain no harmful chemicals

FEATURES:
- LED TECHNOLOGY - The Sunlite Double Tube Strip Light Fixture is an excellent addition to any atmosphere. It features a slim robust steel frame and a shatter-resistant frosted lens. These commercial lamps have built-in LEDs so there are no bulbs to replace making these a maintenance-free solution. Also their service life is five times that of the standard fluorescent strip lights
- DIMMABLE - Fixture can be dimmed when installed with an LED-compatible dimmer. Output is a bright 2300 lumens while only using 20 watts of electricity. Operates within 120-277V AC 10-100 percent dimming range low voltage dimmers capability (0-10V) and has a high color rendering at 83 CRI. The long 50000-hour life span is significant in energy savings over time
- ADJUSTABLE COLOR TEMPERATURE - This simplistic fixture has adjustable LED color-selectable technology (3000K 4000K 5000K). A switch inside the fixture allows you to choose the color temperature thats just right for your application. PLEASE NOTE: Select the desired color temperature before completely mounting the fixture. (Instructions included)
- EASY INSTALLATION - The LED strip light is easily installed on any junction box and could be mounted in two ways surface and suspension. Directly mount this LED Wraparound fixture to the ceiling for bright light in offices garages basements warehouses and storage areas. Refer to installation instructions for detailed steps; mounting hardware is included

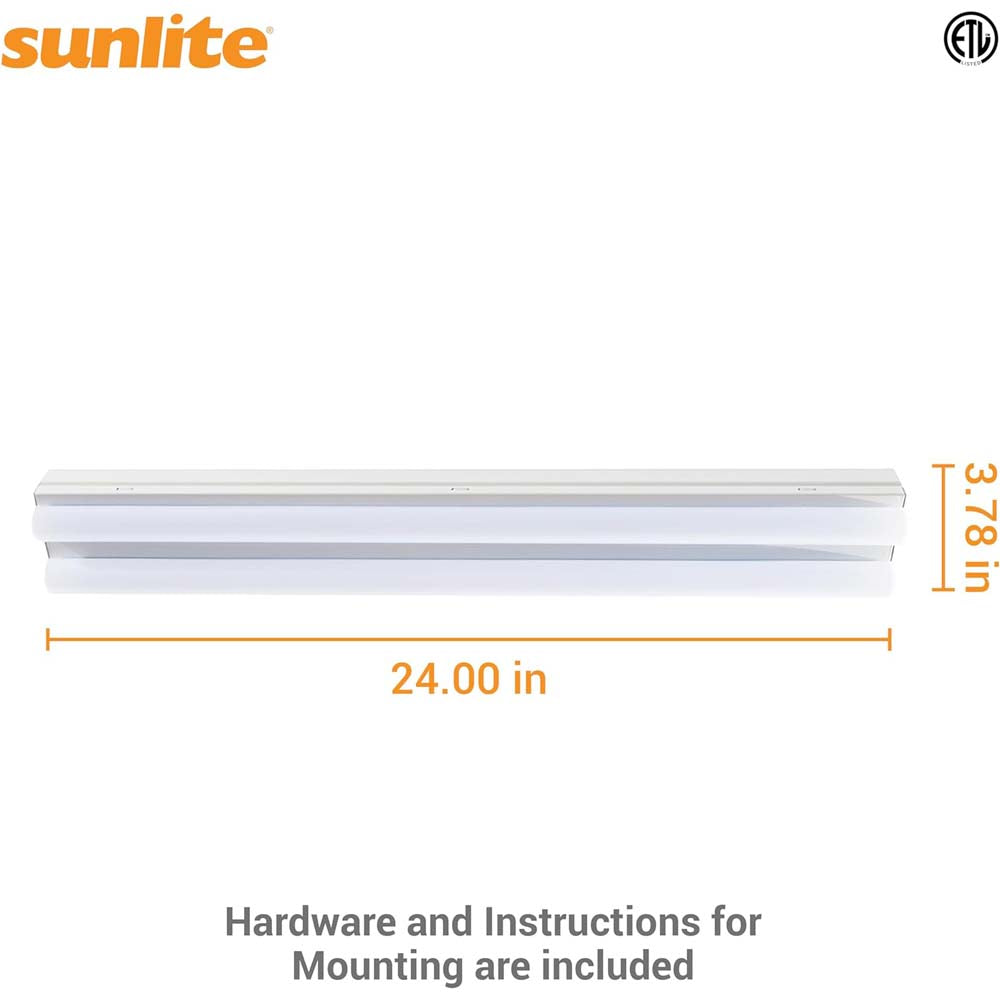

- ETL LISTED - With a 50000-hour life span these fixtures will provide years of maintenance-free service. These fixtures are perfect for commercial industrial and residential applications such as offices hospitals schools retail and workshops. ETL Listed for damp location installation. Each fixture includes installation hardware and instructions. Fixture Measurements: H: 2.37 L: 24 W: 3.78

General Characteristics
Bulb Shape	Linear
Average rated hours	50000
Base	Integrated LED
Finish	White
Average life span years	45
Dimmable	Yes - Dimmable
Mounting	Ceiling Flush Mount
Fixture technology	LED
Electrical Characteristics
Watts	20
Volts	120-277
Temperature	-4 deg. F - 122 deg. F
Light Characteristics
Lumens brightness	2300
Color Rendering Index CRI	83
Emitted color	CCT Selectable
Color temperature kelvin	30K/40K/50K
Beam angle	108
Product Dimensions
Mol	24
Diameter inches	3.78
Item dimension	(W) 3.78 (H) 2.37 (D) 24
Package dimension	(W) 3.78 (H) 2.37 (D) 48
Package weight	3.04
Product Data
Pack size	1
Safety rating mark	ETL - Damp Location
Safety rated for usa	Yes
Safety rated for canada	Yes
Mercury Free	Yes
Abbreviation Name	LFX/ST/2FT/2L/20W/SCT
Item upc	653703855523
Warranty years	5 Year Limited

Manual:

85552-SU Data Sheet
85552-SU Data Sheet
