Sunlite 3-In 8w Round Gimbal w/ J-Box Downlight Fixture CCT Selectable Dimmable

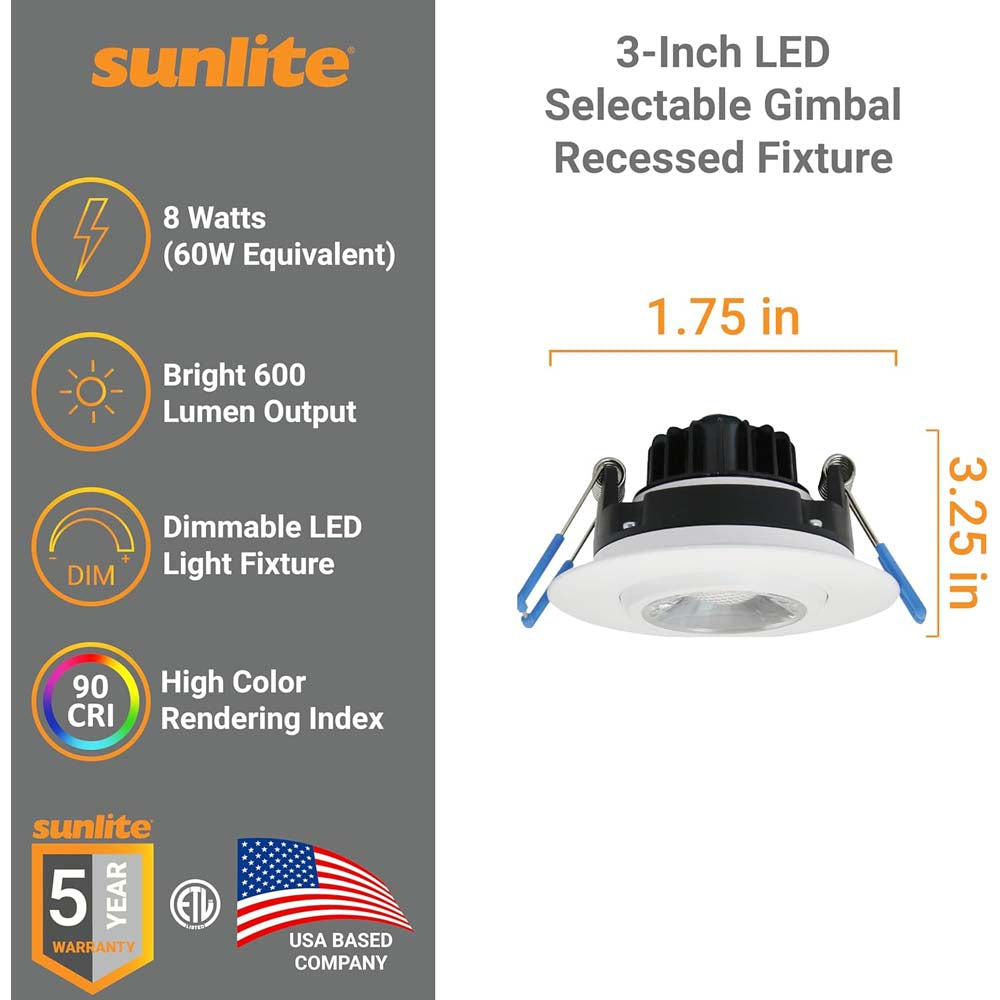

The simple design of these Sunlite LED 3-inch Round Gimbal Downlight Fixture will add an elegant touch to any decor. Its gimbal design allows for tilting the light head 20 degrees in either direction making it suitable for sloped ceilings and directional lighting. 38 Degree flood beam angle. This dimmable fixture uses only 8 watts of electricity and provides an output of 600 lumens of light. These fixtures allow you to choose the color temperature at the time of installation. Select 2700K Warm White 3000K Warm White 3500K Neutral White 4000K Cool White or 5000K Daylight depending on your preference using a switch located within the driver box. It can be dimmed (10-100 percent) when installed with an LED compatible dimmer. High color rendering at 90 CRI. ETL Listed for wet location installation. Junction Box included. Fixture Dimension: 3.25 Height x 1.75 Diameter.

FEATURES:
- GIMBAL DESIGN - Its gimbal design allows for tilting the light head 20 degrees in either direction making it suitable for sloped ceilings and directional lighting. 38 Degree flood beam angle.

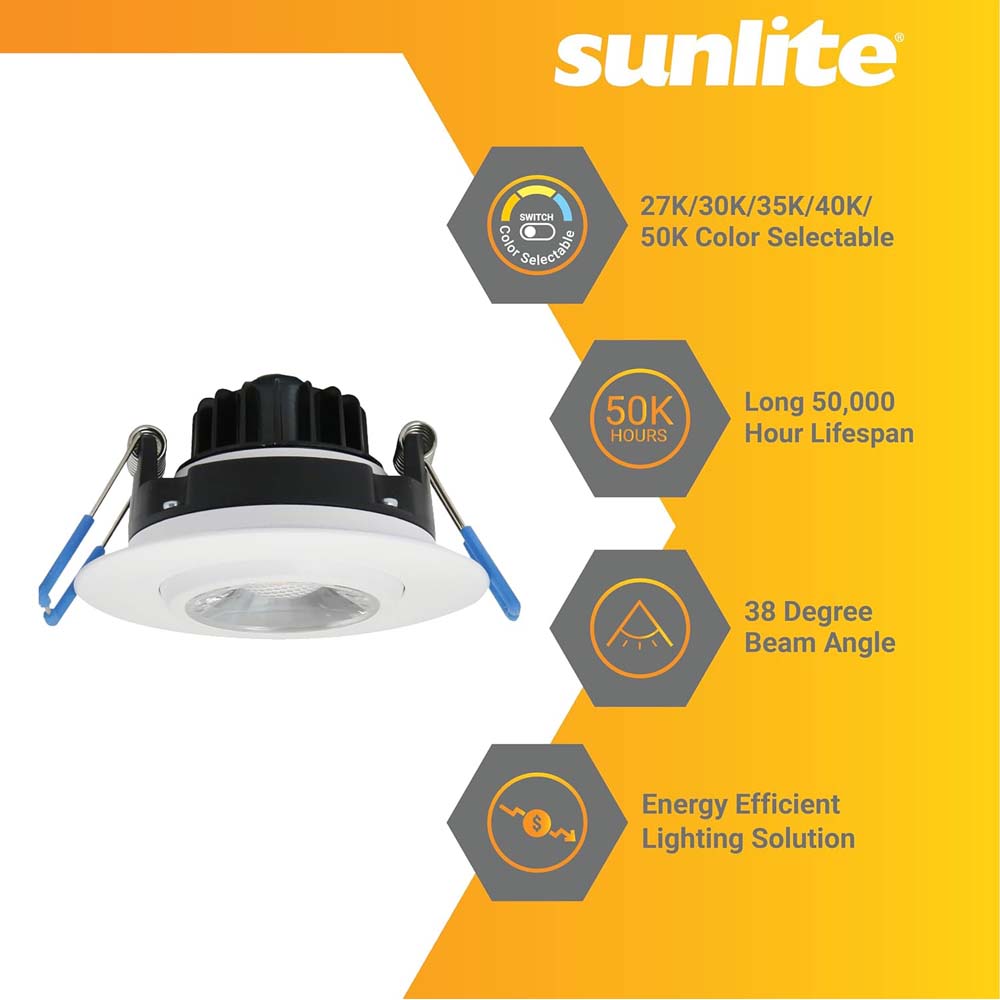

- COLOR SELECTABLE - This dimmable fixture uses only 8 watts of electricity and provides an output of 600 lumens of light. These fixtures allow you to choose the color temperature at the time of installation. Select 2700K Warm White 3000K Warm White 3500K Neutral White 4000K Cool White or 5000K Daylight depending on your preference using a switch located within the driver box.
- DIMMABLE - It can be dimmed (10-100 percent) when installed with an LED compatible dimmer. High color rendering at 90 CRI.
- ENERGY EFFICIENT - Estimated annual energy costs of USD 0.96 (Based on 3 Hrs/Day at USD 0.11/kWh). Provides up to 50,000 hours energy efficient light that only uses 12 watts of electricity. No maintenance long-life LED technology means you wont need to climb ladders to replace difficult to reach bulbs. Ideal for Entryways Bedrooms Kitchen Hallway Bathroom and more.

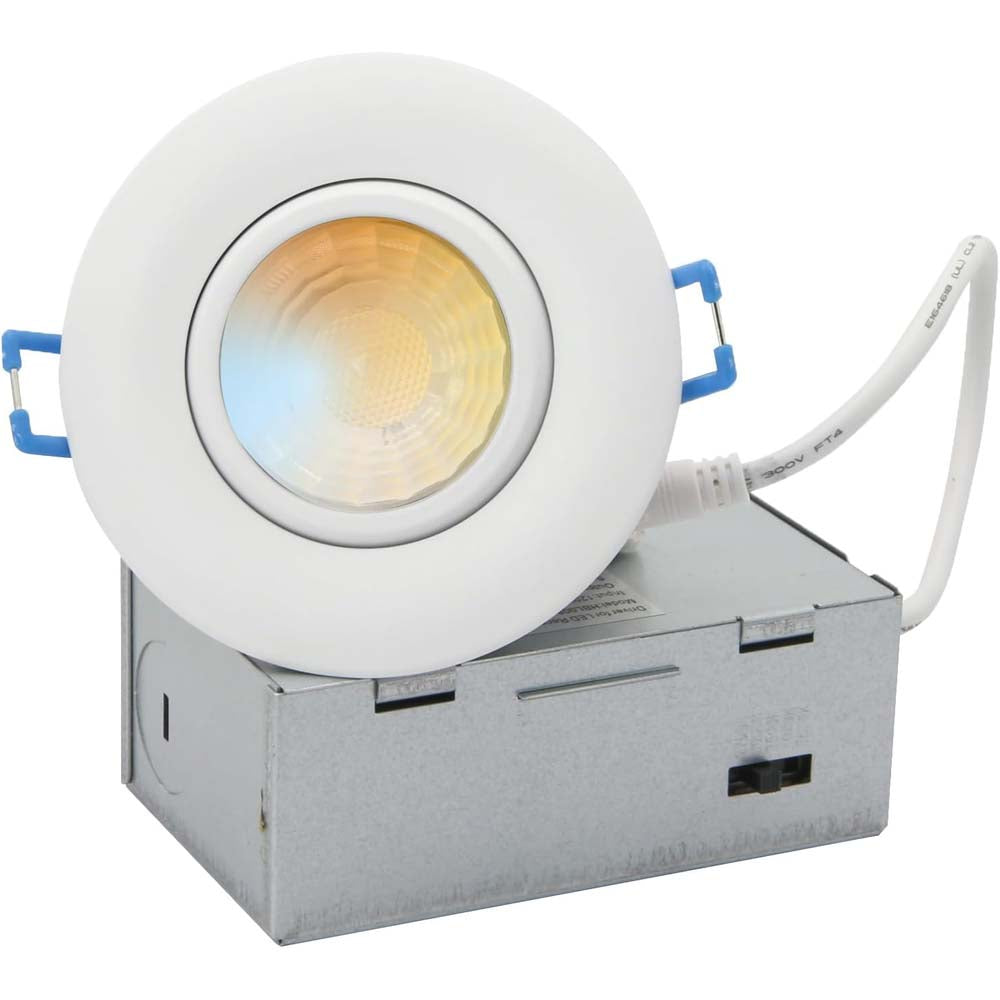

- ETL LISTED - ETL Listed for wet location installation. This fixture can be installed in new construction or as a remodel without the need of any housing. The remote driver box connects to a 120v line voltage power source. Junction Box included. Fixture Dimension: 3.25 Height x 1.75 Diameter.

General Characteristics
Bulb Shape	Round
Average rated hours	50000
Base	Integrated LED
Finish	White
Average life span years	45
Dimmable	Yes - Dimmable
Mounting	Ceiling Flush Mount
Fixture technology	LED
Electrical Characteristics
Watts	8
Equivalent Wattage	60
Volts	120
Temperature	-40 deg. F - 104 deg. F
Light Characteristics
Lumens brightness	600
Color Rendering Index CRI	90
Emitted color	CCT Selectable
Color temperature kelvin	27K/30K/35K/40K/50K
Beam angle	38
Product Dimensions
Mol	1.75
Diameter inches	3.25
Item dimension	(W) 3.9 (H) 4 (D) 4.75
Package weight	0.86
Product Data
Pack size	1
Safety rating mark	ETL Listed - Wet Location
Safety rated for usa	Yes
Safety rated for canada	Yes
Mercury Free	Yes
Abbreviation Name	LFX/GDL/3R/8W/5SCT
Item upc	653703820989
Warranty years	5 Year Limited

Manual:

82098-SU Data Sheet
82098-SU Data Sheet
