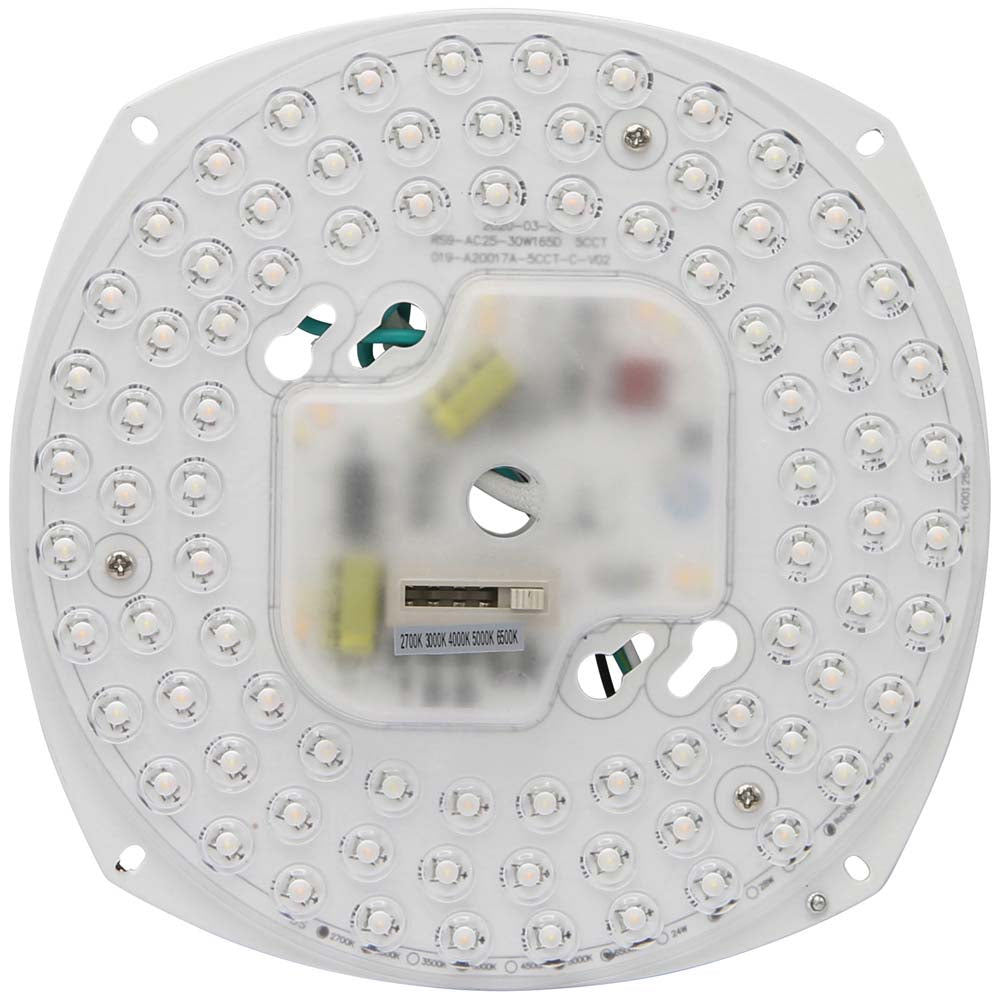

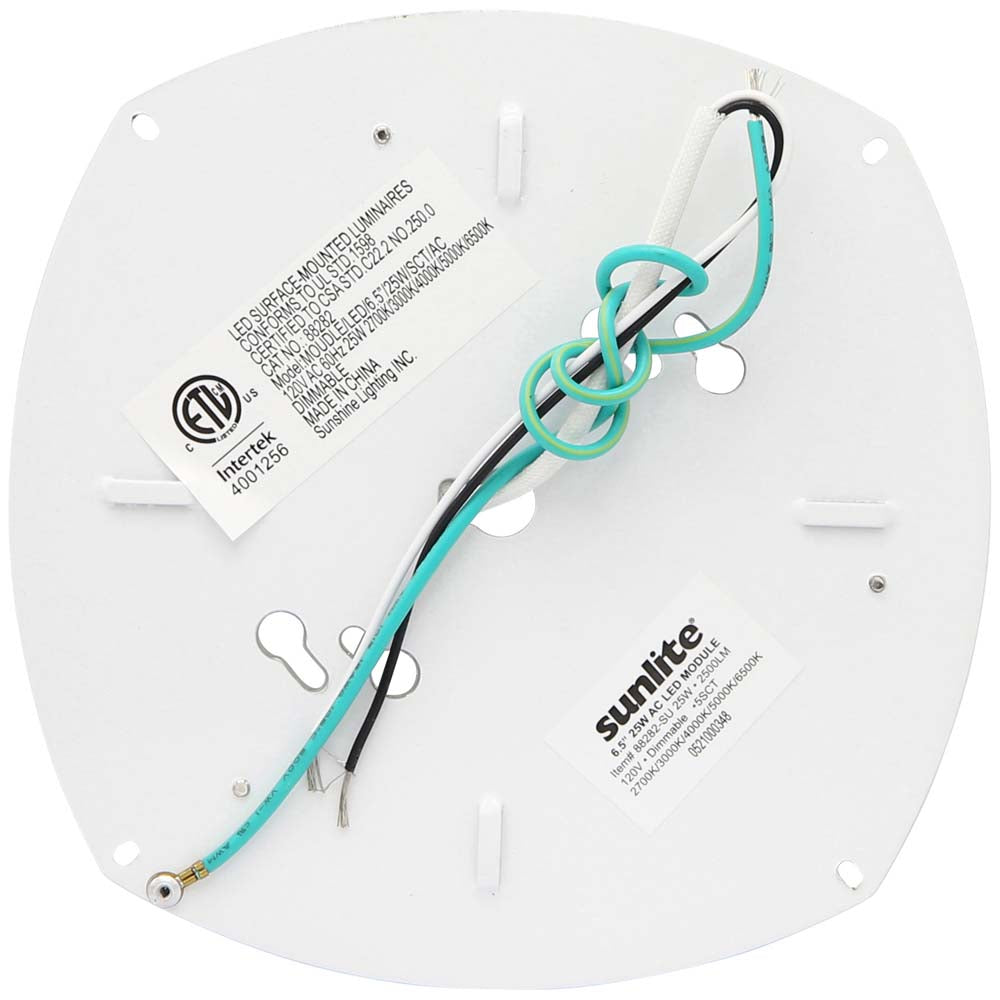

Sunlite 6.5-in 25w CCT Tunable AC Light Engine Circular Module Retrofit Kit

Sunlite LED light engines allow you to convert your existing light fixtures into state of the art LED fixtures. Take advantage of their high lumen output and energy saving LEDs while producing an even light spread. The Sunlite LED light engines are suitable for most fixtures and are available in a wide range of sizes and color temperatures.

Features:
- Fixture Life Hours: 50,000 hrs
, Material: Steel & Aluminum
- Lens Finish: Clear
- Life (based on 3hr/day): 45.7
- Safety Rating: ETL - Damp Location
, Dimmable
- Watts: 25
, Volts: 120
- Brightness: 2500 Lumens
, Color Accuracy (CRI): 80
- Light Appearance: CCT Tunable
- Color Temperature: 27K/3K0/4K0/5K0/65K
- Mounting: Other
, Use Location: Indoor
- Size: 6.5-in
, Diameter (in): 6.5

GENERAL CHARACTERISTICS
Fixture Life Hours	50,000 hrs
Material	Steel & Aluminum
Lens Finish	Clear
Life (based on 3hr/day)	45.7
Safety Rating	ETL - Damp Location
Dimmable	TRUE
ELECTRICAL CHARACTERISTICS
Watts	25
Volts	120
Power Factor	0.98
Operating Temperature	-20+45�C
LIGHT CHARACTERISTICS
Brightness	2500 Lumens
Color Accuracy (CRI)	80
Light Appearance	CCT Tunable
Color Temperature	27K/3K0/4K0/5K0/65K
FIXTURE CHARACTERISTICS
Mounting	Other
Use Location	Indoor
PRODUCT DIMENSIONS
Size	6.5-in
Diameter (in)	6.5
PRODUCT DATA
Item Number	88282-SU
UPC	653703882826
Description	MODULE/LED/6.5''/25W/SCT/AC

Manual:

88282-SU Data Sheet
