Sunlite 6-in LED Recessed Round Downlight CCT Wattage Lumens Selectable Fixture

Sunlite LED Commercial Recessed Round Downlight Fixture is an exceptional lighting solution for businesses seeking to optimize their commercial design. These fixtures allow you to choose the color temperature at the time of installation. Select 2700K Soft White 3000K Warm White 3500K Neutral White 4000K Cool White or 5000K Daylight depending on your preference using a switch located on the back of the fixture. A second switch allows you to select between wattage for different lumen outputs. Multi-wattage at 13-Watt for 1000 lumens 19-Watt for 1500 lumens and 27-Watt for 2000 lumens. LED technology means 50,000 hours of maintenance-free service. No ladders to climb or difficult-to-reach bulbs to replace. Estimated annual energy costs of USD 1.08/USD 1.57/USD 2.17 (Based on 3 Hrs/Day at USD 0.11/kWh). Installing these Energy Star Certified fixtures may qualify you for state or local energy rebates. This fixture is ETL Listed for damp Location Installation. It also meets the necessary ratings for the USD ensuring it is a reliable and safe choice for outdoor lighting needs. NEC rated BX cable connection and attached safety cable. Title-24 and RoHS Compliant. 120-347 multi-volts. Ideal for Retail Hotels Offices and more. Fixture Dimensions 4.02 H x 5.91 D.

FEATURES:

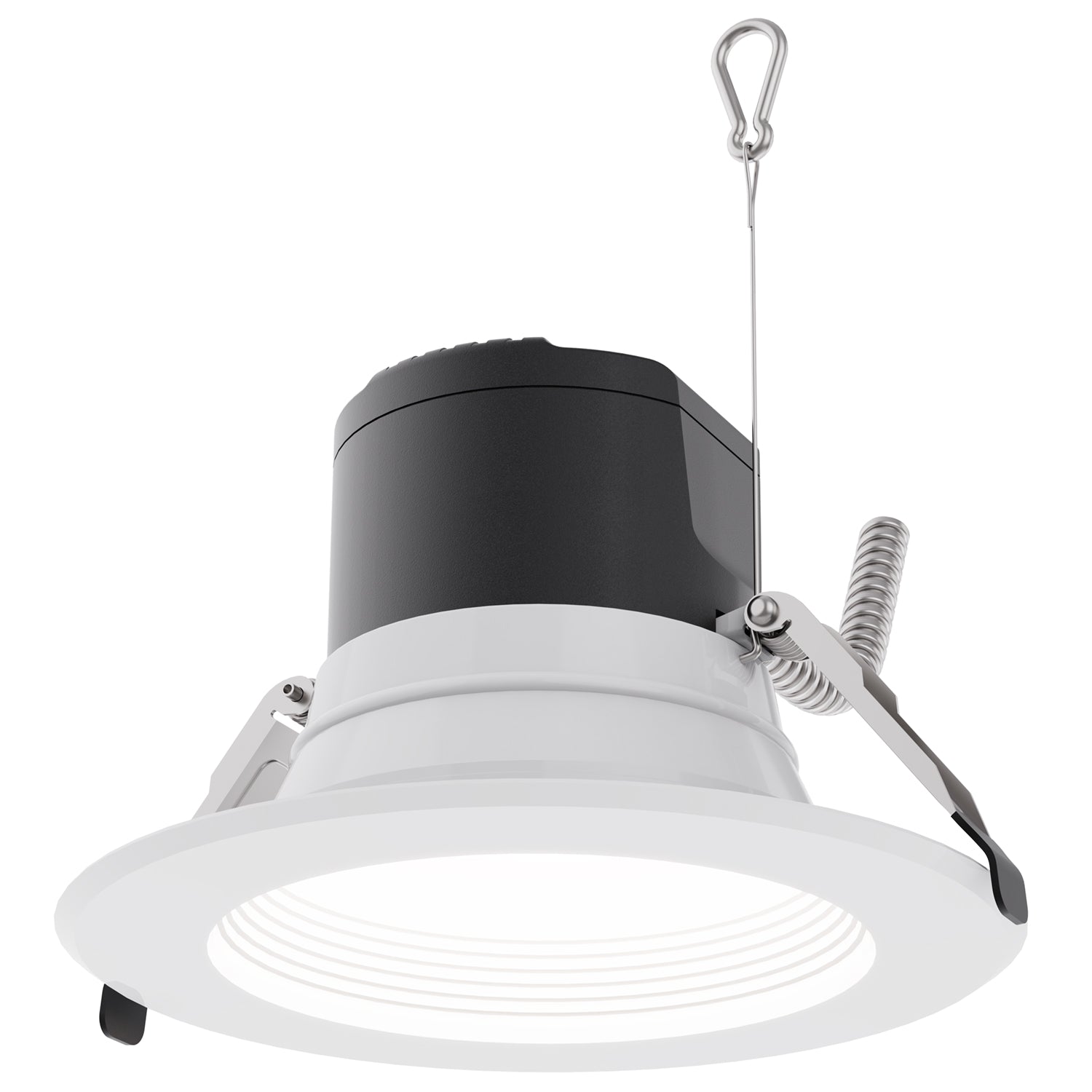

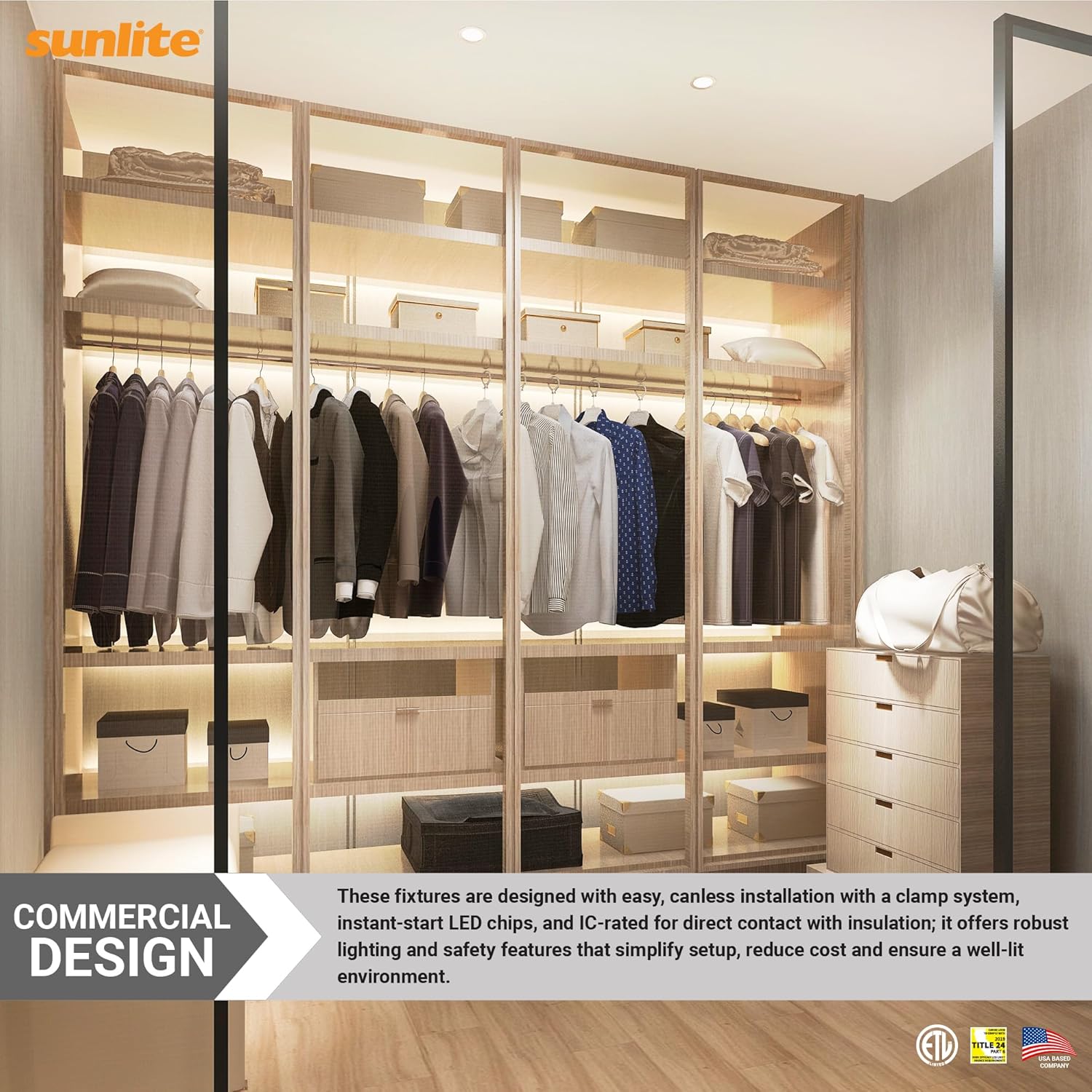

- COMMERCIAL DESIGN - Designed with easy canless installation with clamp system instant-start LED chips and IC-rated for direct contact with insulation it offers robust lighting and safety features that simplify setup reduce cost and ensure a well-lit environment.

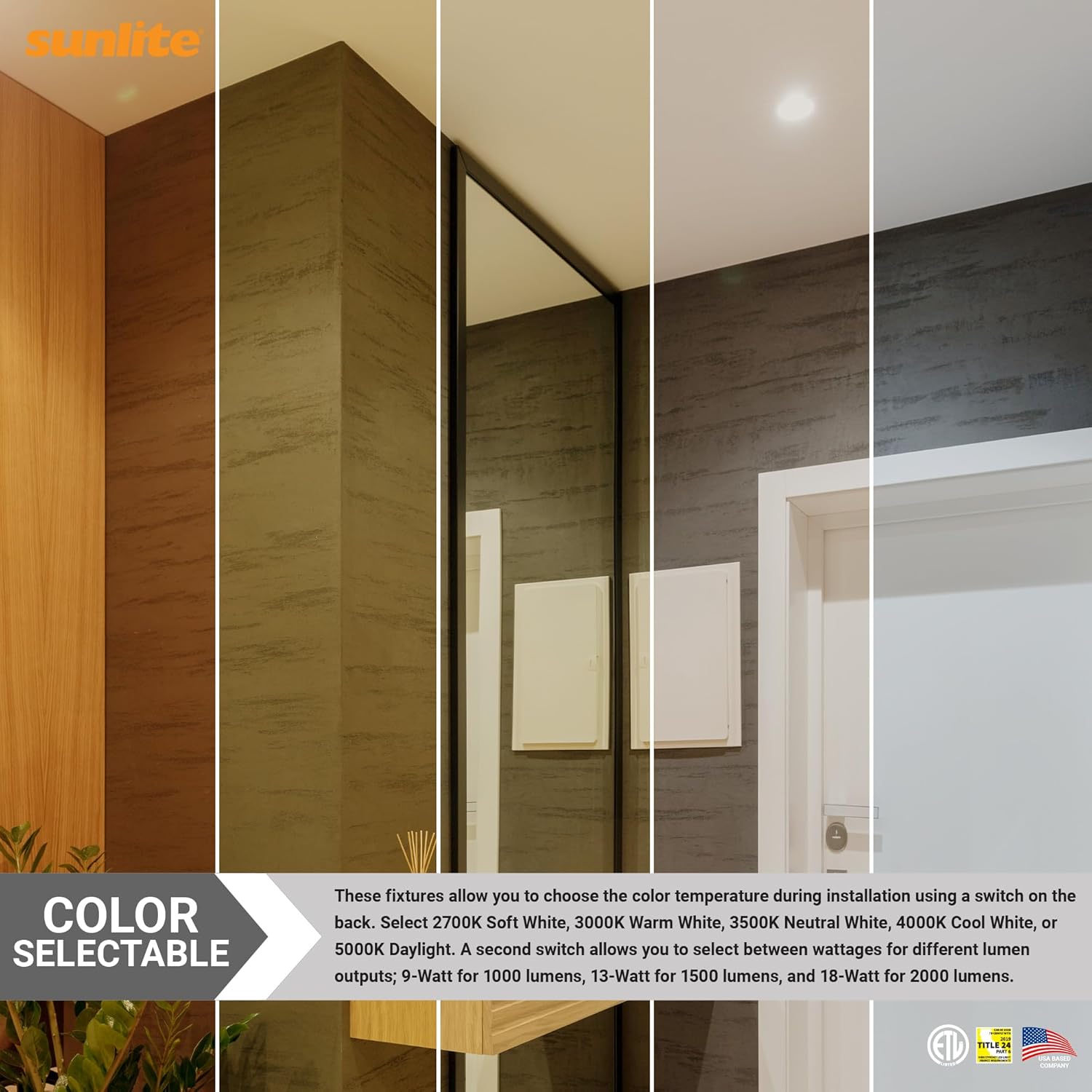

- COLOR AND POWER SELECTABLE - These fixtures allow you to choose the color temperature at the time of installation. Select 2700K Soft White 3000K Warm White 3500K Neutral White 4000K Cool White or 5000K Daylight depending on your preference using a switch located on the back of the fixture. A second switch allows you to select between wattage for different lumen outputs. Multi-wattage at 13-Watt for 1000 lumens 19-Watt for 1500 lumens and 27-Watt for 2000 lumens.
- DIMMABLE - These fixtures can be dimmed when attached to a low voltage (0-10V) dimming control. Range is 10-100 percent with a 90 degrees beam angle. High color rendering at 90 CRI enhances your surroundings appearance and ensures accurate color perception.

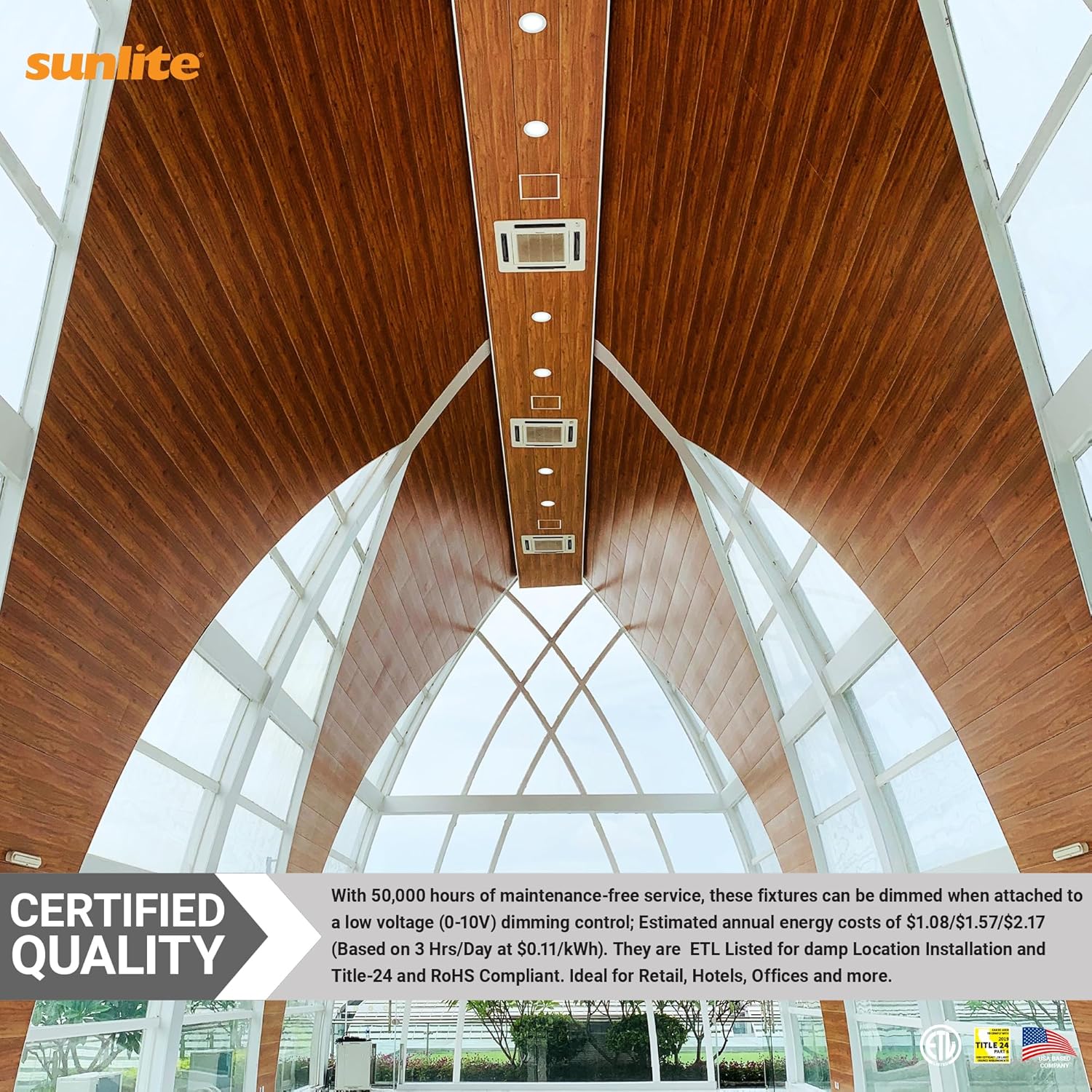

- ENERGY EFFICIENT - LED technology means 50,000 hours of maintenance-free service. No ladders to climb or difficult-to-reach bulbs to replace. Estimated annual energy costs of USD 1.08/USD 1.57/USD 2.17 (Based on 3 Hrs/Day at USD 0.11/kWh). Installing these Energy Star Certified fixtures may qualify you for state or local energy rebates.

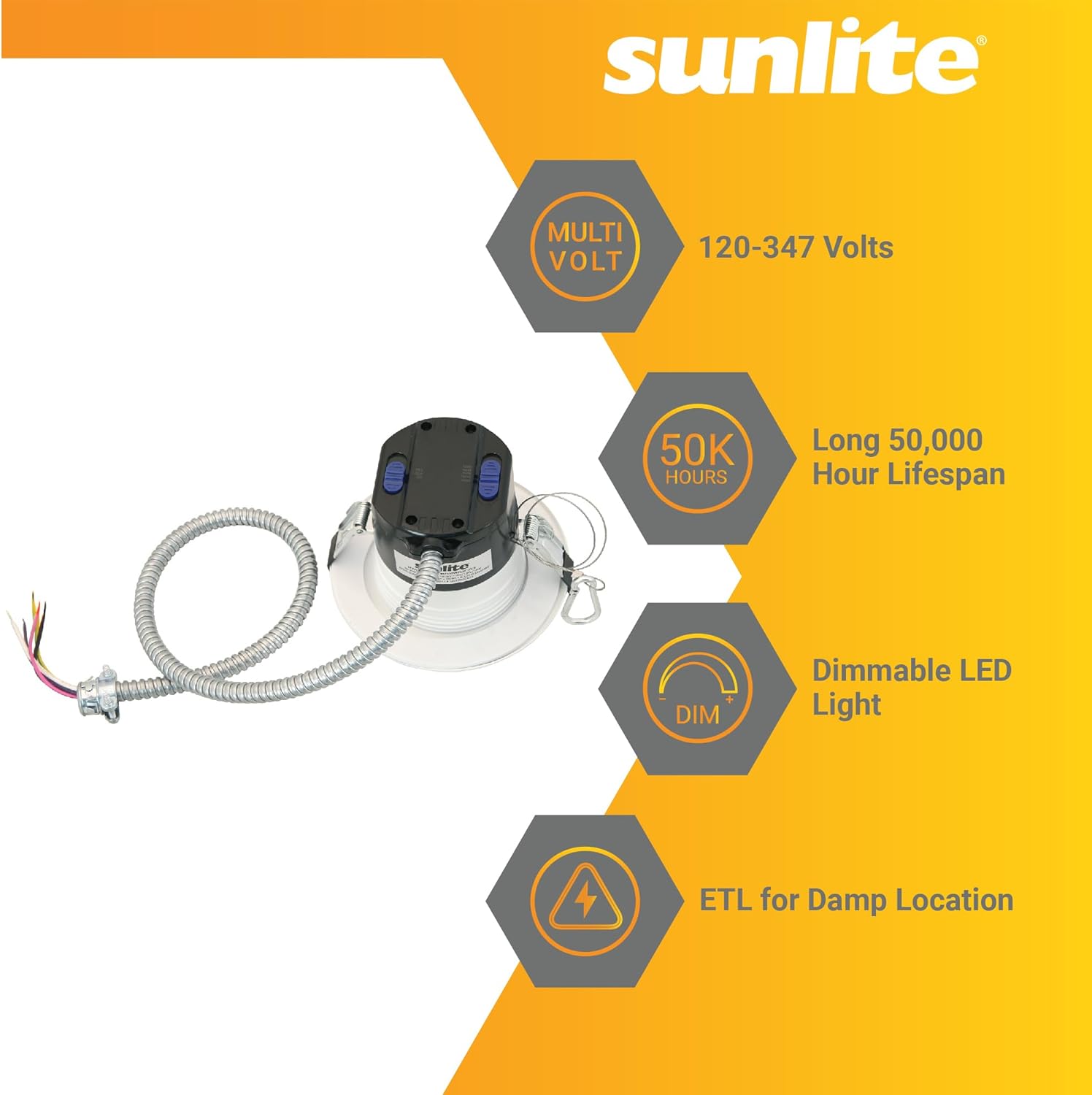

- SAFETY AND QUALITY - This fixture is ETL Listed for damp Location Installation. It also meets the necessary ratings for the USD ensuring it is a reliable and safe choice for outdoor lighting needs. Title-24 and RoHS Compliant. 120-347 multi-volts. Ideal for Retail Hotels Offices and more. Fixture Dimensions 4.02 H x 5.91 D. NEC rated BX cable connection and attached safety cable.

General Characteristic
Base	Integrated LED
Shape	Round
Rated Life	50,000 hrs
Average life span years	45
Dimmable	Yes
Dimming type	0-10V Low Voltage
Dimming percentage	10-100 percent
Lens material	Plastic
Lens finish	White
Application	Commercial
Mounting	Recessed
Fixture technology	LED
Use location	Indoor
Electrical Characteristic
Watts	13/19/27
Volts	120-347v
Power factor	0.9
Temperature	-4F - 104F
Lighting Characteristic
Lumens brightness	1500/2100/3000
Color Rendering Index CRI	90
Emitted color	CCT Selectable
Color temperature kelvin	27K/30K/35K/40K/50K
Beam angle	90
Product Dimensions
Size	6-in
Item dimension	(W) 8.27 (H) 4.41 (D) 8.27
Product Data
Safety rating mark	ETL - Damp Location
Ic rating	Yes
Safety rated for usa	Yes
Mercury free	Yes
Packs	1
Item upc	653703878096
Warranty	5 Year Limited

Manual:

87809-SU Data Sheet
87809-SU Installation Manual
