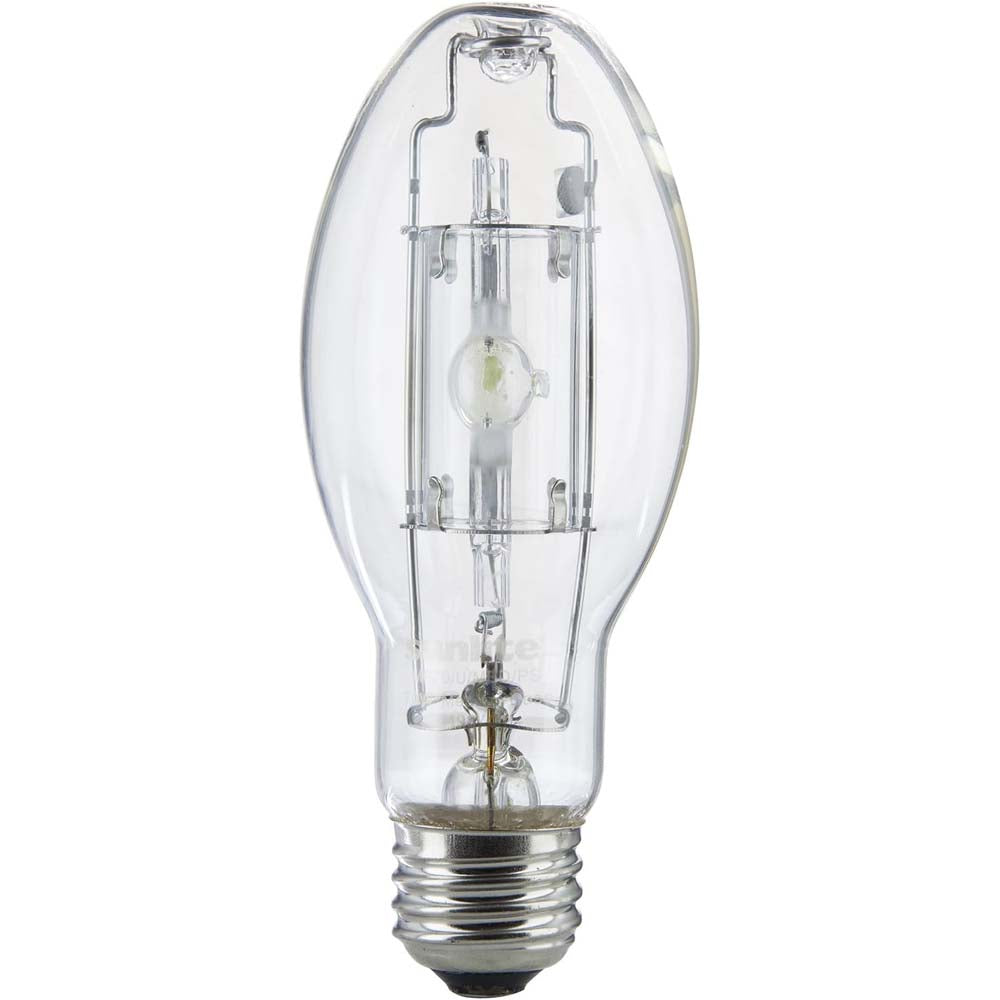

SUNLITE 70w Protected Metal Halide Medium Pulse Start Uncoated HID Lamp

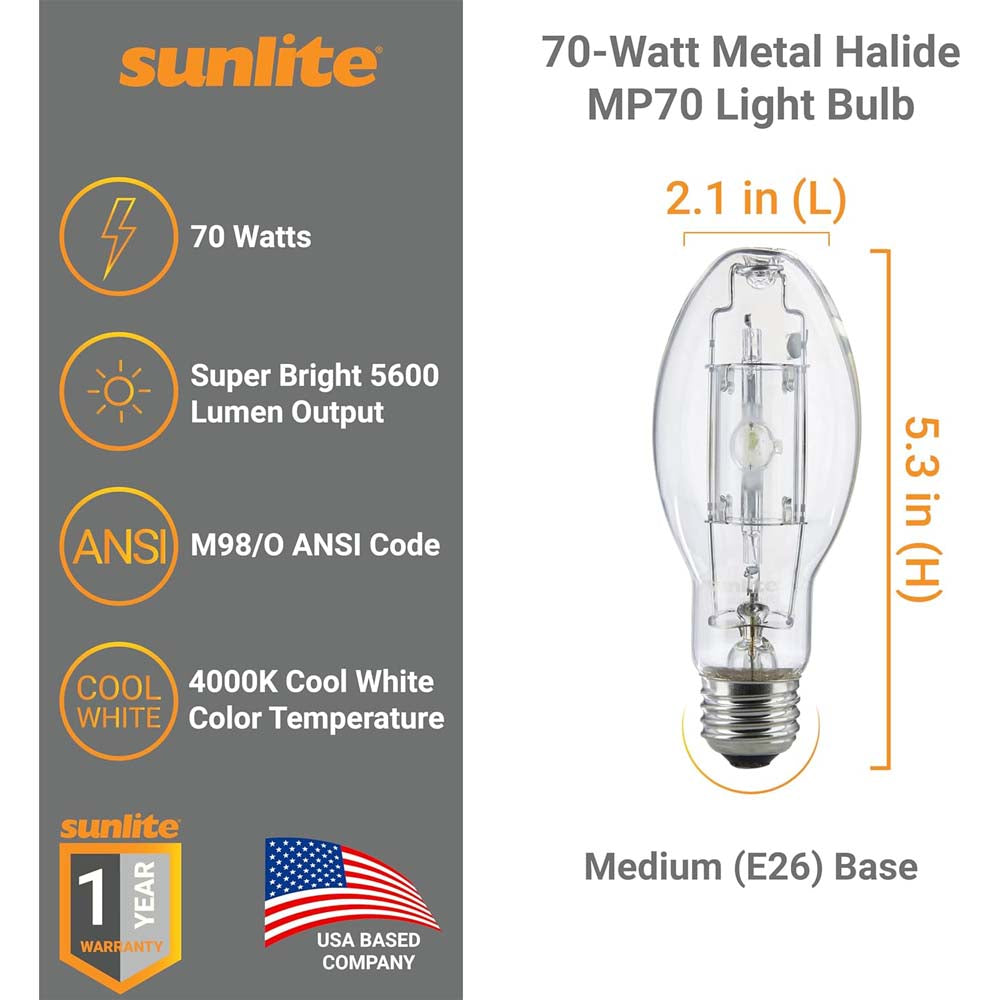

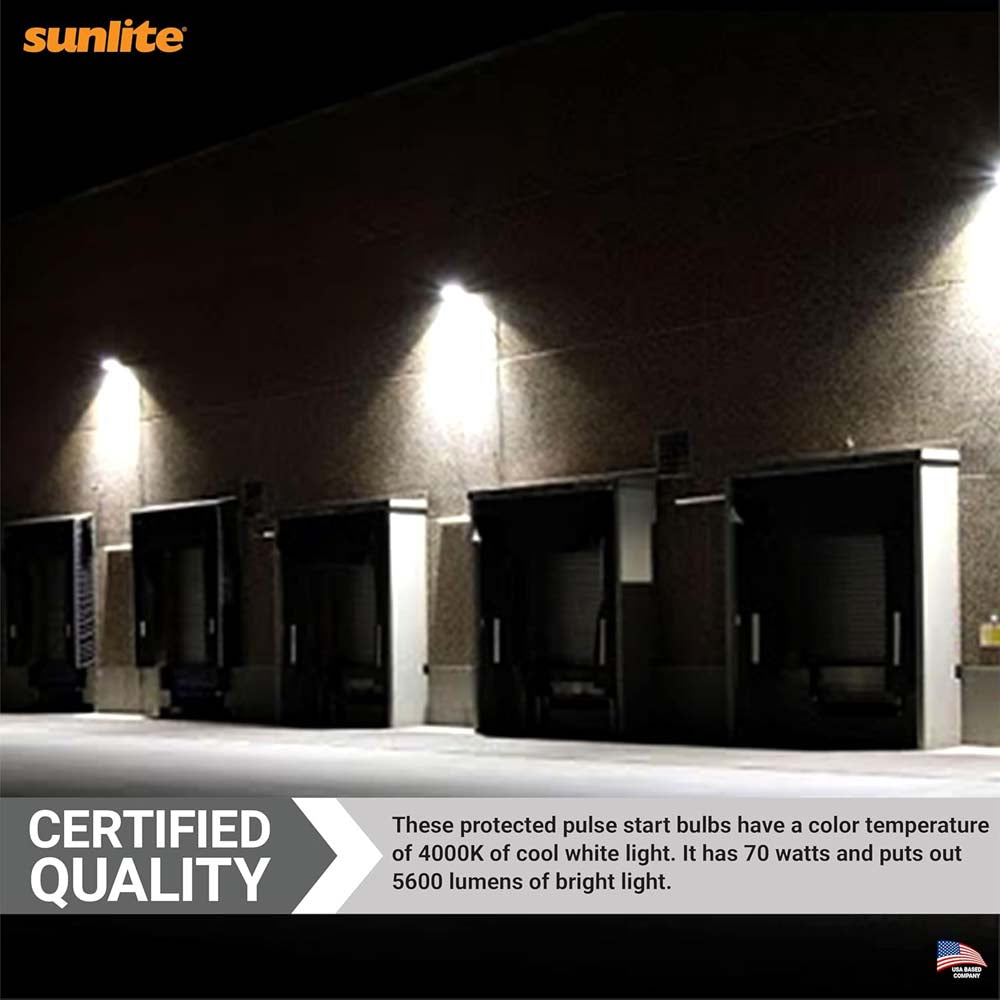

Sunlite high intensity discharge lamps are perfect for outdoor lighting and commercial interiors. Energy efficient HID lamps offer exceptional efficacy, great color rendition, have a long service life and excellent lumen maintenance. These 70 watt protected pulse start metal halide bulbs have a bright 5600 lumen output. They are medium base (E26), ED17 bulbs with an average life span of 15,000 hours. Use in street lights, parking lot fixtures, perimeter lighting, wall packs, and other commercial and industrial lighting applications. ANSI Code M98/O. Confirm ANSI Code to help determine the correct bulb for your fixture and the ballast it uses. Bulb measurements are 2.1 inches in diameter, 5.3 inches tall.

FEATURES:

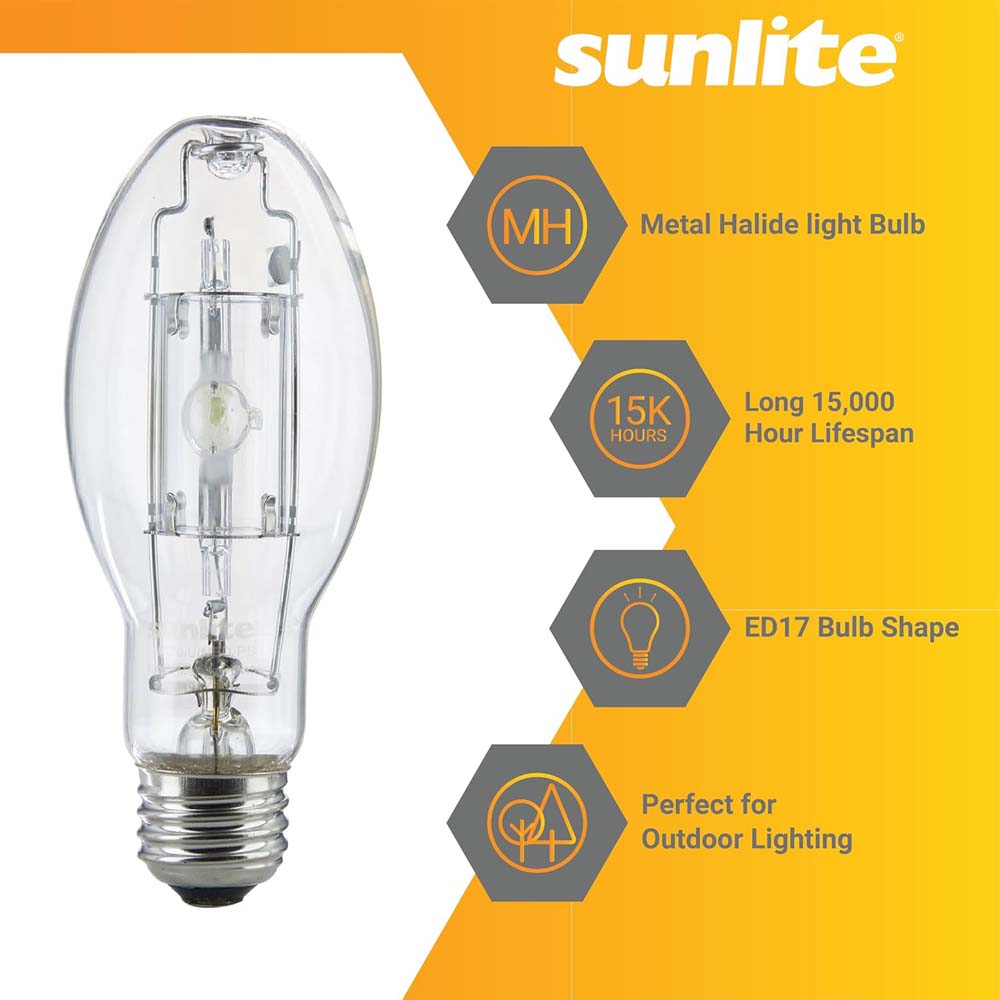

- PROTECTED METAL HALIDE – Sunlite high intensity discharge lamps are perfect for outdoor lighting and commercial interiors. These energy efficient HID lamps offer exceptional efficacy, great color rendition, have a long service life and excellent lumen maintenance.
- HIGH INTENSITY DISCHARGE – This 70 watt bulb puts out a bright 5600 lumens of light. Color temperature is 4000K. Clear glass bulb.
- MEDIUM BASE – Larger medium base (E26) for use in street lights, parking lot fixtures, perimeter lighting, and other commercial and industrial lighting applications. Bulb measurements 2.1 inches diameter, 5.3 inches tall.
- PULSE START – These protected pulse start bulbs feature a long 15,000 hour average lifespan.
- ANSI CODE M98/O – This metal halide bulb is for use in M98/O ballast fixtures. Confirm ANSI Code to help determine the correct bulb for your fixture and the ballast it uses.

General Characteristics
Lamp Type	Protected Metal Halide
ANSI CODE	M98/O
Bulb Shape	ED17
Rated Life	15,000 hrs
Bulb Finish	Clear
Base	E26 Medium Screw
Lumens Per Watt (LPW)	80.00
Life (based on 3hr/day)	13.7 Years
Estimated Energy Cost	$8.43 per Year
Electrical Characteristics
Watts	70
Voltage	120
Light Characteristics
Brightness	5600 Lumens
Color Accuracy (CRI)	65
Coating	Uncoated
Light Appearance	Cool White
Color Temperature	4000K
Product Dimensions
MOL (in)	5.3
Diameter (in)	2.1
Item Dimensions (in)	(W) 2.10 (H) 5.30 (D) 2.10
Package Dimensions (in)	(W) 2.30 (H) 6.00 (D) 2.40
Product Data
Item Number	03641-SU
Barcode on SKU	653703036410
Barcode on Case	10653703036417
Brand	SUNLITE
Description	MP70/U/MED
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

03641-SU Data Sheet
