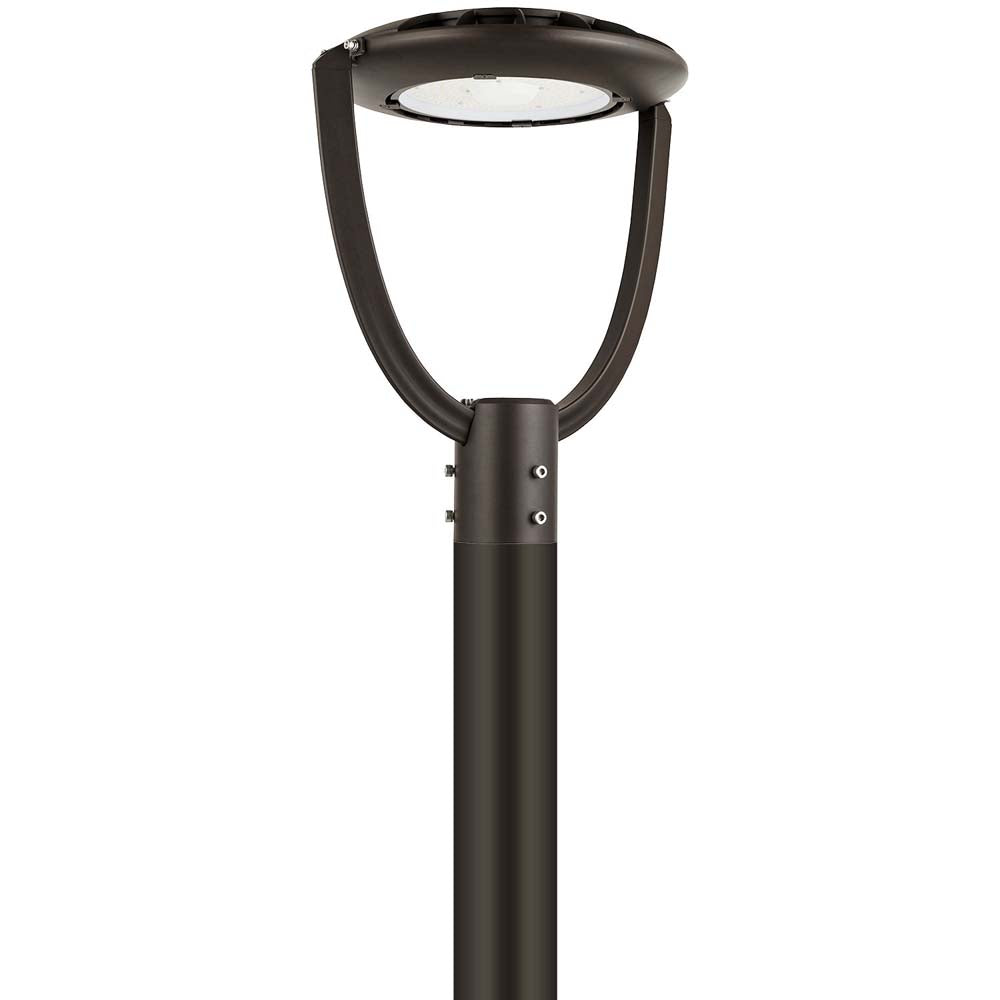

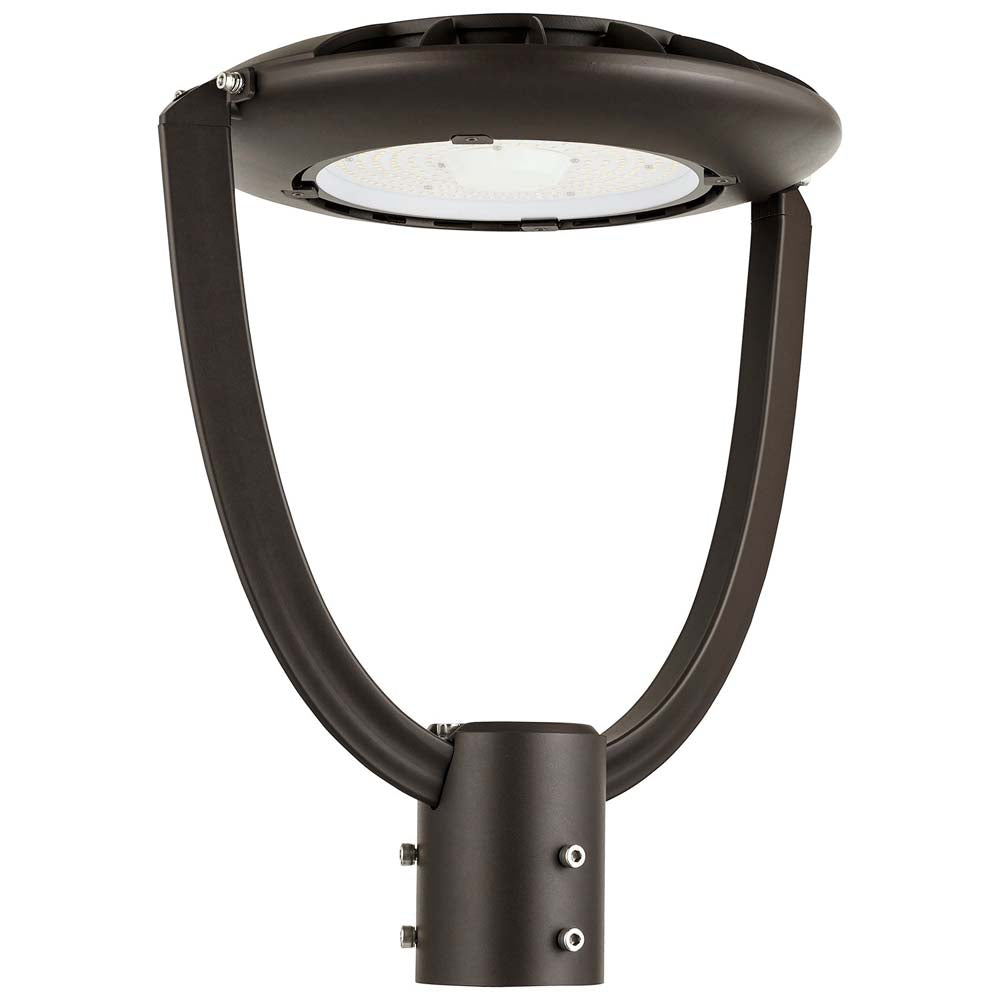

Sunlite 75w 100-277v CCT Tunable LED Outdoor Circular Pole Top Area Fixture

Sunlite LED circular pole-top fixtures provide ample lighting for outdoor areas while saving energy. Each dimmable fixture contains 80 high output LEDs that project downward and mount on 3-inch posts (not included). Prefect for parking areas, airports, parks, and more. These commercial grade fixtures feature a frosted bronze finish on the rust-proof aluminum frame and a frosted polycarbonate lens. Both are designed to resist the elements for years of maintenance-free service. They are also UL Listed for wet location installation and DLC Listed for quality and efficiency.

Features:
- Fixture Life Hours: 50,000 hrs
, Material: die-casting
- Lens Finish: Clear
, Finish: Bronze
- Life (based on 3hr/day): 45.7
, Dimmable
- Watts: 75
, Volts: 100-277
- Brightness: 9375 Lumens
, Color Accuracy (CRI): 80
- Light Appearance: CCT Tunable
- Color Temperature: 30K/40K/50K
, Shape: Round
- Mounting: Pole
, Use Location: Outdoor
, Diameter (in): 15

GENERAL CHARACTERISTICS
Fixture Life Hours	50,000 hrs
Material	die-casting
Lens Finish	Clear
Finish	Bronze
Life (based on 3hr/day)	45.7
Dimmable	TRUE
ELECTRICAL CHARACTERISTICS
Watts	75
Volts	100-277
LIGHT CHARACTERISTICS
Brightness	9375 Lumens
Color Accuracy (CRI)	80
Light Appearance	CCT Tunable
Color Temperature	30K/40K/50K
FIXTURE CHARACTERISTICS
Shape	Round
Number of Lights	1 - Light
Mounting	Pole
Use Location	Outdoor
PRODUCT DIMENSIONS
Diameter (in)	15
PRODUCT DATA
Item Number	85526-SU
UPC	653703855264
Description	LFX/PTL/SCT/75W

Manual:

85526-SU Data Sheet
