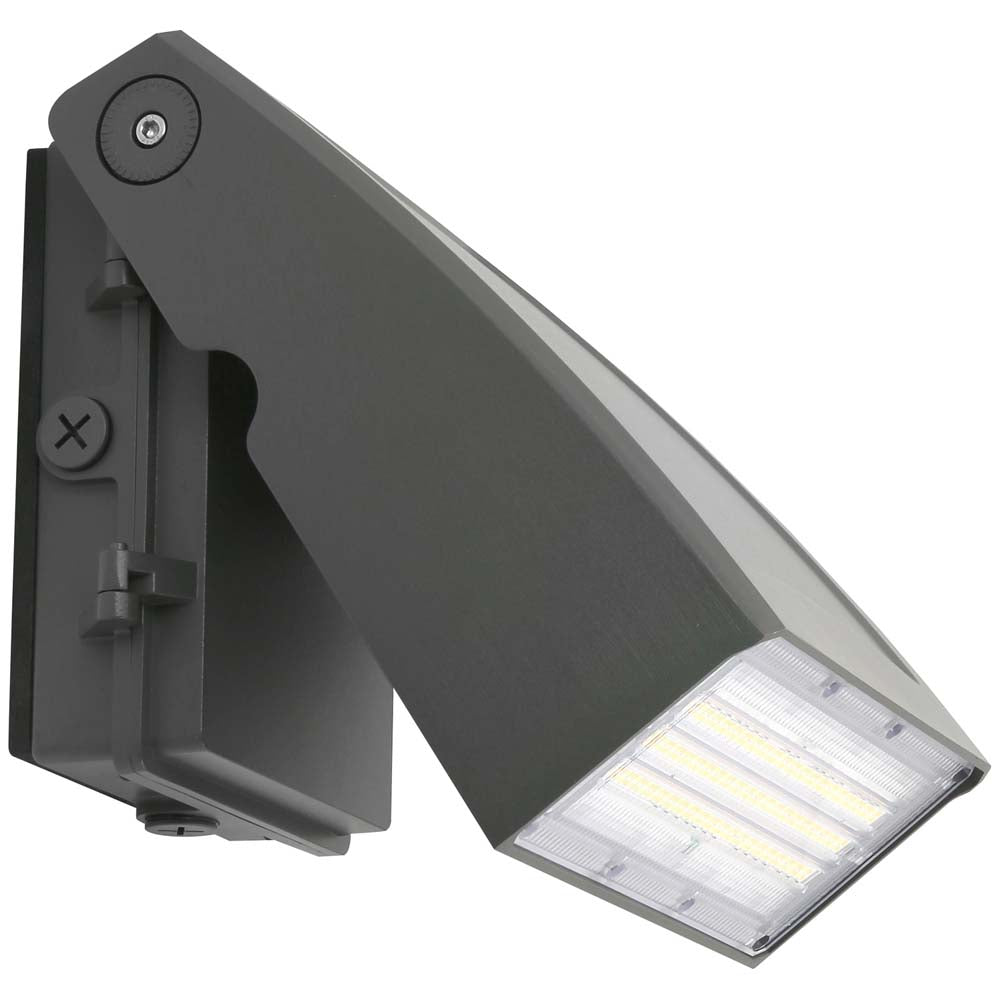

Sunlite LED Adjustable Slim Wall Pack Fixture CCT Wattage Selectable 120-347V

Sunlite LED Outdoor Adjustable Slim Wall Pack Light Fixture is the perfect security lighting to any environment. This fixture allows you to choose the color temperature and wattage at the time of installation. Select 3000K 4000K or even 5000K depending on your preference using a switch located at the back of the fixture. Take control of the light emitted with its selectable wattage of 45W/60W/75W. With 240 built-in LEDs they are an energy efficient and maintenance-free lighting solution with a long-life span of up to 50,000 hours. This fixture features an impressive 180 deg. beam spread and this fixture can tilt up to 90 degrees ensuring wide and even illumination for larger areas. These fixtures are UL Listed for wet location installation for quality and efficiency. They operate on 120-347 volt service. It also meets the necessary ratings for Canada and the USD ensuring it is a reliable and safe choice for outdoor lighting needs. Select 3000K and 45W for 6445 lumens 4000K and 45W for 6838 lumens 5000K and 45W for 6892 lumens 3000K and 60W for 7491 lumens 4000K and 60W for 8558 lumens 5000K and 60W for 8555 lumens 3000K and 75W for 9457 lumens 4000K and 75W for 10275 lumens and 5000K and 75W for 10236 lumens. Dimensions 10.89 H x 8.5 W x 4.85 D.

FEATURES:
- DURABLE DESIGN - These fixtures feature a weather-resistant aluminum body finished in bronze and house a durable polycarbonate lens. Ideal for security and general-purpose lighting along the perimeter of buildings entryways or anywhere extra lighting is needed.
- COLOR AND POWER SELECTABLE - This fixture allows you to choose the color temperature and wattage at the time of installation. Select 3000K 4000K or even 5000K depending on your preference using a switch located on the back of the fixture. Take control of the light emitted with its selectable wattage of 45W/60W/75W and lumen ranging from 6445 to 10275.

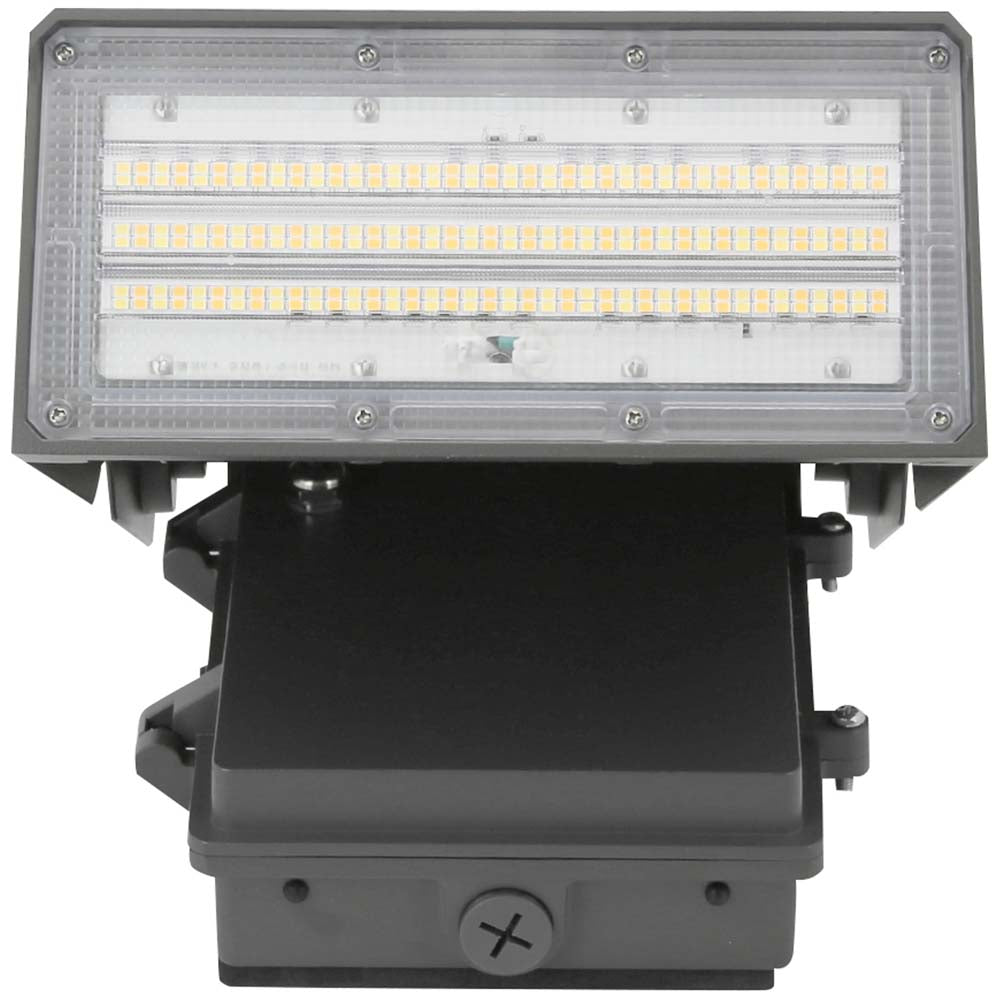

- LED TECHNOLOGY - Sunlite LED Adjustable Wall Pack fixtures are designed to provide ample outdoor illumination allowing you to direct the light for optimal coverage. With 240 built-in LEDs they are an energy efficient and maintenance-free lighting solution with a long-life span of up to 50,000 hours.
- BROAD BEAM SPREAD - This fixture features an impressive 180 deg. beam spread and this fixture can tilt up to 90 degrees ensuring wide and even illumination for larger areas.

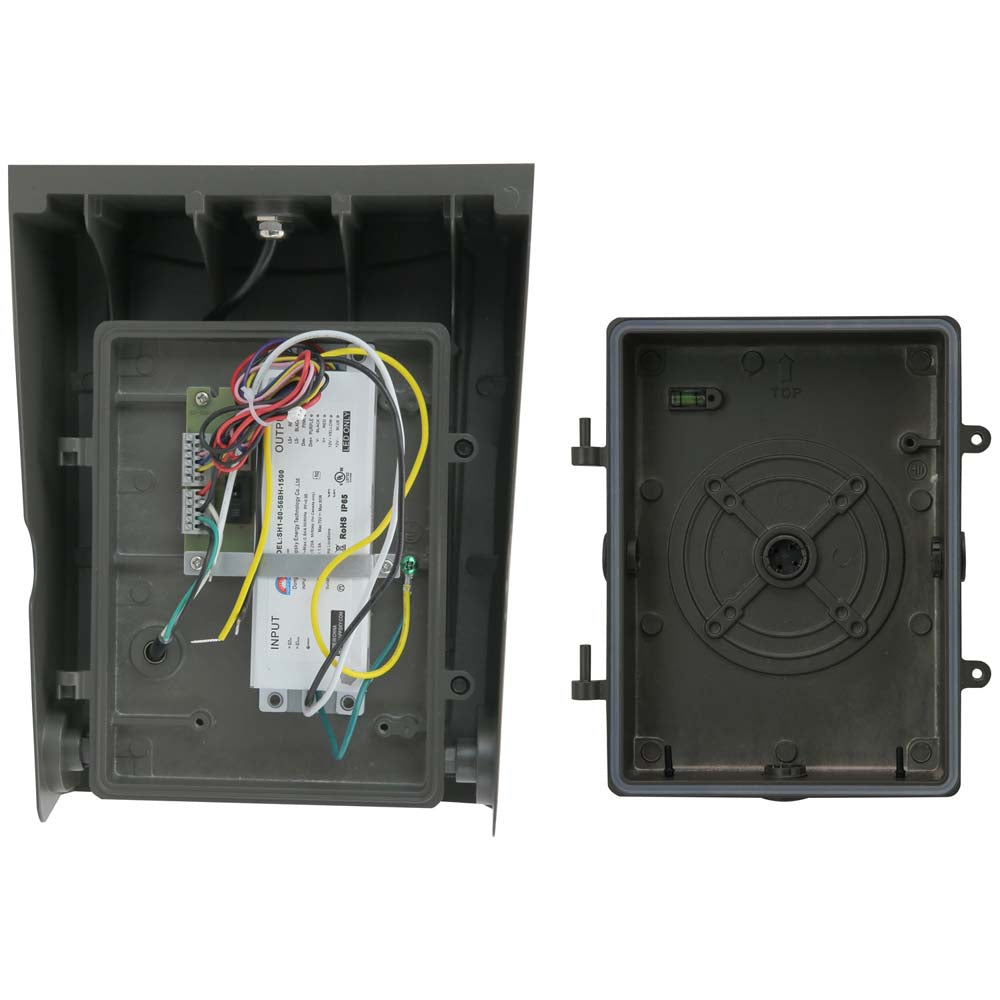

- UL LISTED - These fixtures are UL Listed for wet location installation for quality and efficiency. They operate on 120-347 volt service. It also meets the necessary ratings for Canada and the USD ensuring it is a reliable and safe choice for outdoor lighting needs. It also has a threaded conduit opening where you can run the pipes through for easy installation. Dimensions 10.89 H x 8.5 W x 4.85 D.

General Characteristics
Bulb Shape	Rectangle
Average rated hours	50000
Base	Integrated LED
Finish	Dark Bronze
Average life span years	45
Dimmable	None-Dimmable
Mounting	Wall
Fixture technology	LED
Electrical Characteristics
Watts	45/60/75
Volts	120-347
Temperature	-40 deg. F - 113 deg. F
Light Characteristics
Lumens brightness	5850/7800/9750
Color Rendering Index CRI	80
Emitted color	CCT Selectable
Color temperature kelvin	30K/40K/50K
Beam angle	Adjustable
Flicker	es
Product Dimensions
Mol	12.4
Diameter inches	9.9
Item dimension	(W) 5.9 (H) 12.4 (D) 9.9
Package weight	5.45
Product Data
Pack size	1
Safety rating mark	UL Listed - Wet Location
Safety rated for usa	Yes
Safety rated for canada	Yes
Energy star	Yes
Mercury Free	Yes
Abbreviation Name	LFX/SWP/HMW/3SCT/BRZ/V2
Item upc	653703492025
Warranty years	5 Year Limited

Manual:

49202-SU Data Sheet
