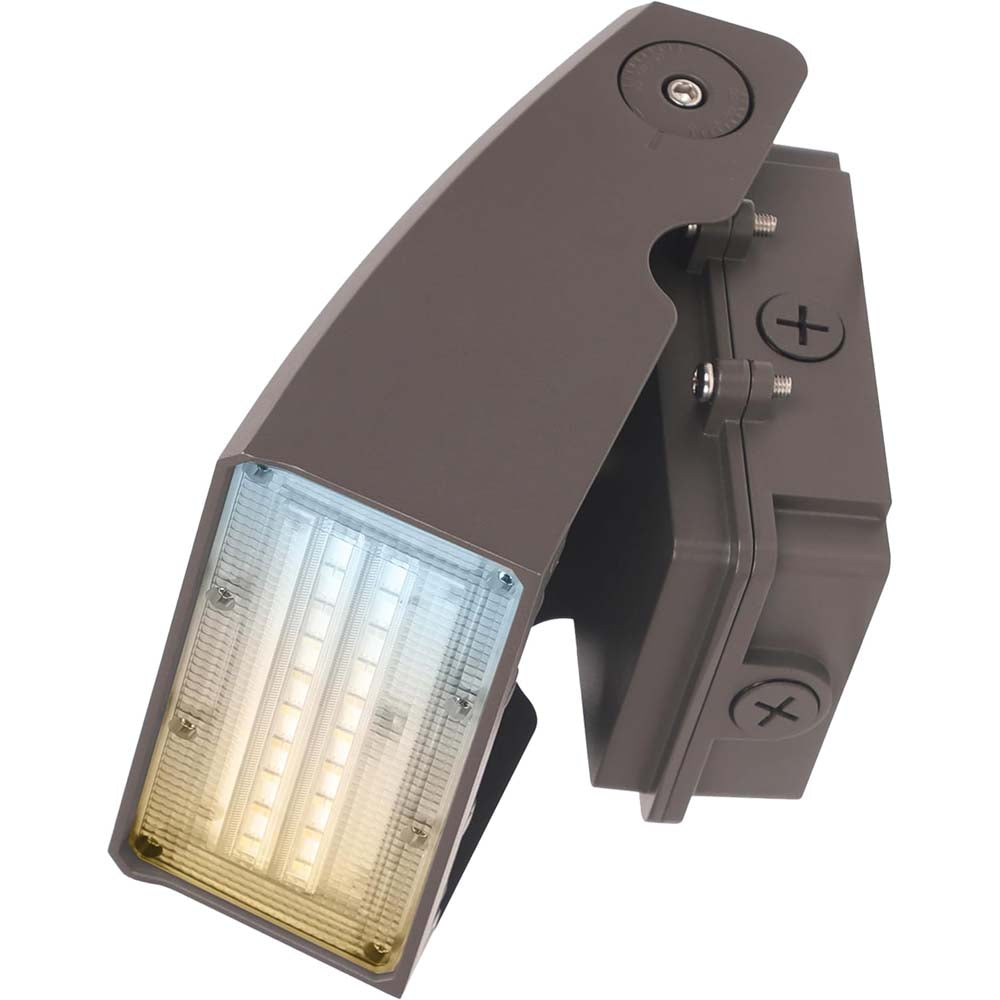

Sunlite LED Outdoor Slim Profile Cutoff Wallpack CCT Wattage Selectable Fixture

Upgrade your outdoor lighting with the Sunlite LED Outdoor Slim Profile Cutoff Wallpack. Hinged base allows you to adjust the light up to 90 degrees so you can direct the light where it�s needed. These fixtures allow you to choose the color temperature at the time of installation. Select 3000K Warm White 4000K Cool White or 5000K Daylight depending on your preference using a switch on the back. A second switch allows you to select between wattage for different lumen outputs. Choose 12 watts 28 watts or 35 watts and can provide up to 4550 high output lumens depending on the watts you choose. These commercial grade fixtures feature a weather-resistant aluminum body finished in bronze. Ideal for security and general-purpose lighting along the perimeter of buildings entryways or anywhere extra lighting is needed. It is protected from low pressure water jets from any direction condensation and water spray thanks to its IP 65 rating. UL Listed for safety and quality. DLC listed for design and efficiency. Great for commercial or residential applications on 120-277-volt service. Dimension: 8.08 H x 6.49 W x 3.85 D.

FEATURES:

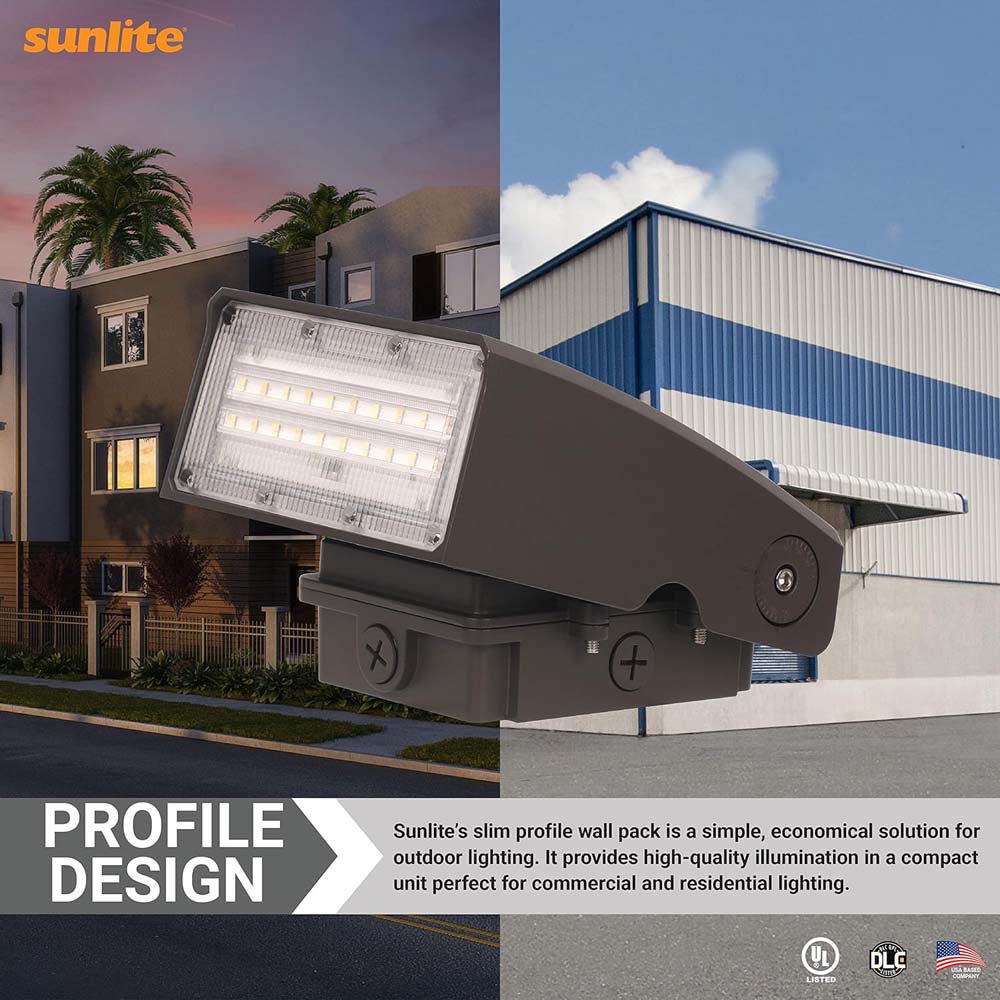

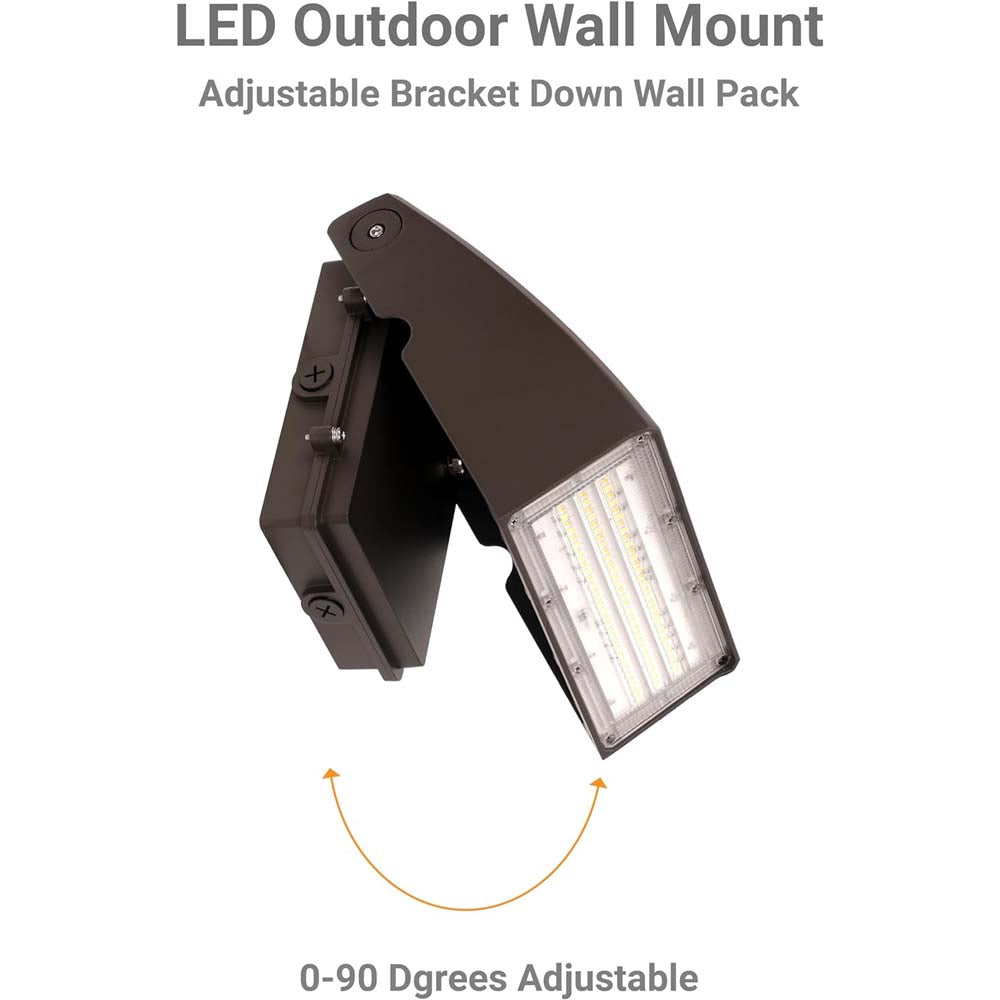

- SLIM PROFILE DESIGN - This fixture is a simple economical solution for outdoor lighting needs. It provides high-quality illumination in a compact unit that is perfect for commercial and multi-residential lighting applications. Hinged base allows you to adjust the light up to 90 degrees so you can direct the light where it�s needed.

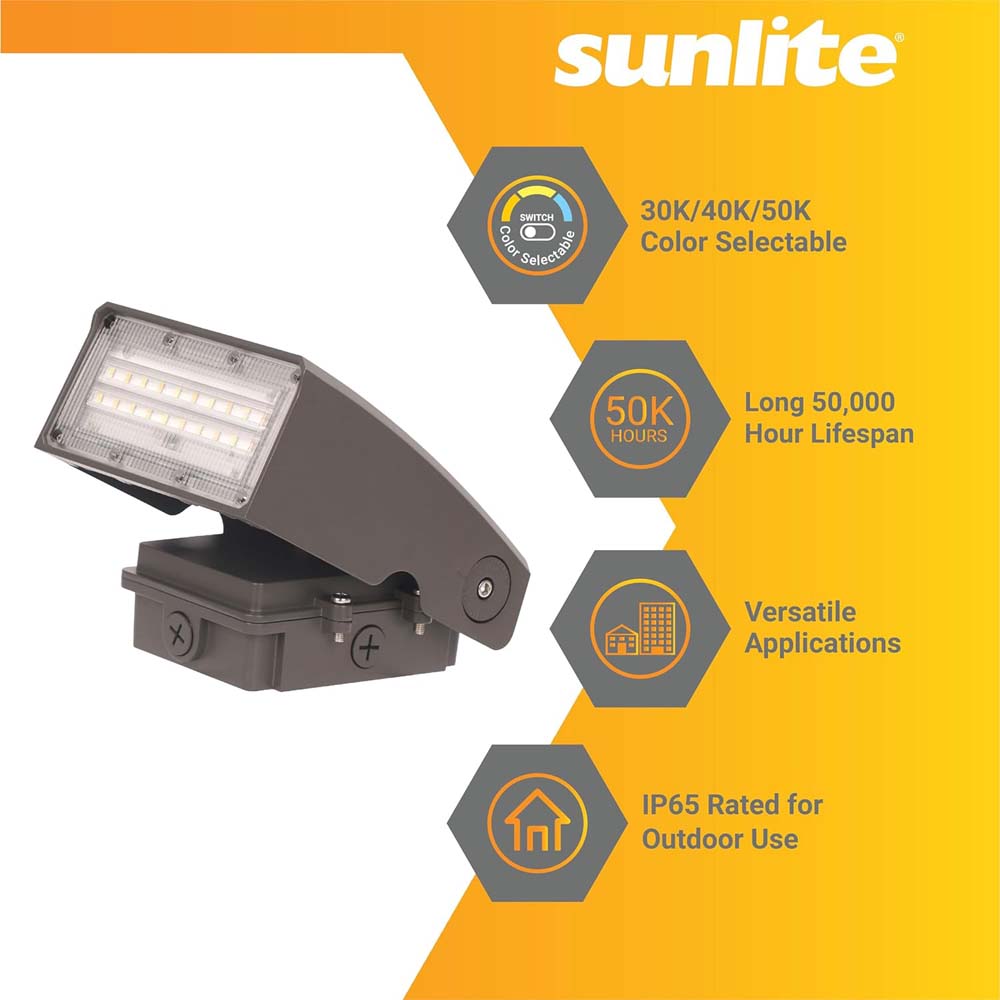

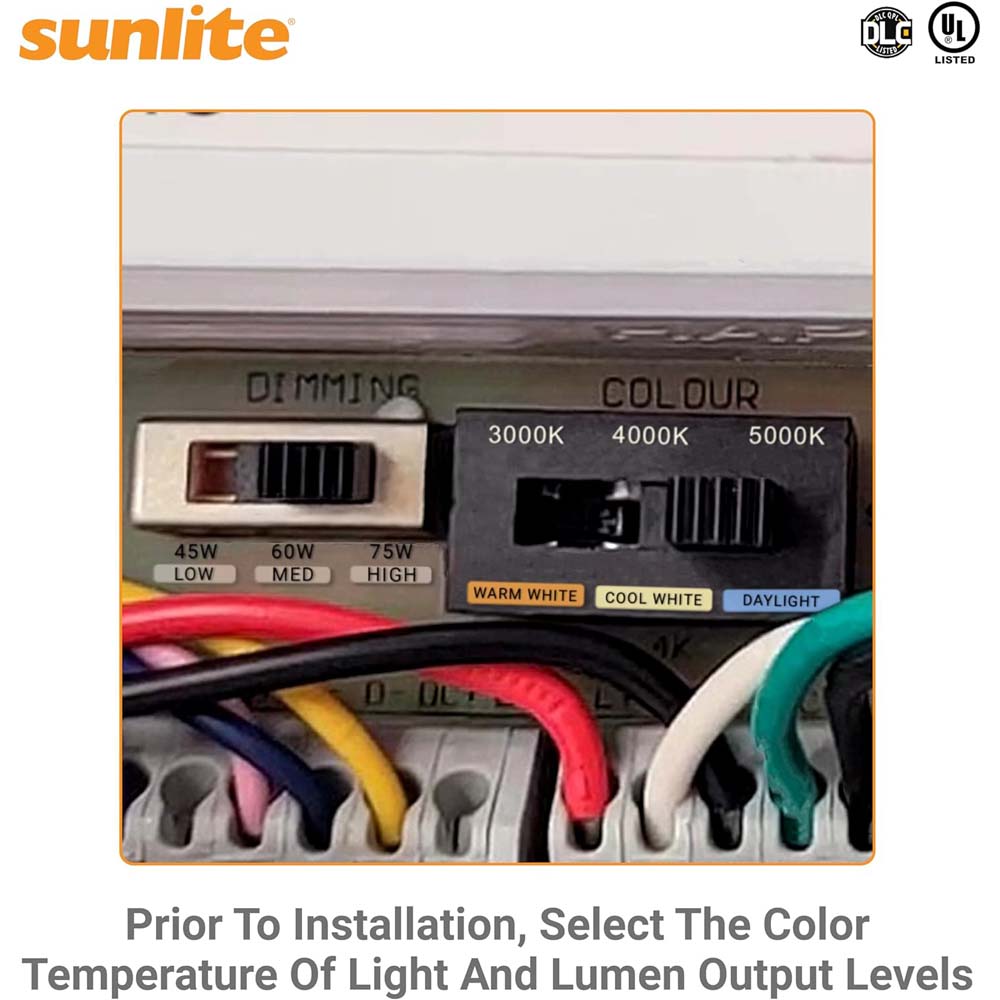

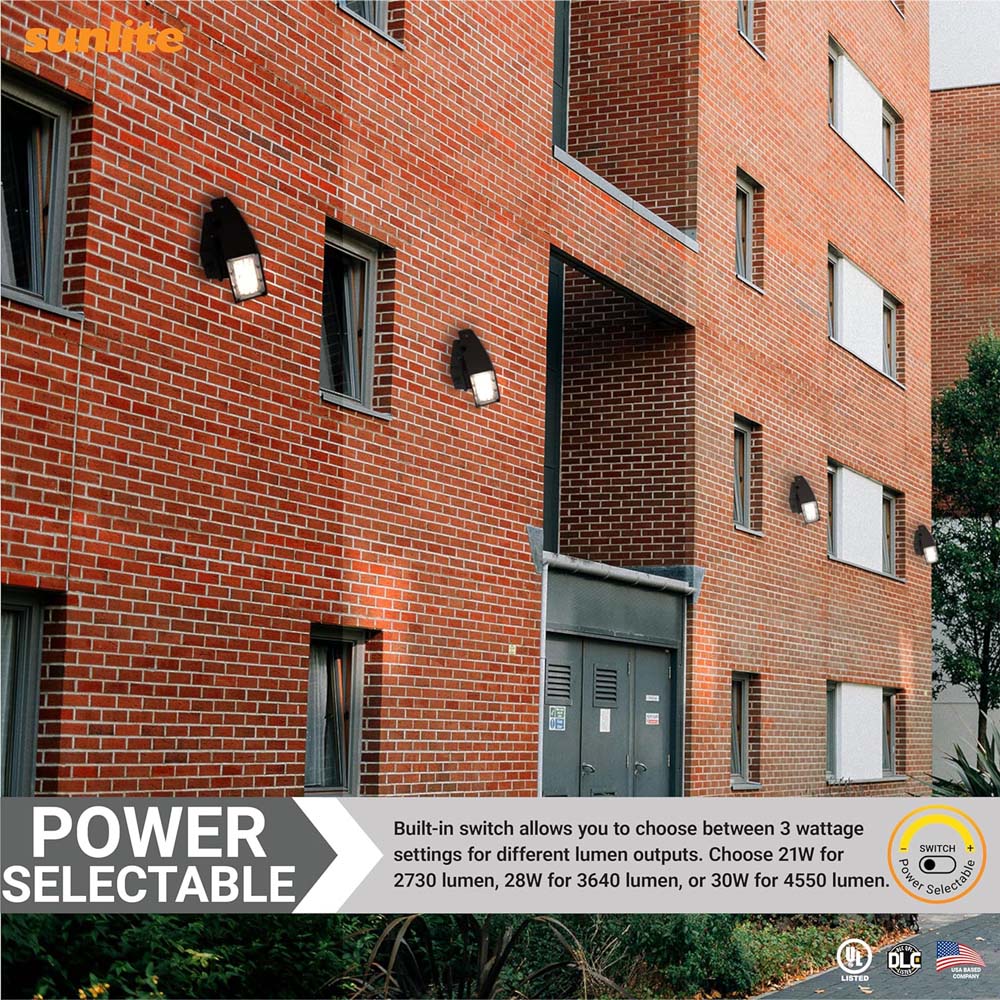

- COLOR and POWER SELECTABLE - These fixtures allow you to choose the color temperature at the time of installation. Select 3000K Warm White 4000K Cool White or 5000K Daylight depending on your preference using a switch on the back. A second switch allows you to select between wattage for different lumen outputs. Choose 12 watts 28 watts or 35 watts and provide up to 4550 high output lumens depending on the watts you�ve chosen.
- EASY INSTALLATION - Designed for hassle-free setup this LED wallpack light fixture comes with a straightforward instruction manual ensuring a quick and simple installation process for both residential and commercial use.

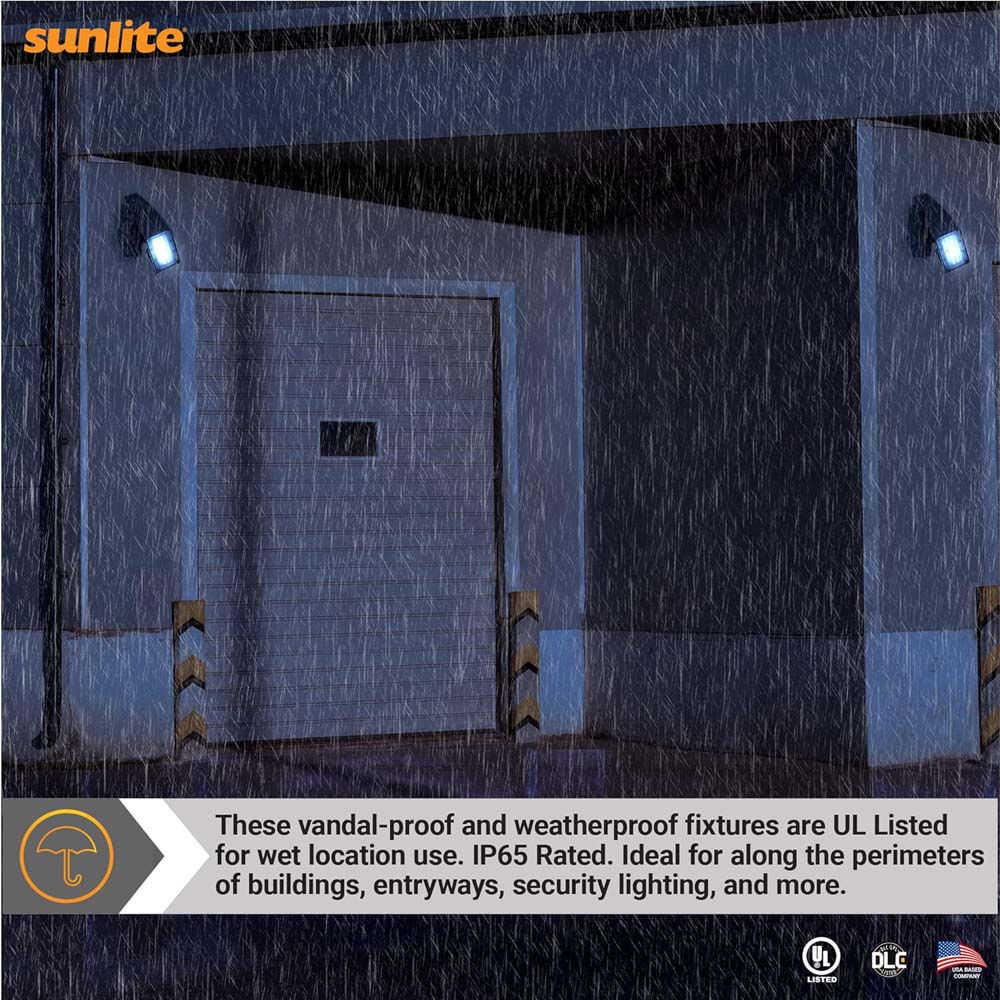

- MULTIPLE OUTDOOR USES - These commercial grade fixtures feature a weather-resistant aluminum body finished in bronze. Ideal for security and general-purpose lighting along the perimeter of buildings entryways or anywhere extra lighting is needed. It is protected from low pressure water jets from any direction condensation and water spray thanks to its IP 65 rating.
- UL LISTED - UL Listed for safety and quality. DLC listed for design and efficiency. Great for commercial or residential applications on 120-277-volt service. Dimension: 8.08 H x 6.49 W x 3.85 D.

General Characteristics
Bulb Shape	Rectangle
Average rated hours	50000
Base	Integrated LED
Finish	Dark Bronze
Average life span years	45
Dimmable	None-Dimmable
Mounting	Wall
Fixture technology	LED
Electrical Characteristics

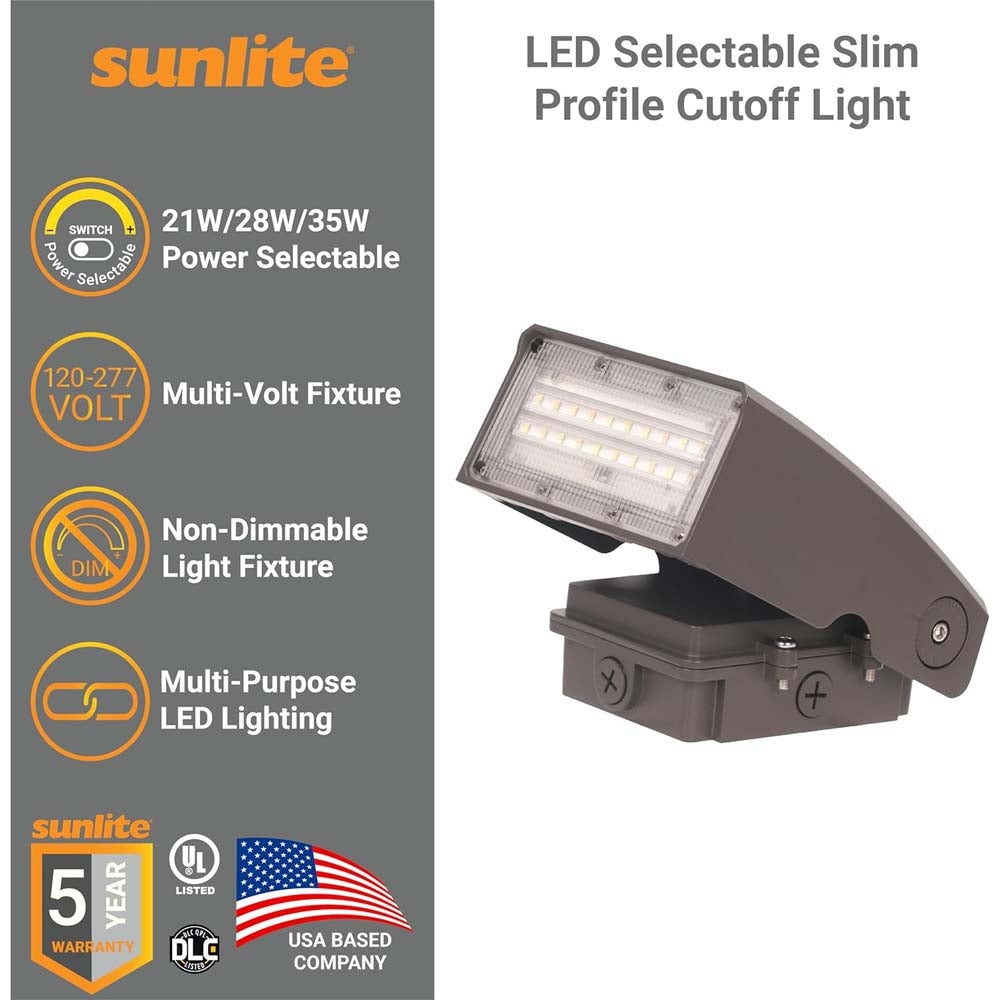

Watts	21/28/35
Volts	120-347
Temperature	-40 deg. F - 113 deg. F
Light Characteristics
Lumens brightness	2730/3640/4550
Color Rendering Index CRI	80
Emitted color	CCT Selectable
Color temperature kelvin	30K/40K/50K
Beam angle	92
Flicker	es
Product Dimensions

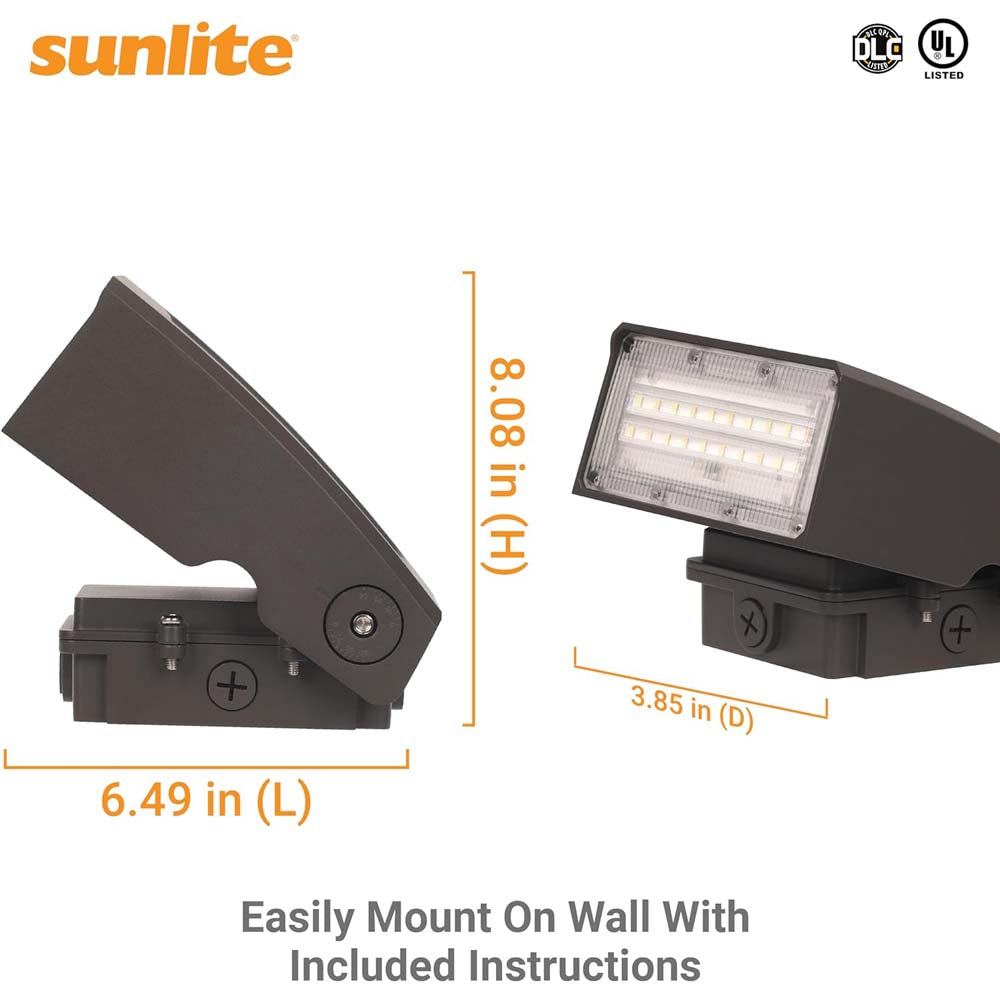

Item dimension	(W) 6.5 (H) 8.1 (D) 3.85
Package dimension	(W) 7.5 (H) 9.5 (D) 5.12
Package weight	3.6
Product Data
Pack size	1
Safety rating mark	UL Listed - Wet Location
Safety rated for usa	Yes
Safety rated for canada	Yes
Energy star	Yes
Mercury Free	Yes
Abbreviation Name	LFX/SWP/MW/SCT/BRZ
Item upc	653703491691
Warranty years	5 Year Limited

Manual:

49169-SU Data Sheet
