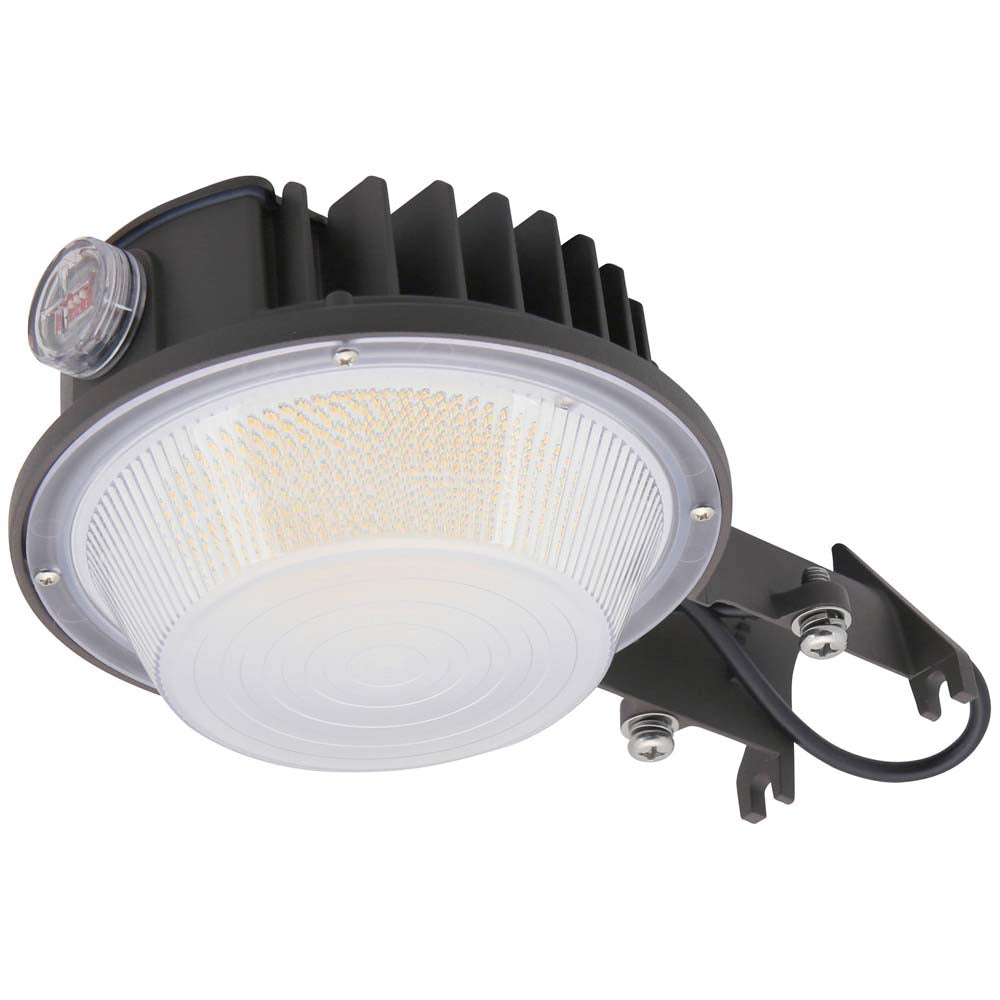

Sunlite LED Roadway Pole Mount Security Fixture CCT Wattage Selectable Dimmable

Sunlite LED Roadway Security Light with Photo Control Fixture gives the security light you need whenever you need it. These fixtures allow you to choose the color temperature at the time of installation Select 3000K Warm White 4000K Cool White or 5000K Daylight depending on your preference using a switch located within the fixture. A second switch allows you to select between wattage for different lumen outputs. Choose 36 watts 48 watts or 60 watts. With its bright LEDs and high lumen output from 4320 - 7500 our lights are great for entrance courtyard industrial security and many more! Made to last thanks to its aluminum material with a dark brown finish. UL Listed for safety and quality. IP65 rated. Great for commercial applications on 120-277-volt service. Dimensions: 4.16 H x 7.01 W x 10.37 D.

FEATURES:
- DUSK TO DAWN SENSOR - These roadway light�s dusk-to-dawn photocell sensors provide security that no matter the weather you will always have light where and when you need it.

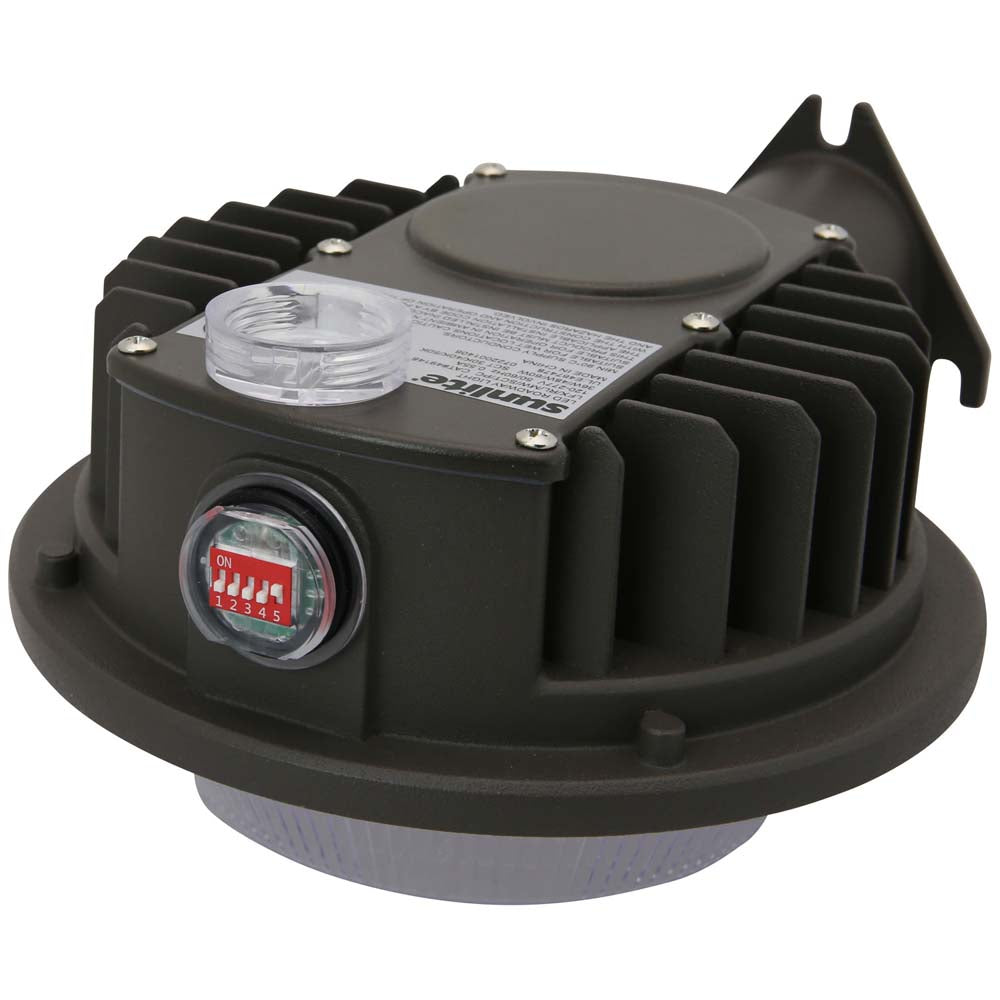

- SELECTABLE COLOR and POWER - These fixtures allow you to choose the color temperature at the time of installation Select 3000K Warm White 4000K Cool White or 5000K Daylight depending on your preference using a switch located within the fixture. A second switch allows you to select between wattage for different lumen outputs. Choose 36 watts 48 watts or 60 watts.

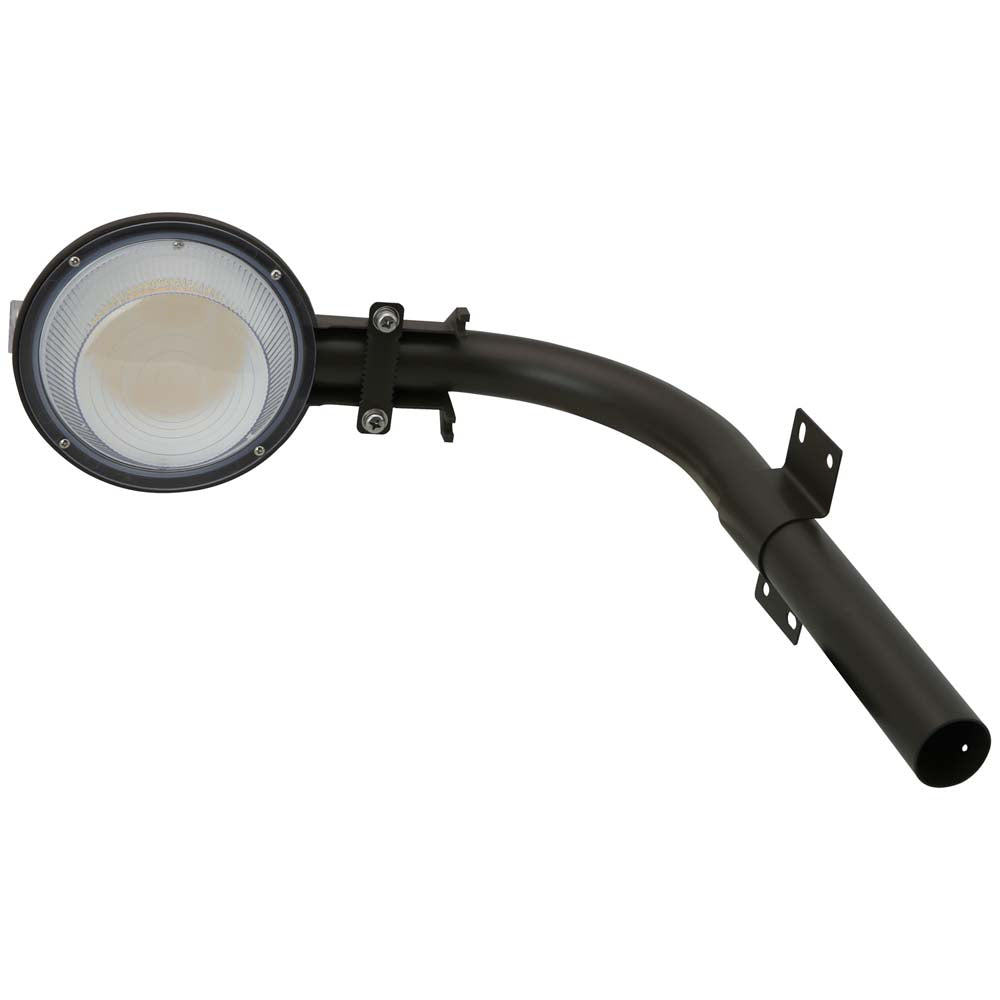

- MULTIPLE OUTDOOR USE - With its bright LEDs and high lumen output from 4320 - 7500 our lights are great for entrance barns industrial security and many more! Made to last thanks to its aluminum material with a dark brown finish. Designed for pole mounting.
- DIMMABLE - The lighting output can be changed when connected to an LED-compatible dimmer switch (0-10v) allowing it to adjust the brightness to suit your need.
- UL LISTED - UL Listed for safety and quality. IP65 rated. Great for commercial applications on 120-277-volt service. Dimensions: 4.16 H x 7.01 W x 10.37 D.

General Characteristics
Bulb Shape	Pole Mount
Average rated hours	50000
Base	Integrated LED
Finish	Dark Bronze
Average life span years	45
Dimmable	Yes - Dimmable
Mounting	Pole Mount
Fixture technology	LED
Electrical Characteristics
Watts	36/48/60
Volts	120-277
Temperature	-4 deg. F~113 deg. F
Light Characteristics
Lumens brightness	4500/6000/7500
Color Rendering Index CRI	80
Emitted color	CCT Selectable
Color temperature kelvin	30K/40K/50K
Beam angle	140
Flicker	es
Product Dimensions
Mol	4.15
Diameter inches	7
Item dimension	(W) 10.37 (H) 7.01 (D) 4.16
Package dimension	(W) 6.3 (H) 7.5 (D) 14.3
Package weight	4.81
Product Data
Pack size	1
Safety rating mark	UL Listed - Wet Location
Safety rated for usa	Yes
Safety rated for canada	Yes
Mercury Free	Yes
Abbreviation Name	LFX/RL/MW/SCT/PC
Item upc	653703491486
Warranty years	5 Year Limited

Manual:

49148-SU Data Sheet
