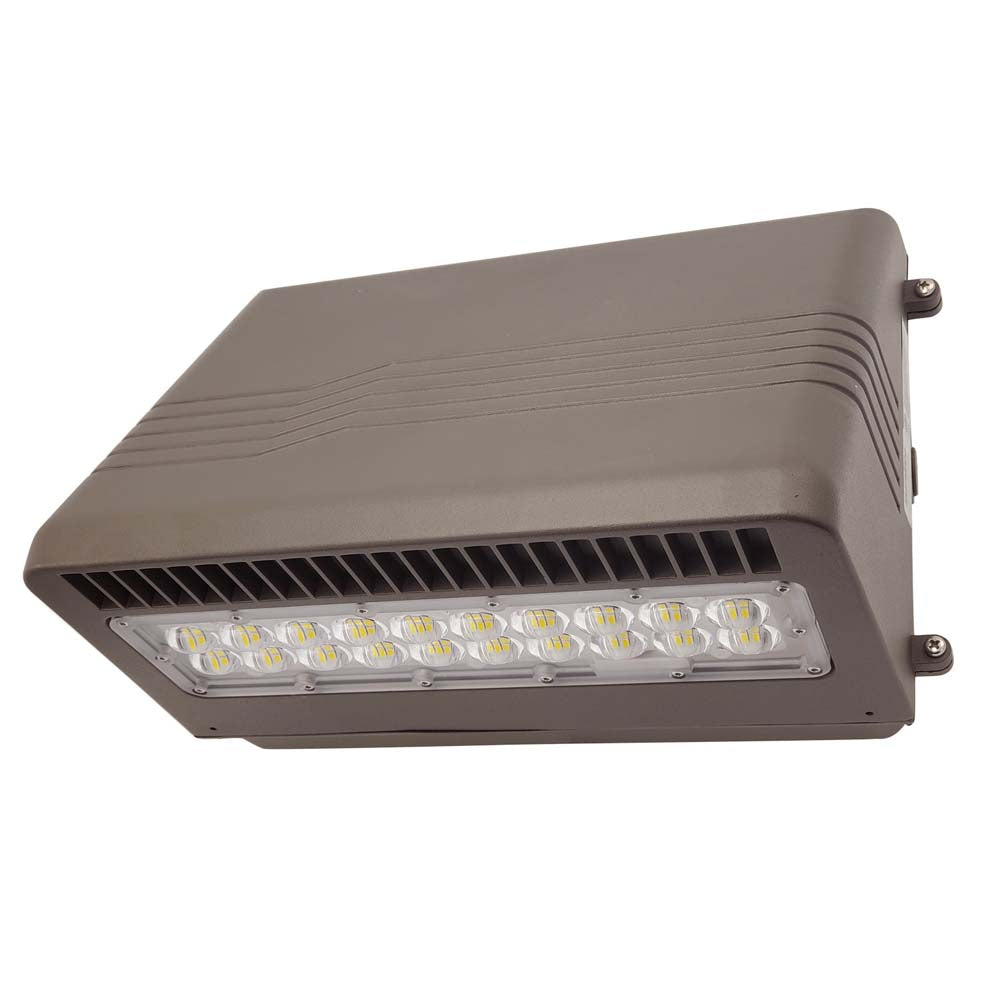

Sunlite LED Wallpack Cutoff CCT Wattage Selectable Multi-Volt Downlight Fixture

Sunlite LED Wallpack Cutoff Downlight Fixture adds protection while enhancing the appearance of your property. This fixture is made with robust aluminum material with a bronze finish. Designed with a glare-free illumination projected downward via a complete cutoff design and its IP65 classification offers the maximum dust protection level and makes it resistant to low-pressure water jets from any angle. This fixture allows you to choose the color temperature and wattage at any time. Select 3000K Warm White or 4000K Cool White or even 5000K Daylight depending on your preference using a switch located at the back of the fixture. Take control of the light emitted with its selectable wattage of 25W/40W/60W/80W. The lighting output can be changed when connected to an LED-compatible dimmer switch (0-10v) with a beam angle of 120 degrees allowing it to adapt to any lighting to suit the mood. This light source produces a bright selectable color with a robust high lumen output that varies depending on the selected wattage that can range from 3000 to 9920 lumens. This dimmable fixture long life provides 50,000 hours of maintenance-free service LED technology. ETL Listed for wet location installation. Mounting hardware and installation instructions included. Ideal for Garage Entryways Porches Garden and more. Fixture Dimension: 8.31 D x 14.37 W x 9.22 H.

FEATURES:
- MODERN DESIGN - This fixture is made with robust aluminum material with a bronze finish. Designed with a glare-free illumination projected downward via a complete cutoff design and its IP65 classification offers the maximum dust protection level and makes it resistant to low-pressure water jets from any angle.
- COLOR and POWER SELECTABLE - This fixture allows you to choose the color temperature and wattage at any time. Select 3000K Warm White or 4000K Cool White or even 5000K Daylight depending on your preference using a switch located at the back of the fixture. Take control of the light emitted with its selectable wattage of 25W/40W/60W/80W.
- DIMMABLE - The lighting output can be dimmed when connected to an LED-compatible dimmer switch (0-10v) with a beam angle of 120 degrees allowing it to adapt to any lighting to suit the mood.
- LONG LIFE LED - This light source produces a bright selectable color with a robust high lumen output that varies depending on the selected wattage that can range from 3000 to 9920 lumens. This dimmable fixture long life provides 50,000 hours of maintenance-free service LED technology.
- ETL LISTED - ETL Listed for wet location installation. Mounting hardware and installation instructions included. Ideal for Garage Entryways Porches Garden and more. Fixture Dimension: 8.31 D x 14.37 W x 9.22 H.

General Characteristics
Bulb Shape	Wallpack Cutoff
Average rated hours	50000
Base	Integrated LED
Finish	Bronze
Average life span years	45
Dimmable	Yes - Dimmable
Mounting	Wall
Fixture technology	LED
Electrical Characteristics
Watts	25/40/60/80
Volts	120-277
Temperature	-40 deg. F - 40 deg. F
Light Characteristics
Lumens brightness	3000/10800
Color Rendering Index CRI	70
Emitted color	CCT Selectable
Color temperature kelvin	30K/40K/50K
Product Dimensions
Mol	9.22
Diameter inches	8.31
Item dimension	(W) 14.37 (H) 9.22 (D) 8.31
Package dimension	(W) 10.88 (H) 10.06 (D) 15
Package weight	7.3
Product Data
Pack size	1
Abbreviation Name	LFX/WP/MW/3SCT
Item upc	653703970646

Manual:

97064-SU Data Sheet
