Sunlite Single Face LED Steel Exit Sign w/ Battery Power Back-Up 200Lm 120-277V

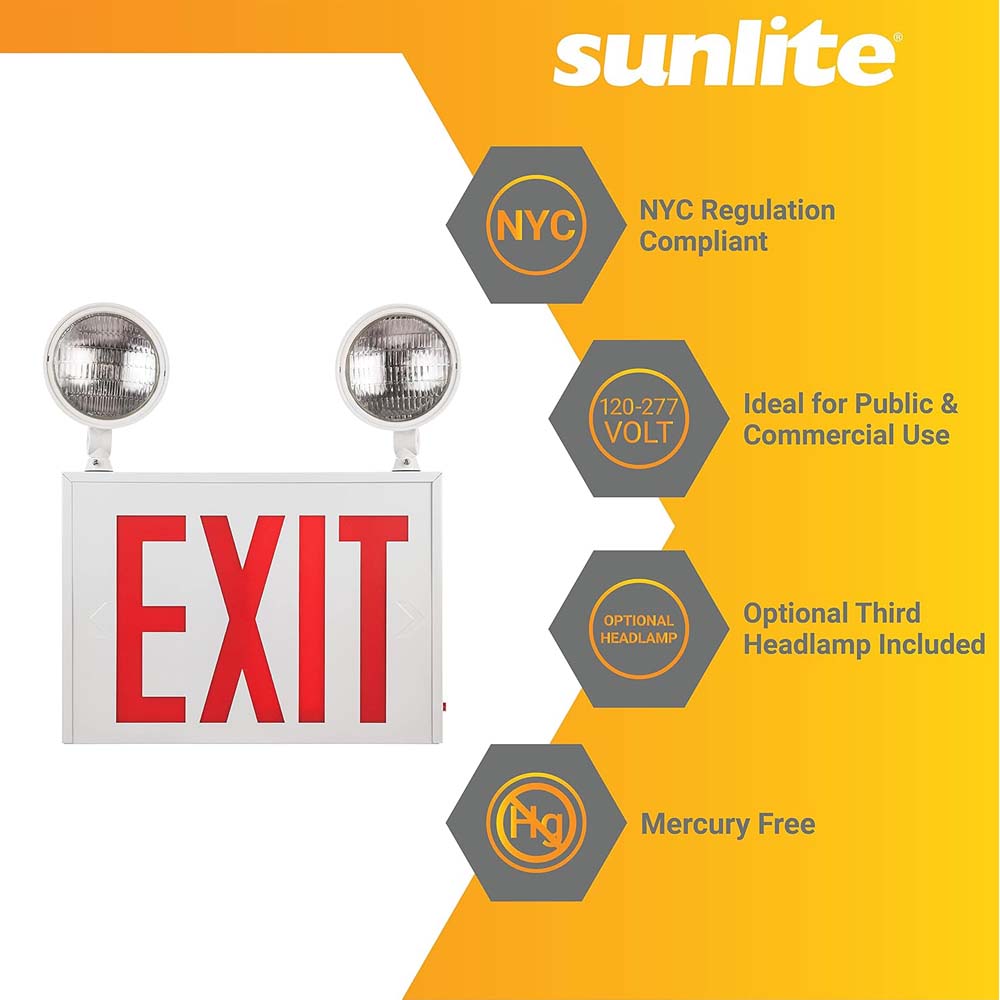

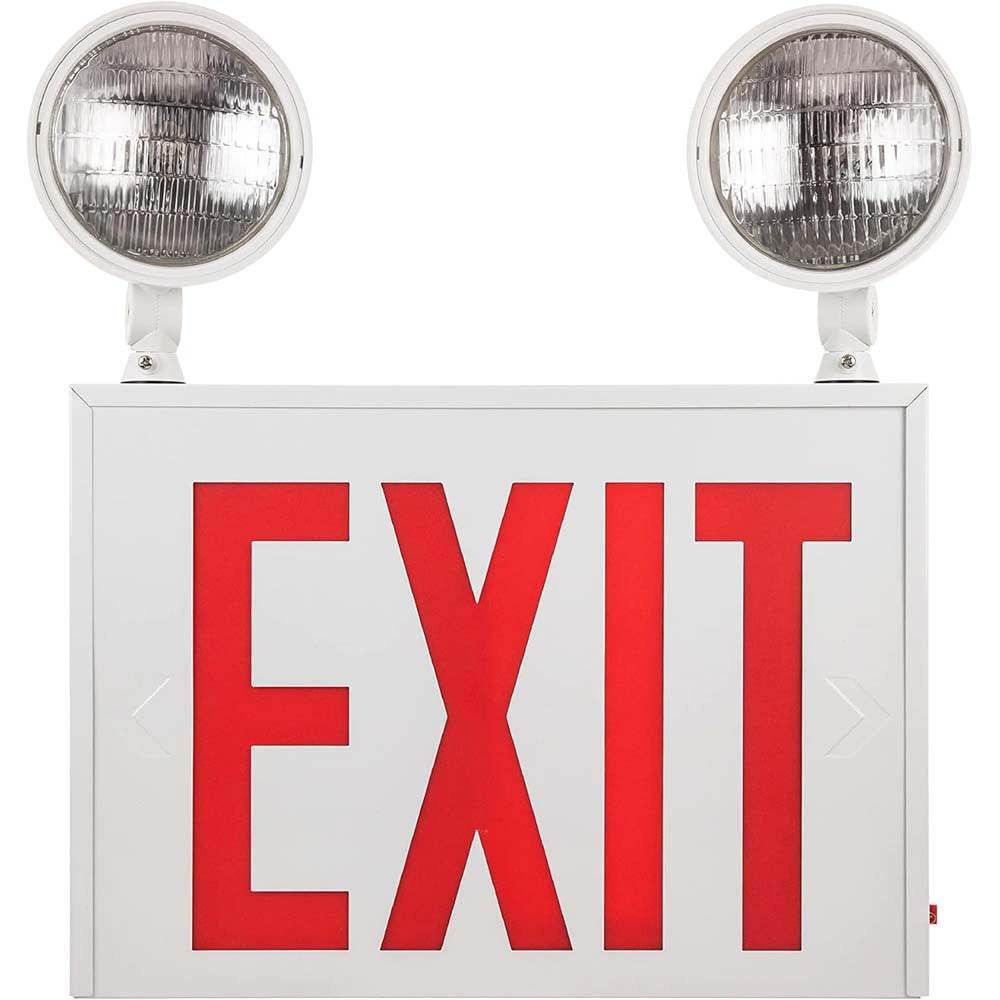

Sunlite 05275 LED Steel Exit Sign Combo, White Housing with Red Lettering, 90-Minute Battery Power Back-Up, Dual-360 Degree Adjustable Head Lamps, 200 Lumens, 120-277V, Fire Safety, NYC Compliant

FEATURES:
- SLIM & DURABLE - The slim exit sign is made with corrosion-resistant steel that is built to last. With its steel casing, it can operate with voltage ratings of 120V-277Vac, making it perfect for commercial buildings, residential complexes, and retail shops. Due to the slim design, this commercial exit sign is great for positioning in office buildings, warehouses, doorways, and isles without taking over your decor.
- NYC COMPLIANT - New York City Building Authority has developed rigorous requirements for Exit Signs used in commercial and public buildings. Our exit signs meet these regulations with ultra-bright internal RED LEDs (200 Lumens), the word EXIT is in red, the exit sign can be seen from 200 meters away and the background is white. Even with their high-intensity LEDs, they consume very little energy; 4.5 watts to be exact. Compliant in All 50 States
- BACK-UP BATTERY - Installed with a built-in 9.6V/900mAH Ni-CD battery. This backup battery provides 90-minutes of reserved power for outages. The adjustable LED lamps immediately go on when the power goes off. The battery automatically recharges within 24 hours after outages, so no replacement battery is necessary. *Optional Third Head Lamp included
- EASY MOUNTING - The steel exit sign can easily be mounted. This single sided exit sign must be mounted from the back. Side knockouts available for wiring. (mounting hardware included)
- DAMP LOCATED - This red LED exit sign is damp located and is suitable for bars, restaurants, and gyms. Also suitable for operation in ambient temperatures of -0 deg. C 40 deg. C (32 deg. F 104 deg. F)

General Characteristic
Base	Integrated LED
Shape	Rectangular
Finish	Painted
Dimmable	No
Mounting	Wall
Number of lights	2 (Optional 3rd Included)
Application	Commercial, restaurants, bars, and office environments, Warehouse, Residential
Use location	Indoor
Fixture technology	EXIT
Electrical Characteristic
Watts	4.5
Volts	120-277
Lighting Characteristic
Lumens	200
Product Dimensions
Size	10.4-in
Item dimension	(W) 145 (H) 10.4 (D) 2.2
Package dimension	(W) 1 (H) 5.75 (D) 1
Package weight	0.07
Product Data
Safety rating mark	ETL - Damp Location
UPC	653703052755
Warranty	See packaging for details

Manual:

05275-SU Data Sheet
05275-SU Data Sheet
