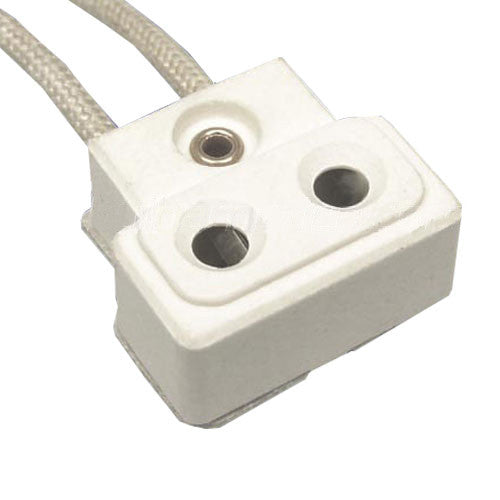

OSRAM 69818 G9.5 2-Pin HPL socket TP-22H lamp holder has a rating of 5.0 stars based on 4 reviews.

OSRAM 69818 G9.5 2-Pin HPL socket TP-22H lamp holder - BulbAmerica

OSRAM 69818 G9.5 2-Pin HPL socket TP-22H lamp holder_1

OSRAM 69818 G9.5 2-Pin HPL socket TP-22H lamp holder_2

OSRAM 69818 G9.5 2-Pin HPL socket TP-22H lamp holder_3

OSRAM 69818 G9.5 2-Pin HPL socket TP-22H lamp holder

SKU: 69818

$2099 ~~$33.99~~ USD

Description

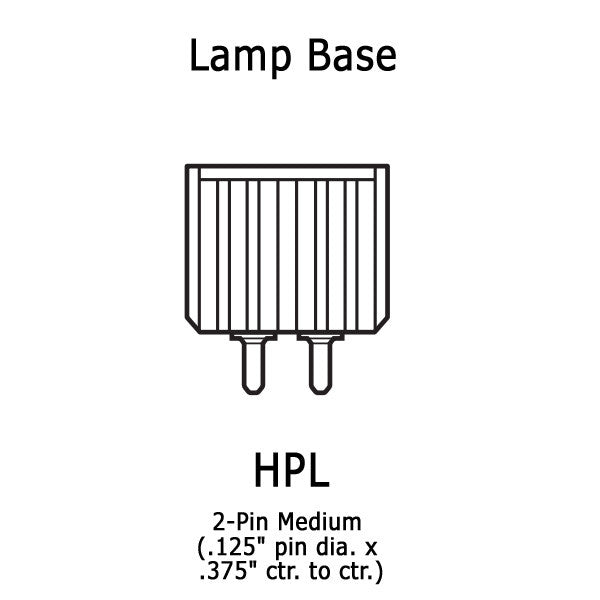

This lamp holder is for 2-Pin Medium with heat sink Base - HPL bulbs- Strip Length (in): 0.38- Qualifications: UL Recognized-E31557, CSA Certified - LR20904- Wire Leads: Any UL recognized and CSA certified wire: AWG 16, 600 V min, 482F min

Specs

Application	Lamp Holder
Color	Natural
Contact Material	Nickel (with high temperature back-up spring)
Operation Temperature (F)	572
Type	TP-22H
Voltage (V)	250
Wire Guage/Type	AWG16 UL 69837
Length (in)	44.00

Video

Additional Info

Manual:

OSRAM 69005 TP22H 44IN/16GA/UL5446

‎
