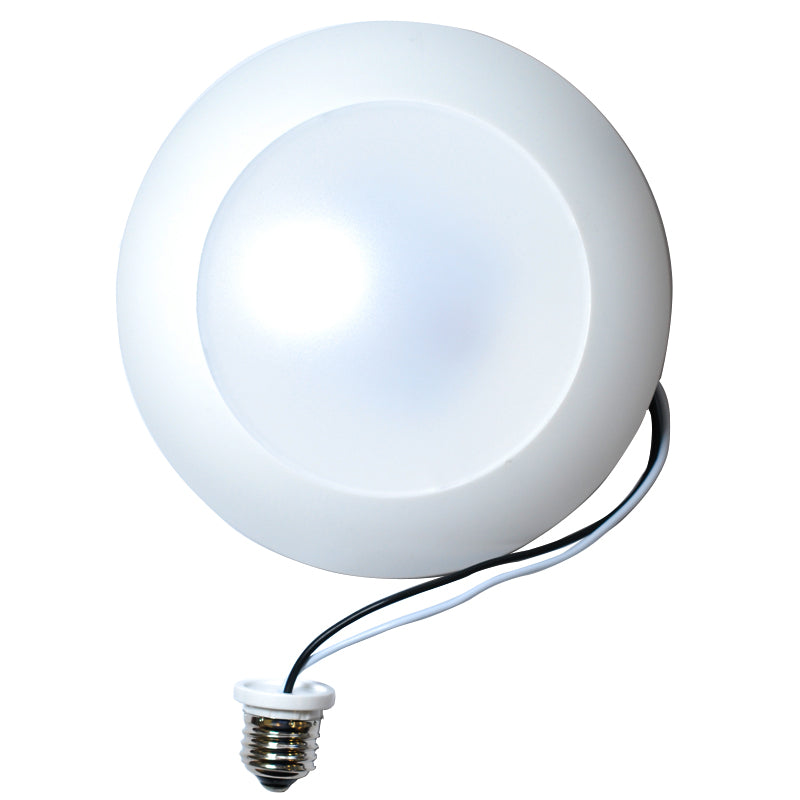

Sylvania LED 13w 900 Lumen 3000K Recessed and Surface Mount Downlight Kit

Sylvania 75044 13W 900 Lumen Light Disk kit. The SYLVANIA ULTRA Light Disk is an LED downlight kit creating high performing white light and is optimized for new construction and retrofit applications.
Multiple installation options for both recessed and surface mount applications. Installation is done quickly and easily in most standard four-inch, five-inch and six-inch Insulated Ceiling (IC) housings, Airtight (AT) housings and non-IC housings.
It can also be surface mountedto standard 4-inch J-Box or using specially designed Connector Box.
The SYLVANIA ULTRA Light Disk is dimmable to 20% with standard 120V electronic low voltage dimmers (recommended), incandescent or magnetic low voltage dimmers.
In some cases, standard incandescent dimmers require a minimum load of typically >40 watts on the circuit for full range dimming performance (four LED modules).
For dimming with digital (smart) multi-location dimmers or when dimming fewer than four LED modules, electronic low-voltage (ELV) dimmers are required (some ELV dimmers need a neutral connection in the wallbox).

Features:

- Replacement for 100 Watt Incandescent recessed fixtures
- suitable for use in dry, damp and wet indoor and outdoor location
- dimmable to 20% with standard 120V electronic low voltage dimmers (recommended)
- 900 lumens using only 13 watts with a long 50,000 hour life rating
- 3000k color temperature with good color rendering
- fits 4", 5" & 6" housing and 4" J-Box
- Integrated white trim and medium base for direct replacement
- No warm-up time, instant-on with full light output and stable lamp to lamp color
- Reduces energy consumption by up to 87% savings
- Lasts up to 25 times longer than incandescent lamps
- Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)

Manual:

Sylvania 75044 Data Sheet
