SYLVANIA LED Wall Pack 36W 4000K Bronze - 100w equivalent

SYLVANIA LED Wall Pack 36W 4000K Bronze - 100w equivalent

Features
- Two-piece cast aluminum alloy housing with powder coat paint finish and a glass lens
- Cutoff distribution with a flat tempered glass lens
- Operating Temperature: -40°F to +104°F (-40°C to +40°C)
- Listings: cULus listed to UL1598 standards for wet locations
- Environmentally preferable LED alternatives to traditional HID luminaires
- Offers up to 76% in energy savings
- Ideal for illuminating building exteriors, outdoor corridors, walkways, and stairwells
- Minimizes light pollution through its cut-off design
- Available with optional photo control
- 5 Year Limited Warranty

Manufacturer	Sylvania
NAED	74186
UPC	046135741869
Abbreviation	WALPAK1C/036UNV740/CO/BZ
Certification Listing	DLC Listed
Color	Cool White
Color Rendering Index (CRI)	>70
Color Temperature/CCT (K)	4000

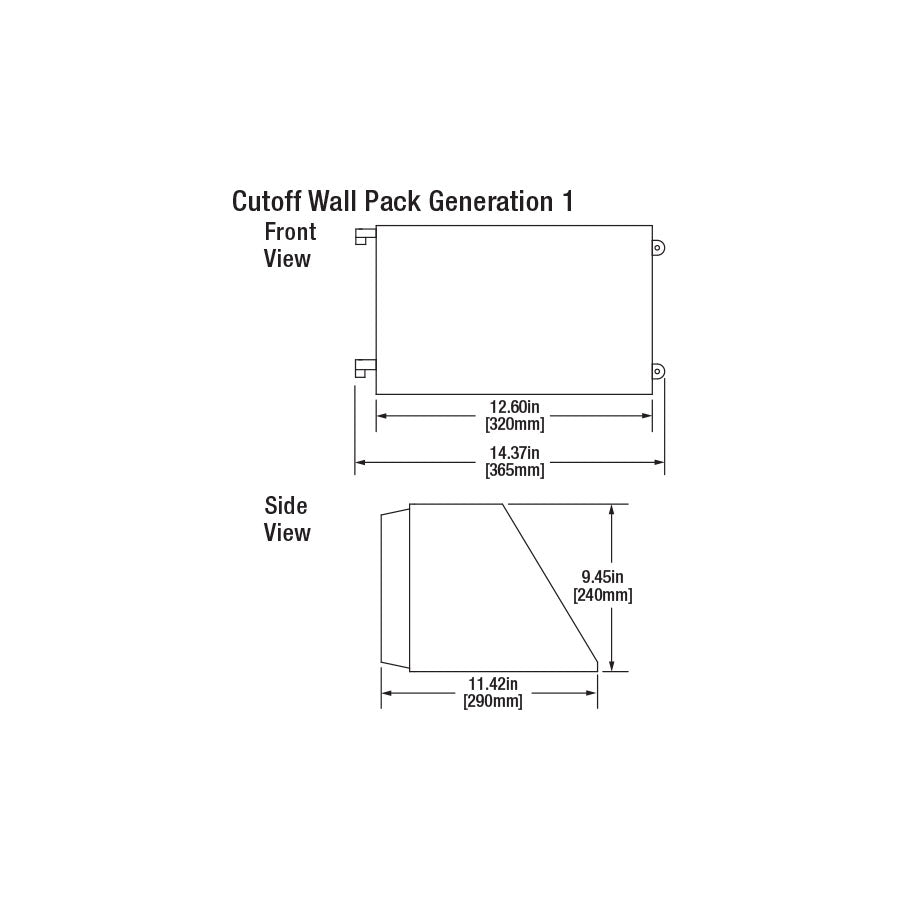

Height (in.)	9.45
Housing	Aluminum
Lamp Type	LED
Length (in.)	12.6
Lumens (lm)	3300
Luminaire Finish	Bronze
Luminaire Type	Wall pack
Rated Life (hr)	150000
Voltage (V)	120-277
Warranty	5 Years Limited
Wattage (W)	36
Weight (pds)	15
Width (in.)	11.42

Manual:

Sylvania 74186 Data Sheet
Installation Instructions Sheet
Fixture Compatibility List
Brochure
