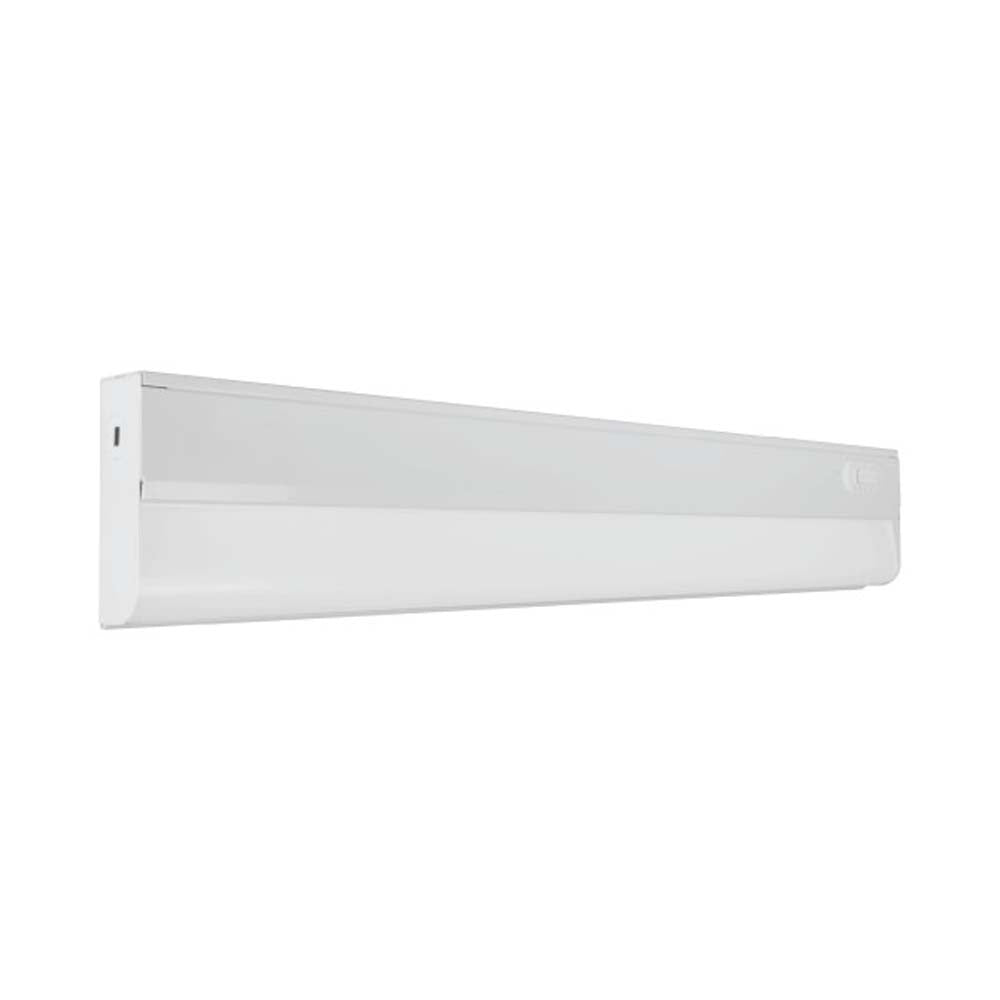

UCB Series 21-inch White Selectable LED Under Cabinet Light

Introducing NICOR's all-new UCB Series LED Under Cabinet Light with selectable color temperature, available in a sleek and compact design. The UCB is offered in 7 different sizes, ranging from 9" to 42" in length, offering versatile options to suit your needs. Each undercabinet fixture includes 5 Selectable Color Temperature outputs, ranging from warm white to daylight white. With advanced LED technology, the UCB achieves an impressive CRI rating of over 90 and an R9 over 50, ensuring exceptional light quality with vivid reds, accurate blues, and everything in-between. The sleek 1" profile design ensures the UCB remains discreetly hidden beneath cabinets, seamlessly enhancing ambient light in your kitchen. The specially designed diffuser lens helps to reduce hot spots and glare reflected up from countertops. Elevate your space with the brilliance of NICOR's UCB undercabinet lighting solution, backed by a 5-year limited warranty for your peace of mind.

Features:
- Includes one 21" LED Undercabinet Light with Hardware
- Designed for direct-wire installation at 120-Volts
- On/Off functionality controlled by wall switch
- Five Selectable Color Temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
- Produces up to 648 Lumens at 9-Watts (60W Equivalent)
- Superior light quality with 90+ CRI and 50+ R9 values
- Dimmable to 5% using standard TRIAC or ELV dimmers
- Polycarbonate diffused lens helps reduce hot spots and glare on countertops
- Durable powder-coated steel construction
- >50,000 hour lifespan backed by a 5-year limited warranty

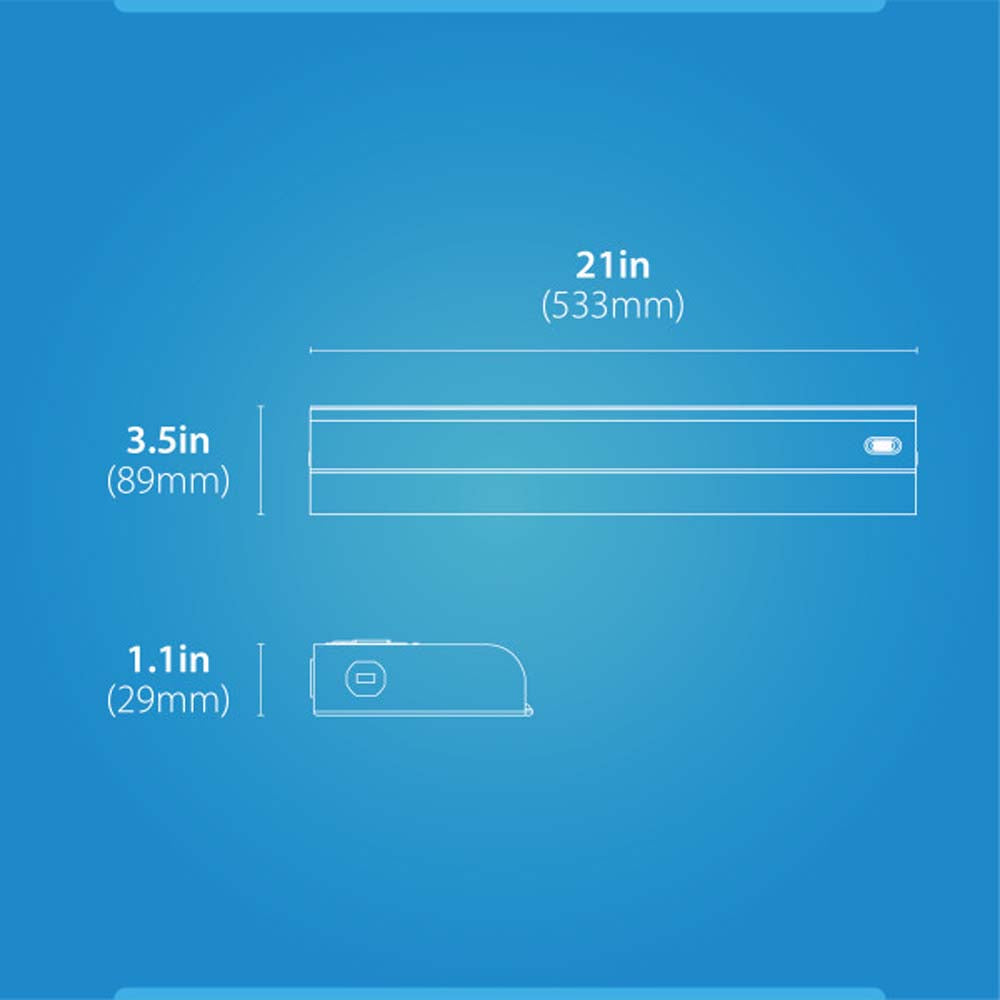

Size (in.)	21
Shape	Rectangle
Product Color	White
Finish	Gloss Powder Coat
Light Source	LED
Wattage	9
Wattage Equivalent	60
Voltage	120VAC
Lumen Output	612 (2700K), 621 (3000K), 630 (3500K), 639 (4000K), 648 (5000K)
Lumens Per Watt	68 (2700K), 69 (3000K), 70 (3500K), 71 (4000K), 72 (5000K)
Color Temperature (CCT)	5CCT Selectable (27K-30K-35K-40K-50K)
CRI	90
R9 Value	50
Dimmable	Yes
Dimming Type	TRIAC ELV
Operating Temperature	-4F to 113F (-20C to 45C)
Listings/Certifications	UL Certified, RoHS Compliant, FCC Class B, Damp Location, UL 1598 Listed, cUL 1598 Listed
Other Certifications	Testing performed in accordance with IESNA
Warranty (Years)	5 Year Limited

Manual:

UCB121SNWH Data Sheet
UCB121SNWH Installation Manual
