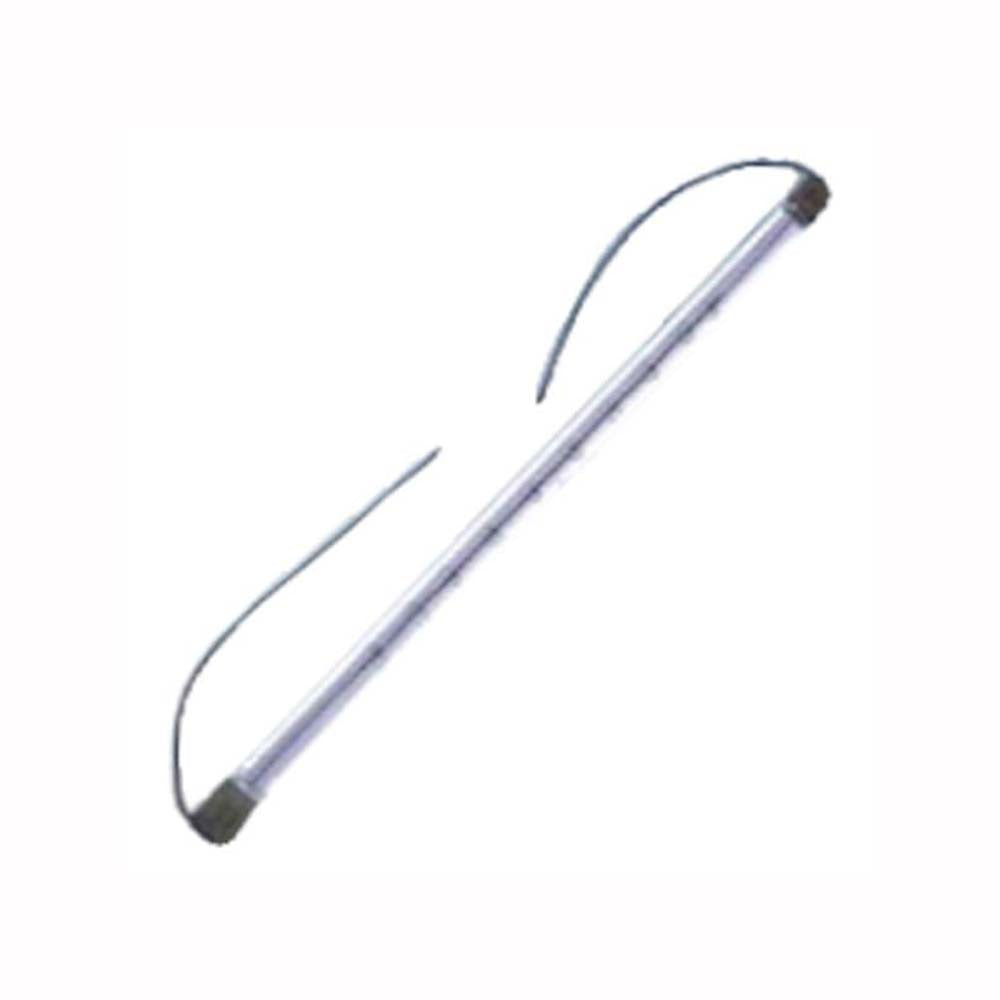

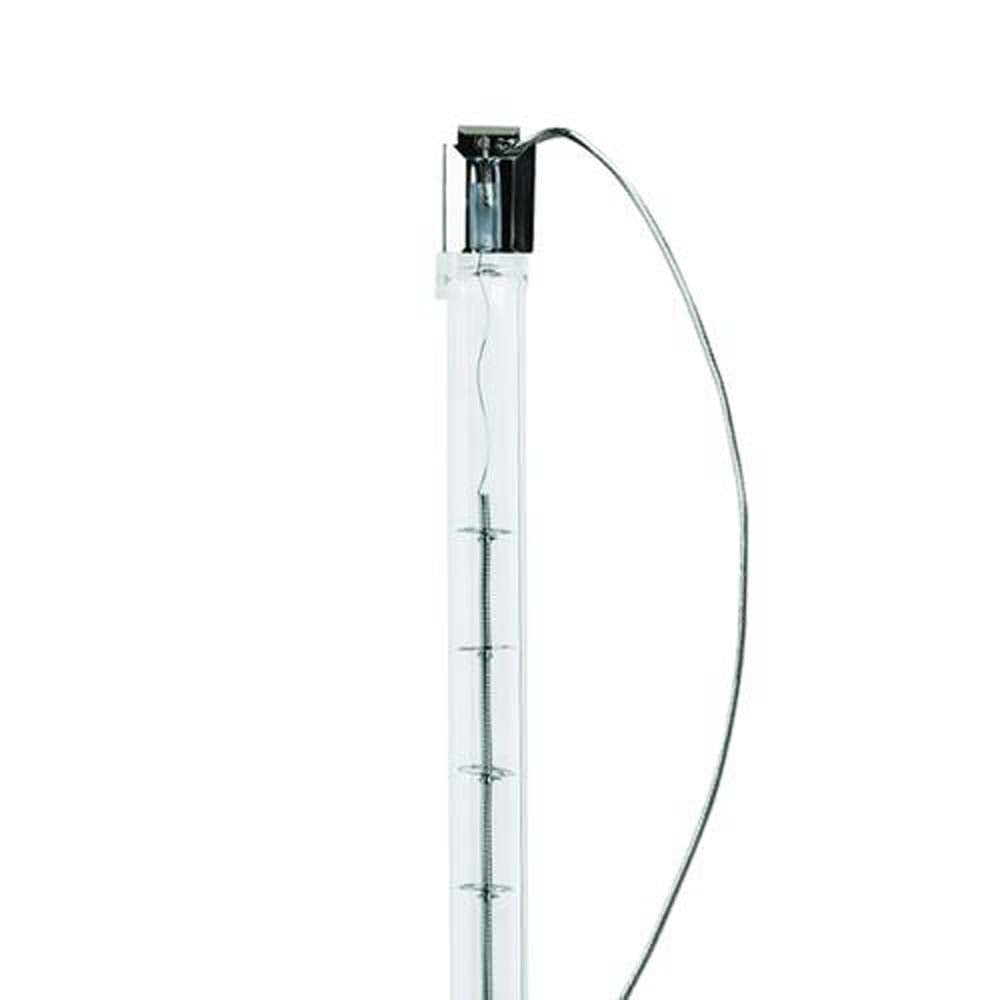

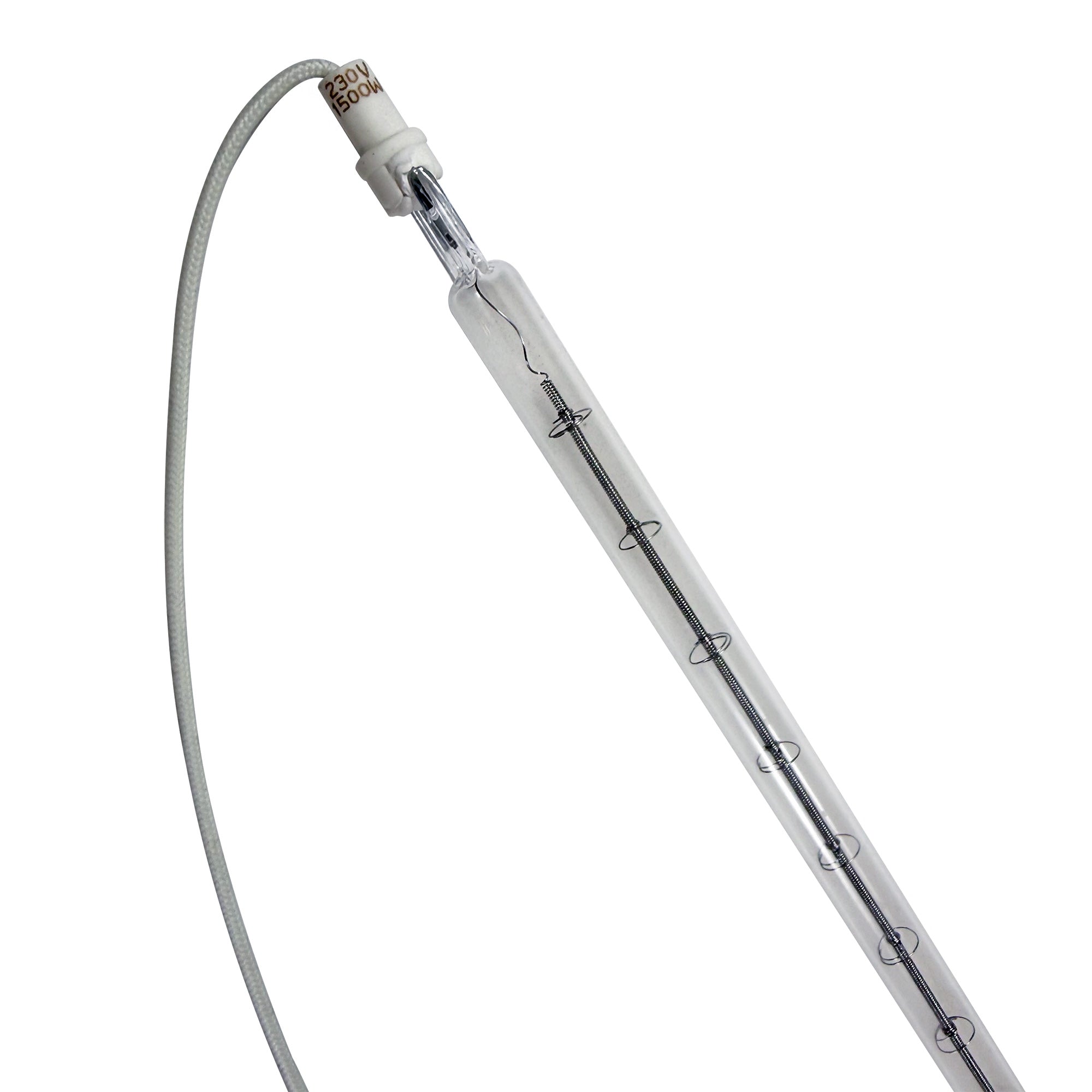

Ushio 1500w 230V QIH230-1500/ZL Quartz Infrared Heater Lamp

Ushio 1003235 - QIH230-1500/ZL Quartz Infrared Heater Lamp – 1500W / 230V

Deliver powerful, precise, and instantaneous heat with the Ushio QIH230-1500/ZL — a premium double-ended quartz infrared heater lamp engineered for demanding industrial, commercial, and scientific applications.
Operating at up to 95% energy-to-IR radiation conversion efficiency, this high-performance lamp reaches 90% of full output in under one second, making it ideal for processes requiring instant-on, instant-off heat control. Designed to deliver clean, precise, and controllable infrared heat, it is the go-to choice where high wattage density is required for high-speed production while maintaining even, controlled heat zones.

Key Specifications:
Wattage: 1500W
Voltage: 230V
Rated Average Life: 5,000 hours
Overall Length: 17 3/4 inch (453mm / Diameter: 10mm)

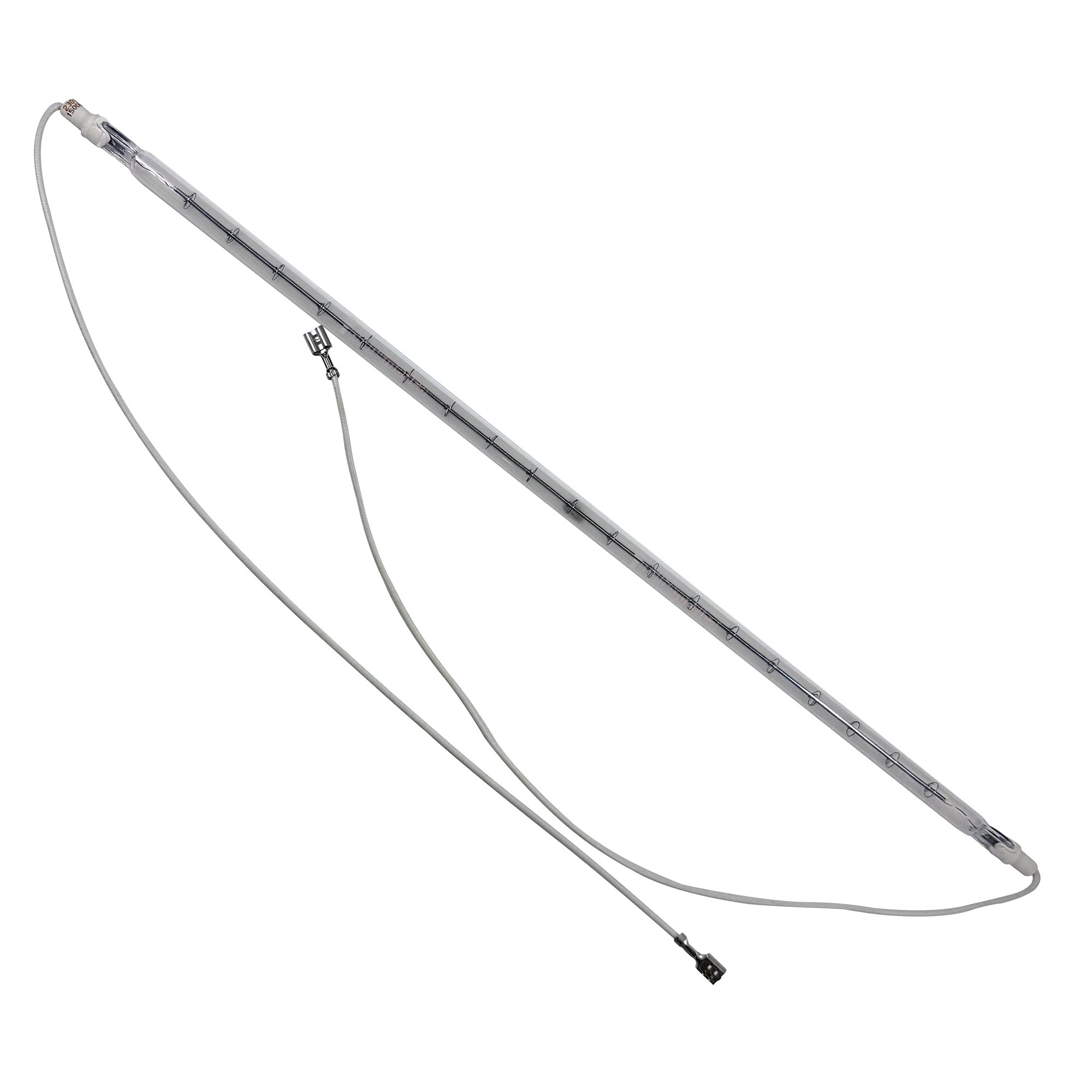

Base: Ceramic metal sleeve with lead wires (15 3/4 inch long) with female flat connector at each end
Burn Position: Horizontal
Ushio Item Code: 1003235

Performance Highlights:
Long service life typically exceeding 5,000 hours, with output maintenance of less than 10% drop over the lamp's lifetime. Variable power control capability allows precise temperature regulation across a wide range of applications.

Common Applications:
Baking, drying, curing, dehydrating, food warming, and general area heating. Also widely used in blow molding, graphic arts, medical and scientific equipment, and semiconductor processing. Additional uses include infant environment warming, heat therapy, spa and sauna heating, laboratory environmental control, and ink drying for graphic arts.

Why Choose Ushio?
Built using high-quality components and stringent manufacturing processes, Ushio's quartz infrared lamps are the preferred choice for industries requiring reliable, high-efficiency radiant heat with absolute controllability

ORDERING CODE	1003235
LAMP SERIES	Heater Infrared
PROD. ID / ANSI CODE	QIH-1502
DESCRIPTION	QIH230-1500/ZL
DESCRIPTION 2	1500W 230V
ITEM TYPE	Halogen
BASE	CERAMC
VOLTAGE	230
WATTAGE	1500
BURN POSITION	H4
BULB SHAPE	T3
BULB FINISH	CLEAR
COLOR TEMP (K)	2500
CONTACT TO CONTACT	17 3/4 inch (453mm)
FILAMENT	C-6
FRONT GLASS COVER	NO
LIFE (HR)	5000
DIAMETER (MM)	10

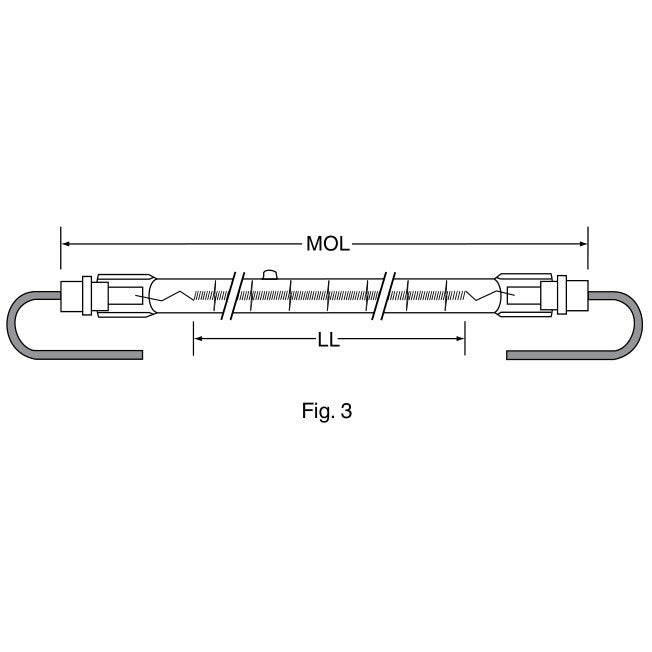

MOL	17 3/4 inch (453mm)
LIGHTED LENGTH (LM)	360

Manual:

Quartz Infrared Heater Lamps Catalog
