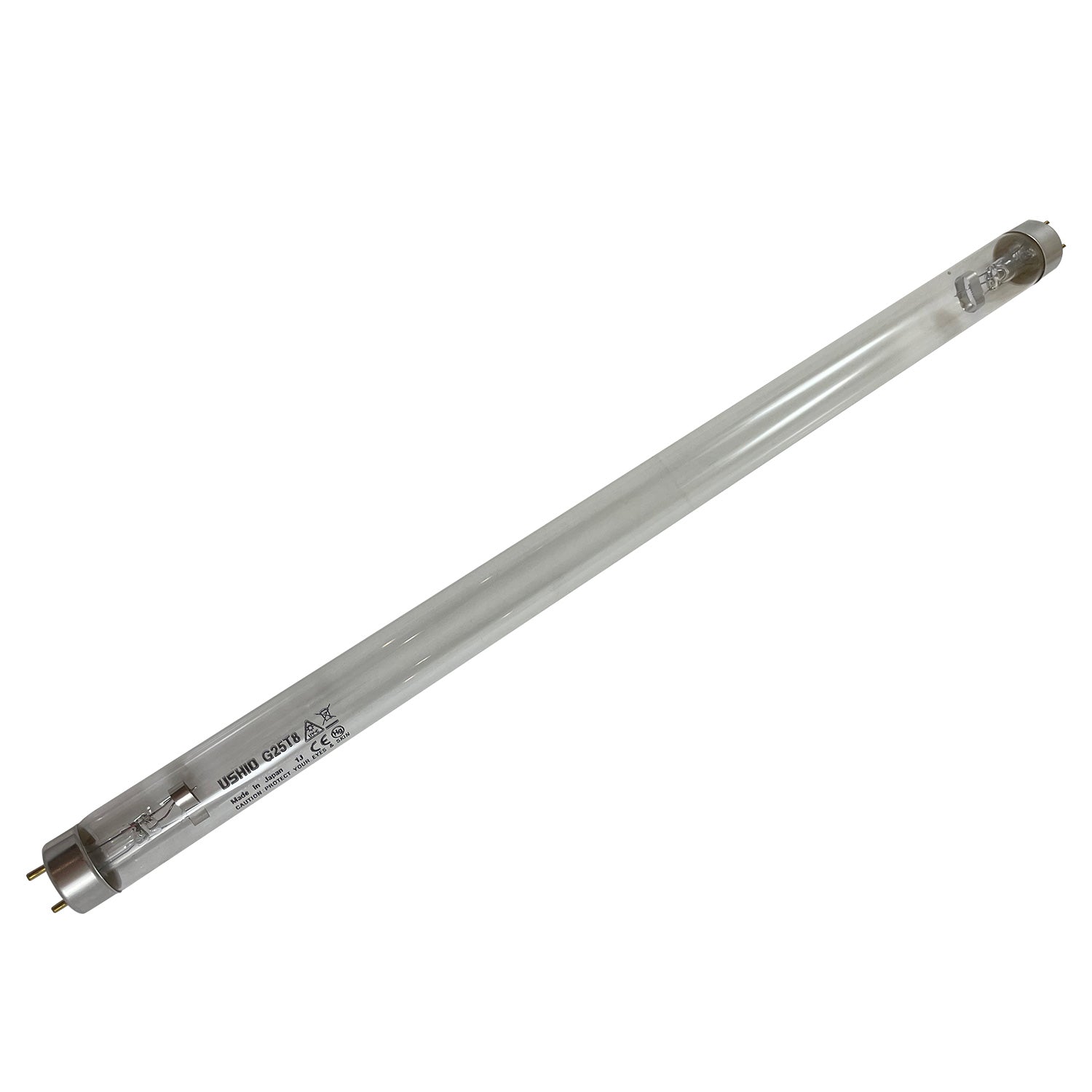

USHIO 3000008 G25T8 25 Watts G13 Base 46 Volts Germicidal Linear Tube

USHIO 3000008 G10T8 Germicidal lamps are low pressure mercury arc lamps that emit radiation peaking at 253.7nm (UV-C).
Designed by experienced engineers, and by using quality material in combination with a tightly controlled manufacturing process, we provide high quality lamps free of impurities to maintain strong and stable output throughout the life of the lamp.
Our USHIO G10T8 Germicidal lamps are manufactured at an ISO9001 certified facility. Emphasis on quality control and our large production capacity makes us an ideal OEM partner for providing consistent quality lamps with reliable delivery.
The USHIO 3000008 G10T8 lamps are components which may be used by customers to manufacture a variety of finished products.

FEATURES:
- Low Mercury Dose to Meet Environmental Demands
- Specially Formulated Coating Achieves High Output Over Long Life Hours
- High Purity Lamp Construction to Stabilize UV Output and Minimizes Depreciation (Averages 20-25% Depreciation at End of Life)
- Large Production Capacity Providing Lamps with Consistent Quality and Reliable Delivery
- Flexible Design Capability for Custom Lamp Development.

- EPA Approved: Ushio EPA # Est.96093-JPN-1
APPLICATIONS:
- Drinking Water
- Wastewater
- Air Conditioning System
- Pharmaceutical Processing
- Food Processing Facility
- Packaging Materials
- Laboratory/Research
- Photochemistry
- Clean Room
- Other Sterilization and Disinfection Needs

Product Series	Germicidal
Lamp Description	G25T8
Prod. ID / ANSI Code	GRM-0250
Item Type	Low Pressure UV
Base	G13
Shape	T8
Bulb Finish	Clear
Front Glass Cover	No
Wattage	25w
Volts	46v
Lamp current (A)	0.23
Length (in)	12.99
Diameter (in)	1
Spectral Peak	253.7
UV Output	2.7
Rated Life	8000 hours
Ozone Free	Yes
Case Qty	20
EPA Approved	Ushio EPA # Est.96093-JPN-1

Manual:

Ushio Germicidal Low Pressure Mercury Arc
