USHIO JCD24V-60W/ BA15d Double Contact Bayonet Base Halogen Bulb - 1000915

Ushio SKU: 1000915
$3199 $41.99 USD
236 in stock




1

Description

The Ushio 1000915 - JCD24V-60W/BA15D replacement bulb has a Ushio is a 60 watt 24 volt bulb.
The Ushio JCD24V-60W/BA15D replacement lamp has a part number of BC2350.

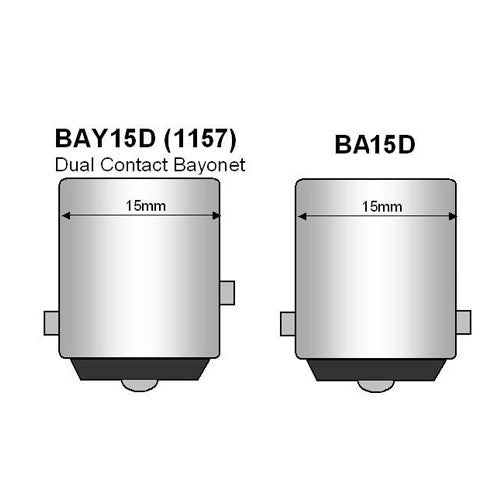

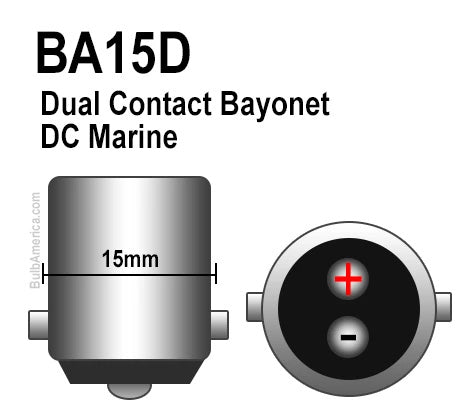

The Ushio 1000915 replacement bulb has a base BA15d Base (Double Contact Bayonet).
The maximum overall length is 2.382 inches or 60.5 millimeters with a diameter of 0.492 inches or 12.5 millimeters.

Features:
- ANSI Code: JCD24V-60W/BA15d
- Wattage: 60W
- Voltage: 24V
- Base: BA15d
- Average Rated Life: 500 hours

Specs

Prod. ID / Ansi code JCD-0062
Description JCD24V-60W/BA15d
Description 2 60W 24V
Item Type Halogen
Base BA15d
Voltage 24v
Wattage 60w
Burn Position BD/HZ
Bulb Shape G4
Bulb finish CLEAR
Efficacy (lm/W) 21
Filament CC-6
Front Glass cover No
Initial Lumens (lm) 1260
Luminous Flux (lm) 1260
Life (hr) 500
Diameter 0.65inch
Maximum Overall Length 2.35 inch
Lgiht Center Length (mm) 35
